2011 INFINITI QX navigation system

1. Side ventilator (P. 4-30)
2. Meters and gauges (P. 2-5)
3. Hazard warning flasher switch (P. 2-43)
4. Center ventilator (P. 4-30)5. Center multi-function control panel
(P. 4-3)
— Vehicle information and setting
buttons (P. 4-7) 6. Center display
— Around View Monitor (P. 4-19)
— Navigation system**
— DVD player operation (P. 4-58)
7. Clock (P. 2-51)
8. Defroster switch (P. 2-35)/Deicer switch* (P. 2-36)
9. Front passenger supplemental air bag (P. 1-50)
10. Fuse box (P. 8-23)
11. Parking brake (P. 5-19)
12. Hood release handle (P. 3-18)
13. Steering wheel — Horn (P. 2-44)
— Driver supplemental air bag (P. 1-50)
— Power steering system (P. 5-94)
14. Push-button ignition switch (P. 5-10)
15. Climate controlled seat switch* (P. 2-46)/Heated seat switch* (P. 2-44)
16. Remote tip-up 2nd row seat switch* (P. 1-8)
17. Heated steering wheel switch (P. 2-43)
18. Power outlet (P. 2-52)
19. Front passenger air bag status light (P. 1-57)
20. Cup holder (P. 2-54)
SSI0733
INSTRUMENT PANEL
0-8Illustrated table of contents

21. Automatic climate control system(P. 4-31)
22. Audio system (P. 4-40)
23. Glove box (P. 2-57)
*: if so equipped
**: Refer to the separate Navigation System
Owner’s Manual.
1. Tachometer (P. 2-7)
2. Warning/Indicator lights (P. 2-10)
3. Speedometer (P. 2-6)
4. Engine coolant temperature gauge (P. 2-7) 5. Voltmeter (P. 2-9)
6. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-21)
7. Engine oil pressure gauge (P. 2-8)
8. Fuel gauge (P. 2-8)
SIC4450
METERS AND GAUGES
Illustrated table of contents0-9

1. Side ventilator
2. Meters and gauges
3. Hazard indicator flasher switch
4. Center ventilator5.Center multi-function control panel
— Vehicle information and setting buttons
6. Center display — Around View Monitor
— Navigation system**
— DVD player operation 7. Clock
8. Defroster switch/Deicer switch*
9. Front passenger supplemental air bag
10. Fuse box
11. Parking brake
12. Hood release handle
13. Steering wheel
— Horn
— Driver supplemental air bag
— Power steering system
14. Push-button ignition switch
15. Climate controlled seat switch*/Heated seat switch*
16. Remote tip-up 2nd row seat switch*
17. Heated steering wheel switch
18. Power outlet
19. Front passenger air bag status light
20. Cup holder
21. Automatic air conditioning system
22. Audio system
23. Glove box*: if so equipped
**: Refer to the separate Navigation System
Owner’s Manual.
SSI0733
INSTRUMENT PANEL
2-4Instruments and controls

4. When activated, the hazard indicator willflash twice. When deactivated, the hazard
indicator will flash once.
5. The ignition switch must be placed in the OFF and ON position again between each
setting change.
When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition switch is placed in the OFF position. To
unlock the door manually, use the inside lock
knob or the power door lock switch (driver’s or
front passenger’s side).
CHILD SAFETY REAR DOOR LOCK
Child safety rear door locks help prevent doors
from being opened accidentally, especially
when small children are in the vehicle.
When the levers are in the lock position
1, the
rear doors can be opened only from the outside.
To disengage, move the levers to the unlock
position
2.
WARNING
● Radio waves could adversely affect electric
medical equipment. Those who use a pace-
maker should contact the electric medical
equipment manufacturer for the possible in-
fluences before use.
● The Intelligent Key transmits radio waves
when the buttons are pushed. The FAA ad-
vises that the radio waves may affect aircraft
navigation and communication systems. Do
not operate the Intelligent Key while on an
airplane. Make sure the buttons are not op-
erated unintentionally when the unit is
stored during a flight.
The Intelligent Key system can operate all the
door locks using the remote controller function
or pushing the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or con-
ditions may affect the Intelligent Key system
operation.
Be sure to read the following before using the
Intelligent Key system.
SPA2745
INTELLIGENT KEY SYSTEM
3-6Pre-driving checks and adjustments

WARNING
The Intelligent Key transmits radio waves when
the buttons are pushed. The FAA advises that
radio waves may affect aircraft navigation and
communication systems. Do not operate the
Intelligent Key while on an airplane. Make sure
the buttons are not operated unintentionally
when the unit is stored for a flight.
It is possible to lock/unlock all doors, fuel-filler
door, activate the panic alarm and open the
windows by pushing the buttons on the Intelli-
gent Key from outside the vehicle.
Before locking the doors, make sure the Intelli-
gent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelligent Key
can operate at a distance of approximately 33 ft
(10 m) from the vehicle. (The effective distance
depends upon the conditions around the ve-
hicle.)
As many as 4 Intelligent Keys can be used with
one vehicle. For information concerning the
purchase and use of additional Intelligent Keys,
contact an INFINITI retailer. The lock and unlock buttons on the Intelligent
Key will not operate when:
●
the distance between the Intelligent Key and
the vehicle is over 33 ft (10 m).
● the Intelligent Key battery runs down.
After locking with the remote keyless entry
function, pull the door handle to make sure the
doors are securely locked.
The LOCK/UNLOCK operating range varies de-
pending on the environment. To securely oper-
ate the lock and unlock buttons, approach the
vehicle to about 3 ft (1 m) from the door.
1LOCK button
2UNLOCK button
3Power lift gate button
4PANIC button
HOW TO USE REMOTE KEYLESS ENTRY
SYSTEM
When you lock or unlock the doors or the lift
gate, the hazard indicator will flash and the
horn (or the outside chime) will sound as a
confirmation. For details, see “Setting hazard
indicator and horn mode” later in this section.
SPA2436
REMOTE KEYLESS ENTRY SYSTEM
Pre-driving checks and adjustments3-15

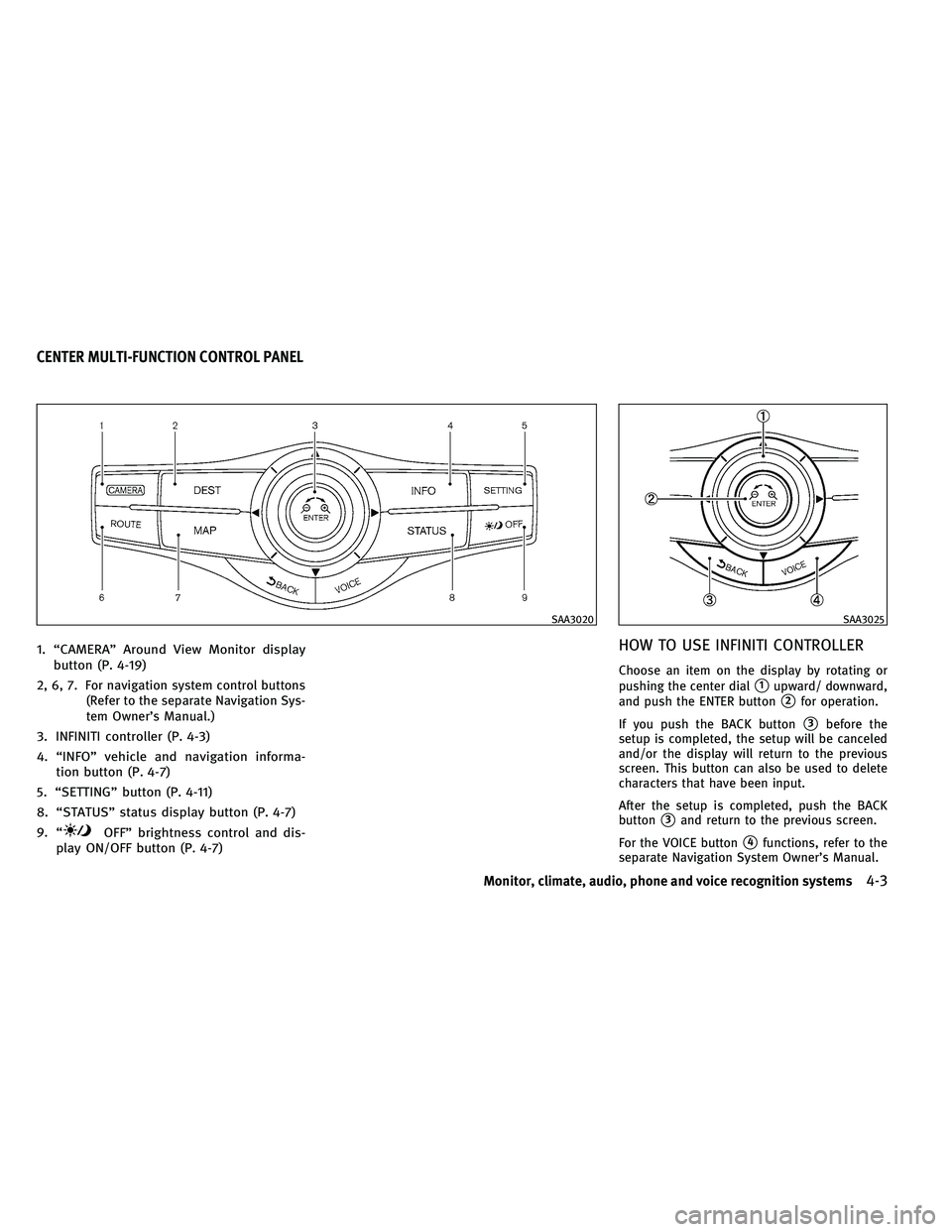

1. “CAMERA” Around View Monitor displaybutton (P. 4-19)
2, 6, 7. For navigation system control buttons (Refer to the separate Navigation Sys-
tem Owner’s Manual.)
3. INFINITI controller (P. 4-3)
4. “INFO” vehicle and navigation informa-tion button (P. 4-7)
5. “SETTING” button (P. 4-11)
8. “STATUS” status display button (P. 4-7)
9. “
OFF” brightness control and dis-
play ON/OFF button (P. 4-7)
HOW TO USE INFINITI CONTROLLER
Choose an item on the display by rotating or
pushing the center dial
1upward/ downward,
and push the ENTER button
2for operation.
If you push the BACK button
3before the
setup is completed, the setup will be canceled
and/or the display will return to the previous
screen. This button can also be used to delete
characters that have been input.
After the setup is completed, push the BACK
button
3and return to the previous screen.
For the VOICE button
4functions, refer to the
separate Navigation System Owner’s Manual.
SAA3020SAA3025
CENTER MULTI-FUNCTION CONTROL PANEL
Monitor, climate, audio, phone and voice recognition systems4-3

HOW TO USE TOUCH SCREEN
CAUTION
●The glass screen on the liquid crystal display
may break if it is hit with a hard or sharp
object. If the glass breaks, do not touch the
liquid crystalline material. In case of contact
with skin, wash immediately with soap and
water.
● To clean the display, use a soft, dry cloth. If
additional cleaning is necessary, use a small
amount of neutral detergent with a soft
cloth. Never use a rough cloth, alcohol, ben-
zine, thinner or any kind of solvent or paper
towel with a chemical cleaning agent. They
will scratch or deteriorate the panel.
● Do not splash any liquid such as water or car
fragrance on the display. Contact with liquid
will cause the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
● ALWAYS give your full attention to driving.
● Avoid using vehicle features that could dis-
tract you. If distracted, you could lose con-
trol of your vehicle and cause an accident.
Touch screen operation
With this system, the same operations as those
for the INFINITI controller are possible using the
touch screen operation.
Selecting the item :
Touch an item to select it. To select the “Audio”
settings, touch the “Audio” area
1on the
screen.
Touch the BACK
2button to return to the
previous screen.
SAA2473
4-4Monitor, climate, audio, phone and voice recognition systems

MENU OPTIONS
The start menu can be displayed using the
menu control switch on the steering-wheel-
mounted controls.
1. While the MAP or STATUS screen is dis-played, push and hold the menu control
switch until the “Menu Options” screen
appears.
2. Highlight the preferred item by tilting the menu control switch up or down, and then
push the menu control switch to select it.
Available items
Destination/Route :
These items are for the navigation system. See
the separate Navigation System Owner’s
Manual for details.
Info :
Displays the information screen. It is the same
screen that appears when you push the INFO
button.
Settings :
Displays the settings screen. It is the same
screen that appears when you push the SET-
TING button.
HOW TO SELECT MENUS ON THE
SCREEN
Vehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the INFINITI
controller and push the ENTER button.
Whenever a menu selection is made or menu
item is highlighted, different areas on the
screen provide you with important information.
See the following for details.
1. Header:
Shows the path used to get to the current
screen.
SAA3275SAA2476SAA2477
4-6Monitor, climate, audio, phone and voice recognition systems
