Entering from the side
The BSW indicator light illuminates if a vehicle
enters the detection zone from either side.
NOTE:
The radar sensors may not detect a vehicle
which is traveling at about the same speed as
your vehicle when it enters the detection zone.If the driver activates the turn signal, then the
BSW indicator light flashes and a chime will
sound twice.
NOTE:
If the driver activates the turn signal before a
vehicle enters the detection zone, the BSW indi-
cator light will flash but no chime will sound
when another vehicle is detected.
BSW temporarily not available
●
When radar blockage is detected, the BSW
system will be turned off automatically, a
beep will sound and the BSW system warn- ing light (orange) will blink. The BSW system
is not available until the condition no longer
exists.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water,
mist or fog. The blocked condition may also be
caused by objects such as ice, frost or dirt
obstructing the radar sensors.
Action to take:
When the above condition no longer exists, the
BSW system will resume automatically.
If the warning light (orange) continues to blink,
have the BSW system checked by an INFINITI
retailer.
BSW MALFUNCTION
When the BSW system malfunctions, they will
be turned off automatically, a beep will sound
and the BSW system warning light (orange) will
illuminate.
Action to take:
Stop the vehicle in a safe location, turn the
engine off and restart the engine.
If the warning light (orange) continues to illu-
minate, have the BSW system checked by an
INFINITI retailer.
SSD1037SSD1038
5-36Starting and driving

SYSTEM MAINTENANCE
The two radar sensor units1for the BSW
system is located near the rear bumper. Always
keep the area near the radar sensors clean. Do
not attach stickers (including transparent mate-
rial), install accessories or apply additional
paint near the radar sensors. Do not strike or
damage the area around the radar sensors.
Consult an INFINITI retailer if the area around
the radar sensors is damaged due to a collision.
Radio frequency statement
This device complies with part 15 of the FCC
Rules and RSS-310 of Industry Canada.
Operation is subject to the following two con-
ditions:
1. This device may not cause harmful inter- ference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Frequency of operation: 24.05GHz — 24.25GHz
Field Strength: Not greater than 2.5V/m peak
(0.25V/m average) at a distance of 3 m
The manufacturer is not responsible for any
radio or TV interference caused by unauthorized
modifications to this equipment. Such modifi-
cations could void the user’s authority to oper-
ate the equipment.
PRECAUTIONS ON CRUISE CONTROL
●If the cruise control system malfunctions, it
will cancel automatically. The CRUISE indica-
tor light on the meter panel will then blink to
warn the driver.
● If the engine coolant temperature becomes
excessively high, the cruise control system
will be canceled automatically.
● If the CRUISE indicator light blinks, turn the
cruise control main switch off and have the
system checked by your INFINITI retailer.
● The CRUISE indicator light may sometimes
blink when the cruise control main switch is
turned ON while pushing the RESUME/
ACCELERATE, SET/COAST or CANCEL switch.
To properly set the cruise control system,
perform the steps below in the order indi-
cated.
SSD1085
CRUISE CONTROL
Starting and driving5-37

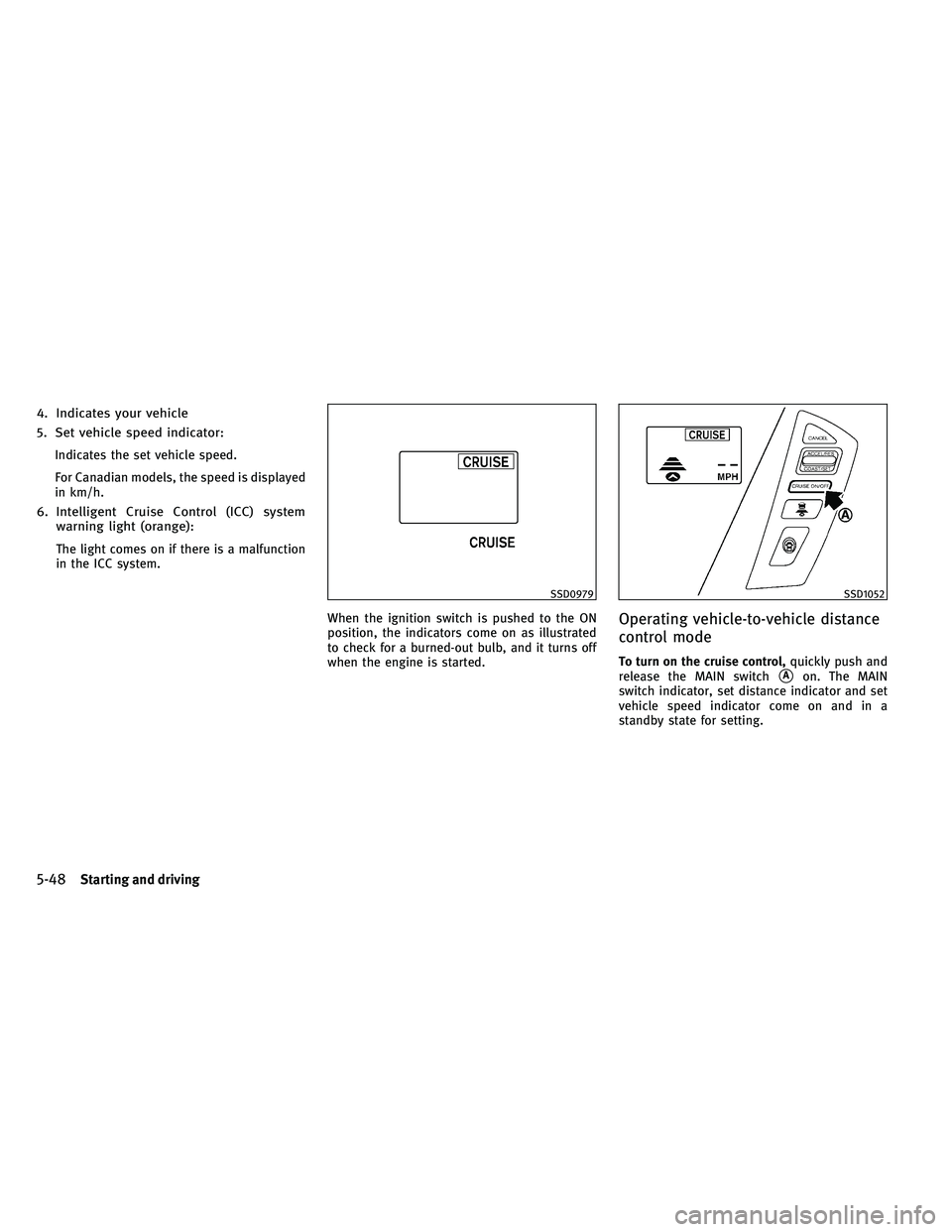

4. Indicates your vehicle
5. Set vehicle speed indicator:
Indicates the set vehicle speed.
For Canadian models, the speed is displayed
in km/h.
6. Intelligent Cruise Control (ICC) systemwarning light (orange):
The light comes on if there is a malfunction
in the ICC system.
When the ignition switch is pushed to the ON
position, the indicators come on as illustrated
to check for a burned-out bulb, and it turns off
when the engine is started.
Operating vehicle-to-vehicle distance
control mode
To turn on the cruise control,quickly push and
release the MAIN switch
Aon. The MAIN
switch indicator, set distance indicator and set
vehicle speed indicator come on and in a
standby state for setting.
SSD0979SSD1052
5-48Starting and driving

Condition C :
When the ICC system is not operating properly,
the chime sounds and the system warning light
(orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.If it is not possible to set the system or the
indicator stays on, it may indicate that the ICC
system is malfunctioning. Although the vehicle
is still driveable under normal conditions, have
the vehicle checked at an INFINITI retailer.Sensor maintenance
The sensor for the Intelligent Cruise Control
(ICC) system
Ais located below the front
bumper.
To keep the ICC system operating properly, be
sure to observe the following:
● Always keep the sensor clean. Wipe with a
soft cloth carefully so as not to damage the
sensor.
● Do not strike or damage the areas around
the sensor. Do not touch or remove the
screw located on the sensor. Doing so could
cause failure or malfunction. If the sensor is
damaged due to an accident, contact an
INFINITI retailer.
SSD0979SSD1047
Starting and driving5-57

To cancel the preset speed,use one of the
following methods:
a) Push the CANCEL button. The SET indica- tor will turn off.
b) Tap the brake pedal. The SET indicator will turn off.
c) Turn the MAIN switch off. Both the MAIN switch and SET indicator will turn off.
To reset at a faster cruising speed, use one of
the following three methods:
a) Depress the accelerator pedal. When the vehicle attains the desired speed, push
and release the SET/COAST switch.
b) Push and hold the RESUME/ACCELERATE set switch. When the vehicle attains the
desired speed, release the switch.
c) Push, then quickly release the RESUME/ACCELERATE switch. Each time
you do this, the set speed will increase by
about 1 MPH (1.6 km/h).
To reset at a slower cruising speed, use one of
the following three methods:
a) Lightly tap the brake pedal. When the vehicle attains the desired speed, push
the SET/COAST switch and release it. b) Push and hold the SET/COAST switch.
Release the switch when the vehicle
slows down to the desired speed.
c) Push, then quickly release the SET/COAST switch. Each time you do this, the set
speed will decrease by about 1 MPH (1.6
km/h).
To resume the preset speed, push and release
the RESUME/ACCELERATE switch. The vehicle
will resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h).
Automatic cancellation
A chime sounds under the following conditions
and the control is automatically canceled.
● When the vehicle slows down more than 8
MPH (13 km/h) below the set speed
● When the vehicle speed falls below approxi-
mately 20 MPH (32 km/h)
● When the selector lever is shifted to the N
(Neutral) position
● When the parking brake is applied
● When the VDC (including the traction control
system) operates.
● When a wheel slipsWarning light
When the system is not operating properly, the
chime sounds and the system warning light
(orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and then perform the
setting again.
If it is not possible to set or the indicator stays
on, it may indicate that the system is malfunc-
tioning. Although the vehicle is still driveable
under normal conditions, have the vehicle
checked at an INFINITI retailer.
SSD0979
Starting and driving5-61

●When the 4WD shift switch is in the 4H or 4L
position (for 4WD models)
● When driving into a strong light (i.e., sun-
light)
Action to take :
When the conditions listed above are no longer
present, turn the system off with the dynamic
driver assistance switch. Turn the DCA system
back on to use the system.
Condition B :
When the sensor window is dirty, making it
impossible to detect a vehicle ahead, the DCA
system is automatically canceled.
The chime sounds and the system warning light
(orange) will come on and the “CLEAN SENSOR”
indicator will appear.
Action to take :
If the warning light comes on, park the vehicle
in a safe place, turn the engine off. Clean the
sensor window with a soft cloth and then
perform the settings again.Condition C :
When the DCA system is not operating properly,
the chime sounds and the system warning light
(“CRUISE” orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, and turn on the DCA system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.
SSD0998SSD0999
5-74Starting and driving

●The system may not function when the dis-
tance to the vehicle ahead is extremely
close.
● The system is designed to automatically
check the sensor’s functionality. If the sen-
sor is covered with ice, a transparent or
translucent plastic bag, etc., the system may
not detect them. In these instances the sys-
tem may not be able to warn the driver prop-
erly. Be sure to check and clean the sensor
regularly.
● Excessive noise will interfere with the warn-
ing chime sound, and the chime may not be
heard.
● A sudden appearance of a vehicle in front
(i.e., it abruptly cuts in) may not be detected
and the system may not warn the driver soon
enough.
● The system will be cancelled automatically
with a beep sound and the IBA OFF indicator
light will illuminate under the following
conditions:
– When the sensor window is dirty
– When the system malfunctions If the IBA OFF indicator light
Ailluminates with
a beep sound, pull off the road to a safe
location, stop the vehicle and turn the engine
off. Check to see if the sensor window is dirty.
If the sensor window is dirty, clean it with a soft
cloth and restart the engine. If the sensor
window is not dirty, restart the engine. If the
IBA OFF indicator light continues to illuminate
even if the IBA system is turned on with the IBA
OFF switch
B, have the system checked by an
INFINITI retailer.
To turn on the IBA system, see “INTELLIGENT
BRAKE ASSIST (IBA) SYSTEM” later in this sec-
tion.
FCW system operation (Type A)
The FCW system is automatically turned on
when the engine is started and the warning
systems ON indicator light
1illuminates on
the warning systems switch. You can turn the
FCW system off by pushing the warning systems
switch on the instrument panel. This switch will
turn on and off the LDW, BSW and FCW systems
at the same time.
SSD1050
Warning systems switch
SSD0956
Starting and driving5-77

WARNING
●The system may detect highly reflective ob-
jects such as reflectors, signs, white mark-
ers and other stationary objects on the road
or near the traveling lane.
In extreme conditions, detection of these ob-
jects may cause the system to function.
● The system is designed to automatically
check the sensor’s functionality. If the sen-
sor is covered with ice, a transparent or
translucent plastic bag, etc., the system may not detect them. In these instances the sys-
tem may not be able to warn the driver prop-
erly. Be sure to check and clean the sensor
regularly.
● Excessive noise will interfere with the warn-
ing chime sound, and the chime may not be
heard.
● A sudden appearance of a vehicle in front
(i.e., it abruptly cuts in) may not be detected
and the system may not warn the driver soon
enough.
● The system will be cancelled automatically
with a beep sound and the IBA warning light
will illuminate under the following
conditions:
– When the sensor window is dirty
– When the system malfunctions
If the IBA OFF indicator light illuminates with a
beep sound, pull off the road to a safe location,
stop the vehicle and turn the engine off. Check
to see if the sensor window is dirty. If the
sensor window is dirty, clean it with a soft cloth
and restart the engine. If the sensor window is
not dirty, restart the engine. If the IBA OFF
indicator light continues to illuminate even if
the IBA system is turned on, have the system
checked by an INFINITI retailer.
IBA system operation
The IBA system will function when your vehicle
is driven at speeds of approximately 10 MPH (15
km/h) or above, and when the vehicle’s speed
is approximately 10 MPH (15 km/h) faster than
that of the vehicle ahead.
To turn the system off or on, push and hold the
IBA OFF switch
B(located on the lower side of
the instrument panel) for more than 1 second
after starting the engine. When the IBA OFF
indicator light
Aon the instrument panel turns
off and the IBA OFF switch is pushed, the
system will turn off and the IBA OFF indicator
light will illuminate. When the IBA OFF switch is
pushed again, the system will turn on and the
IBA OFF indicator light will turn off.
Reflectors on the road
SSD0782SSD1050
5-82Starting and driving
