2011 HYUNDAI VERACRUZ Owners Manual

Page 401 of 419

HYUNDAI VERACRUZ 2011  Owners Manual Maintenance
84
7

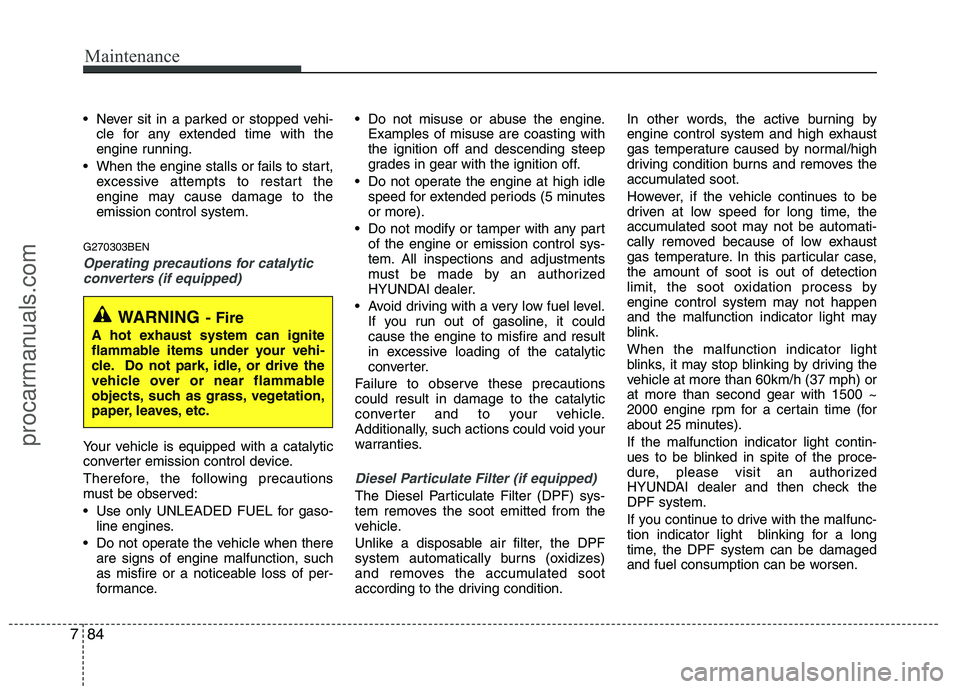

 Never sit in a parked or stopped vehi-
cle for any extended time with the
engine running.
 When the engine stalls or fails to start, excessive attempts to restart the
engine may cau

Page 402 of 419

HYUNDAI VERACRUZ 2011  Owners Manual 8
Dimensions / 8-2
Bulb wattage / 8-2
Tires and wheels / 8-3
Recommended lubricants and capacities / 8-5
Vehicle identification number (VIN) / 8-7
Vehicle certification label / 8-7
Tire specification

Page 403 of 419

HYUNDAI VERACRUZ 2011  Owners Manual Specifications & Consumer information
2
8
Item mm (in)
Overall length 4840 (190.6)
Overall width 1945 (76.6) / 1972 (77.6)* 1
Overall height  1750 (68.9) / 1795 (70.7)* 2
Front tread 1668 (65.7)
Rear

Page 404 of 419

HYUNDAI VERACRUZ 2011  Owners Manual 83
Specifications & Consumer information
TIRES AND WHEELS
* Normal load : Up to 3 persons
I020000BEN-EE
Inflation pressure
bar (psi, kPa)
Front Rear Front Rear
245/65R17 7.0J×17 2.2 2.2 2.5 2.8
24

Page 405 of 419

HYUNDAI VERACRUZ 2011  Owners Manual Specifications & Consumer information
4
8
* Normal load : Up to 3 persons
Inflation pressure
bar (psi, kPa)
Front Rear Front Rear
245/65R17 7.0J×17 2.1 2.1 2.3 2.3
245/60R18 7.0J×18 (30, 210) (30

Page 406 of 419

HYUNDAI VERACRUZ 2011  Owners Manual 85
Specifications & Consumer information
RECOMMENDED LUBRICANTS AND CAPACITIES
I040000CEN-EE
To help achieve proper engine and powertrain performance and durability, use only lubricants of the prop

Page 407 of 419

HYUNDAI VERACRUZ 2011  Owners Manual Specifications & Consumer information
6
8

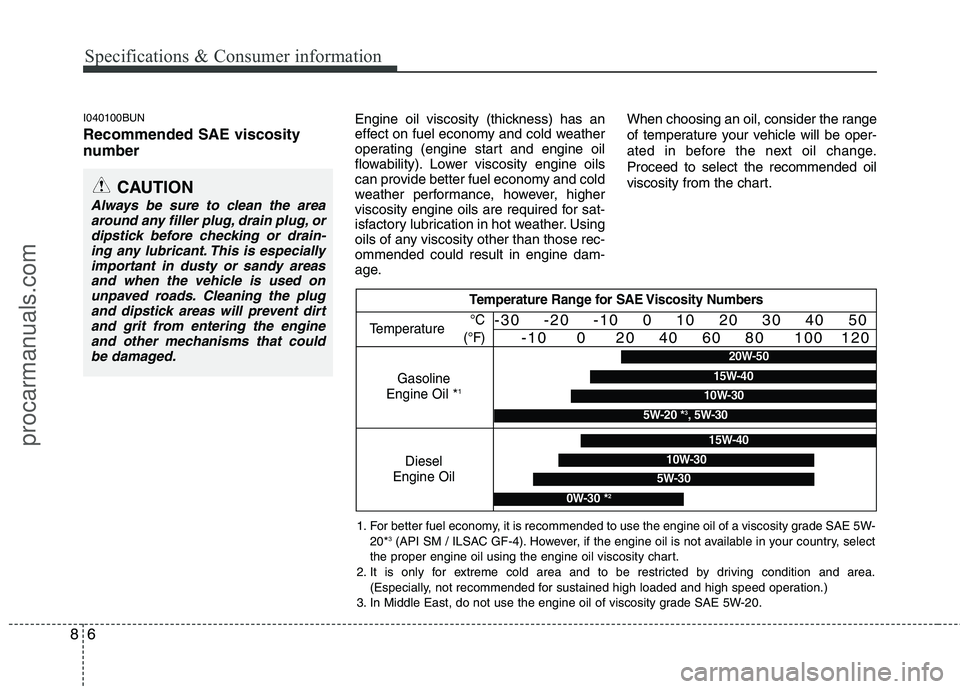

I040100BUN Recommended SAE viscosity
number    Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and e

Page 408 of 419

HYUNDAI VERACRUZ 2011  Owners Manual 87
Specifications & Consumer information
VEHICLE IDENTIFICATION NUMBER (VIN) H010000AEN
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pe
