2011 HYUNDAI VERACRUZ Owners Manual

Maintenance
68
7
G220101AEN
Headlight bulb1. Open the hood.
2. Loosen the retaining bolts and remove
the headlight assembly from the body
of the vehicle.
3. Disconnect the power connector from the back of the headlight assembly.
4. Remove the headlight bulb cover by turning it counter clockwise.
5. Disconnect the headlight bulb socket connector.
6. Unsnap the headlight bulb retaining wire by depressing the end and push-
ing it upward.
7. Remove the bulb from the headlight assembly.
(Continued)
If a bulb becomes damaged orcracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.
OHD076046OEN079062
WARNING - Halogen bulbs
Halogen bulbs contain pressur-
ized gas that will produce flying
pieces of glass if broken.
Always handle them carefully, and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never touchthe glass with bare hands.
Residual oil may cause the bulb
to overheat and burst when lit. A
bulb should be operated onlywhen installed in a headlight.
(Continued)
procarmanuals.com

769
Maintenance
8. Install a new headlight bulb and snapthe headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
9. Connect the headlight bulb socket connector.
10. Install the headlight bulb cover by turning it clockwise.
11. Connect the power connector to the back of the headlight assembly.
12. Reinstall the headlight assembly to the body of the vehicle.
✽✽NOTICE
If the headlight aiming adjustment is
necessary after the headlight assembly is
reinstalled, consult an authorized
HYUNDAI dealer.Position light bulb
1. Remove the socket from the assembly by pulling it out.
2. Remove the bulb by pulling it straight out.
3. Insert a new bulb into the socket.
4. Install the socket into the assembly by pushing it in. Turn signal light bulb
1. Remove the socket from the assembly
by turning the socket counter clock-
wise until the tabs on the socket align
with the slots on the assembly.
2. Remove the bulb from the socket by pressing it in and rotating it until the
tabs on the bulb align with the slots in
the socket. Pull the bulb out of the
socket.
3. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
4. Install the socket into the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
OEN079063OEN079064
procarmanuals.com

Maintenance
70
7
G220103AEN
Front fog light bulb replacement
1. Remove the front bumper under cover
and reach your hand into the back of
the front bumper.
2. Disconnect the power connector from the socket.
3. Remove the bulb-socket from the housing by turning the socket counter
clockwise until the tabs on the socketalign with the slots on the housing.
4. Install the new bulb-socket into the housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
5. Connect the power connector to the socket.
6. Reinstall the front bumper under cover. G220102BEN
Headlight (HID type) bulb replace-
ment
If the light bulb is not operating, have the
vehicle checked by an authorized
HYUNDAI dealer.
✽✽ NOTICE
HID lamps have superior performance vs.
halogen bulbs. HID lamps are estimated by
the manufacturer to last twice as long or
longer than halogen bulbs depending on their
frequency of use. They will probably require
replacement at some point in the life of the
vehicle. Cycling the headlamps on and off
more than typical use will shorten HID lamps
life. HID lamps do not fail in the same man-
ner as halogen incandescent lamps. If a head-
lamp goes out after a period of operation but
will immediately relight when the headlamp
switch is cycled it is likely the HID lamp needs
to be replaced. HID lighting components are
more complex than conventional halogen
bulbs thus have higher replacement cost.
G220200AEN
Side repeater light bulb replace- ment (if equipped)
If the light bulb is not operating, have the
vehicle checked by an authorized
HYUNDAI dealer.
WARNING - HID Headlight
low beam (if equipped)
Do not attempt to replace or
inspect the low beam (XENON bulb)
due to electric shock danger. If the
low beam (XENON bulb) is not
working, have your vehicle checked
by an authorized HYUNDAI Dealer
OEN079061OEN076031
procarmanuals.com

771
Maintenance
G220300CEN-EE
Rear combination light bulb replacement
(1) Tail light
(2) Back-up light
(3) Rear turn signal light(4) Stop and tail light
(5) Rear fog light (if equipped)Outside light
1. Open the tailgate.
2. Loosen the light assembly retainingscrews with a philips head screwdriver.
3. Remove the rear combination light assembly from the body of the vehicle. 4. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
OEN079032
OEN079033
Type A
Type B
OEN076034
OEN076035
OEN076036
OEN076037
procarmanuals.com

Maintenance
72
7
6. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
7. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
8. Reinstall the light assembly to the body of the vehicle.
Inside light
1. Open the tailgate.
2. Remove the service cover using a flat-blade screwdriver.
3. Loosen the light assembly retaining nuts with a wrench.
4. Remove the rear combination light assembly from the body of the vehicle. 5. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
6. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
OEN076054OEN076055
procarmanuals.com

773
Maintenance
7. Insert a new bulb by inserting it intothe socket and rotating it until it locks
into place.
8. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
9. Reinstall the light assembly to the body of the vehicle.
10. Install the service cover by putting it into the service hole. G220301AENRear fog light (if equipped)
1. Loosen the retaining screw and
remove the light assembly from the
body of the vehicle.
2. Remove the socket from the assembly by turning the socket counter clock-
wise until the tabs on the socket align
with the slots on the assembly.
3.
Remove the bulb from the socket bypressing it in and rotating it until the tabs
on the bulb align with the slots in the
socket. Pull the bulb out of the socket.
4. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place. 5. Install the socket into the assembly by
aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
6. Reinstall the light assembly to the body of the vehicle by tightening the
screw.
OEN076056OEN079065
procarmanuals.com

Maintenance
74
7

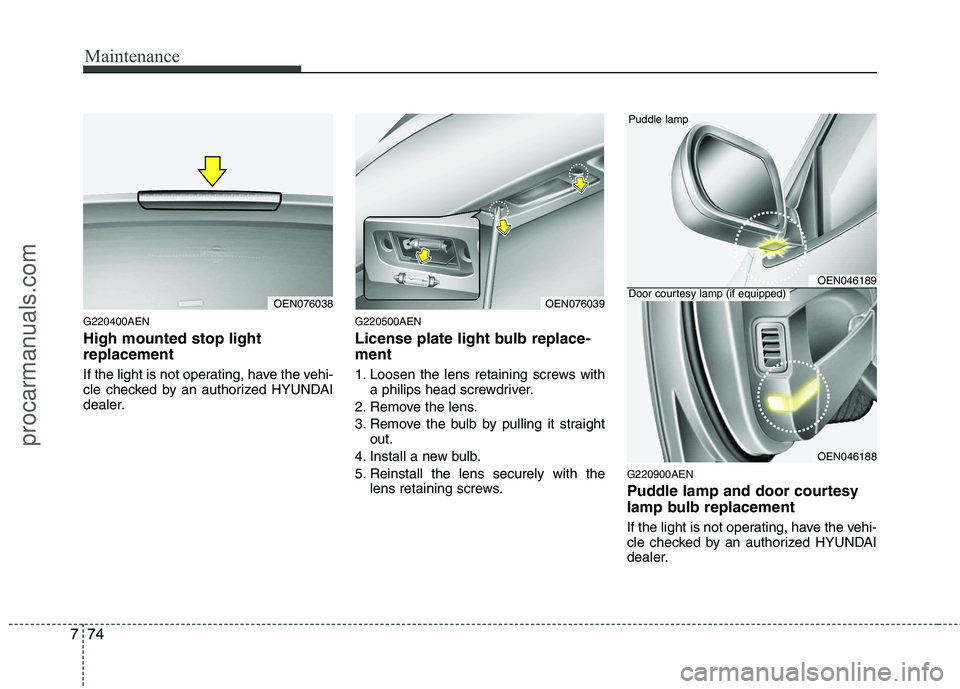

G220400AEN High mounted stop light replacement
If the light is not operating, have the vehi-
cle checked by an authorized HYUNDAI
dealer. G220500AEN
License plate light bulb replace- ment
1. Loosen the lens retaining screws with
a philips head screwdriver.
2. Remove the lens.
3. Remove the bulb by pulling it straight out.
4. Install a new bulb.
5. Reinstall the lens securely with the lens retaining screws. G220900AEN
Puddle lamp and door courtesy
lamp bulb replacement
If the light is not operating, have the vehi-
cle checked by an authorized HYUNDAI
dealer.
OEN076038OEN076039
OEN046189
OEN046188
Puddle lamp
Door courtesy lamp (if equipped)
procarmanuals.com

775
Maintenance
G220600AUN

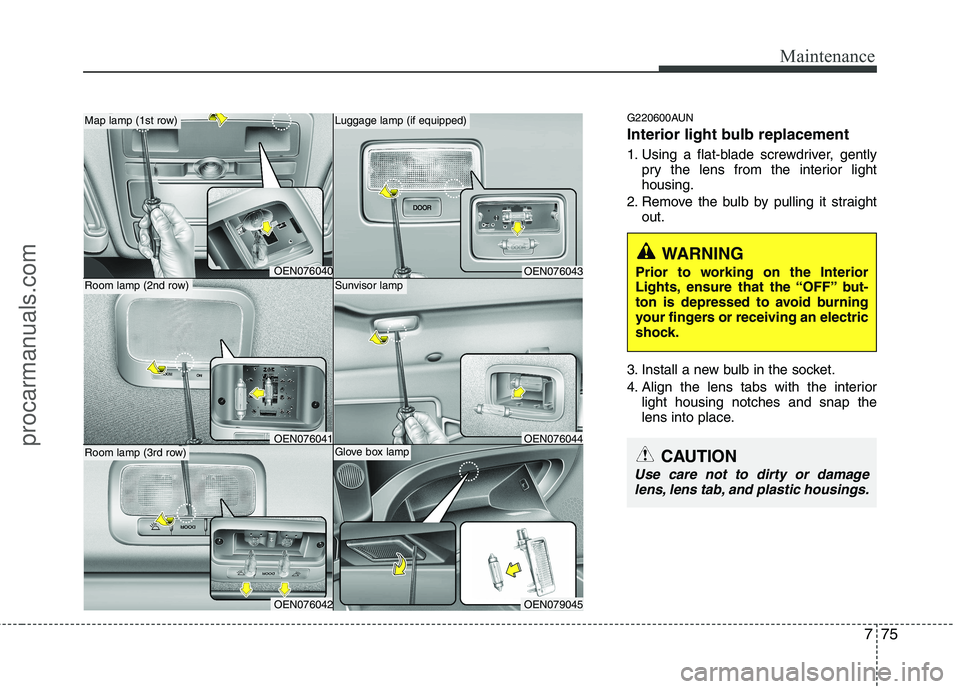

Interior light bulb replacement
1. Using a flat-blade screwdriver, gentlypry the lens from the interior light housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light housing notches and snap the
lens into place.
WARNING
Prior to working on the Interior
Lights, ensure that the “OFF” but-
ton is depressed to avoid burning
your fingers or receiving an electric
shock.
OEN076043
Luggage lamp (if equipped)
OEN076040
Map lamp (1st row)
OEN076042OEN079045
OEN076044
Sunvisor lamp
Glove box lampOEN076041
Room lamp (2nd row)
Room lamp (3rd row)CAUTION
Use care not to dirty or damage lens, lens tab, and plastic housings.
