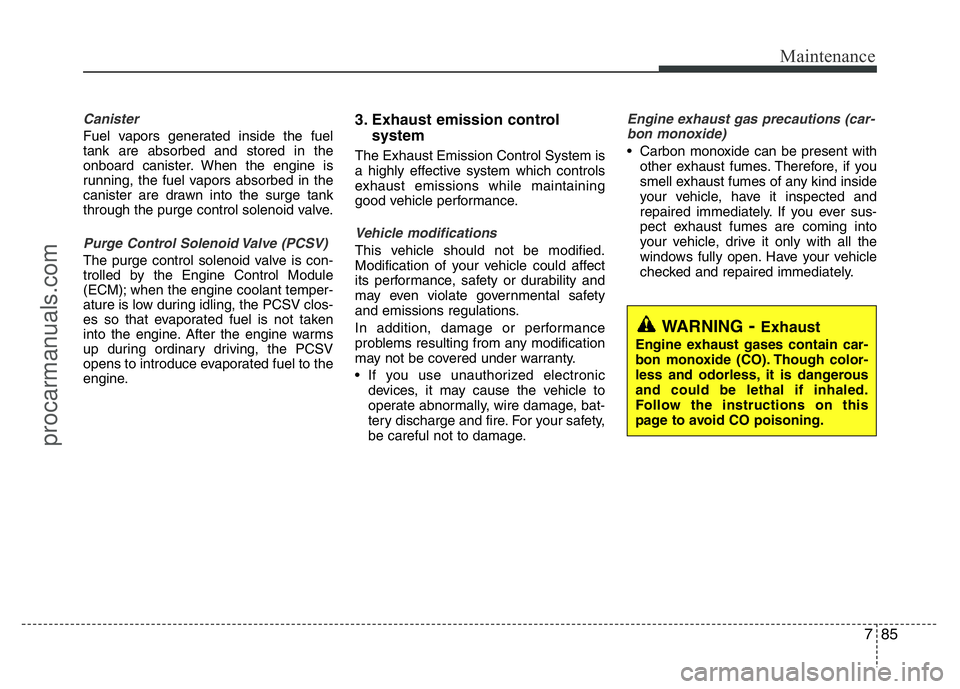

Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in the
canister are drawn into the surge tank
through the purge control solenoid valve.
Purge Control Solenoid Valve (PCSV)
The purge control solenoid valve is con-
trolled by the Engine Control Module
(ECM); when the engine coolant temper-
ature is low during idling, the PCSV clos-
es so that evaporated fuel is not taken
into the engine. After the engine warms
up during ordinary driving, the PCSV
opens to introduce evaporated fuel to the
engine.
3. Exhaust emission control
system
The Exhaust Emission Control System is
a highly effective system which controls
exhaust emissions while maintaining
good vehicle performance.
Vehicle modifications
This vehicle should not be modified.
Modification of your vehicle could affect
its performance, safety or durability and
may even violate governmental safety
and emissions regulations.
In addition, damage or performance
problems resulting from any modification
may not be covered under warranty.
• If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage, bat-
tery discharge and fire. For your safety,
be careful not to damage.
Engine exhaust gas precautions (car-
bon monoxide)
• Carbon monoxide can be present with
other exhaust fumes. Therefore, if you
smell exhaust fumes of any kind inside
your vehicle, have it inspected and
repaired immediately. If you ever sus-
pect exhaust fumes are coming into
your vehicle, drive it only with all the
windows fully open. Have your vehicle
checked and repaired immediately.
WARNING- Exhaust
Engine exhaust gases contain car-
bon monoxide (CO). Though color-
less and odorless, it is dangerous
and could be lethal if inhaled.
Follow the instructions on this
page to avoid CO poisoning.
procarmanuals.com
Page 378 of 386

• Do not operate the engine in confined
or closed areas (such as garages) any
more than what is necessary to move
the vehicle in or out of the area.
• When the vehicle is stopped in an
open area for more than a short time
with the engine running, adjust the
ventilation system (as needed) to draw
outside air into the vehicle.
• Never sit in a parked or stopped vehi-
cle for any extended time with the
engine running.
• When the engine stalls or fails to start,
excessive attempts to restart the
engine may cause damage to the
emission control system.Operating precautions for catalytic
converters (if equipped)Your vehicle is equipped with a catalytic
converter emission control device.
Therefore, the following precautions
must be observed:
• Use only UNLEADED FUEL for gaso-
line engine.
• Do not operate the vehicle when there
are signs of engine malfunction, such
as misfire or a noticeable loss of per-
formance.
• Do not misuse or abuse the engine.
Examples of misuse are coasting with
the ignition off and descending steep
grades in gear with the ignition off.
• Do not operate the engine at high idle
speed for extended periods (5 minutes
or more).
• Do not modify or tamper with any part
of the engine or emission control sys-
tem. All inspections and adjustments
must be made by an authorized
HYUNDAI dealer.
• Avoid driving with a extremely low fuel
level. Running out of fuel could cause
the engine to misfire, damaging the
catalytic converter.
Failure to observe these precautions
could result in damage to the catalytic
converter and to your vehicle.
Additionally, such actions could void your
warranties.
WARNING- Fire
• A hot exhaust system can ignite
flammable items under your vehi-
cle. Do not park, idle, or drive the
vehicle over or near flammable
objects, such as grass, vegeta-
tion, paper, leaves, etc.
• The exhaust system and catalytic
system are very hot while the
engine is running or immediately
after the engine is turned off.
Keep away from the exhaust sys-
tem and catalytic, you may get
burned. Also, do not remove the
heat sink around the exhaust sys-
tem, do not seal the bottom of the
vehicle or do not coat the vehicle
for corrosion control. It may pres-
ent a fire risk under certain con-
ditions.
786
Maintenance
procarmanuals.com
Page 379 of 386

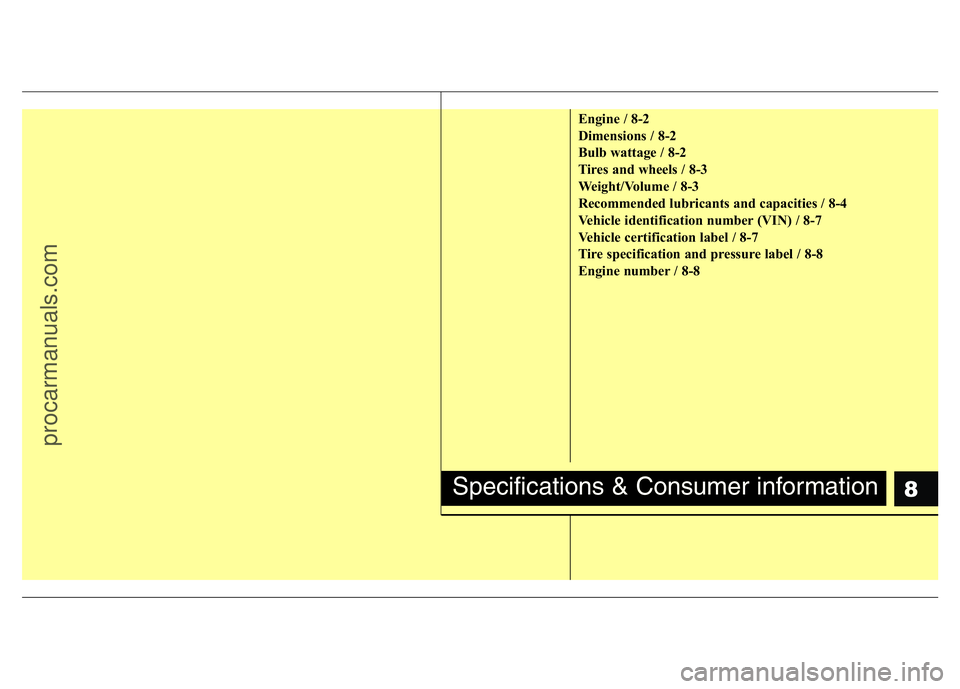

8
Engine / 8-2
Dimensions / 8-2
Bulb wattage / 8-2
Tires and wheels / 8-3
Weight/Volume / 8-3
Recommended lubricants and capacities / 8-4
Vehicle identification number (VIN) / 8-7
Vehicle certification label / 8-7
Tire specification and pressure label / 8-8
Engine number / 8-8
Specifications & Consumer information
procarmanuals.com
Page 380 of 386
Specifications & Consumer information
2 8

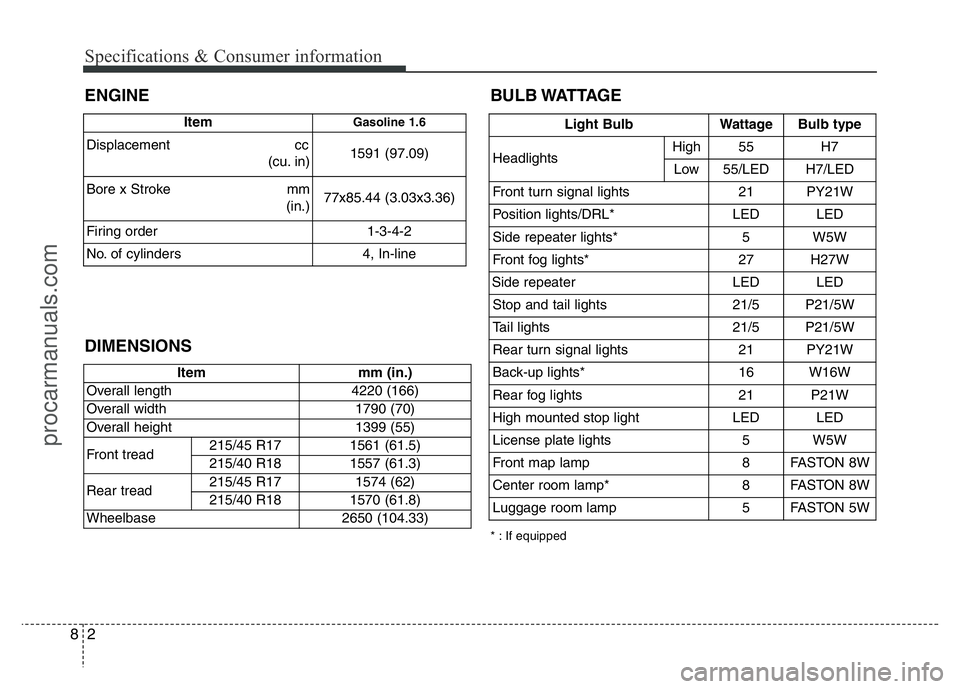

ENGINE
DIMENSIONS
Item mm (in.)
Overall length 4220 (166)
Overall width 1790 (70)
Overall height 1399 (55)
Front tread215/45 R17 1561 (61.5)
215/40 R18 1557 (61.3)
Rear tread215/45 R17 1574 (62)
215/40 R18 1570 (61.8)
Wheelbase 2650 (104.33)
ItemGasoline 1.6
Displacement cc
(cu. in) 1591 (97.09)
Bore x Stroke mm
(in.)77x85.44 (3.03x3.36)
Firing order 1-3-4-2
No. of cylinders 4, In-line
BULB WATTAGE
* : If equipped
Light BulbWattageBulb type
HeadlightsHigh55H7
Low55/LEDH7/LED
Front turn signal lights21PY21W
Position lights/DRL*LEDLED
Side repeater lights*5W5W
Front fog lights*27H27W
Side repeaterLEDLED
Stop and tail lights21/5P21/5W
Tail lights21/5P21/5W
Rear turn signal lights 21PY21W
Back-up lights*16W16W
Rear fog lights21P21W
High mounted stop lightLEDLED
License plate lights5W5W
Front map lamp8FASTON 8W
Center room lamp*8FASTON 8W
Luggage room lamp5FASTON 5W
procarmanuals.com
Page 381 of 386
83
Specifications & Consumer information

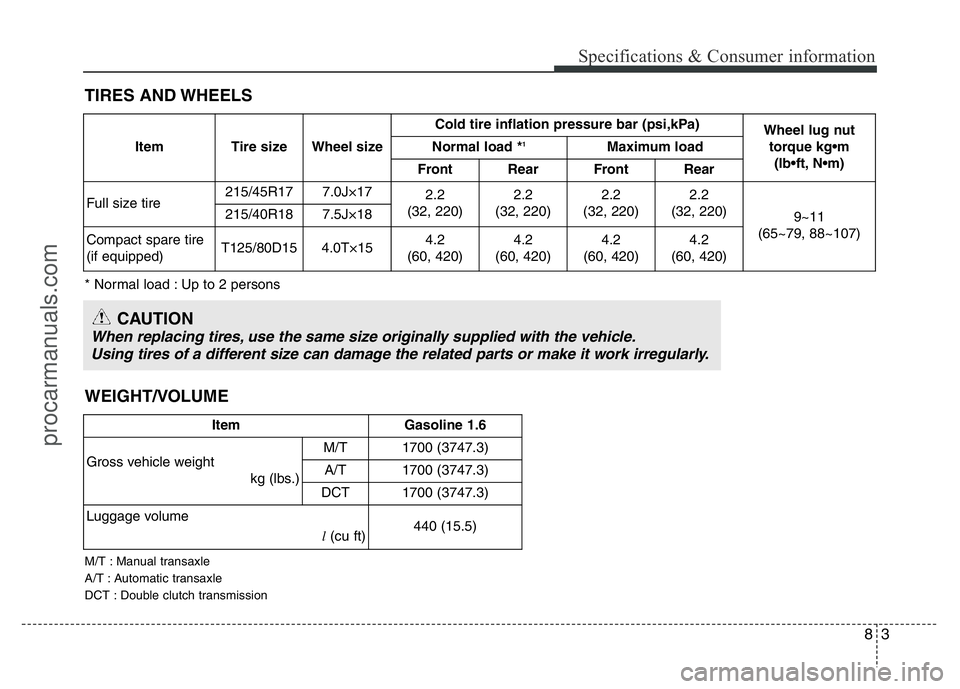

TIRES AND WHEELS
* Normal load : Up to 2 persons
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.
Item Tire size Wheel sizeCold tire inflation pressure bar (psi,kPa)
Wheel lug nut
torque kg•m
(lb•ft, N•m) Normal load *1Maximum load
Front Rear Front Rear
Full size tire215/45R17 7.0J×17
2.2
(32, 220)2.2
(32, 220)2.2
(32, 220)2.2
(32, 220)
9~11
(65~79, 88~107) 215/40R18 7.5J×18
Compact spare tire
(if equipped)T125/80D15 4.0T×154.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)
WEIGHT/VOLUME
Item Gasoline 1.6
Gross vehicle weight
kg (lbs.)M/T 1700 (3747.3)
A/T1700 (3747.3)
DCT1700 (3747.3)
Luggage volume
l(cu ft)440 (15.5)
M/T : Manual transaxle
A/T : Automatic transaxle
DCT : Double clutch transmission
procarmanuals.com
Page 382 of 386

Specifications & Consumer information
4 8

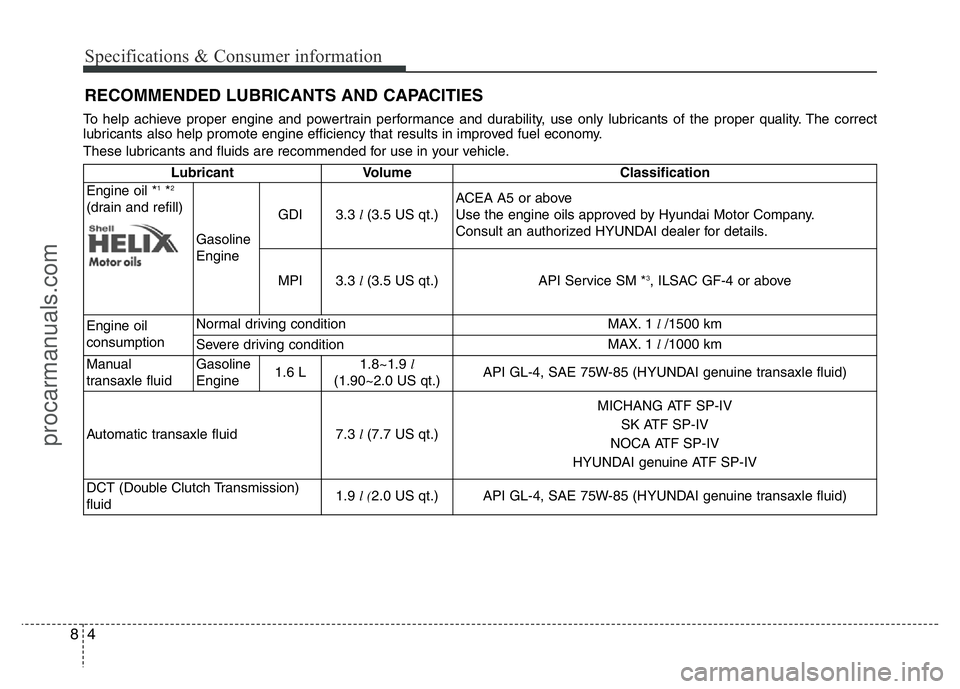

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *
1*2
(drain and refill)
Gasoline
EngineGDI3.3l (3.5 US qt.)ACEA A5 or above
Use the engine oils approved by Hyundai Motor Company.
Consult an authorized HYUNDAI dealer for details.
MPI3.3l (3.5 US qt.)API Service SM *3, ILSAC GF-4 or above
Engine oil
consumptionNormal driving conditionMAX. 1l /1500 km
Severe driving conditionMAX. 1l /1000 km
Manual
transaxle fluidGasoline
Engine1.6 L1.8~1.9l
(1.90~2.0 US qt.)API GL-4, SAE 75W-85 (HYUNDAI genuine transaxle fluid)
Automatic transaxle fluid7.3l (7.7 US qt.)
MICHANG ATF SP-IV
SK ATF SP-IV
NOCA ATF SP-IV
HYUNDAI genuine ATF SP-IV
DCT (Double Clutch Transmission)
fluid1.9l (2.0 US qt.)
API GL-4, SAE 75W-85 (HYUNDAI genuine transaxle fluid)
procarmanuals.com
Page 383 of 386
85
Specifications & Consumer information
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3: If the API service SM engine oil is not available in your country, you are able to use API service SL.Lubricant Volume Classification

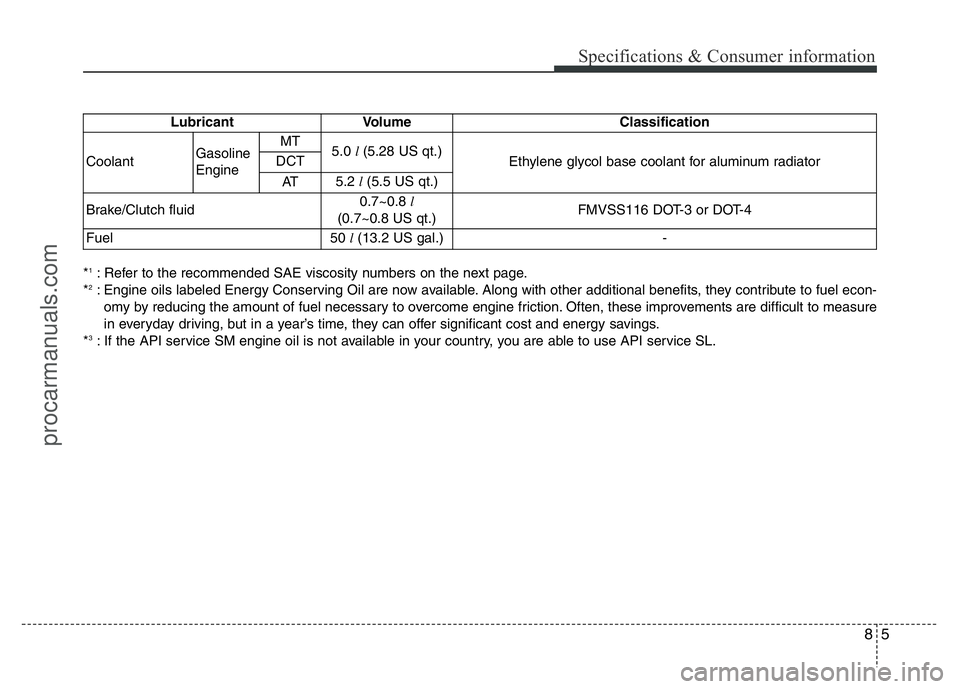

CoolantGasoline
EngineMT5.0 l (5.28 US qt.)Ethylene glycol base coolant for aluminum radiatorDCT
AT5.2 l (5.5 US qt.)
Brake/Clutch fluid0.7~0.8l
(0.7~0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel50l (13.2 US gal.)-
procarmanuals.com
Page 384 of 386

Specifications & Consumer information
6 8

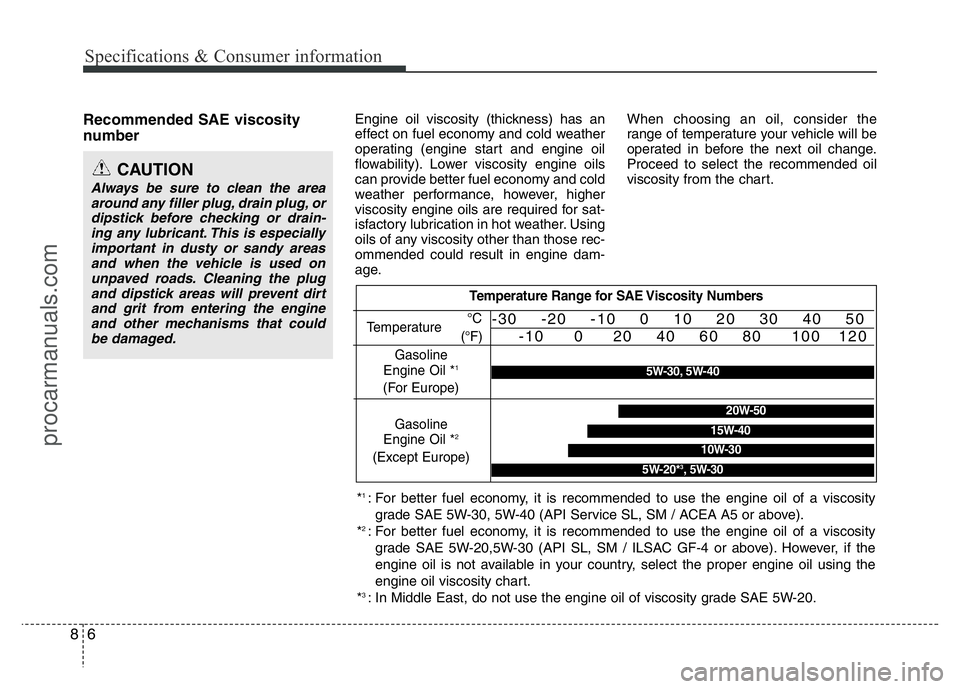

Recommended SAE viscosity
