2011 HYUNDAI VELOSTER Owners Manual

75
Maintenance
OWNER MAINTENANCE
The following lists are vehicle checks and
inspections that should be performed by
the owner or an authorized HYUNDAI
dealer at the frequencies indicated to
help ensure safe, dependable operation
of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance Checks are
generally not covered by warranties and
you may be charged for labor, parts and
lubricants used.Owner maintenance schedule
When you stop for fuel:
• Check the engine oil level.
• Check the coolant level in coolant
reservoir.
• Check the windshield washer fluid
level.
• Look for low or under-inflated tires.
While operating your vehicle:
• Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.
• Check for vibrations in the steering
wheel. Notice any increased steering
effort or looseness in the steering
wheel, or change in its straight-ahead
position.
• Notice if your vehicle constantly turns
slightly or “pulls” to one side when trav-
eling on smooth, level road.
• When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.
• If any slipping or changes in the oper-
ation of your transaxle occurs, check
the transaxle fluid level.
• Check automatic transaxle/double
clutch transmission P (Park) function.
• Check the parking brake.
• Check for fluid leaks under your vehicle
(water dripping from the air condition-
ing system during or after use is nor-
mal).
WARNING
Be careful when checking your
engine coolant level when the
engine is hot. Scalding hot coolant
and steam may blow out under
pressure. This could cause burns
or other serious injury.
procarmanuals.com

Maintenance
6 7
At least monthly:
• Check the coolant level in the engine
coolant reservoir.
• Check the operation of all exterior
lights, including the stoplights, turn sig-
nals and hazard warning flashers.
• Check the inflation pressures of all
tires including the spare.
At least twice a year
(i.e., every Spring and Fall):
• Check the radiator, heater and air con-
ditioning hoses for leaks or damage.
• Check the windshield washer spray
and wiper operation. Clean wiper
blades with clean cloth dampened with
washer fluid.
• Check the headlight alignment.
• Check the muffler, exhaust pipes,
shields and clamps.
• Check the lap/shoulder belts for wear
and function.
• Check for worn tires and loose wheel
lug nuts.
At least once a year:
• Clean the body and door drain holes.
• Lubricate the door hinges and checks,
and hood hinges.
• Lubricate the door and hood locks and
latches.
• Lubricate the door rubber weather-
strips.
• Check the air conditioning system.
• Inspect and lubricate automatic
transaxle linkage and controls.
• Clean the battery and terminals.
• Check the brake/clutch fluid level.
procarmanuals.com

77
Maintenance

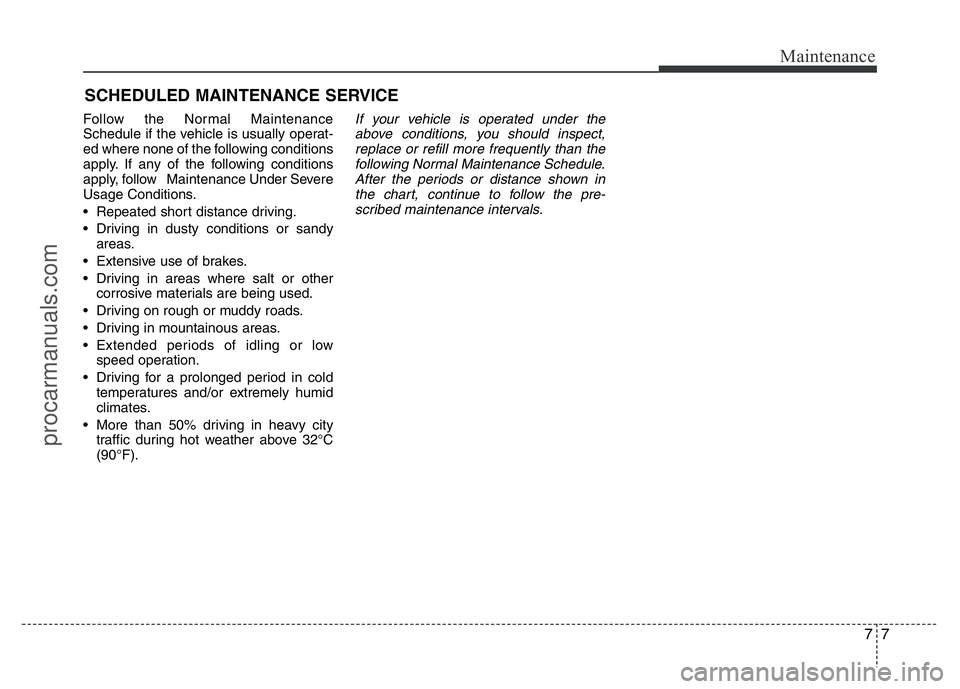

SCHEDULED MAINTENANCE SERVICE
Follow the Normal Maintenance
Schedule if the vehicle is usually operat-
ed where none of the following conditions
apply. If any of the following conditions
apply, follow Maintenance Under Severe
Usage Conditions.
• Repeated short distance driving.
• Driving in dusty conditions or sandy
areas.
• Extensive use of brakes.
• Driving in areas where salt or other
corrosive materials are being used.
• Driving on rough or muddy roads.
• Driving in mountainous areas.
• Extended periods of idling or low
speed operation.
• Driving for a prolonged period in cold
temperatures and/or extremely humid
climates.
• More than 50% driving in heavy city
traffic during hot weather above 32°C
(90°F).If your vehicle is operated under the
above conditions, you should inspect,
replace or refill more frequently than the
following Normal Maintenance Schedule.
After the periods or distance shown in
the chart, continue to follow the pre-
scribed maintenance intervals.
procarmanuals.com

Maintenance
8 7
NORMAL MAINTENANCE SCHEDULE - FOR EUROPE
The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all
vehicle emission services to protect your warranty. Where both mileage and time are shown, the frequency of service is deter-
mined by whichever occurs first.
*
1: Inspect and if necessary correct or replace. Inspect drive
belt tensioner, idler and alternator pulley and if necessary
correct or replace.
*
2: Check the engine oil level and leak every 500 km (350
miles) or before starting a long trip.
*
3: If the recommended oil is not available, replace engine oil
and engine oil filter every 15,000 km.
*
4: The engine oil level should be checked regularly and main-
tained properly. Operating with an insufficient amount of oil
can damage the engine, and such damage is not covered
by warranty.
*
5: If good quality gasolines meet Europe Fuel standards
(EN228) or equivalents including fuel additives is not avail-
able, one bottle of additive is recommended. Additives are
available from your authorized HYUNDAI dealer along with
information on how to use them. Do not mix other additives.*
6: Inspect for excessive valve noise and/or engine vibration
and adjust if necessary. An authorized HYUNDAI dealer
should perform the operation.
*
7: Fuel filter is considered to be maintenance free but period-
ic inspection is recommended for this maintenance sched-
ule depends on fuel quality. If there are some important mat-
ters like fuel flow restriction, surging, loss of power, hard
starting problem etc, replace the fuel filter immediately
regardless of maintenance schedule and consult an author-
ized HYUNDAI dealer for details.
*
8: When adding coolant, use only deionized water or soft
water for your vehicle and never mix hard water in the
coolant filled at the factory. An improper coolant mixture can
result in serious malfunction or engine damage.
*
9: Manual transaxle fluid/Double clutch transmission fluid
should be changed anytime they have been submerged in
water.
procarmanuals.com

79
Maintenance
NORMAL MAINTENANCE SCHEDULE -FOR EUROPE (CONT.)
15,000 km (10,000 miles)/12months
❑ Add fuel additives *5
(Add every 15,000km (10,000miles) or 12 months)
❑ Replace engine oil and engine oil filter (MPI engine) *2 *3 *4
(Replace every 15,000km (10,000miles) or 12months
30,000 km (20,000 miles)/12months
❑ Inspect air cleaner filter
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake pedal, clutch pedal (if equipped)
❑ Inspect brake/clutch fluid
❑ Inspect disc brakes and pads (if equipped)
❑ Inspect drive shaft and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and engine oil filter (GDI) *
2*3*4
(Replace every 30,000km (20,000 miles) or 12 months)
60,000 km (40,000 miles) /24months
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake pedal, clutch pedal (if equipped)
❑ Inspect brake/clutch fluid
❑ Inspect cooling system
(At first, inspect at 60,000km (40,000 miles) or 48 months :
After that, inspect every 30,000km (20,000 miles) or 24
months)
❑ Inspect disc brakes and pads (if equipped)
❑ Inspect double clutch transmission fluid (if equipped) *
9
❑ Inspect drive shaft and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect Fuel filter *
7
❑ Inspect fuel lines, hoses and connections
❑ Inspect fuel tank air filter
❑ Inspect manual transaxle fluid (if equipped) *
9
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
(Continued)
procarmanuals.com

Maintenance
10 7
NORMAL MAINTENANCE SCHEDULE -FOR EUROPE (CONT.)
90,000km (60,000 miles)/36months
❑ Inspect air cleaner filter
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake pedal, clutch pedal (if equipped)
❑ Inspect brake/clutch fluid
❑ Inspect cooling system
(At first, inspect at 60,000km (40,000 miles) or 48 months :
After that, inspect every 30,000km (20,000 miles) or 24
months)
❑ Inspect disc brakes and pads (if equipped)
❑ Inspect drive belts *
1
❑ Inspect drive shaft and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Inspect valve clearance *
6
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and engine oil filter (GDI engine) *2 *3 *4
(Continued)
❑ Inspect vapor hose and fuel filler cap
❑ Replace air cleaner filter
❑ Replace climate control air filter (if equipped)
❑ Replace spark plugs (MPI engine)
❑ Replace engine oil and engine oil filter *
2*3*4
(Replace every 30,000km (20,000 miles) or 12 months)
procarmanuals.com

711
Maintenance

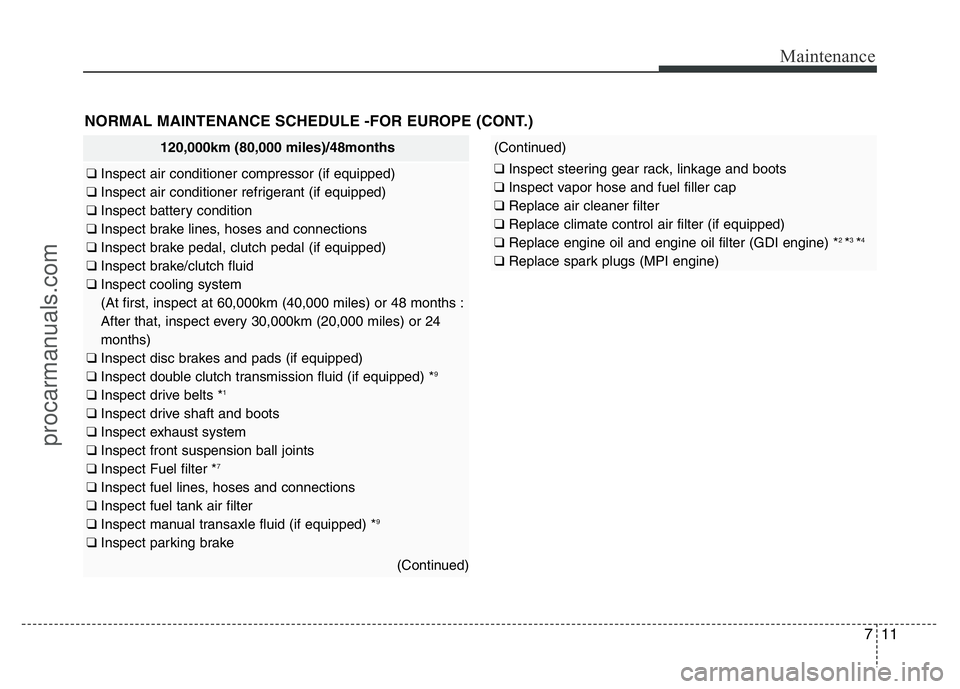

NORMAL MAINTENANCE SCHEDULE -FOR EUROPE (CONT.)
120,000km (80,000 miles)/48months
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake pedal, clutch pedal (if equipped)
❑ Inspect brake/clutch fluid
❑ Inspect cooling system
(At first, inspect at 60,000km (40,000 miles) or 48 months :
After that, inspect every 30,000km (20,000 miles) or 24
months)
❑ Inspect disc brakes and pads (if equipped)
❑ Inspect double clutch transmission fluid (if equipped) *
9
❑ Inspect drive belts *1
❑ Inspect drive shaft and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect Fuel filter *
7
❑ Inspect fuel lines, hoses and connections
❑ Inspect fuel tank air filter
❑ Inspect manual transaxle fluid (if equipped) *
9
❑ Inspect parking brake
(Continued)
(Continued)
❑ Inspect steering gear rack, linkage and boots
❑ Inspect vapor hose and fuel filler cap
❑ Replace air cleaner filter
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and engine oil filter (GDI engine) *
2 *3 *4
❑ Replace spark plugs (MPI engine)
procarmanuals.com

Maintenance
12 7
NORMAL MAINTENANCE SCHEDULE -FOR EUROPE (CONT.)
150,000km (100,000 miles)/60months
❑ Inspect air cleaner filter
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake pedal, clutch pedal (if equipped)
❑ Inspect brake/clutch fluid
❑ Inspect cooling system
(At first, inspect at 60,000km (40,000 miles) or 48 months :
After that, inspect every 30,000km (20,000 miles) or 24
months)
❑ Inspect disc brakes and pads (if equipped)
❑ Inspect drive belts *
1
❑ Inspect drive shaft and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and engine oil filter (GDI engine) *
2 *3 *4
180,000km (120,000 miles)/72months
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake pedal, clutch pedal (if equipped)
❑ Inspect brake/clutch fluid
❑ Inspect cooling system
(At first, inspect at 60,000km (40,000 miles) or 48 months :
After that, inspect every 30,000km (20,000 miles) or 24
months)
❑ Inspect disc brakes and pads (if equipped)
❑ Inspect double clutch transmission fluid (if equipped) *
9
❑ Inspect drive belts *1
❑ Inspect drive shaft and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect Fuel filter *
7
❑ Inspect fuel lines, hoses and connections
❑ Inspect fuel tank air filter
❑ Inspect manual transaxle fluid (if equipped) *
9
❑ Inspect parking brake
(Continued)
procarmanuals.com
