2011 HYUNDAI VELOSTER Owners Manual

415
Features of your vehicle

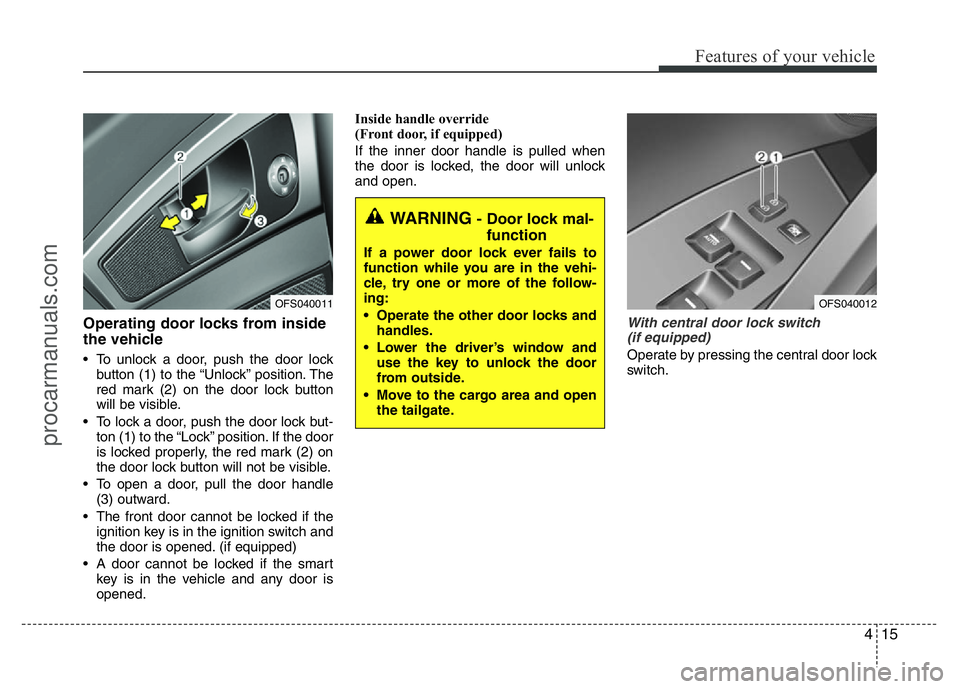

Operating door locks from inside
the vehicle
• To unlock a door, push the door lock
button (1) to the “Unlock” position. The
red mark (2) on the door lock button
will be visible.
• To lock a door, push the door lock but-
ton (1) to the “Lock” position. If the door
is locked properly, the red mark (2) on
the door lock button will not be visible.
• To open a door, pull the door handle
(3) outward.
• The front door cannot be locked if the
ignition key is in the ignition switch and
the door is opened. (if equipped)
• A door cannot be locked if the smart
key is in the vehicle and any door is
opened.Inside handle override
(Front door, if equipped)
If the inner door handle is pulled when
the door is locked, the door will unlock
and open.
With central door lock switch
(if equipped)
Operate by pressing the central door lock
switch.
OFS040011
WARNING - Door lock mal-
function
If a power door lock ever fails to
function while you are in the vehi-
cle, try one or more of the follow-
ing:
• Operate the other door locks and
handles.
• Lower the driver’s window and
use the key to unlock the door
from outside.
• Move to the cargo area and open
the tailgate.
OFS040012
procarmanuals.com

Features of your vehicle
16 4
• When pushing down on the front por-
tion (1) of the switch, all vehicle doors
will lock.
• When pushing down on the rear por-
tion (2) of the switch, all vehicle doors
will unlock.
• If the key is in the ignition switch and
front door is opened, the doors will not
lock even though the front portion (1)
of central door lock switch is pressed.
• If the smart key is in the vehicle and
any door is opened, the doors will not
lock even though the front portion(1) of
central door lock switch is pressed.
✽NOTICE
If the doors are locked with the tranmit-
ter or smart key, the doors cannot be
unlocked with the central door lock/
unlock switch. (if equipped)
WARNING- Unlocked
vehicles
Leaving your vehicle unlocked can
invite theft or possible harm to you
or others from someone hiding in
your vehicle while you are gone.
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
WARNING- Unattended
children
An enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended chil-
dren or animals who cannot escape
the vehicle. Furthermore, children
might operate features of the vehi-
cle that could injure them, or they
could encounter other harm, possi-
bly from someone gaining entry to
the vehicle. Never leave children or
animals unattended in your vehicle.
WARNING - Doors
• The doors should always be fully
closed and locked while the vehi-
cle is in motion to prevent acci-
dental opening of the door.
Locked doors will also discour-
age potential intruders when the
vehicle stops or slows.
• Be careful when opening doors
and watch for vehicles, motorcy-
cles, bicycles or pedestrians
approaching the vehicle in the
path of the door. Opening a door
when something is approaching
can cause damage or injury.
procarmanuals.com

417
Features of your vehicle

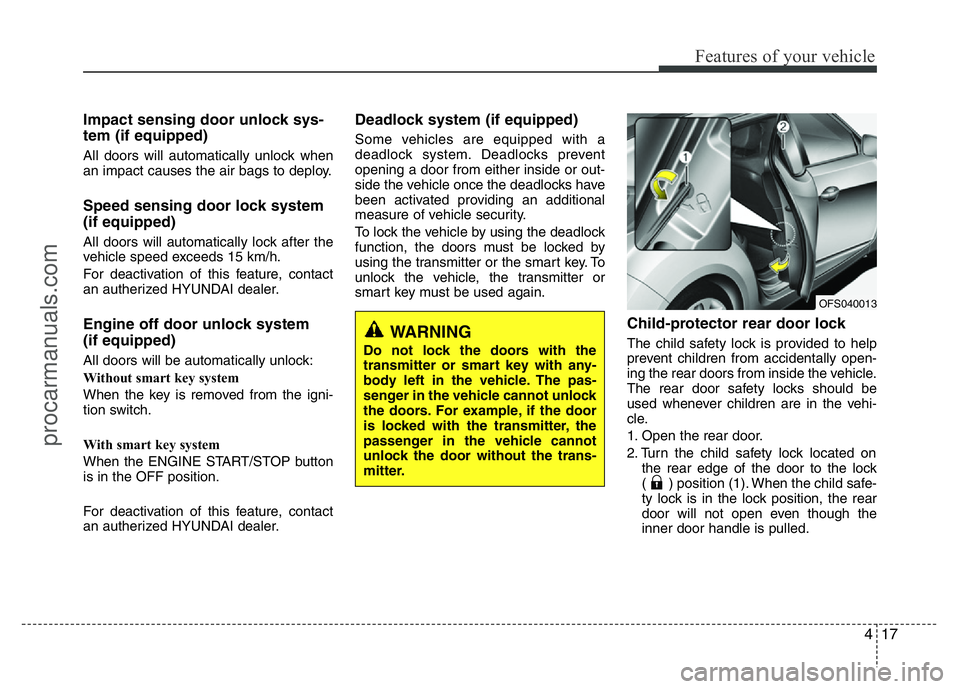

Impact sensing door unlock sys-
tem (if equipped)
All doors will automatically unlock when
an impact causes the air bags to deploy.
Speed sensing door lock system
(if equipped)
All doors will automatically lock after the
vehicle speed exceeds 15 km/h.
For deactivation of this feature, contact
an autherized HYUNDAI dealer.
Engine off door unlock system
(if equipped)
All doors will be automatically unlock:
Without smart key system
When the key is removed from the igni-
tion switch.
With smart key system
When the ENGINE START/STOP button
is in the OFF position.
For deactivation of this feature, contact
an autherized HYUNDAI dealer.
Deadlock system (if equipped)
Some vehicles are equipped with a
deadlock system. Deadlocks prevent
opening a door from either inside or out-
side the vehicle once the deadlocks have
been activated providing an additional
measure of vehicle security.
To lock the vehicle by using the deadlock
function, the doors must be locked by
using the transmitter or the smart key. To
unlock the vehicle, the transmitter or
smart key must be used again.
Child-protector rear door lock
The child safety lock is provided to help
prevent children from accidentally open-
ing the rear doors from inside the vehicle.
The rear door safety locks should be
used whenever children are in the vehi-
cle.
1. Open the rear door.
2. Turn the child safety lock located on
the rear edge of the door to the lock
( ) position (1). When the child safe-
ty lock is in the lock position, the rear
door will not open even though the
inner door handle is pulled.
OFS040013
WARNING
Do not lock the doors with the
transmitter or smart key with any-
body left in the vehicle. The pas-
senger in the vehicle cannot unlock
the doors. For example, if the door
is locked with the transmitter, the
passenger in the vehicle cannot
unlock the door without the trans-
mitter.
procarmanuals.com

Features of your vehicle
18 4

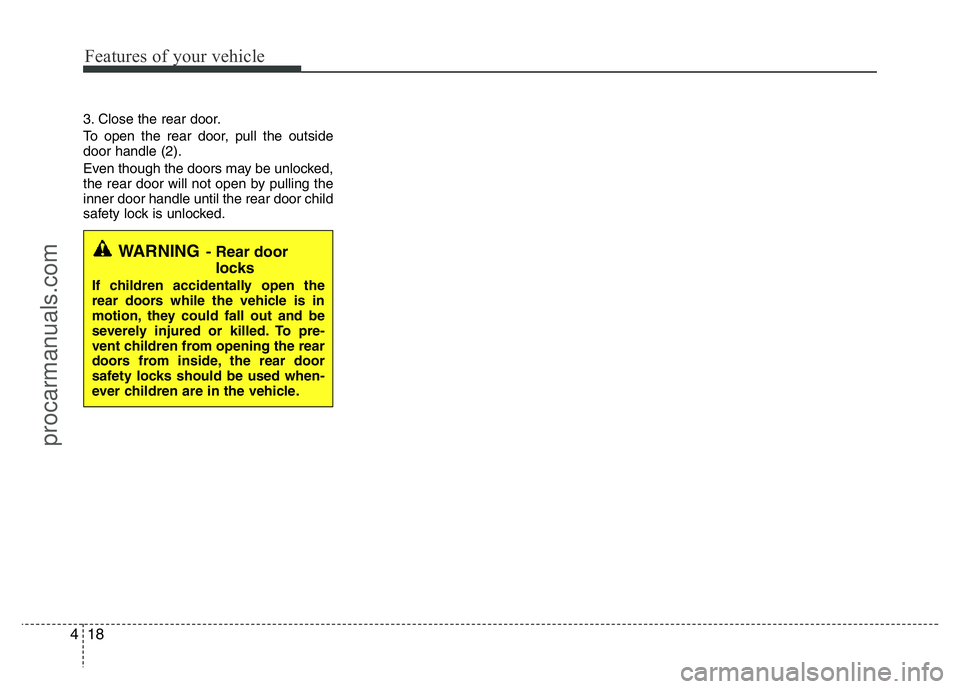

3. Close the rear door.
To open the rear door, pull the outside
door handle (2).
Even though the doors may be unlocked,
the rear door will not open by pulling the
inner door handle until the rear door child
safety lock is unlocked.
WARNING- Rear door
locks
If children accidentally open the
rear doors while the vehicle is in
motion, they could fall out and be
severely injured or killed. To pre-
vent children from opening the rear
doors from inside, the rear door
safety locks should be used when-
ever children are in the vehicle.
procarmanuals.com

419
Features of your vehicle

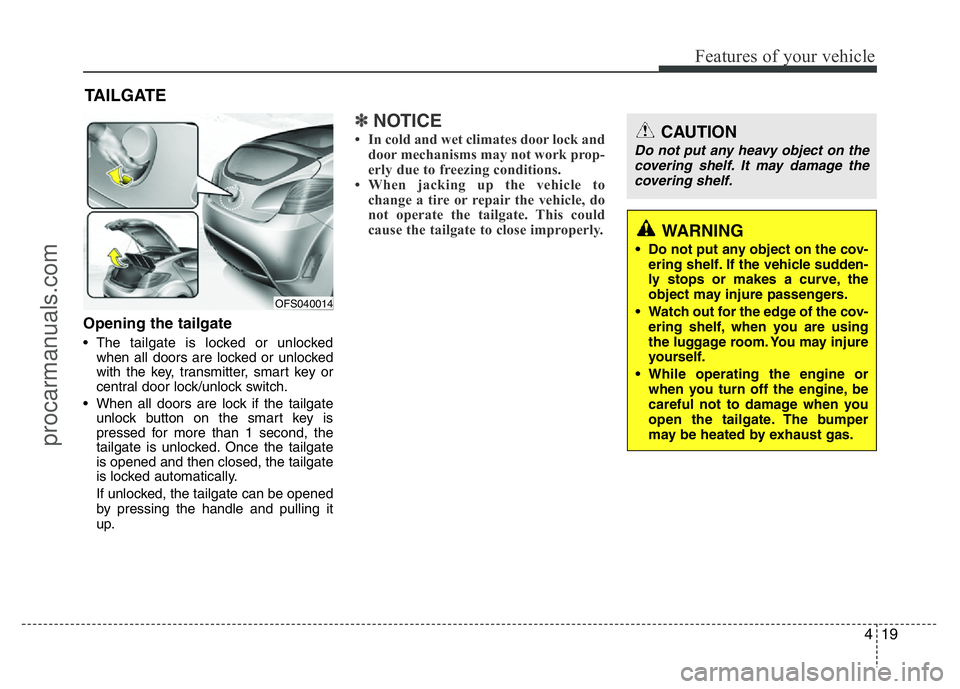

Opening the tailgate
• The tailgate is locked or unlocked
when all doors are locked or unlocked
with the key, transmitter, smart key or
central door lock/unlock switch.
• When all doors are lock if the tailgate
unlock button on the smart key is
pressed for more than 1 second, the
tailgate is unlocked. Once the tailgate
is opened and then closed, the tailgate
is locked automatically.
If unlocked, the tailgate can be opened
by pressing the handle and pulling it
up.
✽NOTICE
• In cold and wet climates door lock and
door mechanisms may not work prop-
erly due to freezing conditions.
• When jacking up the vehicle to
change a tire or repair the vehicle, do
not operate the tailgate. This could
cause the tailgate to close improperly.
TAILGATE
OFS040014
WARNING
• Do not put any object on the cov-
ering shelf. If the vehicle sudden-
ly stops or makes a curve, the
object may injure passengers.
• Watch out for the edge of the cov-
ering shelf, when you are using
the luggage room. You may injure
yourself.
• While operating the engine or
when you turn off the engine, be
careful not to damage when you
open the tailgate. The bumper
may be heated by exhaust gas.
CAUTION
Do not put any heavy object on the
covering shelf. It may damage the
covering shelf.
procarmanuals.com

Features of your vehicle
20 4
Closing the tailgate
To close the tailgate, lower and push
down the tailgate firmly. Make sure that
the tailgate is securely latched.
Emergency tailgate safety release
Your vehicle is equipped with the emer-
gency tailgate safety release located on
the bottom of the tailgate. When some-
one is inadvertently locked in the lug-
gage compartment, the tailgate can be
opened by inserting the key or screw
driver to hole and pushing the tailgate.
WARNING- Exhaust
fumes
If you drive with the tailgate open,
you will draw dangerous exhaust
fumes into your vehicle which can
cause serious injury or death to
vehicle occupants.
If you must drive with the tailgate
open, keep the air vents and all win-
dows open so that additional out-
side air comes into the vehicle.
WARNING- Rear cargo
area
Occupants should never ride in the
rear cargo area where no restraints
are available. To avoid injury in the
event of an accident or sudden
stops, occupants should always be
properly restrained.
OFS040015OFS040016
procarmanuals.com

421
Features of your vehicle

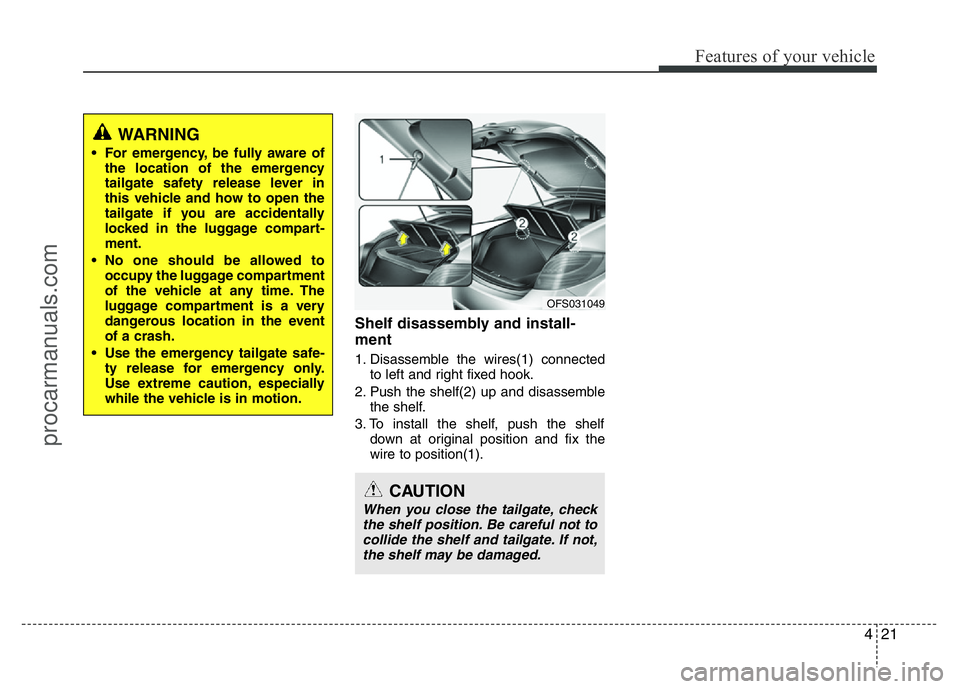

Shelf disassembly and install-
ment
1. Disassemble the wires(1) connected
to left and right fixed hook.
2. Push the shelf(2) up and disassemble
the shelf.
3. To install the shelf, push the shelf
down at original position and fix the
wire to position(1).
WARNING
• For emergency, be fully aware of
the location of the emergency
tailgate safety release lever in
this vehicle and how to open the
tailgate if you are accidentally
locked in the luggage compart-
ment.
• No one should be allowed to
occupy the luggage compartment
of the vehicle at any time. The
luggage compartment is a very
dangerous location in the event
of a crash.
• Use the emergency tailgate safe-
ty release for emergency only.
Use extreme caution, especially
while the vehicle is in motion.
OFS031049
CAUTION
When you close the tailgate, check
the shelf position. Be careful not to
collide the shelf and tailgate. If not,
the shelf may be damaged.
procarmanuals.com

Features of your vehicle
22 4
(1) Driver’s door power window switch
(2) Front passenger’s door power win-
dow switch
(3) Rear door (right) power window
switch*
(4) Window opening and closing
(5) Automatic power window*
(6) Power window lock switch*
* if equipped
✽NOTICE
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
WINDOWS
OFS040017
