Onderhoud
OmschrijvingStroomsterkte
Beveiligd onderdeel
zekering
WIPER(FR) 25A Multifunctionele schakelaar (ruitenwisser), motor ruitenwisser voor,
verbindingsblok E/R links (relais ruitenwisser voor)
IGN/ESCL 7.5A PDM, verbindingsblok E/R links (relais koplamp (grootlicht/dimlicht)), vacuümschakelaar,
regelmodule schuif-/kanteldak, elektrochromatische binnenspiegel, sensor automatische koplampverstelling,
servo koplampverstelling links/rechts
ESCL 25A PDM
P/WDW(LH) 25A Module ruit bestuurderszijde met klembeveiliging
P/WDW(RH) 25A Module ruit passagierszijde met klembeveiliging
SEAT HTR(DRI) 10A Schakelaar stoelverwarming bestuurdersstoel
SEAT HTR(ASS) 10A Schakelaar stoelverwarming passagiersstoel
MIRROR HTD 7.5A Module klimaatregeling, elektrisch verstelbare buitenspiegel links/rechts, relais achterruitverwarming (+)
T/LID OPEN 15A Schakelaar achterklep & tankdopklep, achterkleprelais
AMP 20A AMP
TAIL(LH) 7.5A Koplamp links, achterlichtunit links, verbindingsblok E/R links (relais mistlampen voor)
TAIL(RH) 10A Koplamp rechts, achterlichtunit rechts, kentekenplaatverlichting voor, verlichting dashboardkastje, dimmer,
schakelaar stoelverwarming bestuurder/passagier, ESP-schakelaar & schakelaar mistachterlicht,
schakelaar koplampverstelling, multifunctionele monitor, schakelaar alarmknipperlichten, audiosysteem,
kentekenplaatverlichting achter, schakelaar ruitbediening bestuurder/passagier, toets sportstand,
module klimaatregeling, USB/AUX-aansluiting, instrumentenpaneel (verlichting),
multifunctionele schakelaar (afstandsbediening)
P/CON AUDIO 15A Audiosysteem
MEMORY 10A Bagageruimteverlichting, schakelaar elektrisch verstelbare en inklapbare buitenspiegels, leeslampje,
controlelampje automatische verlichting en lichtsensor, multifunctionele monitor,
RF-ontvanger instrumentenpaneel (MICOM, controlelampje), module klimaatregeling, BCM,
zoemer parkeerhulp achter, waarschuwingsschakelaar portier, make-upspiegelverlichting links/rechts

Onderhoud
56
7
Hoofdzekeringkast motorruimte
Omschrijving Stroomsterkte
Beveiligd onderdeel
zekering
BATT 2 50A Zekering (STOP 15A, AUTO SHIFT LOCK 7,5A, P/CON (AUDIO 15A, MEMORY 10A), DR LOCK 10A,
P/SEAT (LH) 30A, Fog LP(RR) 10A)
BATT 1 30A Zekering (T/LID OPEN 15A, AMP 20A, HAZARD 10A, ESCL 25A, P/WDW (RH) 25A, P/WDW (LH) 25A, ESCL 10A, ESCL SW 10A)
ALT 150A Dynamo
ABS-1 40A Regelmodule ESP, regelmodule ABS, multifunctionele servicestekker
ABS-2 40A Regelmodule ESP, regelmodule ABS
BLOWER 40A Aanjagerrelais
HTD GLASS (RR) 40A Relais achterruitverwarming, zekering (MIRROR HTD 7,5A)
COOLING FAN 50A Relais koelventilator (hoog), relais koelventilator (laag)
IGN 1 30A Relais ESCL (IGN1), relais ESCL (ACC), contact
IGN 2 40A Relais ESCL (IGN2), startrelais, contact
B/UP LP 10A Relais achteruitrijlicht
HORN 15A Claxonrelais
H/LP (LO) 20A Koplamprelais (dimlicht), zekering (H/LP LO RH 15A, H/LP LO LH 15A)
H/LP (HI) 20A Koplamprelais (grootlicht), instrumentenpaneel, koplamp links/rechts
VACUUM PUMP 15A Relais vacuümpomp
A/CON COMP 10A Aircorelais
FOG LP (FR) 10A Relais mistlampen voor
TAIL 15A Achterlichtrelais, zekering (TAIL (LH) 7,5A, TAIL (RH) 10A)
HTD GLASS (FR) 15A Relais voorruitverwarming
DRL, B/HORN 15A ICM-relaiskast (relais claxon alarmsysteem)
S/ROOF 20A Regelmodule schuif-/kanteldak
H/LP LO RH 15A Koplamp rechts, servo koplampverstelling rechts, schakelaar koplampverstelling
H/LP LO LH 15A Koplamp links, servo koplampverstelling links

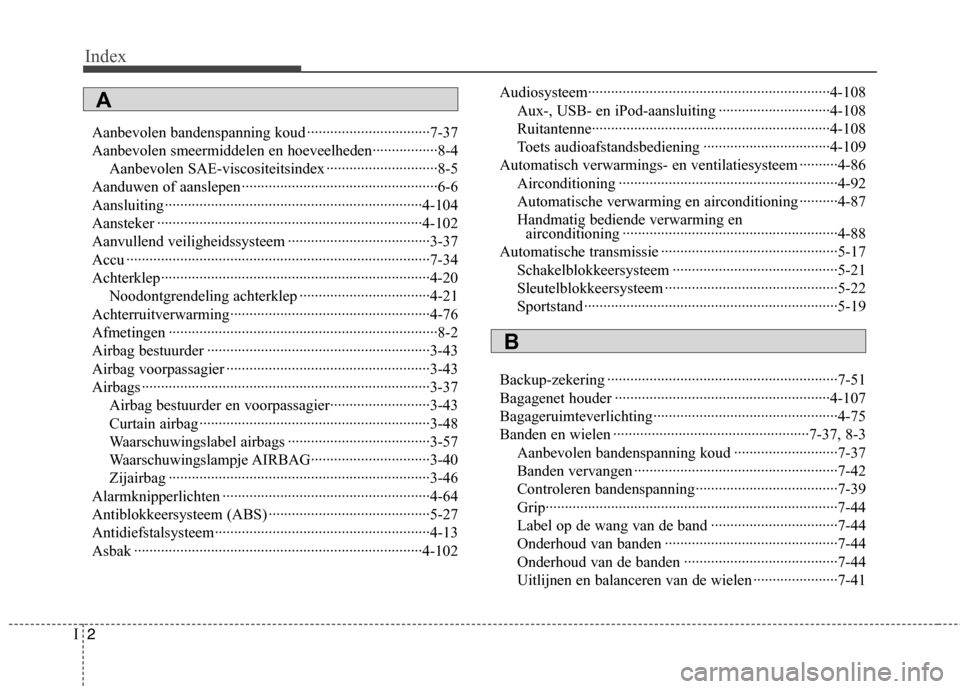

Index
2
I
Aanbevolen bandenspanning koud ································7-37
Aanbevolen smeermiddelen en hoeveelheden·················8-4
Aanbevolen SAE-viscositeitsindex ·····························8-5
Aanduwen of aanslepen ···················································6-6
Aansluiting ···································································4-104
Aansteker ·····································································4-102
Aanvullend veiligheidssysteem ·····································3-37
Accu ···············································································7-34
Achterklep······································································4-20
Noodontgrendeling achterklep ··································4-21
Achterruitverwarming····················································4-76
Afmetingen ······································································8-2
Airbag bestuurder ··························································3-43
Airbag voorpassagier ·····················································3-43
Airbags ···········································································3-37 Airbag bestuurder en voorpassagier··························3-43
Curtain airbag ····························································3-48
Waarschuwingslabel airbags ·····································3-57
Waarschuwingslampje AIRBAG·······························3-40
Zijairbag ····································································3-46
Alarmknipperlichten ······················································4-64
Antiblokkeersysteem (ABS) ··········································5-27
Antidiefstalsysteem························································4-13
Asbak ···········································································4-102 Audiosysteem·······························································4-108
Aux-, USB- en iPod-aansluiting ·····························4-108
Ruitantenne······························································4-108
Toets audioafstandsbediening ·································4-109
Automatisch verwarmings- en ventilatiesysteem ··········4-86 Airconditioning ·························································4-92
Automatische verwarming en airconditioning ··········4-87Handmatig bediende verwarming en airconditioning ························································4-88
Automatische transmissie ··············································5-17
Schakelblokkeersysteem ···········································5-21
Sleutelblokkeersysteem ·············································5-22
Sportstand ··································································5-19
Backup-zekering ····························································7-51
Bagagenet houder ························································4-107
Bagageruimteverlichting················································4-75
Banden en wielen ···················································7-37, 8-3 Aanbevolen bandenspanning koud ···························7-37
Banden vervangen ·····················································7-42
Controleren bandenspanning·····································7-39
Grip············································································7-44
Label op de wang van de band ·································7-44
Onderhoud van banden ·············································7-44
Onderhoud van de banden ········································7-44
Uitlijnen en balanceren van de wielen ······················7-41
