2011 Hyundai Genesis Coupe air filter

485
Kenmerken van uw auto

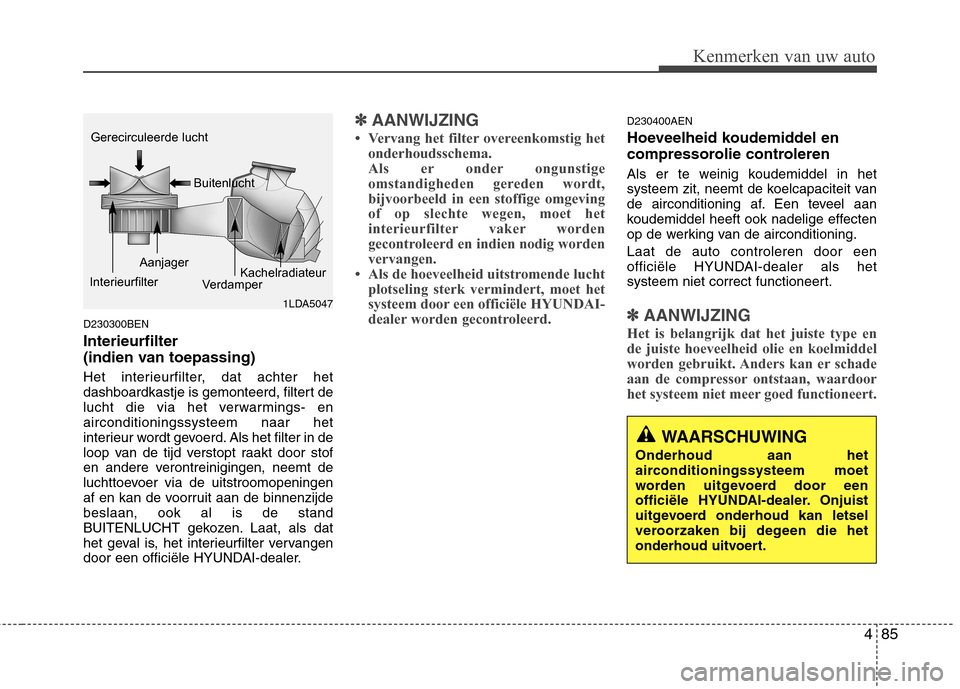

D230300BEN Interieurfilter
(indien van toepassing)
Het interieurfilter, dat achter het
dashboardkastje is gemonteerd, filtert de
lucht die via het verwarmings- enairconditioningssysteem naar het
interieur wordt gevoerd. Als het filter in de
loop van de tijd verstopt raakt door stof
en andere verontreinigingen, neemt de
luchttoevoer via de uitstroomopeningen
af en kan de voorruit aan de binnenzijdebeslaan, ook al is de stand
BUITENLUCHT gekozen. Laat, als dat
het geval is, het interieurfilter vervangen
door een officiële HYUNDAI-dealer.
✽✽AANWIJZING

495
Kenmerken van uw auto

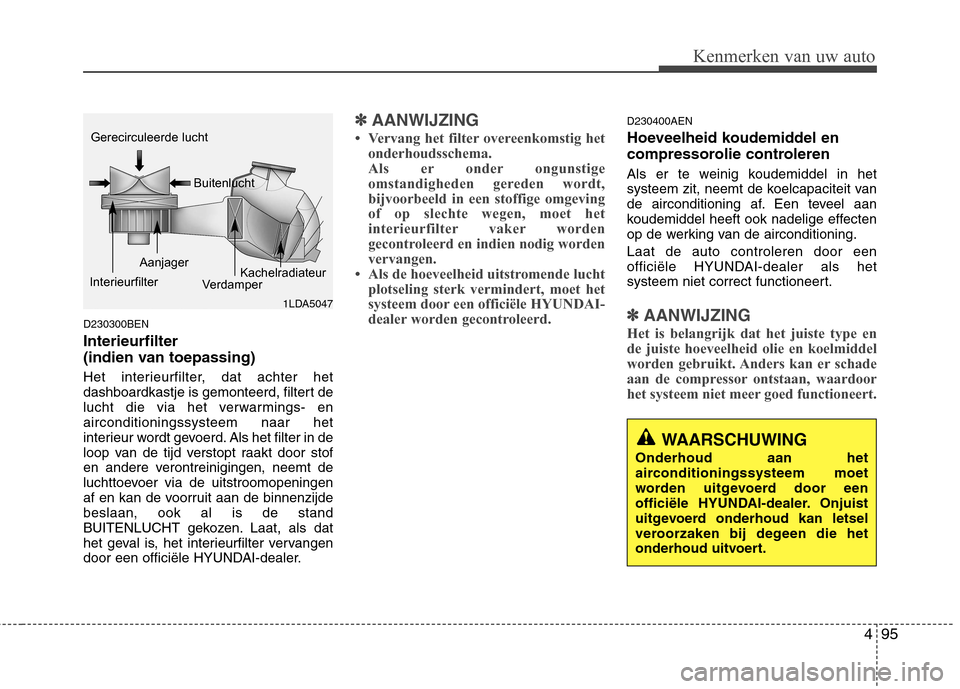

D230300BEN Interieurfilter
(indien van toepassing)
Het interieurfilter, dat achter het
dashboardkastje is gemonteerd, filtert de
lucht die via het verwarmings- enairconditioningssysteem naar het
interieur wordt gevoerd. Als het filter in de
loop van de tijd verstopt raakt door stof
en andere verontreinigingen, neemt de
luchttoevoer via de uitstroomopeningen
af en kan de voorruit aan de binnenzijdebeslaan, ook al is de stand
BUITENLUCHT gekozen. Laat, als dat
het geval is, het interieurfilter vervangen
door een officiële HYUNDAI-dealer.
✽✽AANWIJZING

79
Onderhoud

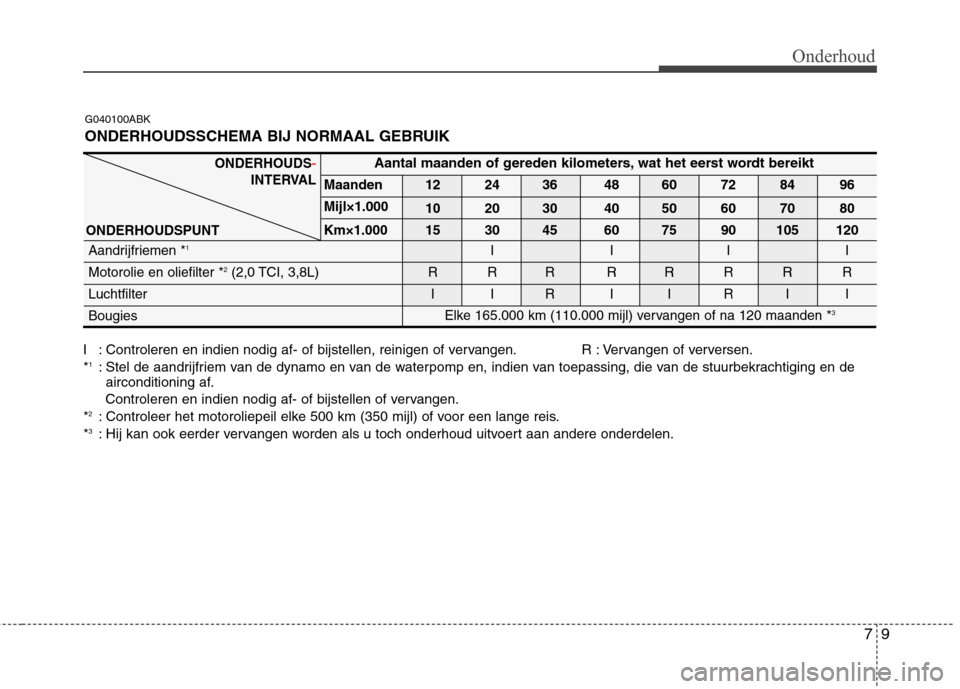

ONDERHOUDSSCHEMA BIJ NORMAAL GEBRUIK
I : Controleren en indien nodig af- of bijstellen, reinigen of vervangen. R : Vervangen of verversen. *1
: Stel de aandrijfriem van de dynamo en van de waterpomp en, indien van toepassing, die van de stuurbekrachtiging en de
airconditioning af.
Controleren en indien nodig af- of bijstellen of vervangen.
* 2
: Controleer het motoroliepeil elke 500 km (350 mijl) of voor een lange reis.
* 3
: Hij kan ook eerder vervangen worden als u toch onderhoud uitvoert aan andere onderdelen.
ONDERHOUDS-
INTERVAL
Aantal maanden of gereden kilometers, wat het eerst wordt bereikt
Maanden 12 24 36 48 60 72 84 96 Mijl×1.000 10 20 30 40 50 60 70 80
Km×1.000 15 30 45 60 75 90 105 120
Aandrijfriemen * 1
IIII
Motorolie en oliefilter * 2
(2,0 TCI, 3,8L) R R R R R R R R
Luchtfilter I I R I I R I I
Bougies
Elke 165.000 km (110.000 mijl) vervangen of na 120 maanden * 3
ONDERHOUDSPUNT
G040100ABK

Onderhoud
12
7

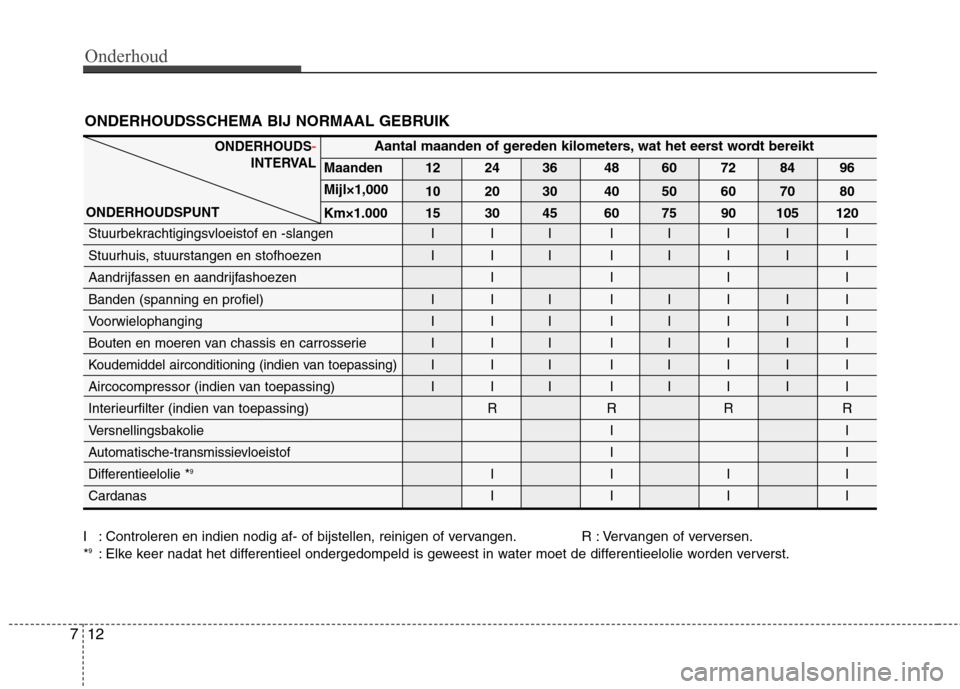

I : Controleren en indien nodig af- of bijstellen, reinigen of vervangen. R : Vervangen of verversen. * 9
: Elke keer nadat het differentieel ondergedompeld is geweest in water moet de differentieelolie worden ververst.
Aantal maanden of gereden kilometers, wat het eerst wordt bereikt
Maanden 12 24 36 48 60 72 84 96 Mijl×1,000 10 20 30 40 50 60 70 80
Km×1.000 15 30 45 60 75 90 105 120
Stuurbekrachtigingsvloeistof en -slangen I I I I I I I I
Stuurhuis, stuurstangen en stofhoezen I I I I I I I I
Aandrijfassen en aandrijfashoezen I I I I
Banden (spanning en profiel) I I I I I I I I
Voorwielophanging I I I I I I I I
Bouten en moeren van chassis en carrosserie I I I I I I I I
Koudemiddel airconditioning (indien van toepassing)III IIIII
Aircocompressor (indien van toepassing) I I I I I I I I
Interieurfilter (indien van toepassing) R R R R
Versnellingsbakolie
II
Automatische-transmissievloeistof II
Differentieelolie * 9
IIII
Cardanas I I I I
ONDERHOUDS-
INTERVAL
ONDERHOUDSPUNT
ONDERHOUDSSCHEMA BIJ NORMAAL GEBRUIK

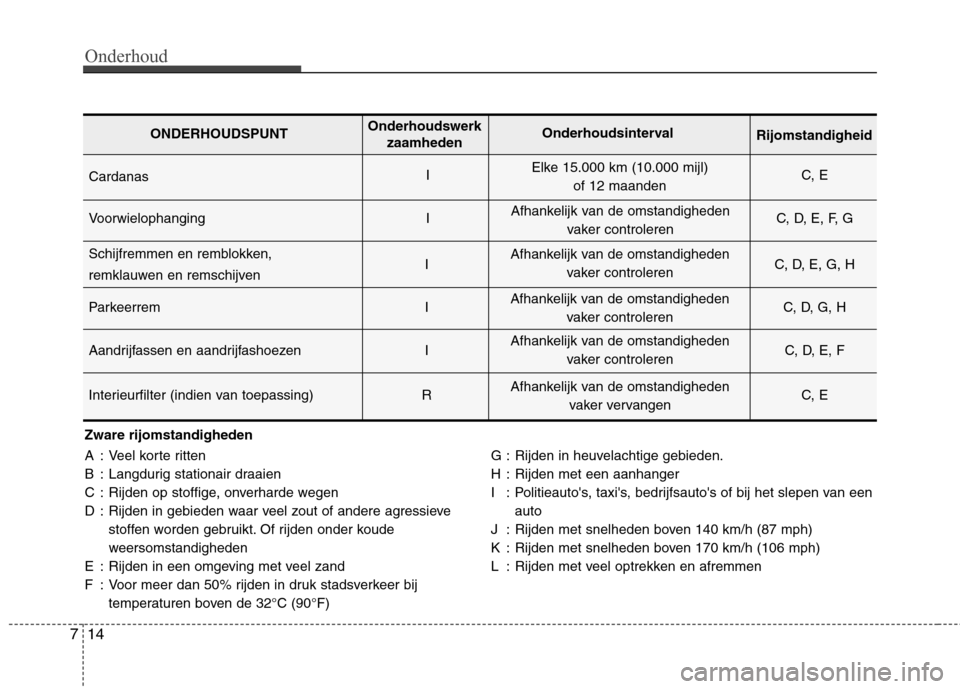

Onderhoud
14
7
Zware rijomstandigheden
A : Veel korte ritten
B : Langdurig stationair draaien
C : Rijden op stoffige, onverharde wegen
D : Rijden in gebieden waar veel zout of andere agressieve
stoffen worden gebruikt. Of rijden onder koude
weersomstandigheden
E : Rijden in een omgeving met veel zand
F : Voor meer dan 50% rijden in druk stadsverkeer bij temperaturen boven de 32°C (90°F) G : Rijden in heuvelachtige gebieden.
H : Rijden met een aanhanger
I : Politieauto's, taxi's, bedrijfsauto's of bij het slepen van een
auto
J : Rijden met snelheden boven 140 km/h (87 mph)
K : Rijden met snelheden boven 170 km/h (106 mph)
L : Rijden met veel optrekken en afremmen
ONDERHOUDSPUNT Onderhoudswerk
zaamheden Onderhoudsinterval
Rijomstandigheid
Cardanas IC
, E
Voorwielophanging I C, D, E, F, G
Schijfremmen en remblokken, I C, D, E, G, H
remklauwen en remschijven
Parkeerrem I C, D, G, H
Aandrijfassen en aandrijfashoezen I C, D, E, F
Interieurfilter (indien van toepassing) R C, E
Afhankelijk van de omstandigheden
vaker controleren
Afhankelijk van de omstandigheden vaker controleren
Afhankelijk van de omstandigheden vaker controleren
Afhankelijk van de omstandigheden vaker vervangen
Afhankelijk van de omstandigheden
vaker controleren
Elke 15.000 km (10.000 mijl)
of 12 maanden

I3

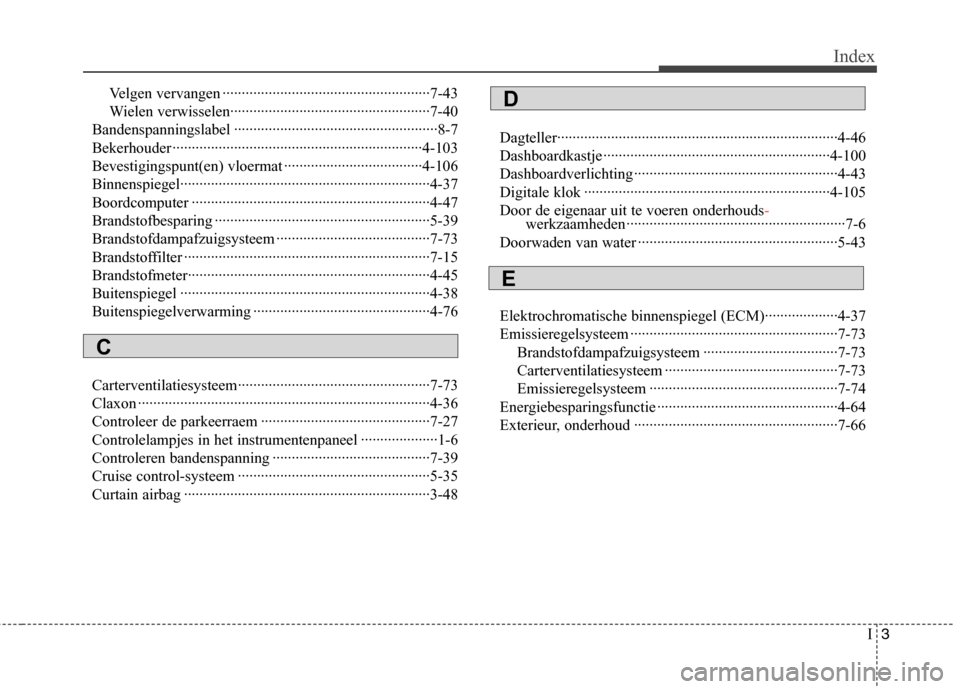

Index
Velgen vervangen ······················································7-43
Wielen verwisselen····················································7-40
Bandenspanningslabel ·····················································8-7
Bekerhouder ·································································4-103
Bevestigingspunt(en) vloermat ····································4-106
Binnenspiegel·································································4-37
Boordcomputer ······························································4-47
Brandstofbesparing ························································5-39
Brandstofdampafzuigsysteem ········································7-73
Brandstoffilter ································································7-15
Brandstofmeter·······························································4-45
Buitenspiegel ·································································4-38
Buitenspiegelverwarming ··············································4-76
Carterventilatiesysteem··················································7-73
Claxon ············································································4-36
Controleer de parkeerraem ············································7-27
Controlelampjes in het instrumentenpaneel ····················1-6
Controleren bandenspanning ·········································7-39
Cruise control-systeem ··················································5-35
Curtain airbag ································································3-48 Dagteller·········································································4-46
Dashboardkastje ···························································4-100
Dashboardverlichting ·····················································4-43
Digitale klok ································································4-105Door de eigenaar uit te voeren onderhouds
-werkzaamheden·························································7-6
Doorwaden van water ····················································5-43
Elektrochromatische binnenspiegel (ECM)···················4-37
Emissieregelsysteem ······················································7-73
Brandstofdampafzuigsysteem ···································7-73
Carterventilatiesysteem ·············································7-73
Emissieregelsysteem ·················································7-74
Energiebesparingsfunctie ···············································4-64
Exterieur, onderhoud ·····················································7-66
C
D
E

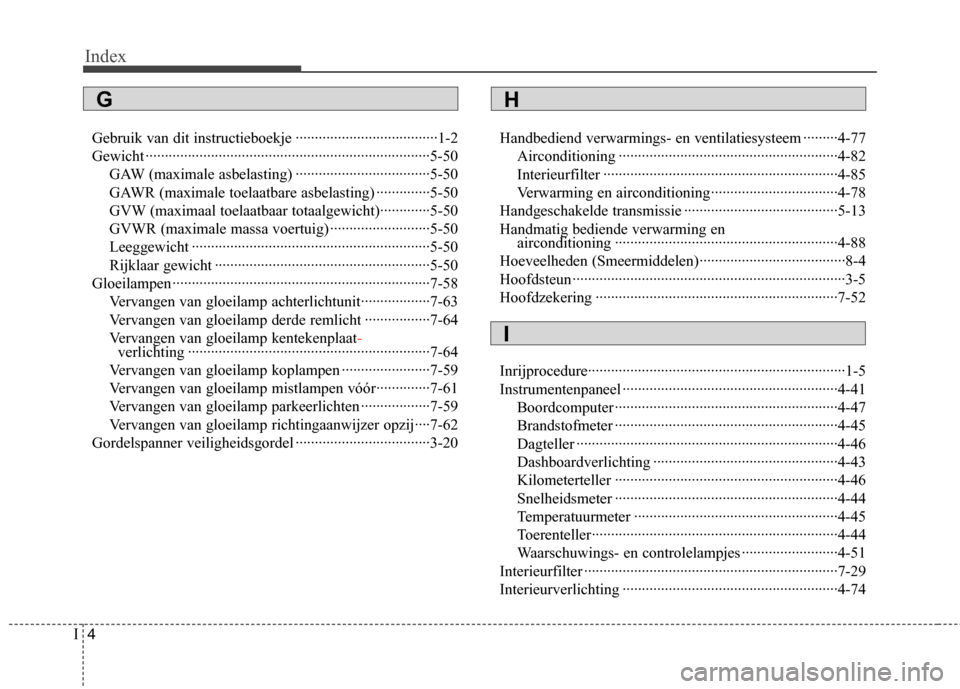

Index
4
I
Gebruik van dit instructieboekje ·····································1-2
Gewicht ··········································································5-50
GAW (maximale asbelasting) ···································5-50
GAWR (maximale toelaatbare asbelasting) ··············5-50
GVW (maximaal toelaatbaar totaalgewicht)·············5-50
GVWR (maximale massa voertuig) ··························5-50
Leeggewicht ······························································5-50
Rijklaar gewicht ························································5-50
Gloeilampen ···································································7-58 Vervangen van gloeilamp achterlichtunit··················7-63
Vervangen van gloeilamp derde remlicht ·················7-64
Vervangen van gloeilamp kentekenplaat
-verlichting ·······························································7-64
Vervangen van gloeilamp koplampen ·······················7-59
Vervangen van gloeilamp mistlampen vóór··············7-61
Vervangen van gloeilamp parkeerlichten ··················7-59
Vervangen van gloeilamp richtingaanwijzer opzij····7-62
Gordelspanner veiligheidsgordel ···································3-20 Handbediend verwarmings- en ventilatiesysteem ·········4-77
Airconditioning ·························································4-82
Interieurfilter ·····························································4-85
Verwarming en airconditioning·································4-78
Handgeschakelde transmissie ········································5-13Handmatig bediende verwarming en airconditioning ··························································4-88
Hoeveelheden (Smeermiddelen)······································8-4
Hoofdsteun ·······································································3-5
Hoofdzekering ·······························································7-52
Inrijprocedure···································································1-5
Instrumentenpaneel ························································4-41 Boordcomputer ··························································4-47
Brandstofmeter ··························································4-45
Dagteller ····································································4-46
Dashboardverlichting ················································4-43
Kilometerteller ··························································4-46
Snelheidsmeter ··························································4-44
Temperatuurmeter ·····················································4-45
Toerenteller································································4-44
Waarschuwings- en controlelampjes ·························4-51
Interieurfilter ··································································7-29
Interieurverlichting ························································4-74
HG
I

I5

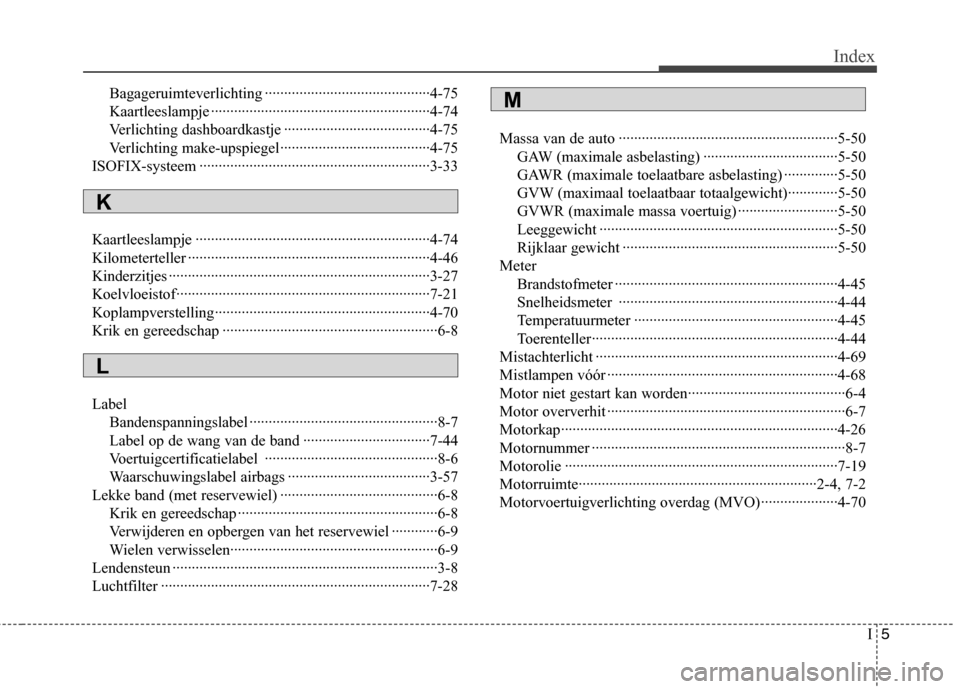

Index
Bagageruimteverlichting ···········································4-75
Kaartleeslampje ·························································4-74
Verlichting dashboardkastje ······································4-75
Verlichting make-upspiegel·······································4-75
ISOFIX-systeem ····························································3-33
Kaartleeslampje ·····························································4-74
Kilometerteller ·······························································4-46
Kinderzitjes ····································································3-27
Koelvloeistof··································································7-21
Koplampverstelling························································4-70
Krik en gereedschap ························································6-8 Label Bandenspanningslabel ·················································8-7
Label op de wang van de band ·································7-44
Voertuigcertificatielabel ·············································8-6
Waarschuwingslabel airbags ·····································3-57
Lekke band (met reservewiel) ·········································6-8 Krik en gereedschap ····················································6-8
Verwijderen en opbergen van het reservewiel ············6-9
Wielen verwisselen······················································6-9
Lendensteun ·····································································3-8
Luchtfilter ······································································7-28 Massa van de auto ·························································5-50
GAW (maximale asbelasting) ···································5-50
GAWR (maximale toelaatbare asbelasting) ··············5-50
GVW (maximaal toelaatbaar totaalgewicht)·············5-50
GVWR (maximale massa voertuig) ··························5-50
Leeggewicht ······························································5-50
Rijklaar gewicht ························································5-50
Meter Brandstofmeter ··························································4-45Snelheidsmeter ·························································4-44
Temperatuurmeter ·····················································4-45
Toerenteller································································4-44
Mistachterlicht ·······························································4-69
Mistlampen vóór ····························································4-68
Motor niet gestart kan worden·········································6-4
Motor oververhit ······························································6-7
Motorkap········································································4-26
Motornummer ··································································8-7
Motorolie ·······································································7-19
Motorruimte······························································2-4, 7-2
Motorvoertuigverlichting overdag (MVO)····················4-70
L
K
M
