2011 HONDA CR-Z display

204
Driving
When Driving Shifting
7-Speed Manual Shift Mode
■
Use the paddle shifters to change between first and seventh speeds without removing your hands from the steering wheel. The transmission switches to the 7-speed manual shift mode when you pull a paddle shifter while driving. This mode is useful when engine braking is needed. You can cancel this mode by pressing any of the three driving mode buttons, or pulling the
paddle shifter for a few seconds.
When the Driving Mode is in ECON or NORMAL
■
The shift mode goes into the 7-speed manual shift mode temporarily, and the number is displayed in the shift indicator.The 7-speed manual shift mode is canceled automatically if you drive at constant speed or accelerate, and the number in the shift indicator goes off.The 7-speed manual shift mode is especially useful when reducing the vehicle speed temporarily before making a turn.
When the Driving Mode is in SPORT
■
The shift mode goes into the 7-speed manual shift mode. The
M indicator and the
speed number are displayed in the shift indicator. As the vehicle speed slows down, the transmission automatically shifts down accordingly. When the vehicle comes to a stop, it automatically shifts down into first. If the vehicle speed increases and the engine speed reaches near the tachometer’s red zone, the transmission automatically shifts up.
7-Speed Manual Shift Mode
To improve fuel economy, the transmission may shift up to a higher speed than the seventh under certain circumstances. In this case, the number in the shift indicator remains as "7." In the 7-speed manual shift mode, the transmission
shifts up or down by operating either paddle shifte r
under the following conditions:Shift Up: The engine speed reaches the lowest threshold of the higher speed position.Shift Down: The engine speed reaches the highest threshold of the lower speed position. When the engine speed reaches near the tachometer’s red zone, the transmission shifts up automatically.When the engine speed reaches the lowest threshold of the selected speed position, the transmission shifts down automatically. Operating the paddle shifters on slippery surfaces may cause the tires to lock up. In this case, the 7-speed manual shift mode is canceled and goes back to the normal D driving mode.
Main MenuTable of Contents

206
Driving
When Driving Shifting

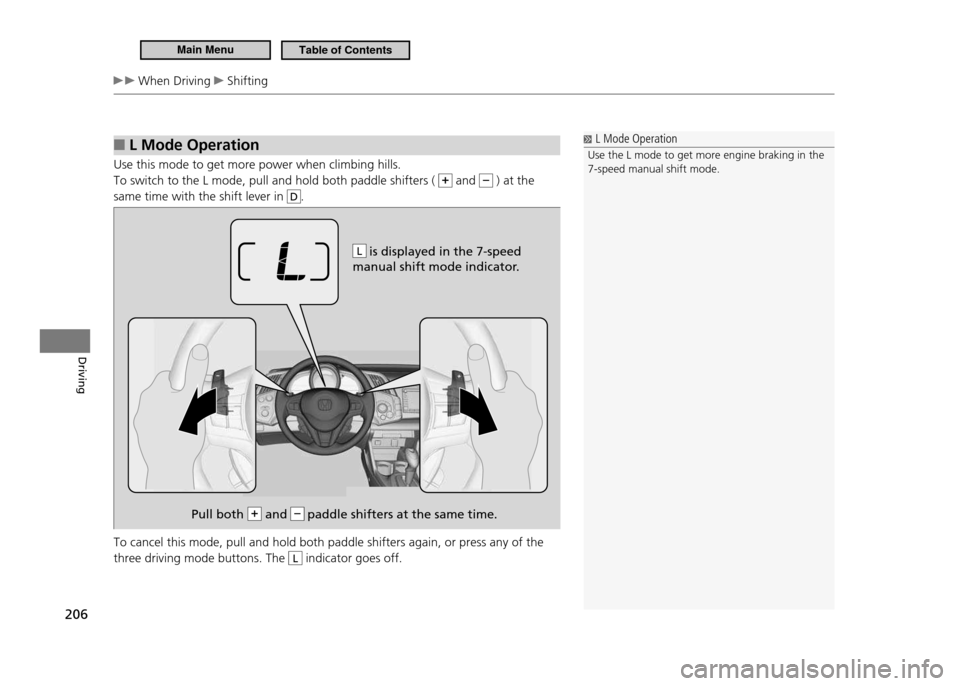

L Mode Operation
■
Use this mode to get more power when climbing hills. To switch to the L mode, pull and hold both paddle shifters (
and ) at the
same time with the shift lever in
D.
To cancel this mode, pull and hold both paddle shifters again, or press any of the three driving mode buttons. The
L indicator goes off.
L Mode Operation
Use the L mode to get more engine braking in the 7-speed manual shift mode.
is displayed in the 7-speed
manual shift mode indicator.
Pull both + and – paddle shifters at the same time.
L
Main MenuTable of Contents

210
Driving
When Driving 3-Mode Drive System
3-Mode Drive System Driving mode is in NORMAL when you turn the ignition switch to ON
II.
To change driving modes, press the desired mode button. The corresponding mode indicator comes on in the instrument panel, and the mode icon appears briefly on the multi-information display. 3-Mode Drive System
To keep the system in the ECON mode the next
time the ignition switch is turned to ON
, change
the customized setting on the multi-information display.
Customized Features P. 9 0
The ECON mode helps you improve your fuel economy by changing the engine, transmission, climate control system, cruise control, and IMA system performances. While in the ECON mode, the climate control system has greater temperature luctuations.
Ù Select a driving mode
and press the button.
Ù The selected driving mode
indicator comes on.
SPORT Mode Button NORMAL Mode Button ECON Mode Button
Main MenuTable of Contents

216
Driving
When Driving TPMS (Tire Pressure Monitoring System)
TPMS (Tire Pressure Monitoring System)
U.S. models only
Monitors the tire pressure while you are driving. If your vehicle’s tire pressure becomes significantly low, the low tire pressure/TPMS indicator comes on and a message appears on the multi-information display.“CHECK TIRE PRESSURE” is displayed when a tire has significantly low pressure.
TPMS (Tire Pressure Monitoring System)
Conditions such as low ambient temperature and altitude change directly affect tire pressure and can trigger the low tire pressure/ TPMS indicator to come on.
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks P. 3 0 3
Tire pressure checked and inlated in: Warm weather can become under-inlated in

•
colder weather. Cool weather can become over-inlated in

•
warmer weather.
The low tire pressure/TPMS indicator will not come on as a result of over inlation.
Main MenuTable of Contents

219
Driving
Braking
Brake System
Parking Brake
■
Use the parking brake to keep the vehicle stationary when parking.
To apply: Pull the lever fully up without pressing the release button. To release:
Pull the lever slightly, and press and hold
1.
the release button. Lower the lever down all the way, then
2.
release the button.
Parking Brake
NOTICE Release the parking brake fully before driving. The rear brakes and axle can be damaged if you drive with the parking brake applied. If you start driving without fully releasing the parking brake, a buzzer sounds as a warning, and "RELEASE PARKING BRAKE" appears on the multi-information display. Always apply the parking brake when parking.When the outside temperature is extremely cold, do not apply the parking brake to prevent it from freezing, and do the following:
Automatic transmission model Put the shift lever in , then place a block or other
wheel chock to stop the wheels from turning.
Manual transmission model Put the shift lever in or , then place a block
or other wheel chock to stop the wheels from turning.
Main MenuTable of Contents

225
Driving
Parking Your Vehicle Auto Idle Stop (Automatic Transmission - CVT)
Auto Idle Stop Activates When:
■
The idle stop is done when the vehicle stops with the shift lever in D and the brake
pedal depressed. Auto Idle Stop Does Not Activate When:
■
The low temperature indicator is on.

•
The IMA battery charge is low.

•
The bars of the ASST/CHRG indicators do not move when accelerating or

•
decelerating. The transmission fluid temperature is low.

•
The vehicle comes to a stop again before the vehicle speed reaches 9 mph

•
(15 km/h) after the engine starts.Stopped on a steep incline.

•
The shift lever is in a position other than

•
D or N.
Airflow from the climate control system increases.

•
If you have selected the fan speed manually:
The display shows more than five vertical bars.
Shift mode is in the L mode.

•

• is on (the indicator is on).
Auto Idle Stop May Not Activate When:
■
The climate control system is in use, and there is a significant difference between

•
the set temperature and the actual interior temperature. (Except when in ECON mode).When humidity in the interior is high.

•
The vehicle is stopped by braking suddenly.

•
Auto Idle Stop Activates When:
The brake pedal is depressed, and the vehicle slows down to a speed below 6 mph (10 km/h).
Main MenuTable of Contents

228
Driving
Parking Your Vehicle Auto Idle Stop (Manual Transmission)
Auto Idle Stop Activates When:
■
Stopping with the brake, the clutch pedal is fully depressed, and the shift lever is in
N.
To restart the engine automatically, depress the clutch pedal.
Auto Idle Stop Does Not Activate When:
■
The low temperature indicator is on.

•
The IMA battery charge is low.

•
The bars of the ASST/CHRG indicators do not move when accelerating or

•
decelerating. The vehicle comes to a stop again before the vehicle speed reaches 9 mph

•
(15km/h) after the engine starts.The shift lever is in

•
R.
Airflow from the climate control system increases.

•
If you have selected the fan speed manually:
The display shows more than five vertical bars.

• is on (the indicator is on).
Auto Idle Stop May Not Activate When:
■
The climate control system is in use, and there is a significant difference between

•
the set temperature and the actual interior temperature. (Except when in ECON mode).When humidity in the interior is high.

•
The vehicle is stopped by braking suddenly

•
Auto Idle Stop Activates When:
The brake pedal is depressed, the vehicle slows down to a speed below 19 mph (30 km/h), and the clutch pedal is fully pressed. The engine may not stop or restart automatically if you fail to fully depress the clutch pedal.
Keeping the proper driving positions makes it easie r
for you to depress the clutch pedal fully.
Adjusting the Seats P.11 9
Main MenuTable of Contents

234
Driving
Fuel Economy
Improving Fuel Economy
Improving Fuel Economy
Direct calculation is the recommended method to determine actual fuel consumed while driving. In Canada, posted fuel economy numbers are established following a simulated test. For more information on how this test is performed, please visit http://oee.nrcan.gc.ca/
Miles drivenGallons of
fuelMiles per Gallon
100LiterKilometersL per 100 km
Fuel economy is dependent on several conditions, including driving conditions, your driving habits, and the condition of your vehicle, and loading. Depending on these and other conditions, you may or may not achieve the rated fuel economy of this vehicle.
Maintenance and Fuel Economy

■
You can optimize your fuel economy with proper maintenance of your vehicle. Always maintain your vehicle in accordance with the messages displayed on the multi-information display.
Use engine oil with the viscosity recommended by the API Certification Seal.

•
Maintain the specified tire pressure.

•
Do not load the vehicle with excess cargo.

•
Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside

•
adds weight and increases wind resistance.
