2011 HONDA CR-Z display

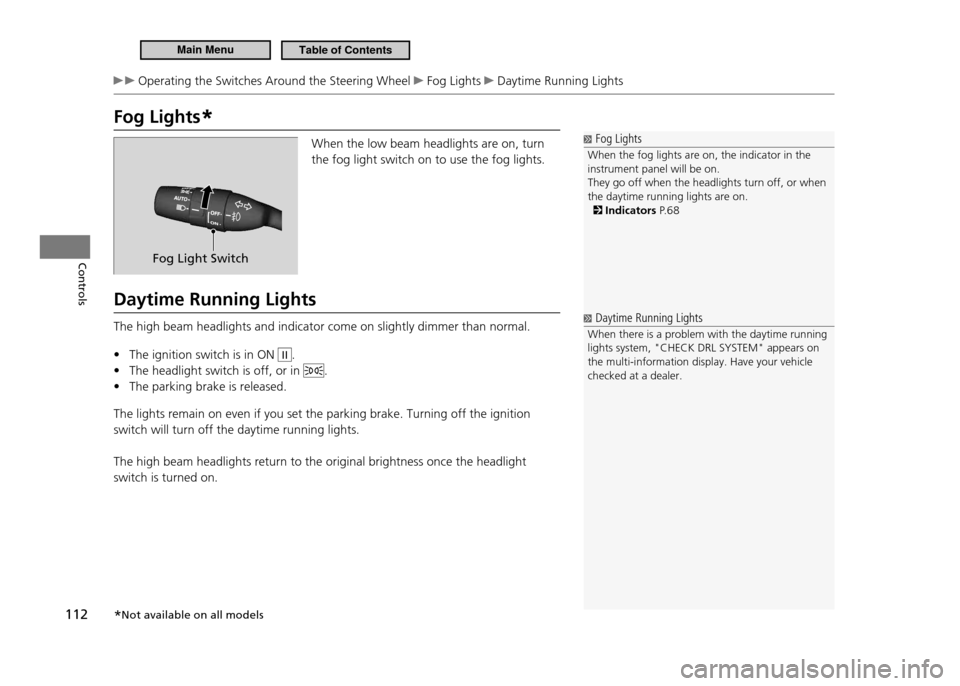

112
Controls
Operating the Switches Around the Steering Wheel Fog Lights Daytime Running Lights
Fog Lights*
Fog Lights
When the fog lights are on, the indicator in the instrument panel will be on.They go off when the headlights turn off, or when the daytime running lights are on.
Indicators P. 6 8
When the low beam headlights are on, turn the fog light switch on to use the fog lights.
Daytime Running Lights The high beam headlights and indicator come on slightly dimmer than normal. The ignition switch is in ON
•
II.
The headlight switch is off, or in
•
.
The parking brake is released.
•
The lights remain on even if you set the parking brake. Turning off the ignition switch will turn off the daytime running lights. The high beam headlights return to the original brightness once the headlight switch is turned on.
Fog Light Switch
Daytime Running Lights
When there is a problem with the daytime running lights system, "CHECK DRL SYSTEM" appears on the multi-information display. Have your vehicle checked at a dealer.
* Not available on all models
Main MenuTable of Contents

115
Controls
Operating the Switches Around the Steering Wheel Brightness Control
Brightness Control
Brightness Control
The brightness of the instrument panel varies according to whether the headlights are on or off.The instrument panel dims to reduce glare when you turn the light switch to
or , or the
exterior lights are on with the light switch in AUTO position. Pressing either
(information) button
switches the display.
If you turn the knob to the right until the brightn ess
display is up to max, the beeper sounds. This cancels the reduced instrument panel brightness when the parking lights are on. The brightness can be set differently for when the exterior lights are on, and when they are off.
When the parking lights are turned on and the ignition switch is in ON
II, you can use the
brightness control knob to adjust instrument panel brightness. Brighten: Turn the knob to the right.
Dim: Turn the knob to the left.
You will hear a beeper when the brightness reaches minimum or maximum. The multi-information display will return to its original state several seconds after you adjust the brightness.
■Brightness Level Indicator
The brightness level is shown on the multi-information display while you are adjusting it.As the brightness level increases to the right, the instrument panel gets brighter.
Control Knob
Main MenuTable of Contents

131
Controls
Climate Control System
Using Automatic Climate Control The automatic climate control system maintains the interior temperature you select. The system also selects the proper mix of heated or cooled air that will as quickly as possible, raise or lower the interior temperature to your preference. Use the system when the engine is running.Press the AUTO button.
1.
Adjust the interior temperature using the temperature control dial.
2.
Press the
3.
button to cancel.
Switching Between the Recirculation and Fresh Air Modes
■
Press the
button and switch the mode depending on environmental
conditions.
Recirculation Mode (indicator on): Recirculates air from the v ehicle’s interior through
the system.Fresh Air Mode (indicator off): Maintains outside ventilation. Keep the system in fresh air mode in normal situations.
Using Automatic Climate Control
If any buttons are pressed while using the climate control system in AUTO, the function of the button that was pressed will take priority.The AUTO indicator will go off, but functions unrelated to the button that was pressed will be controlled automatically. During the auto idle stop, the air conditioning system will be turned off.If the ECON mode is selected, the fan may also be turned off. To prevent cold air from blowing in from outside, the fan may not start immediately when the AUTO button is pressed. Once you have set the desired temperature, do not use the temperature control dial more than necessary.Doing so may delay the time it takes to reach the set temperature. If the interior is very warm, you can cool it down more rapidly by partially opening the windows, turning the system on AUTO, and setting the temperature to low. When you set the temperature to the lower or upper limit, Lo or Hi is displayed. Pressing the
button switches the climate
control system between on and off. The system selects your last selection.
Temperature Control Dial MODE Button
A/C (Air Conditioning) Button AUTO Button
Dashboard ventsFloor and defroster vents
Floor vents
Dashboard and loor vents
(Windshield Defroster) Button
(Fan Control) Button
(On/Off) Button
(Recirculation) Button
Main MenuTable of Contents

137
Features
Audio System Compatible iPod and USB Flash Memory Devices
Compatible iPod and USB Flash Memory Devices
iPod Model Compatibility
■
Model Software
iPod classic (80/160G) Ver. 1.1.2 or more
iPod classic (120G) Ver. 2.0.1 or more
iPod with video (iPod 5th generation) Ver. 1.3.0 or more iPod nano Ver. 1.3.1 or more
iPod nano 2nd generation Ver. 1.1.3 or more iPod nano 3rd generation Ver. 1.1.3 or more
iPod nano 4th generation Ver. 1.0.3 or more
iPod nano 5th generation Ver. 1.0.1 or more iPod touch Ver. 1.1.5 or more
iPod touch 2nd generation Ver. 2.2.1 or more
USB Flash Memory Devices

■
Use a recommended USB flash memory device of 256 MB or higher. Some digital audio players may not be compatible.Some USB flash memory devices (e.g., a device with security lockout) may not work.Some software files may not allow for audio play or text data display.Some versions of MP3, WMA, or AAC formats may be unsupported. If an unsupported file is found, the audio unit displays UNSUPPORTED, and then skips to the next file.
USB Flash Memory Devices
Files on the USB lash memory device are played in their stored order. This order may be different from the order displayed on your PC or device.
Main MenuTable of Contents

138
Features
Audio System USB Adapter Cable
USB Adapter Cable
USB Adapter Cable
1. Pull up the center pocket lid. Unclip the USB connector and loosen the adapter cable.
2.
Install the iPod dock connector or the USB flash memory device to the USB
3.
connector.
USB Adapter CableDo not leave the iPod or USB lash memory

•
device in the vehicle. Direct sunlight and high temperatures may damage it.Do not use an extension cable with the USB

•
adapter cable.Do not connect your iPod or USB lash memory

•
device using a hub.Do not use a device such as a card reader or

•
hard disk drive, as the device or your iles may be damaged.We recommend backing up your data before

•
using the device in your vehicle.Displayed messages may vary depending on the

•
device model and software version.
If the audio system does not recognize your iPod, try reconnecting it a few times or reboot the device.To reboot, follow the manufacturer's instructions provided with your iPod or visit www.apple.com/
ipod.
Main MenuTable of Contents

140
Features
Audio System Audio System Theft Protection
Audio System Theft Protection
The audio system is disabled when it is disconnected from the power source, such as when the 12 volt battery is disconnected or goes dead.Entering the Audio Security Code
■
“ENTER CODE” appears on the display when the power is reconnected.
Turn on the audio system.
1.
Enter the security code using the preset buttons.
2.
Models with navigation system
Touch the icon to enter the code, then touch the Done icon to set it. If you enter an incorrect digit, continue to the last digit, then try again. If you do not enter the code correctly after 10 tries, you need to visit a dealer to have the system reset.
Audio System Theft Protection
Find the audio system's security code and serial number on the radio code card.
Do not store the card in your vehicle. If you lose the
radio code card, you must obtain the information from a dealer.
Main MenuTable of Contents

141
Features
Audio without Navigation System
Audio System Basic Operation To use the audio system function, the ignition switch must be in ACCESSORY
I or
ON
II.
Use the VOL/SELECT knob to access some audio functions. VOL/SELECT knob: Turns left and right to select the items. Press
to set your selection.
button: Press to go back to the previous
display.
Audio System Basic Operation
These indications are used to show how to move the VOL/SELECT knob .
Rotate
to select.
Press
to ENTER.
VOL/SELECT (Volume/Select) Knob Button
Main MenuTable of Contents

142
Features
Audio without Navigation System Audio System Basic Operation
Adjusting the Sound
■
Press the button, and rotate to adjust
the setting. Each time you press the
button, a sound
mode switches as follows.
Adjusting the Sound
When the adjustment level reaches the center, you will see "C" in the display. The SVC has four modes: OFF, LOW, MID, and HIGH.SVC adjusts the volume level based on the vehicle speed. The faster you go, the audio volume increases. As you slow down, the audio volume decreases.
(Sound)
Button
VOL/SELECT Knob
BASS
TREBLE
FADER
BALANCE
SUBW
SVC Subwoofer
*
Speed-sensitive VolumeCompensation
* Not available on all models
