Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
60A — — Blue Yellow Yellow
70A — — Tan — Brown
80A — — Natural Black Black

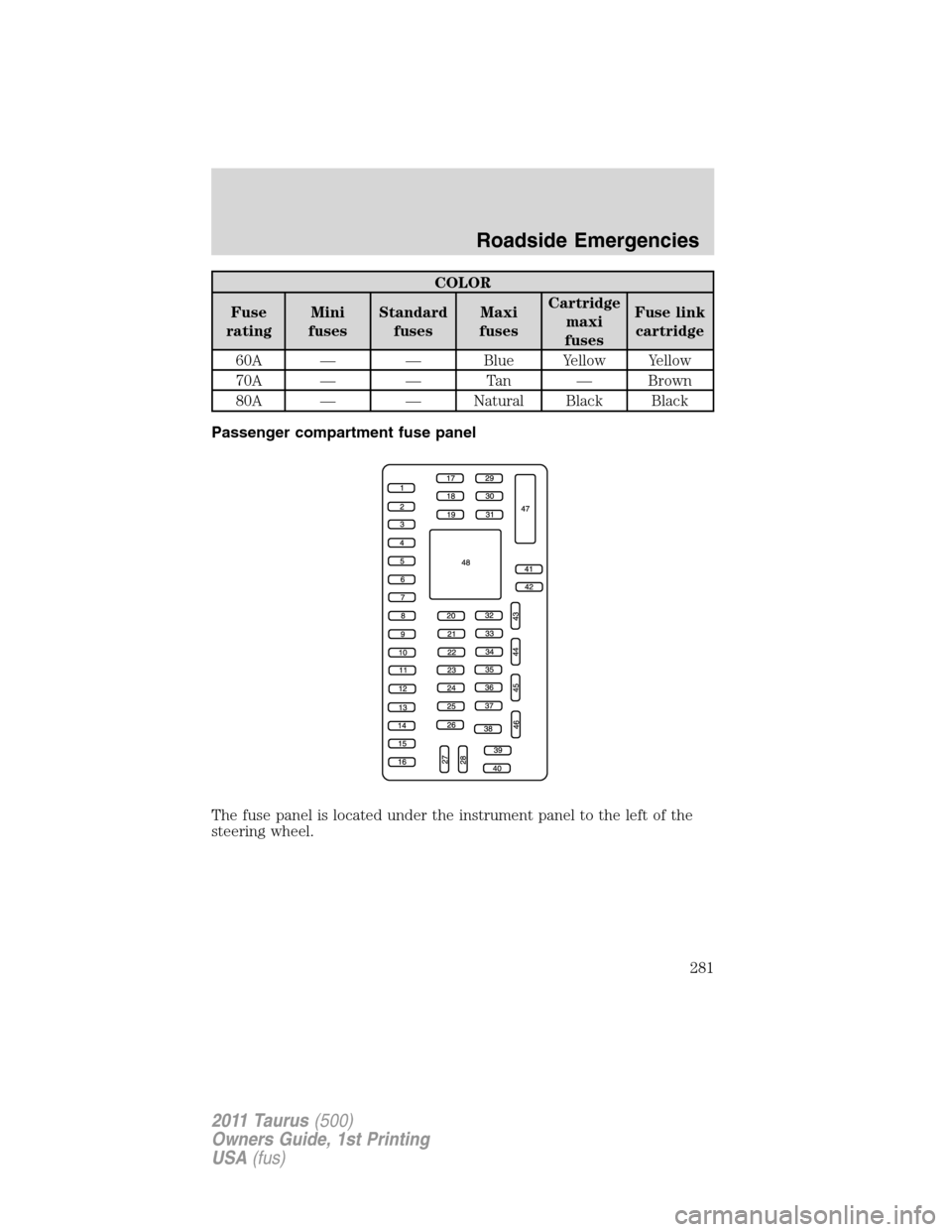

Passenger compartment fuse panel
The fuse panel is located under the instrument panel to the left of the
steering wheel.
Roadside Emergencies
281
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Left front power window, Smart
window motor
2 15A Brake on/off switch
3 15A Driver power seat
4 30A Right front power window, Smart
window motor
5 10A Transmission shifter solenoid, Keyless
keypad
6 20A Turn signals, Hazard flashers
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights, Cargo lamps
10 15A Switch illumination, Puddle lamps
11 10A All wheel drive (AWD) module
12 7.5A Intelligent access (IA) module
13 5A Memory seats, Mirrors, Keypad, IA
receiver, Driver’s door module
14 10A Navigation display, Memory seat,
SYNC
, Center information display,
GPS, Driver seat
15 10A Climate control
16 15A Electronic finish panel, Ambient
lighting
17 20A Trunk release, Moon roof, Smart
windows, Lock/unlock
18 20A Rear heated seats
19 25A Audio amplifier
20 15A Diagnostic connector (OBDII),
Adjustable pedal motor
21 15A Daytime running lamps (DRL) control
Roadside Emergencies
282
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
22 15A Park lamps, License plate lamps,
Auxiliary lamps
23 15A High beam headlamps
24 20A Horn
25 10A Demand lighting (battery saver)
26 10A Instrument panel cluster, Heads-up
display
27 20A Ignition switch, IA, Front wipers,
One-touch integrated start (OTIS)
28 5A Start relay/Audio mute
29 5A Instrument panel cluster, Heads-up
display
30 5A Not used (spare)
31 10A Not used (spare)
32 10A Airbag module
33 10A Not used (spare)
34 5A Anti-lock brake system (ABS),
Electronic power steering
35 10A Rear heated seats, AWD, Rear park
assist, Steering angle sensor, Blind
spot information system,
Multi-contour seats
36 5A Passive anti-theft system (PATS)
37 10A Not used (spare)
38 20A Subwoofer, Speaker amplifier
39 20A Radio/navigation
40 20A Not used (spare)
41 15A Delayed accessory feeds
42 10A Not used (spare)
43 10A Rear window defroster, Front wipers,
Automatic high beam controller,
Rainsensor
Roadside Emergencies
283
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
44 10A Not used (spare)
45 5A Front wiper relay, Blower motor relay
46 7.5A Occupant classification sensor (OCS),
Passenger airbag deactivation
indicator (PADI)
47 30A Circuit
BreakerFront passenger power window, Rear
power windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
284
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Circuits
1 80A** Passenger compartment fuse panel
power
2 80A** Passenger compartment fuse panel
power
3 — Not used
4 30A** Front wiper
5 30A** Passenger seat
6 20A** Cigar lighter
7 60A** Engine cooling fan (non-SHO engine)
8 30A** Moon roof
9 40A** Anti-lock brake system (ABS) pump
10 30A** Starter relay
11 30A** Powertrain Control Module (PCM)
relay
12 20A** ABS valve
13 15A* Adaptive cruise control
14 — Not used
Roadside Emergencies
285
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingPower Circuits
15 — Not used
16 20A* Left headlamp
17 10A* Alternator
18 — Not used
19 20A** Instrument panel power point
20 40A** Rear window defroster
21 20A** Console power point
22 30A** Front heated or heated/cooled seats
23 7.5A* Powertrain control module (PCM)
(keep alive power), Canister vent
24 10A* A/C clutch
25 20A* Right headlamp
26 10A* Backup relay
27 25A* Fuel pump
28 80A** Engine cooling fan (SHO engine)
29 — Not used
30 — Not used
31 — Not used
32 30A** Driver seat
33 30A** Intelligent access (IA)
34 — Not used
35 40A** Front heater blower
36 20A* Passenger compartment fuse panel
run/start
37 10A* PCM relay
38 5A* Delayed accessory
39 Diode Fuel diode (iVCT only)
40 Diode One-touch integrated start (OTIS)
diode
41 G8VA relay A/C clutch
42 G8VA relay Fuel pump
Roadside Emergencies
286
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingPower Circuits
43 G8VA relay Backup lamps
44 — Not used
45 — Not used
46 15A* Vehicle power 2 (PCM), Vehicle power
3 (PCM)
47 20A* Vehicle power 1 (PCM)
48 20A* Vehicle power 4 (ignition coils)
49 15A* Heated mirrors
50 Half ISO relay Blower motor relay
51 Half ISO relay High-mount brake lamp w/ ACCM
relay
52 Half ISO relay Starter relay
53 Half ISO relay PCM power relay
54 — Not used
55 Half ISO relay Front wiper relay
56 Half ISO relay Rear window defroster relay
57 — Not used
58 — Not used
59 Half ISO relay Left halogen headlamp relay
60 Half ISO relay Right halogen headlamp relay
61 — Not used
62 — Not used
63 Half ISO relay Daytime running lamps (DRL) 1 relay
64 Half ISO relay DRL 2 high beam control relay
65 G8VA relay Run/start relay (IA)
66 — Not used
*Mini fuse **Cartridge fuse
Roadside Emergencies
287
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
