2011 FORD TAURUS Owners Manual

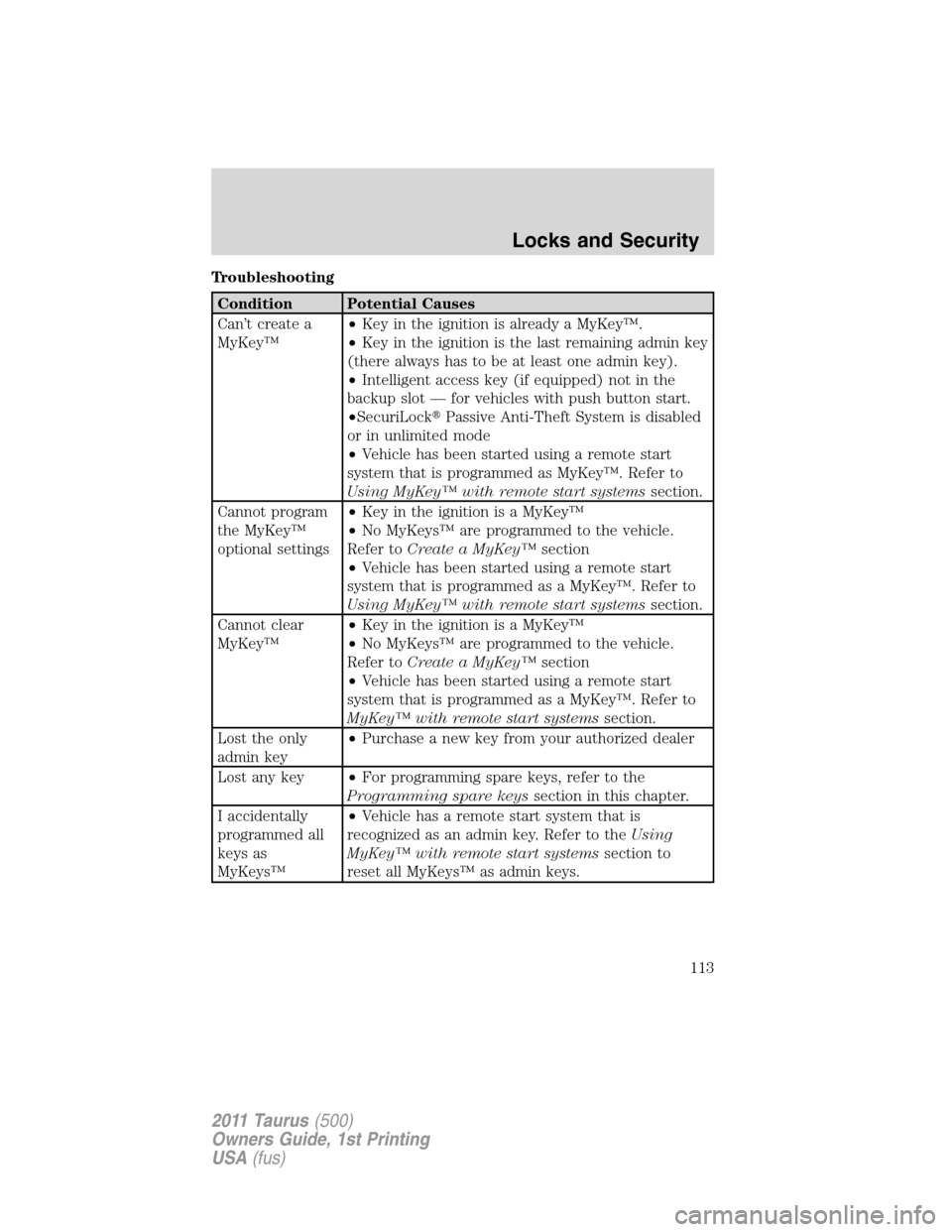

Troubleshooting
Condition Potential Causes
Can’t create a
MyKey™•Key in the ignition is already a MyKey™.
•Key in the ignition is the last remaining admin key
(there always has to be at least one admin key).
•Intelligent access key (if equipped) not in the
backup slot — for vehicles with push button start.
•SecuriLock
Passive Anti-Theft System is disabled
or in unlimited mode
•Vehicle has been started using a remote start
system that is programmed as MyKey™. Refer to
Using MyKey™ with remote start systemssection.
Cannot program
the MyKey™
optional settings•Key in the ignition is a MyKey™
•No MyKeys™ are programmed to the vehicle.
Refer toCreate a MyKey™section
•Vehicle has been started using a remote start
system that is programmed as a MyKey™. Refer to
Using MyKey™ with remote start systemssection.
Cannot clear
MyKey™•Key in the ignition is a MyKey™
•No MyKeys™ are programmed to the vehicle.
Refer toCreate a MyKey™section
•Vehicle has been started using a remote start
system that is programmed as a MyKey™. Refer to
MyKey™ with remote start systemssection.
Lost the only
admin key•Purchase a new key from your authorized dealer
Lost any key•For programming spare keys, refer to the
Programming spare keyssection in this chapter.
I accidentally
programmed all
keys as
MyKeys™•Vehicle has a remote start system that is
recognized as an admin key. Refer to theUsing
MyKey™ with remote start systemssection to
reset all MyKeys™ as admin keys.
Locks and Security
113
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

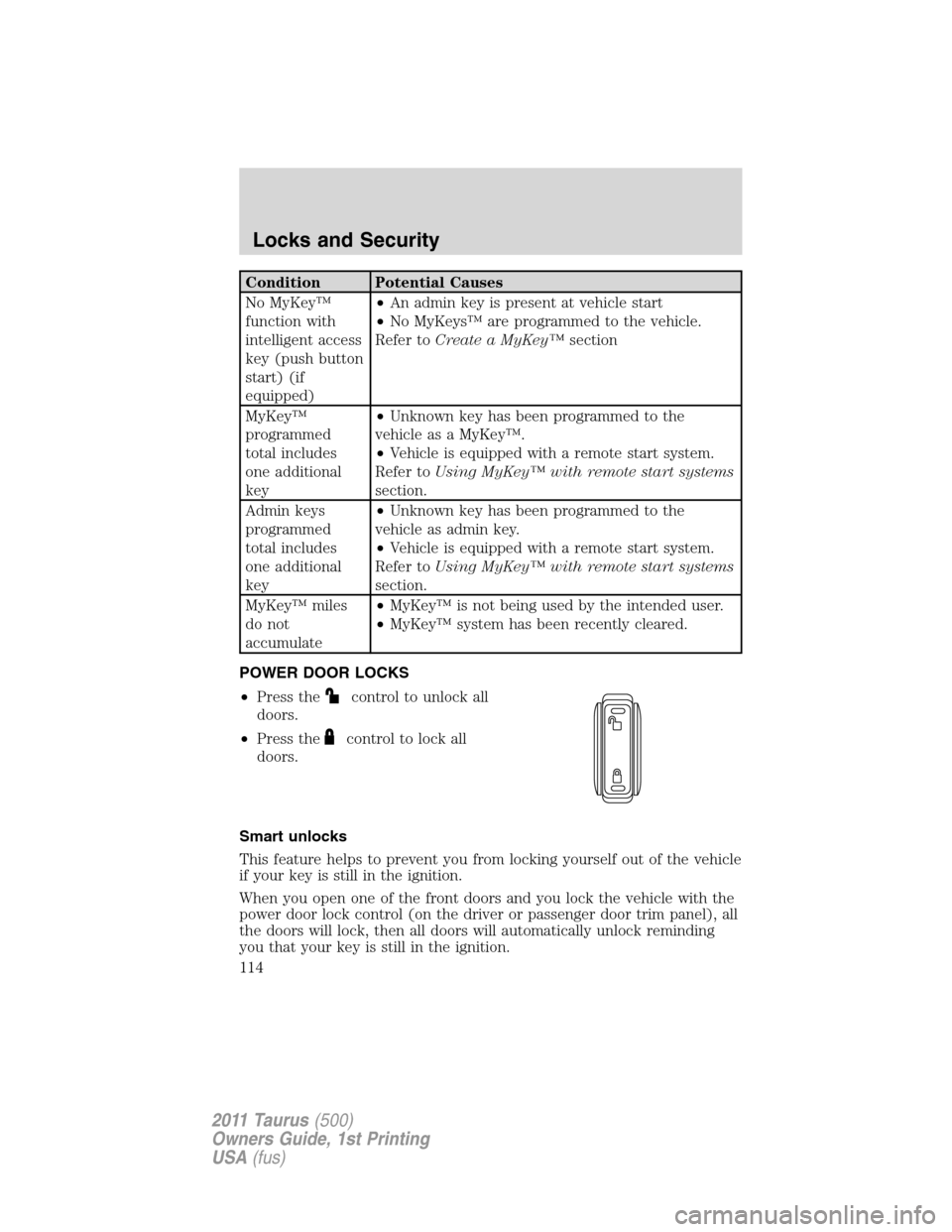

Condition Potential Causes
No MyKey™
function with
intelligent access
key (push button
start) (if
equipped)•An admin key is present at vehicle start
•No MyKeys™ are programmed to the vehicle.
Refer toCreate a MyKey™section
MyKey™
programmed
total includes
one additional
key•Unknown key has been programmed to the
vehicle as a MyKey™.
•Vehicle is equipped with a remote start system.
Refer toUsing MyKey™ with remote start systems
section.
Admin keys
programmed
total includes
one additional
key•Unknown key has been programmed to the
vehicle as admin key.
•Vehicle is equipped with a remote start system.
Refer toUsing MyKey™ with remote start systems
section.
MyKey™ miles
do not
accumulate•MyKey™ is not being used by the intended user.
•MyKey™ system has been recently cleared.
POWER DOOR LOCKS
•Press the
control to unlock all
doors.
•Press the
control to lock all
doors.
Smart unlocks
This feature helps to prevent you from locking yourself out of the vehicle
if your key is still in the ignition.
When you open one of the front doors and you lock the vehicle with the
power door lock control (on the driver or passenger door trim panel), all
the doors will lock, then all doors will automatically unlock reminding
you that your key is still in the ignition.
Locks and Security
114
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

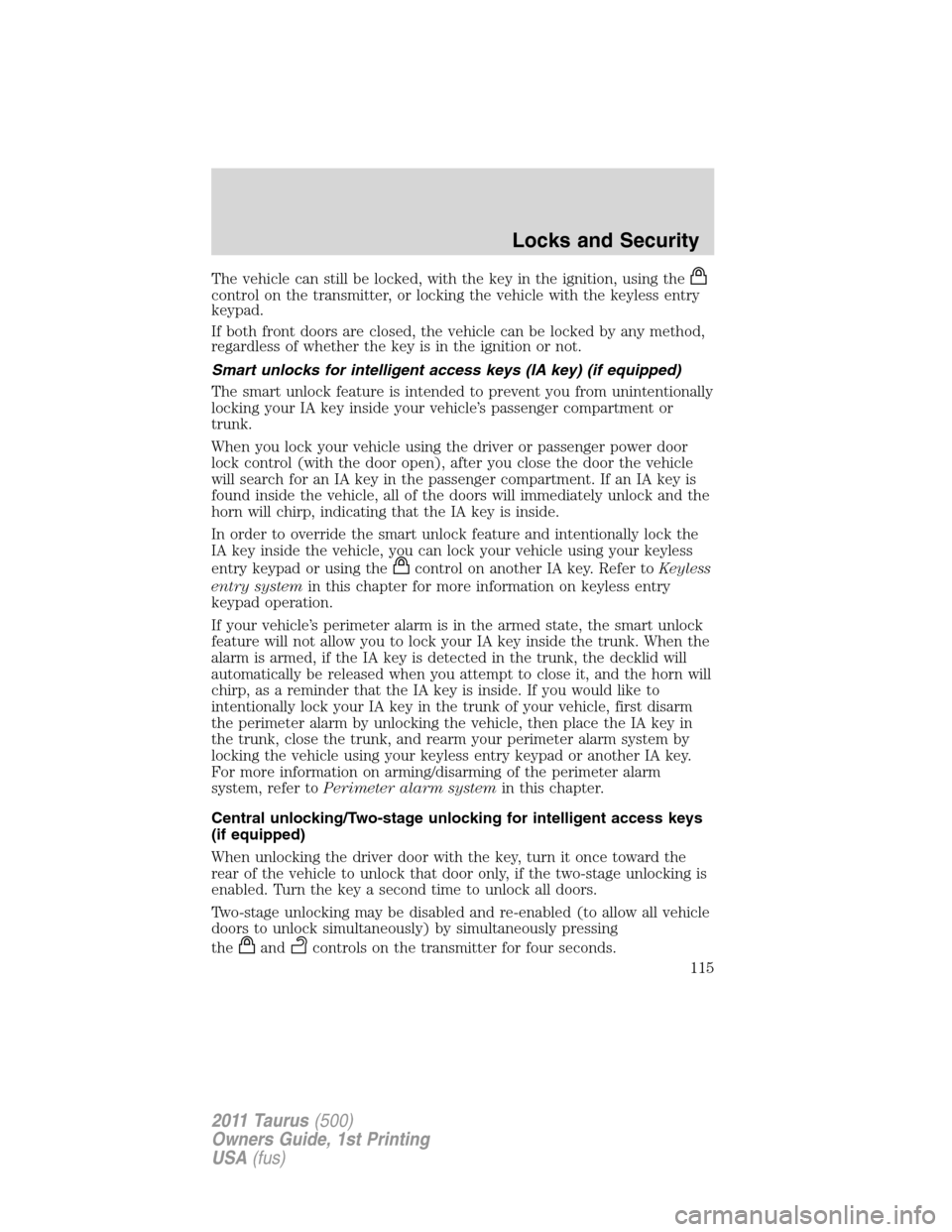

The vehicle can still be locked, with the key in the ignition, using the
control on the transmitter, or locking the vehicle with the keyless entry
keypad.
If both front doors are closed, the vehicle can be locked by any method,
regardless of whether the key is in the ignition or not.
Smart unlocks for intelligent access keys (IA key) (if equipped)
The smart unlock feature is intended to prevent you from unintentionally
locking your IA key inside your vehicle’s passenger compartment or
trunk.
When you lock your vehicle using the driver or passenger power door
lock control (with the door open), after you close the door the vehicle
will search for an IA key in the passenger compartment. If an IA key is
found inside the vehicle, all of the doors will immediately unlock and the
horn will chirp, indicating that the IA key is inside.
In order to override the smart unlock feature and intentionally lock the
IA key inside the vehicle, you can lock your vehicle using your keyless
entry keypad or using the
control on another IA key. Refer toKeyless
entry systemin this chapter for more information on keyless entry
keypad operation.
If your vehicle’s perimeter alarm is in the armed state, the smart unlock
feature will not allow you to lock your IA key inside the trunk. When the
alarm is armed, if the IA key is detected in the trunk, the decklid will
automatically be released when you attempt to close it, and the horn will
chirp, as a reminder that the IA key is inside. If you would like to
intentionally lock your IA key in the trunk of your vehicle, first disarm
the perimeter alarm by unlocking the vehicle, then place the IA key in
the trunk, close the trunk, and rearm your perimeter alarm system by
locking the vehicle using your keyless entry keypad or another IA key.
For more information on arming/disarming of the perimeter alarm
system, refer toPerimeter alarm systemin this chapter.
Central unlocking/Two-stage unlocking for intelligent access keys
(if equipped)
When unlocking the driver door with the key, turn it once toward the
rear of the vehicle to unlock that door only, if the two-stage unlocking is
enabled. Turn the key a second time to unlock all doors.
Two-stage unlocking may be disabled and re-enabled (to allow all vehicle
doors to unlock simultaneously) by simultaneously pressing
the
andcontrols on the transmitter for four seconds.
Locks and Security
115
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

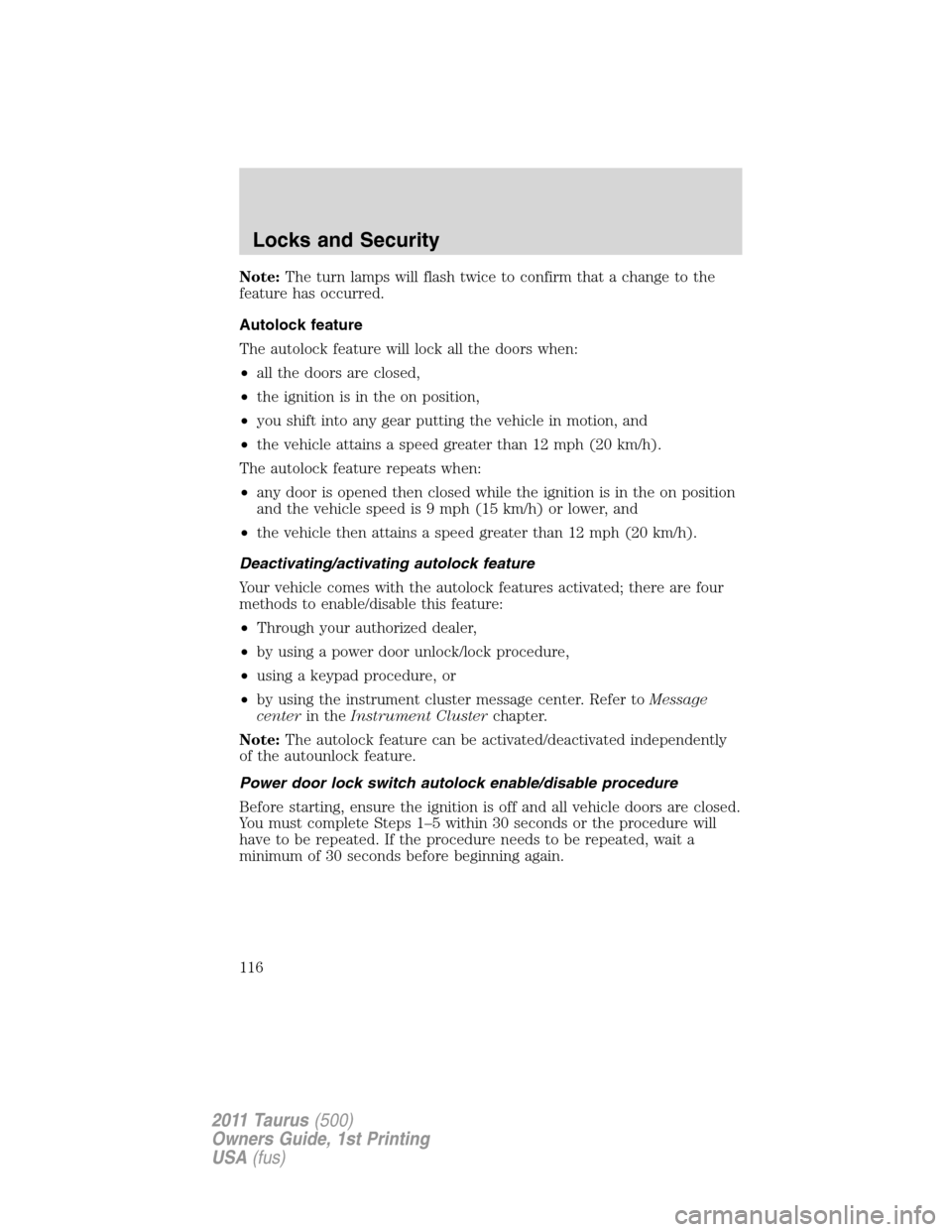

Note:The turn lamps will flash twice to confirm that a change to the
feature has occurred.
Autolock feature
The autolock feature will lock all the doors when:
•all the doors are closed,
•the ignition is in the on position,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
The autolock feature repeats when:
•any door is opened then closed while the ignition is in the on position
and the vehicle speed is 9 mph (15 km/h) or lower, and
•the vehicle then attains a speed greater than 12 mph (20 km/h).
Deactivating/activating autolock feature
Your vehicle comes with the autolock features activated; there are four
methods to enable/disable this feature:
•Through your authorized dealer,
•by using a power door unlock/lock procedure,
•using a keypad procedure, or
•by using the instrument cluster message center. Refer toMessage
centerin theInstrument Clusterchapter.
Note:The autolock feature can be activated/deactivated independently
of the autounlock feature.
Power door lock switch autolock enable/disable procedure
Before starting, ensure the ignition is off and all vehicle doors are closed.
You must complete Steps 1–5 within 30 seconds or the procedure will
have to be repeated. If the procedure needs to be repeated, wait a
minimum of 30 seconds before beginning again.
Locks and Security
116
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

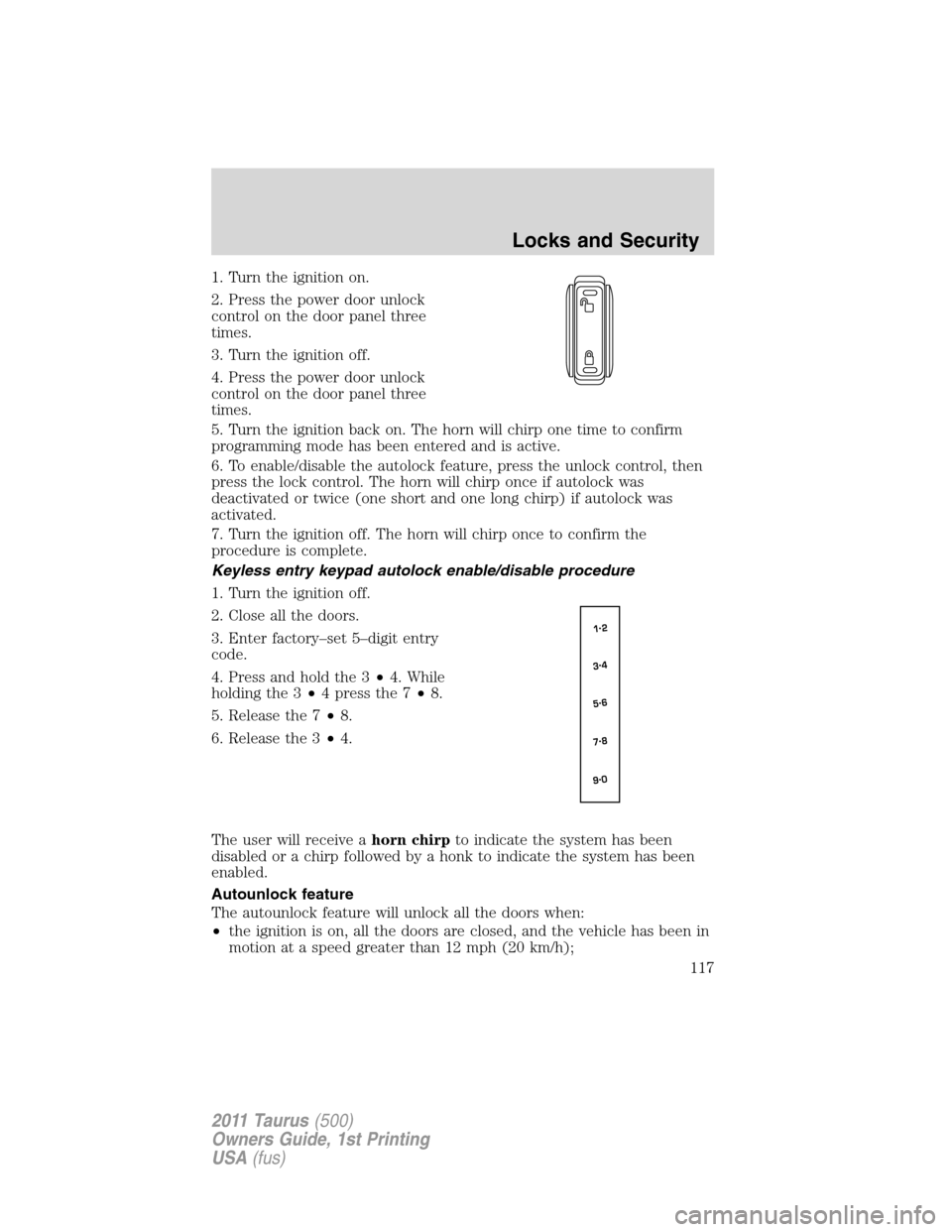

1. Turn the ignition on.
2. Press the power door unlock
control on the door panel three
times.
3. Turn the ignition off.
4. Press the power door unlock
control on the door panel three
times.
5. Turn the ignition back on. The horn will chirp one time to confirm
programming mode has been entered and is active.
6. To enable/disable the autolock feature, press the unlock control, then
press the lock control. The horn will chirp once if autolock was
deactivated or twice (one short and one long chirp) if autolock was
activated.
7. Turn the ignition off. The horn will chirp once to confirm the
procedure is complete.
Keyless entry keypad autolock enable/disable procedure
1. Turn the ignition off.
2. Close all the doors.
3. Enter factory–set 5–digit entry
code.
4. Press and hold the 3•4. While
holding the 3•4pressthe7•8.
5. Release the 7•8.
6. Release the 3•4.
The user will receive ahorn chirpto indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
Autounlock feature
The autounlock feature will unlock all the doors when:
•the ignition is on, all the doors are closed, and the vehicle has been in
motion at a speed greater than 12 mph (20 km/h);
Locks and Security
117
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

•the vehicle has then come to a stop and the ignition is turned off or to
accessory; and
•the driver door is opened within 10 minutes of the ignition being
turned off or to accessory.
Note:The doors will not autounlock if the vehicle has been
electronically locked before the driver door is opened.
Deactivating/activating autounlock feature
Your vehicle comes with the autounlock features activated; there are four
methods to enable/disable this feature:
•Through your authorized dealer,
•by using a power door unlock/lock sequence,
•using a keypad procedure, or
•by using the instrument cluster message center. Refer toMessage
centerin theInstrument Clusterchapter.
Note:The autounlock feature can be activated/deactivated
independently of the autolock feature.
Power door lock switch autounlock enable/disable procedure
Before starting, ensure the ignition is off and all vehicle doors are closed.
You must complete Steps 1–5 within 30 seconds or the procedure will
have to be repeated. If the procedure needs to be repeated, wait a
minimum of 30 seconds before beginning again.
1. Turn the ignition on.
2. Press the power door unlock
control on the door panel three
times.
3. Turn the ignition off.
4. Press the power door unlock
control on the door panel three
times.
5. Turn the ignition back on. The horn will chirp one time to confirm
programming mode has been entered and is active.
6. To enable/disable the autounlock feature, press the lock control, then
press the unlock control. The horn will chirp once if autounlock was
deactivated or twice (one short and one long chirp) if autounlock was
activated.
7. Turn the ignition off. The horn will chirp once to confirm the
procedure is complete.
Locks and Security
118
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

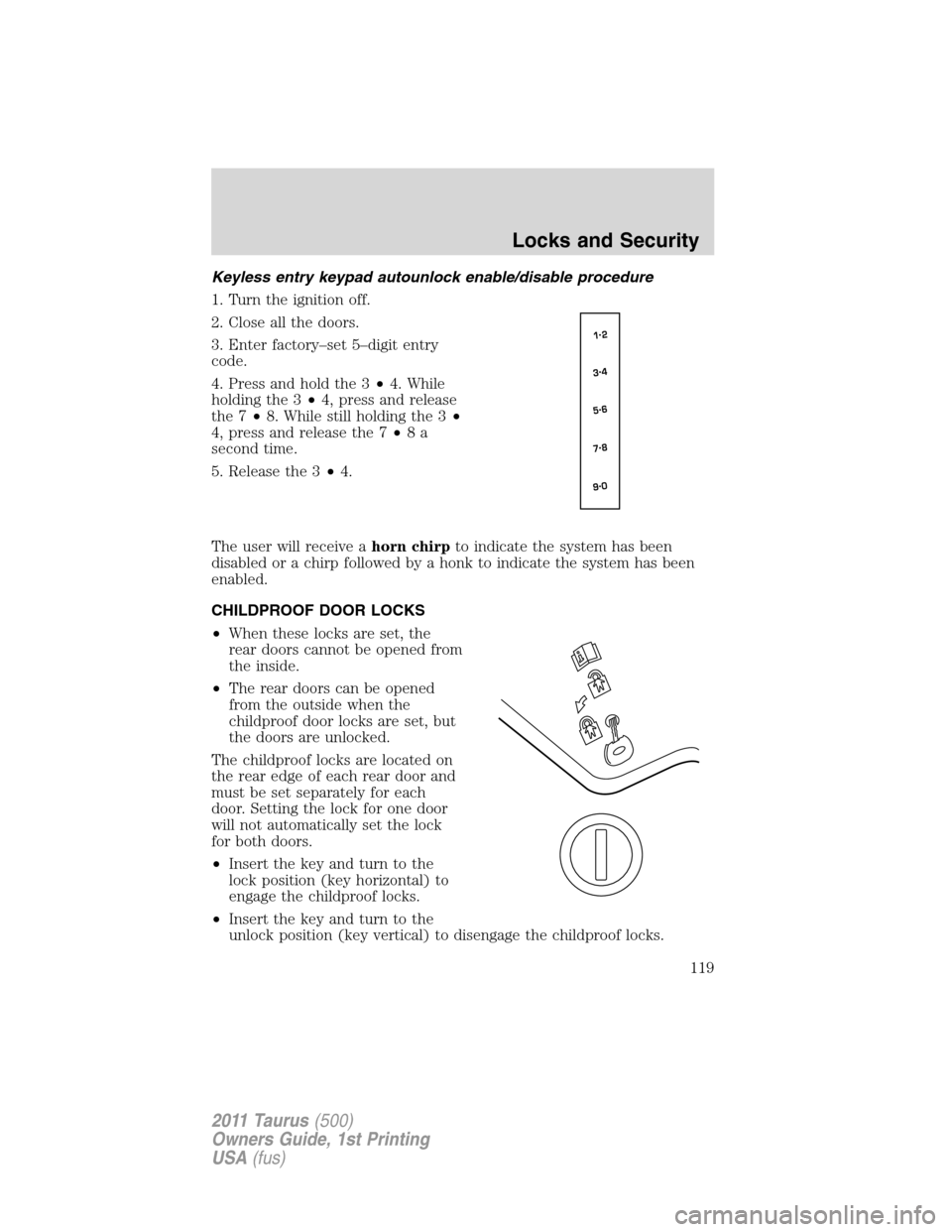

Keyless entry keypad autounlock enable/disable procedure
1. Turn the ignition off.
2. Close all the doors.
3. Enter factory–set 5–digit entry
code.
4. Press and hold the 3•4. While
holding the 3•4, press and release
the 7•8. While still holding the 3•
4, press and release the 7•8a
second time.
5. Release the 3•4.
The user will receive ahorn chirpto indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
CHILDPROOF DOOR LOCKS
•When these locks are set, the
rear doors cannot be opened from
the inside.
•The rear doors can be opened
from the outside when the
childproof door locks are set, but
the doors are unlocked.
The childproof locks are located on
the rear edge of each rear door and
must be set separately for each
door. Setting the lock for one door
will not automatically set the lock
for both doors.
•Insert the key and turn to the
lock position (key horizontal) to
engage the childproof locks.
•Insert the key and turn to the
unlock position (key vertical) to disengage the childproof locks.
Locks and Security
119
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

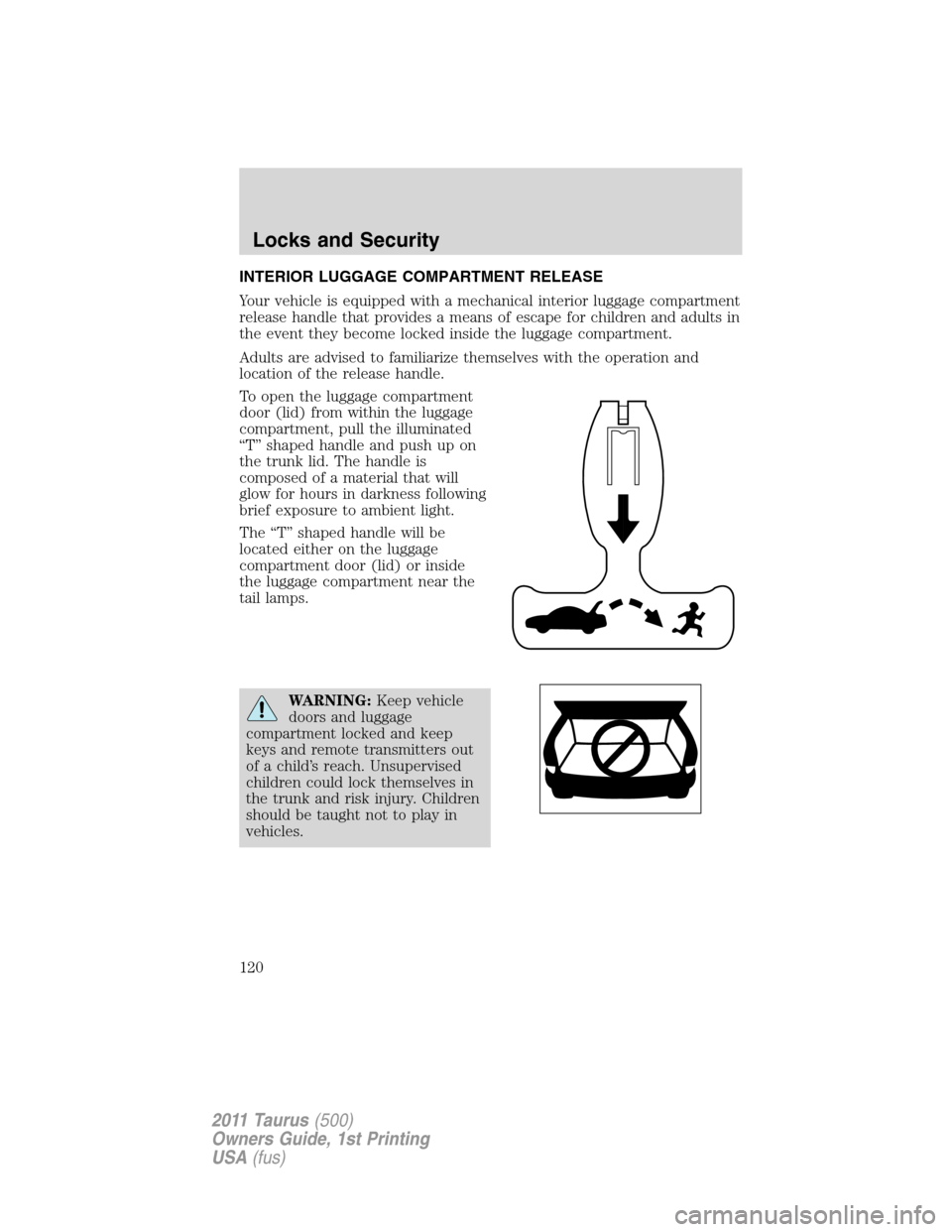

INTERIOR LUGGAGE COMPARTMENT RELEASE
Your vehicle is equipped with a mechanical interior luggage compartment
release handle that provides a means of escape for children and adults in
the event they become locked inside the luggage compartment.
Adults are advised to familiarize themselves with the operation and
location of the release handle.
To open the luggage compartment
door (lid) from within the luggage
compartment, pull the illuminated
“T” shaped handle and push up on
the trunk lid. The handle is
composed of a material that will
glow for hours in darkness following
brief exposure to ambient light.
The “T” shaped handle will be
located either on the luggage
compartment door (lid) or inside
the luggage compartment near the
tail lamps.
WARNING:Keep vehicle
doors and luggage
compartment locked and keep
keys and remote transmitters out
of a child’s reach. Unsupervised
children could lock themselves in
the trunk and risk injury. Children
should be taught not to play in
vehicles.
Locks and Security
120
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
