2011 FORD KUGA Oil specification

SECTION 303-07 Engine Ignition— 2.5L Duratec (147kW/200PS) - VI5
VEHICLE APPLICATION:2008.50 Kuga
PA G E
CONTENTS
SPECIFICATIONS
303-07-2
Specifications ........................................................................\
..............................................
303-07-2
Spark plugs ........................................................................\
.............................................
DIAGNOSIS AND TESTING 303-07-3
Engine Ignition ........................................................................\
............................................
303-07-3
Inspection and Verification ........................................................................\
..........................
303-07-3
Symptom Chart ........................................................................\
...........................................
REMOVAL AND INSTALLATION 303-07-4
(22 414 0)
Ignition Coil-On-Plug ........................................................................\
..............
303-07-1
Engine Ignition— 2.5L Duratec (147kW/200PS) - VI5303-07-
1
.
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Transmission Fluid Level Check
General EquipmentFord Diagnostic Equipment
Materials
Specification
Name
WSS-M2C924-A / 4U7J-
M2C924-AA
Automatic Transmission
Oil E-AW
Inspection
1.
Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. Connect the Ford diagnostic equipment.
General Equipment: Ford Diagnostic Equipment
3. Make sure that the transmission is not in
emergency operation mode.
4. Make sure that the transmission fluid
temperature is between 70° and 80°C.
General Equipment: Ford Diagnostic Equipment
80
70
E114667
5. WARNING: Make sure that the brake pedal and parking brake are fully applied
during the test.
Start and run the engine at idle. 6.
E114668
7. NOTE:
Make sure that the selector lever and
the gearshift mechanism are in the park (P)
position.
8. Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
9.
E98183
G1163606en2008.50 Kuga8/2011
307-01- 61
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 61
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

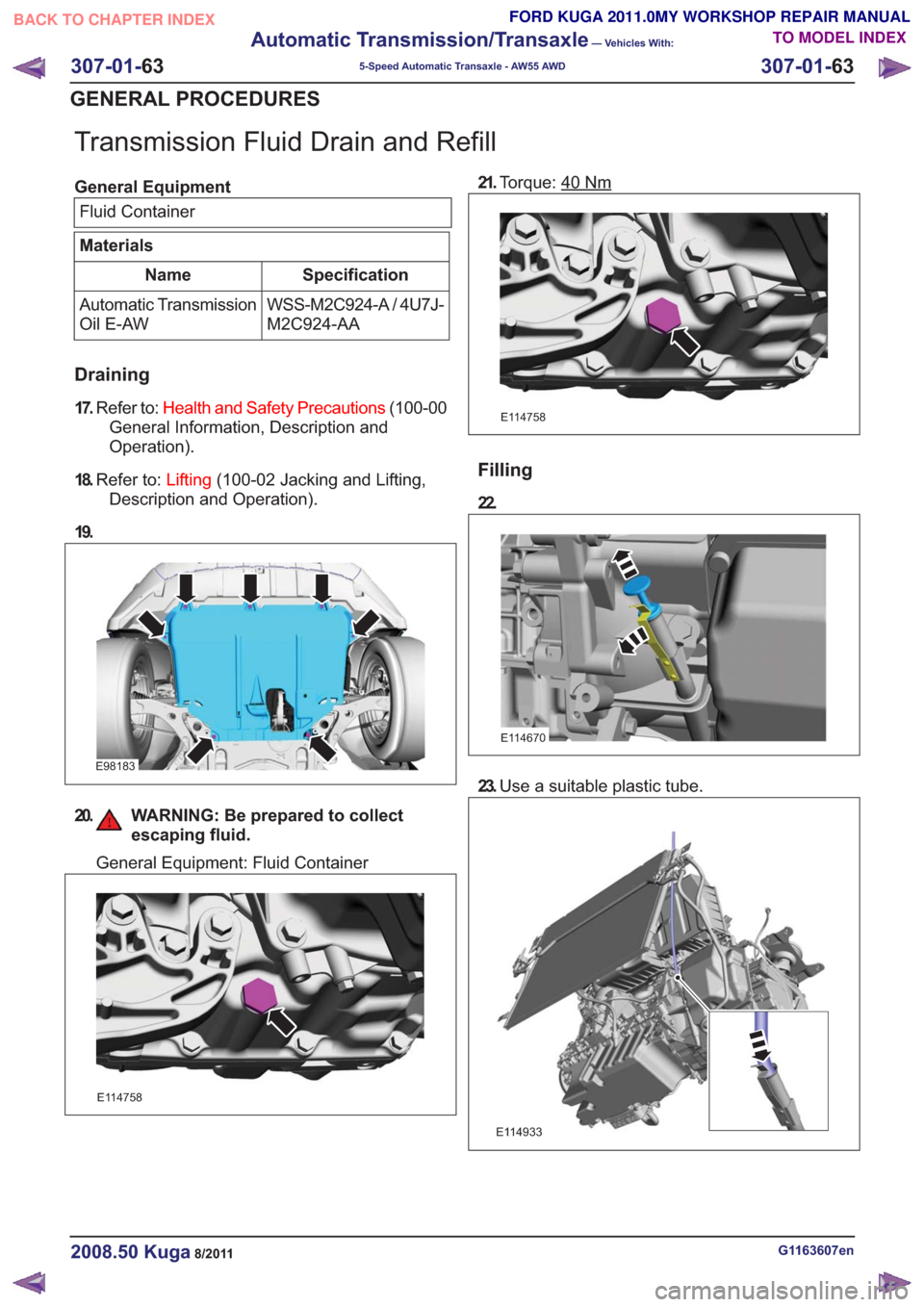

Transmission Fluid Drain and Refill
General EquipmentFluid Container
Materials
Specification
Name
WSS-M2C924-A / 4U7J-
M2C924-AA
Automatic Transmission
Oil E-AW
Draining
17.
Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
18. Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
19.
E98183
20. WARNING: Be prepared to collect escaping fluid.
General Equipment: Fluid Container
E114758
21.Torque: 40Nm
E114758
Filling
22.
E114670
23.Use a suitable plastic tube.
E114933
G1163607en2008.50 Kuga8/2011
307-01- 63
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 63
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Output Shaft Speed (OSS) Sensor
MaterialsSpecification
Name
WSS-M2C924-A / 4U7J-
M2C924-AA
Automatic Transmission
Oil E-AW
Removal
1.
Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. WARNING: Be prepared to collect escaping fluid.
E115345
3.
E115335
Installation
1. NOTE: Make sure that a new component is
installed.
Material: Automatic Transmission Oil E-AW (WSS-M2C924-A / 4U7J-M2C924-AA)
transmission fluid
E115336
2. WARNING: Make sure that a new bolt is installed.
Torque: 5Nm
E115253
G1163635en2008.50 Kuga8/2011
307-01- 72
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 72
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Torque Converter Seal
Special Tool(s) / General Equipment303-293
Remover, Crankshaft Seal
21143
Special Tool(s) / General Equipment308-095
Installer, Input Shaft Bearing
16038
Round-Ended Steel Rule
Materials
Specification
Name
WSS-M2C924-A / 4U7J-
M2C924-AA
Automatic Transmission
Oil E-AW
Removal
1.
Refer to: Transmission (307-01 Automatic
Transmission/Transaxle - Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD,
Removal).
2.
E115423
3. Special Tool(s): 303-293
303-293303-293
E115424
G1163637en2008.50 Kuga8/2011
307-01- 73
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 73
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Transmission Fluid Pan
Special Tool(s)303-428
Separator, Oil Pan
21179
Materials
Specification
Name
WSS-M4G320-A3 /
6G9N-M4G320-AA
Silicone Sealant LG
Removal
1.
E115314
2.
Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
3.
E115327
4. Special Tool(s): 303-428
2.
x9
303-428
x9
303-428
1
2
E115341
G1163608en2008.50 Kuga8/2011
307-01- 75
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 75
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Turbine Shaft Speed (TSS) Sensor
MaterialsSpecification
Name
WSS-M2C924-A / 4U7J-
M2C924-AA
Automatic Transmission
Oil E-AW
Removal
1.
Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2.
E115344
3.
E115335
Installation
1. NOTE: Make sure that a new component is
installed.
Material: Automatic Transmission Oil E-AW (WSS-M2C924-A / 4U7J-M2C924-AA)
transmission fluid
E115336
2. WARNING: Make sure that a new bolt is installed.
Torque: 5Nm
E115252
G1163632en2008.50 Kuga8/2011
307-01- 81
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 81
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Transfer Case Fluid Level Check
MaterialsSpecification
Name
8U7J-19G518-BA
Rear Axle Oil SAE 75W-
90
Inspection
1. Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2.
E139436
3. Material: Rear Axle Oil SAE 75W-90
(8U7J-19G518-BA) transmission fluid
•
• Correct the rear axle oil level if neccessary.
• 20ml~1mm
0mm0mm
E114595
4. NOTE:
Make sure that a new component is
installed.
Torque: 34
Nm
E139434
G1164988en2008.50 Kuga8/2011
307-07- 9
Transfer Case
— Vehicles With: 5-Speed Automatic Transaxle - AW55
AWD/6-Speed Automatic Transaxle - 6DCT450
307-07- 9
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
