•Rounding of the displayed values to the nearest 0.1 gallon (liter).
To determine your average highway fuel economy, do the following:
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press RESET in order to reset the function after
setting the speed control to get accurate highway fuel economy readings.
For more information refer toEssentials of good fuel economyin the
Maintenance and Specificationschapter.
Fuel Hist.:Press the right arrow key (when in the Fuel Econ. menu) to
reach Fuel Hist. Fuel history shows fuel usage (AVG MPG or L/100km)
as a bar graph based on time. The duration time can be changed as
follows:
Duration– Press the right arrow key (when in the Fuel Hist. menu) to
reach the following duration choices.
•5 Minutes
•10 Minutes
•30 Minutes
•Last 5 Resets
Use the up/down arrows keys to highlight one of the choices; press and
hold OK to set your choice.
The graph is updated each minute with the fuel economy that was
achieved during the prior 5, 10, 30 minutes or last 5 resets of driving.
Instrument Cluster
33
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Truck Apps (if equipped)
In this mode, off-road and trailer towing application options are available.
*Off Road
Pitch and bank angle (in degrees): Displays the pitch angle (front to
rear) and bank angle (side to side) of the road surface.
Steering angle (in degrees): Displays the steering angle of the front
wheels after the vehicle has been driven for a period of time.
Differential lock/unlock: Displays the state (locked or unlocked) of the
electronic locking differential.
Torque flow: Displays the torque flow to the front and rear driveline
and operating mode of the transfer case: 4X2, 4X4 High, 4X4 Low,
AWD.
AdvanceTracsport mode, hill descent control, off-road mode: Displays
which modes are active.
* If equipped—your vehicle may be equipped with some or all of these
options.
When “Press OK for info” is displayed, pressing OK will give you
information on the following options if equipped (Note:Information is
only available when traveling less than 3 mph [5 km/h]):
•4X4 System
•AdvanceTrac
•AWD (All-Wheel Drive)
•ELD (Electronic Locking Differential)
•HDC (Hill Descent Control)
•Off-Road Mode
Trailer:Press the right arrow key (when in the Off-Road menu) to
reach the Trailer menu. The following information is displayed
•Active trailer name or default trailer
•Accumulated trailer distance
•Trailer gain and output
•Trailer disconnected (Disregard this status if your vehicle is not
equipped with a factory installed trailer brake controller. This message
may appear when an aftermarket TBC is used even when the trailer is
connected.)
Instrument Cluster
34
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

When “Press OK for options” is displayed, pressing OK will open the
trailer options menus:
Trailer
Change Active
TrailerWhen this is highlighted, press the right arrow key
to change the currently selected trailer. Use the up
and down arrows to select a trailer and press the
OK button to choose the highlighted trailer.
Adding a new trailer– Use the up/down arrows to
highlight “New Trailer” from the Change Active
Trailer menu and press the right arrow key to enter
the New Trailer input screen. Use the up/down
arrow keys to choose alpha, numeric and symbol
characters and then press the right arrow to move
the character space over. Continue adding
characters as needed. Press the left arrow to go
back and change a previously selected character.
When finished with the new trailer name, press OK
to accept the new trailer name.
Connection
Checklist (if
equipped)Press the right arrow button when this is highlighted
to show the trailer connection types: Conventional,
Fifth Wheel and Gooseneck. Use the up/down
arrows to highlight one of these choices and press
OK to display the connection checklist. Follow the
on-screen instructions to go through the connections
list.
Delete Trailer Press the right arrow button when this is highlighted
to show currently stored trailers. Use the up/down
arrows to highlight the trailer you want to delete
and press OK to delete. Follow the on-screen
prompts to exit or confirm delete.
Information
ScreenPress the right arrow button when this is highlighted
to display information on the following vehicle
features: Tow Haul mode, Trailer Brake Controller.
Instrument Cluster
35
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Trailer
Rename Trailer Press the right arrow button when this is highlighted
to display saved or default trailers. Use the up/down
buttons to highlight a trailer and press OK to select
it. Use the up/down arrow buttons to change the
characters as needed. When done, press OK to
accept the change.
Reset Trailer
Mileage /
Kilometers (if
equipped)Press the right arrow button when this is highlighted
to display accumulated distance on a given trailer
within the list of trailer(s). Use the up/down buttons
to select a trailer, then press and hold OK to reset
the trailer mileage (kilometers).
Settings
In this mode, you can configure different driver setting choices (if
equipped). Press the right arrow key (when in the Settings menu) to
reach the Driver Assist menu:
Driver Assist
Rear Park Aid On/Off
Rear Video
CameraCamera Delay On/Off
Visual Park Aid On/Off
Guidelines Fixed/Off
Zoom Levels
(This will only
be shown when
Reverse (R) is
selected.Off, Level 1–3
Trailer Brake
ModeElectric or Elect. Over Hydraulic
Trailer Sway
ControlOn/Off
Instrument Cluster
36
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Vehicle
Autolamp Delay Off or XXX seconds
DTE Calculation
(distance to
empty)Normal History Used
Towing History Used
Easy Entry/Exit On/Off
Locks Autolock, On/Off
Autounlock On/Off
Unlocking One Stage or Two Stage
Menu ControlStandard: with standard set, pressing the down
arrow from a lower level menu will escape to the
main menu.
Memory On: with memory on set, pressing the
down arrow will navigate to the previous lower
level menu.
Oil Life Reset Set to XXX% (Press and hold OK to set).
Power Running
BoardsAuto/Off/Out
Remote StartClimate ControlFront Defrost
Auto/Off Rear Defrost
Driver Seat
Passenger Seat
Heater-A/C Auto/ Last
Setting
Duration 5, 10 or 15 minutes, Off
Quiet Start On/Off
System Enable/Disable
Wiper ControlCourtesy Wipe On/Off
Rain Sensing
wipersOn/Off
Instrument Cluster
37
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

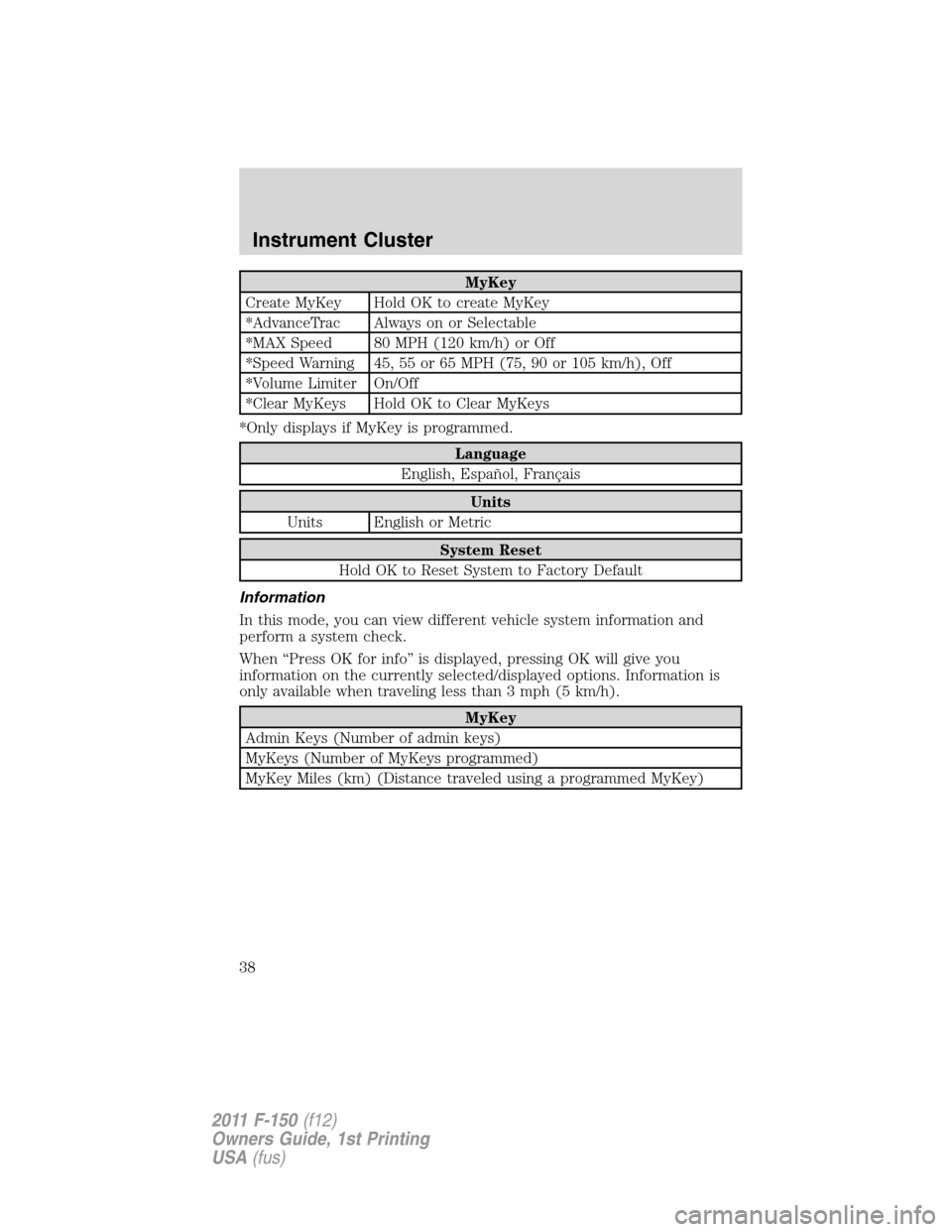

MyKey
Create MyKey Hold OK to create MyKey
*AdvanceTrac Always on or Selectable
*MAX Speed 80 MPH (120 km/h) or Off
*Speed Warning 45, 55 or 65 MPH (75, 90 or 105 km/h), Off
*Volume Limiter On/Off
*Clear MyKeys Hold OK to Clear MyKeys
*Only displays if MyKey is programmed.
Language
English, Español, Français
Units
Units English or Metric
System Reset
Hold OK to Reset System to Factory Default
Information
In this mode, you can view different vehicle system information and
perform a system check.
When “Press OK for info” is displayed, pressing OK will give you
information on the currently selected/displayed options. Information is
only available when traveling less than 3 mph (5 km/h).
MyKey
Admin Keys (Number of admin keys)
MyKeys (Number of MyKeys programmed)
MyKey Miles (km) (Distance traveled using a programmed MyKey)
Instrument Cluster
38
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

System Check
Oil Life
Doors
Brakes
Tire Pressure
Trailer Brake
Ctrl.Gain and Output (when trailer is connected)
No trailer (when no trailer is connected)
Trailer Sway
Park Aid Check Rear Park Aid
Fuel Level (distance to empty)
Some items will only display during a system check if a problem has
been detected. If an issue exists on one of the monitored systems, the
message center will display the number of warnings that need immediate
attention in red and the number of informational warnings will be listed
in amber. Use the up/down arrow buttons to scroll through the list; press
the right arrow button to display specific information on the highlighted
warning.
Transmission indicator display
The transmission gear indicator displays in the right side of the message
center when using the SelectShift Automatic™ transmission feature. This
display will not be shown in all screen modes. For example: when
programming certain vehicle features or in certain information menus.
System warnings and status messages
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for four
seconds.
The message center will display the last selected feature if there are no
more warning messages.
Types of messages and warnings:
•Some messages will appear briefly to inform you of something you
may need to take action on or be informed of.
•Some messages will appear once and then again when the vehicle is
restarted.
•Some messages will reappear after clearing or being reset if a problem
or condition is still present and needs your attention.
Instrument Cluster
39
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

•Some messages can be acknowledged and reset by pressing OK. This
allows you to use the full message center functionality by clearing the
message.
DOOR AJAR— Displayed when the door is not completely closed.
DRIVER DOOR AJAR— Displayed when the driver door is not
completely closed.
LEFT REAR DOOR AJAR— Displayed when the rear left door is not
completely closed.
PASSENGER DOOR AJAR— Displayed when the passenger door is
not completely closed.
RIGHT REAR DOOR AJAR— Displayed when the rear right door is
not completely closed.
CHECK FUEL FILL INLET— Displayed when the fuel fill inlet may
not be properly closed. Refer toEasy Fuel™ “no cap” fuel systemin
theMaintenance and Specificationschapter.
FUEL LEVEL LOW— Displayed as an early reminder of a low fuel
condition.
CHECK CHARGING SYSTEM (if equipped)— Displayed when the
electrical system is not maintaining proper voltage. If you are operating
electrical accessories when the engine is idling at a low speed, turn off as
many of the electrical loads as soon as possible. If the warning stays on
or comes on when the engine is operating at normal speeds, contact your
authorized dealer as soon as possible.
TURN POWER OFF TO SAVE BATTERY (if equipped)— Displayed
when the battery management system determines that:
•the battery is at a low state of charge or,
•the ignition has been in accessory position or on position with the
engine off for approximately 45 minutes.
Turn the ignition off as soon as possible to protect the battery. This
message will clear once the vehicle has been started and the battery
state of charge has recovered. Turning off unnecessary electrical loads
will allow faster battery state-of-charge recovery.
TURN POWER OFF TO SAVE BATTERY (if equipped)— Displayed
when the battery management system detects an extended low-voltage
condition. Various vehicle features will be disabled to help preserve the
battery. Turn off as many of the electrical loads as soon as possible to
improve system voltage. If the system voltage has recovered, the disabled
features will operate again as normal.
Instrument Cluster
40
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
