•Check the exhaust for any foreign material that may have collected
during storage.
•Check tire pressures and set tire inflation per the Tire Label.
•Check brake pedal operation. Drive the vehicle 15 ft (4.5 meters) back
and forth to remove rust build-up.
•Check fluid levels (including coolant, oil and gas) to make sure there
are no leaks, and fluids are at recommended levels.
•If the battery was removed, clean the battery cable ends and inspect.
If you have any concerns or issues, contact your authorized dealer.
MOTORCRAFT PART NUMBERS
Component3.7L V6
engine5.0L V8
engine6.2L V8
engine3.5L V6
EcoBoost™
engine
Air filter
elementFA-1883 FA-1883 FA-1883 FA-1883
Battery BXT-65-750 BXT-65-750 BXT-65-750 BXT-65-750
Oil Filter FL-500-S FL-500-S FL-820-S FL-500-S
Spark plugs
1111
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
409
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

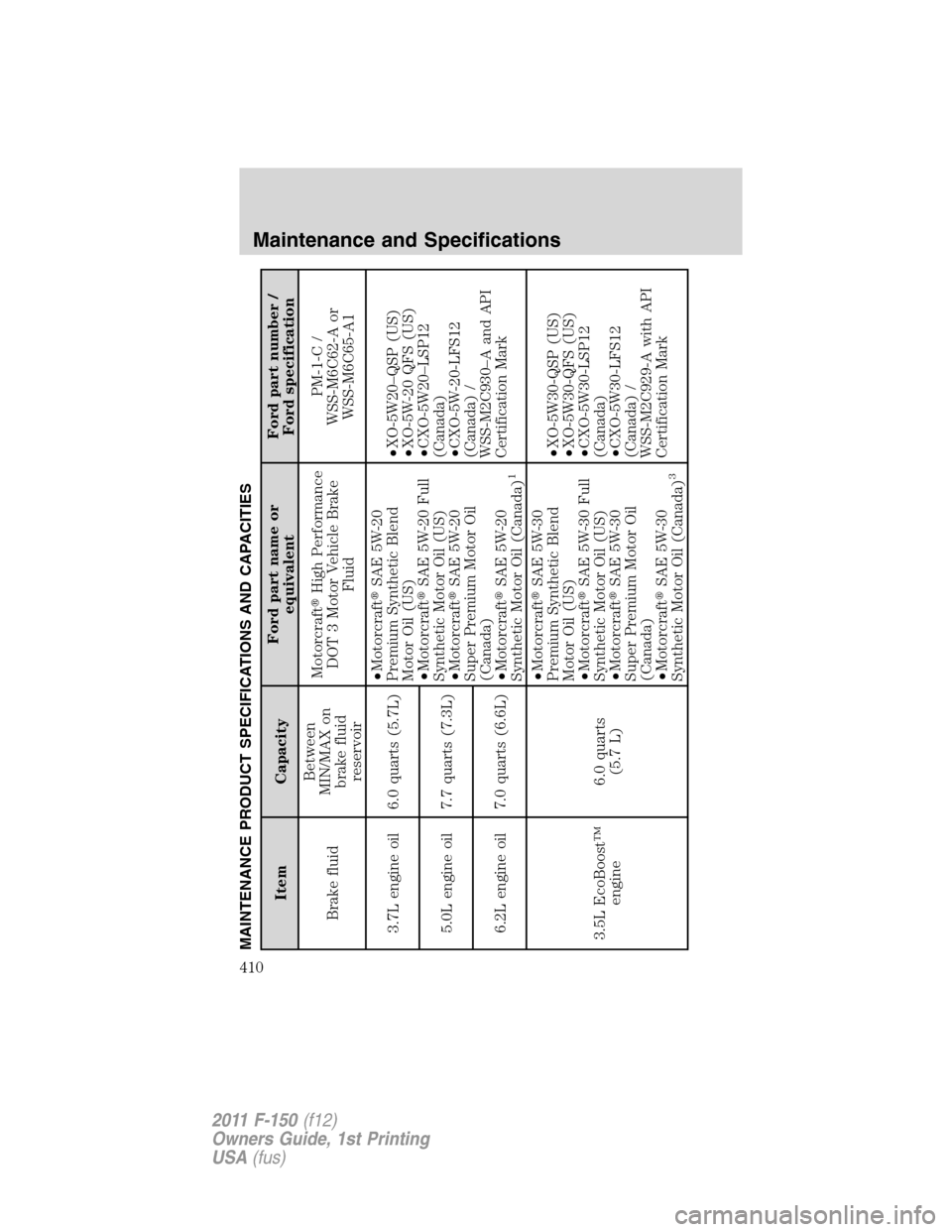

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord part name or
equivalentFord part number /
Ford specification
Brake fluidBetween
MIN/MAX on
brake fluid
reservoirMotorcraftHigh Performance
DOT 3 Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
3.7L engine oil 6.0 quarts (5.7L)•MotorcraftSAE 5W-20
Premium Synthetic Blend
Motor Oil (US)
•MotorcraftSAE 5W-20 Full
Synthetic Motor Oil (US)
•MotorcraftSAE 5W-20
Super Premium Motor Oil
(Canada)
•MotorcraftSAE 5W-20
Synthetic Motor Oil (Canada)
1
•XO-5W20–QSP (US)
•XO-5W-20 QFS (US)
•CXO-5W20–LSP12
(Canada)
•CXO-5W-20-LFS12
(Canada) /
WSS-M2C930–A and API
Certification Mark 5.0L engine oil 7.7 quarts (7.3L)
6.2L engine oil 7.0 quarts (6.6L)
3.5L EcoBoost™
engine6.0 quarts
(5.7 L)•MotorcraftSAE 5W-30
Premium Synthetic Blend
Motor Oil (US)
•MotorcraftSAE 5W-30 Full
Synthetic Motor Oil (US)
•MotorcraftSAE 5W-30
Super Premium Motor Oil
(Canada)
•MotorcraftSAE 5W-30
Synthetic Motor Oil (Canada)
3
•XO-5W30-QSP (US)
•XO-5W30-QFS (US)
•CXO-5W30-LSP12
(Canada)
•CXO-5W30-LFS12
(Canada) /
WSS-M2C929-A with API
Certification Mark
Maintenance and Specifications
410
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford specification
3.7L engine
coolant16.0 quarts
(15.1L)
•MotorcraftSpecialty Orange
Engine Coolant with Bittering
Agent (US)
•MotorcraftSpecialty Orange
Engine Coolant (Canada)
2
•VC-3-B (US)
•CVC-3-B (Canada) /
WSS-M97B44-D 5.0L engine
coolant17.0 quarts
(16.1L)
6.2L engine
coolant19.5 quarts
(18.5L)
3.5L EcoBoost™
engine coolant16.5 quarts
(15.6L)
Front axle (4X4) 3.5 pints (1.8L)MotorcraftSAE 80W-90
Premium Rear Axle LubricantXY-80W-90-QL /
WSP-M2C197-A
Rear axle fluid 5.5 pints (2.6L)
3
MotorcraftSAE 75W-140
Rear Synthetic Axle Lubricant
4
XY-75W140-QL /
WSL-M2C192-A
Transmission
/steering/parking
brake linkages
and pivots, brake
pedal shaft— Premium Long-Life GreaseXG-1-C /
ESA-M1C75-B
Hinges, latches,
striker plates,
seat tracks, fuel
filler door hinge
and door check
arm—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESB-M1C93-B
Maintenance and Specifications
411
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Power steering
fluid
(6.2L engine
only)Fill to between
MIN and MAX
lines on reservoirMotorcraft
MERCONV
AT FXT-5-QM /
MERCONV
Transfer case
fluid
(4X4 / AWD)1.6 quarts (1.5L)
5
MotorcraftTransfer Case
FluidXL-12 /
—
Automatic
transmission fluid
(6R80)12.1 quarts
(11.7L)
6
(3.7L engine)
Motorcraft
MERCONLV
AT F
7
XT-10-QLV /
MERCONLV 13.1 quarts
(12.4L)
(5.0L engine)
13.1 quarts
(12.4L)
(6.2L engine)
13.1 quarts
(12.4L)
(3.5L EcoBoost™
engine)
Maintenance and Specifications
412
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford specification

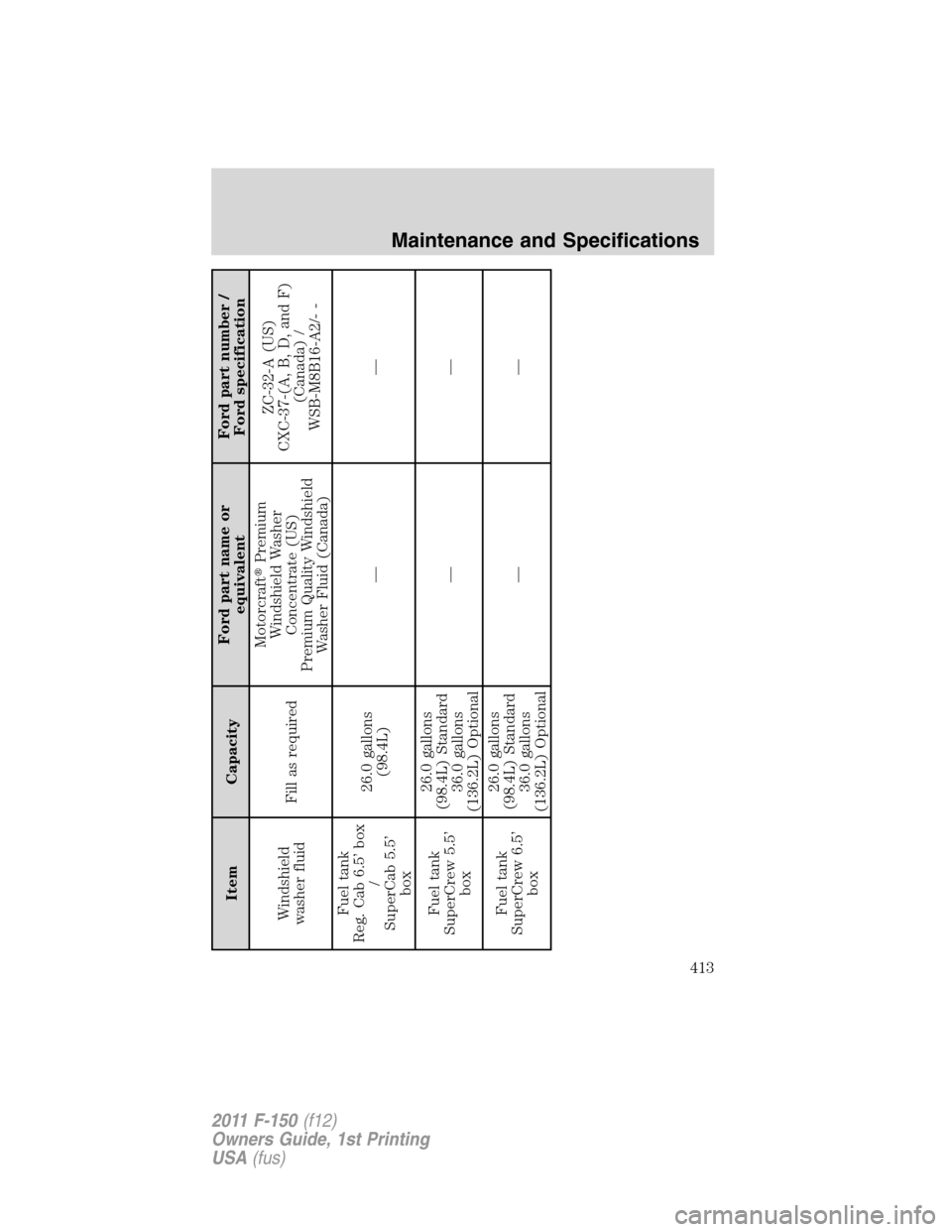

Windshield
washer fluidFill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality Windshield
Washer Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank
Reg. Cab 6.5’ box
/
SuperCab 5.5’
box26.0 gallons
(98.4L)——
Fuel tank
SuperCrew 5.5’
box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
Fuel tank
SuperCrew 6.5’
box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
Maintenance and Specifications
413
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Fuel tank
Reg. Cab 8’ box /
SuperCab 6.5’
box /
SuperCab 8’ box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle. Check the coolant reservoir bottle
labeling for the correct fluid type to use.3Service refill capacity is determined by filling the axle to 1/4-9/16 inch (6-14 mm) below the
bottom of the filler hole with the vehicle on a level surface.
Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A, for complete fill of 8.8 inch and 9.75 inch Traction-Lok axles.4Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.5Service refill capacity is determined by filling the transfer case to the bottom of the filler hole
with the vehicle on a level surface.6Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.7Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.
Maintenance and Specifications
414
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

ENGINE DATA
Engine3.7L V6
Engine5.0L V8
Engine6.2L V8
Engine3.5L V6
EcoBoost™
Engine
Cubic inches 226 302 378 214
FuelMinimum
87 octane
or E85Minimum
87 octane
or E85Minimum
87 octaneMinimum
87 octane
Firing order 1-4-2-5-3-6 1-5-4-8-6-3-7-2 1-3-7-2-6-5-4-8 1-4-2-5-3-6
Ignition
systemCoilonplug Coilonplug Coilonplug Coilonplug
Spark plug
gap.052–.056 in
1.32–1.42mm.041 – .047 in
1.04–1.20mm.039–.043 in
1.0–1.1mm. 033-.037 in
.84-.94mm
Compression
ratio10.3:1 10.5:1 9.8:1 10.0:1
Engine drivebelt routing
3.7L engine
5.0L engine
Maintenance and Specifications
415
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

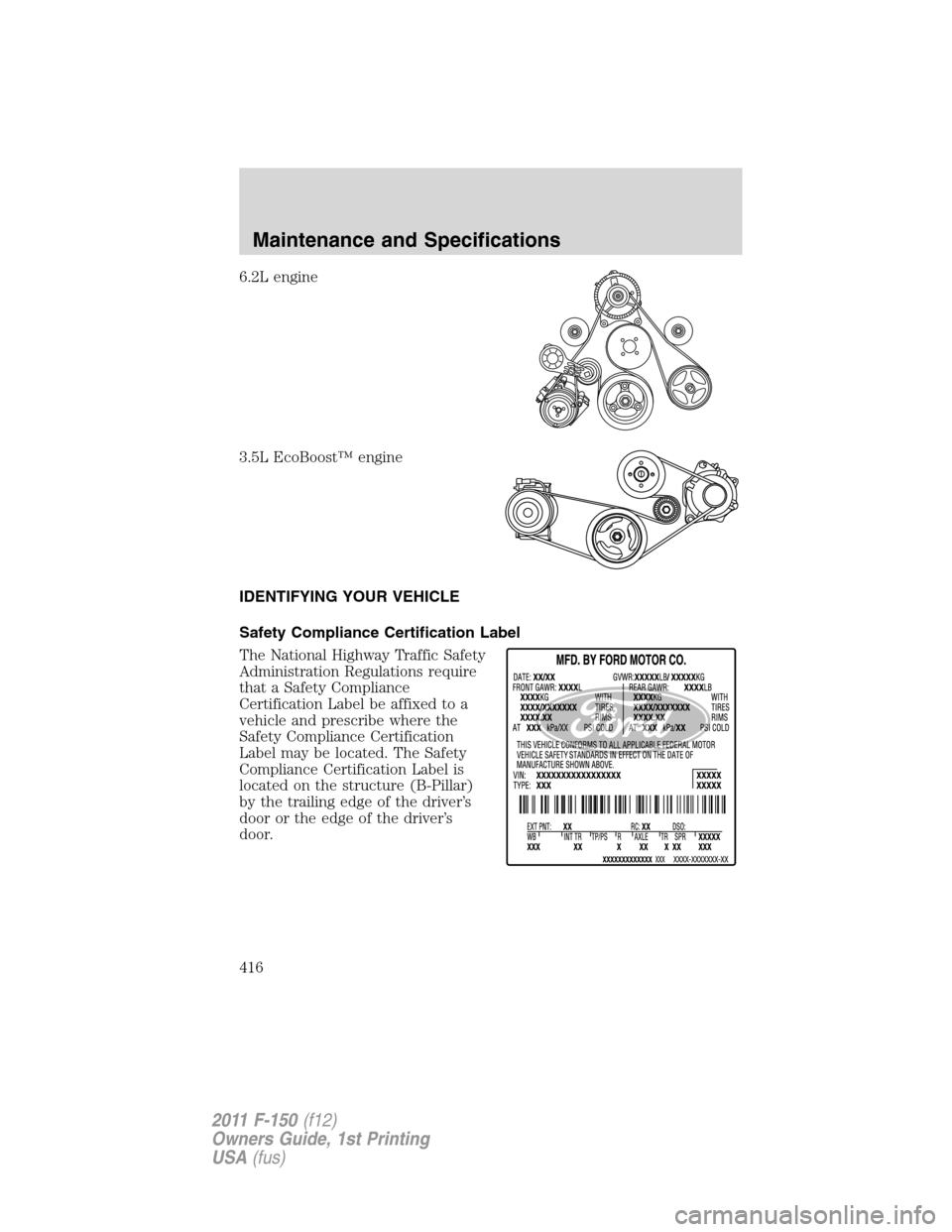

6.2L engine
3.5L EcoBoost™ engine
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
