2011 FORD F150 fold seats

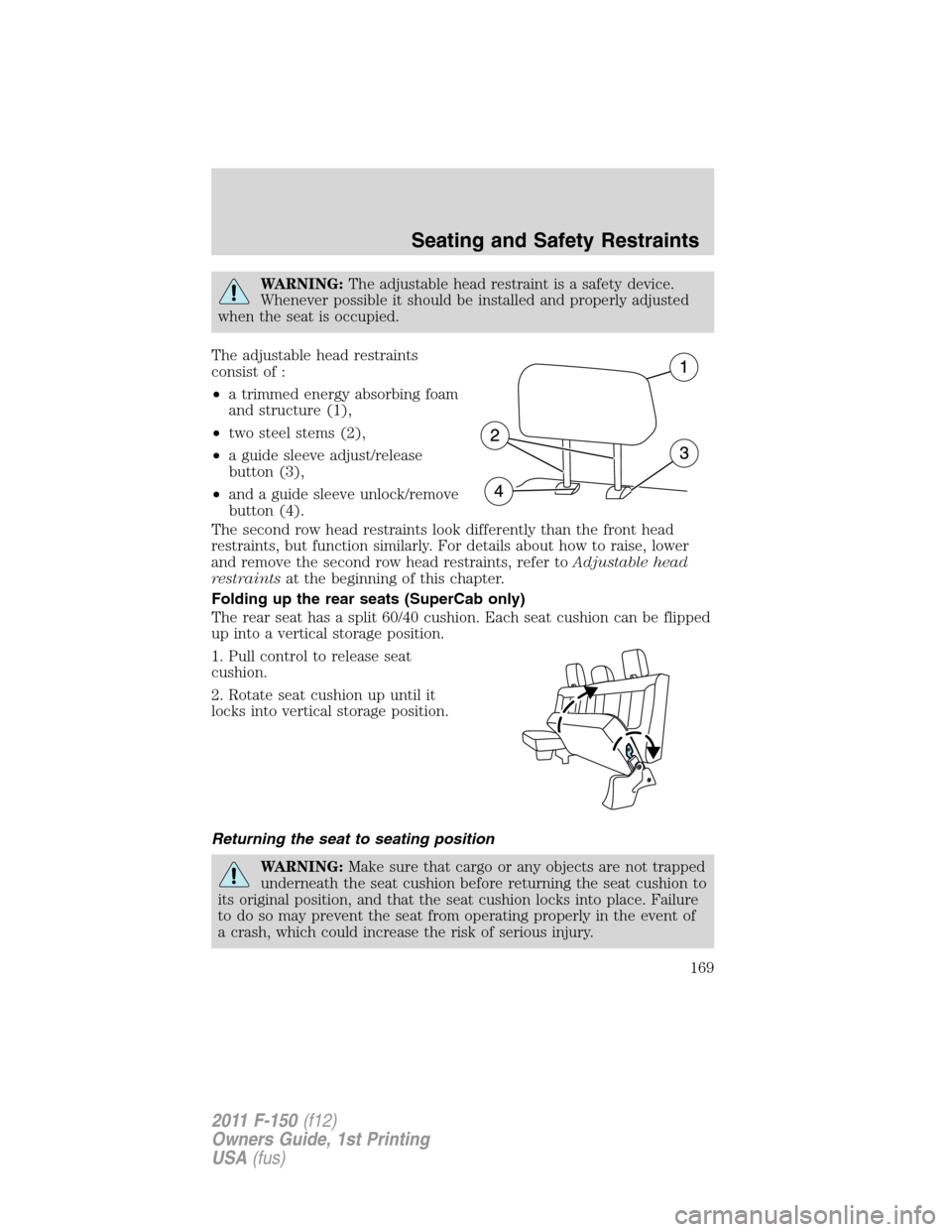

WARNING:The adjustable head restraint is a safety device.
Whenever possible it should be installed and properly adjusted
when the seat is occupied.
The adjustable head restraints
consist of :
•a trimmed energy absorbing foam
and structure (1),
•two steel stems (2),
•a guide sleeve adjust/release
button (3),
•and a guide sleeve unlock/remove
button (4).
The second row head restraints look differently than the front head
restraints, but function similarly. For details about how to raise, lower
and remove the second row head restraints, refer toAdjustable head
restraintsat the beginning of this chapter.
Folding up the rear seats (SuperCab only)
The rear seat has a split 60/40 cushion. Each seat cushion can be flipped
up into a vertical storage position.
1. Pull control to release seat
cushion.
2. Rotate seat cushion up until it
locks into vertical storage position.
Returning the seat to seating position
WARNING:Make sure that cargo or any objects are not trapped
underneath the seat cushion before returning the seat cushion to
its original position, and that the seat cushion locks into place. Failure
to do so may prevent the seat from operating properly in the event of
a crash, which could increase the risk of serious injury.
Seating and Safety Restraints
169
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

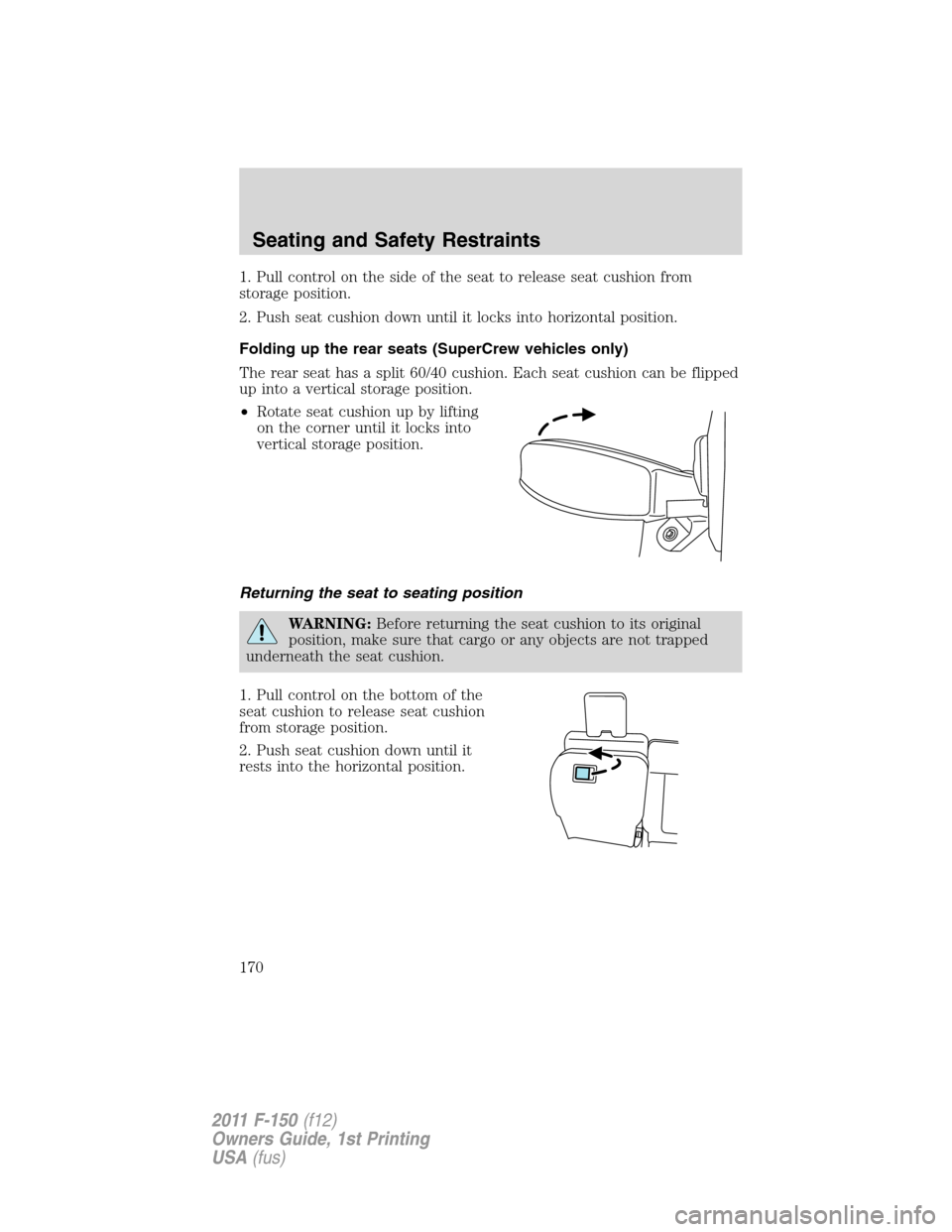

1. Pull control on the side of the seat to release seat cushion from
storage position.
2. Push seat cushion down until it locks into horizontal position.
Folding up the rear seats (SuperCrew vehicles only)
The rear seat has a split 60/40 cushion. Each seat cushion can be flipped
up into a vertical storage position.
•Rotate seat cushion up by lifting
on the corner until it locks into
vertical storage position.
Returning the seat to seating position
WARNING:Before returning the seat cushion to its original
position, make sure that cargo or any objects are not trapped
underneath the seat cushion.
1. Pull control on the bottom of the
seat cushion to release seat cushion
from storage position.
2. Push seat cushion down until it
rests into the horizontal position.
Seating and Safety Restraints
170
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

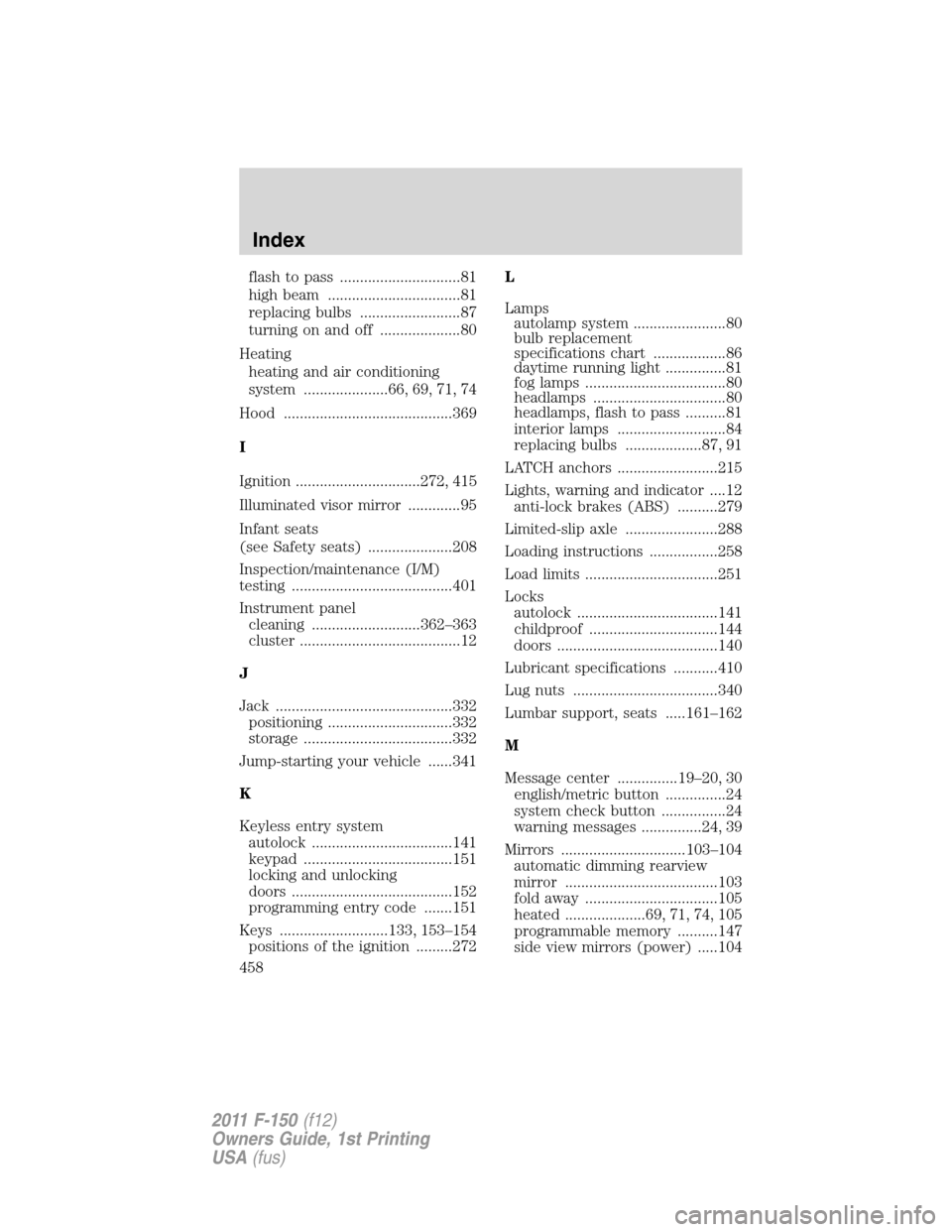

flash to pass ..............................81
high beam .................................81
replacing bulbs .........................87
turning on and off ....................80
Heating
heating and air conditioning
system .....................66, 69, 71, 74
Hood ..........................................369
I
Ignition ...............................272, 415
Illuminated visor mirror .............95
Infant seats
(see Safety seats) .....................208
Inspection/maintenance (I/M)
testing ........................................401
Instrument panel
cleaning ...........................362–363
cluster ........................................12
J
Jack ............................................332
positioning ...............................332
storage .....................................332
Jump-starting your vehicle ......341
K
Keyless entry system
autolock ...................................141
keypad .....................................151
locking and unlocking
doors ........................................152
programming entry code .......151
Keys ...........................133, 153–154
positions of the ignition .........272L
Lamps
autolamp system .......................80
bulb replacement
specifications chart ..................86
daytime running light ...............81
fog lamps ...................................80
headlamps .................................80
headlamps, flash to pass ..........81
interior lamps ...........................84
replacing bulbs ...................87, 91
LATCH anchors .........................215
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........279
Limited-slip axle .......................288
Loading instructions .................258
Load limits .................................251
Locks
autolock ...................................141
childproof ................................144
doors ........................................140
Lubricant specifications ...........410
Lug nuts ....................................340
Lumbar support, seats .....161–162
M
Message center ...............19–20, 30
english/metric button ...............24
system check button ................24
warning messages ...............24, 39
Mirrors ...............................103–104
automatic dimming rearview
mirror ......................................103
fold away .................................105
heated ....................69, 71, 74, 105
programmable memory ..........147
side view mirrors (power) .....104
Index
458
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
