2011 Citroen DS3 buttons

Programming



)
Turn thumb wheel 1
to the "CRUISE"

position: the cruise control mode is
selected but is not switched on (PAUSE).

)
Set the programmed speed by accelerating
to the required speed, then press button 2
or
3
(e.g.: 70 mph (110 km/h)).
You can then change the programmed speed using buttons 2
and 3
:


- by + or - 1 mph (km/h) = shor t press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press.


)
Switch off the cruise control by pressing button 4
: the screen
confirms that it has been switched off (PAUSE).

)
Switch the cruise control back on by pressing button 4
again.



Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed speed results
in flashing of this speed in the screen.
Return to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the speed.


Leaving cruise control mode



)
Turn thumb wheel 1
to the "0"
position: the cruise control mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a cruise control malfunction,
the speed is cleared resulting in flashing of the
dashes. Have it checked by a CITROËN dealer
or a qualified workshop.
When the cruise control is switched on,
be careful if you maintain the pressure on
one of the programmed speed changing
buttons: this may result in a very rapid
change in the speed of your vehicle.
Do not use the cruise control on
slippery roads or in heavy traffic.
On a steep descent, the cruise control will
not be able to prevent the vehicle from
exceeding the programmed speed.
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
correctly,

- never fit one mat on top of another.

01
1
5
10 234 6
1311
9
14 157812 16


1. Engine not running
- Short press: on/off.
- Long press: CD pause, mute for the radio.
Engine running
- Short press: CD pause, mute for the radio.
- Long press: reinitialisation of the system.

2. Volume adjustment (each source is
independent, including also navigation
messages and alerts).

3. Access to the "Radio" Menu. Display the list
of stations.

4. Access to the "Music" Menu. Display the tracks.
5. Access to the "SETUP" menu.
Long press: access to the GPS coverage
and the demonstration mode.

6.
Access to the "Phone" Menu. Display the call list.

7. Access to the "MODE" menu.
Selection of the successive display of:
Radio, Map, NAV (if navigation is in
progress), Telephone (if a conversation is in
progress), Trip computer.
Long press: display of a black screen (DARK).

8. Access to the "Navigation" Menu. Display
the last destinations.

9. Access to the "Traffi c" Menu. Display the
current traffi c alerts.

10. ESC: abandon the operation in progress.

11. CD eject.
12. Selection of the previous/next radio station
from the list.
Selection of the previous/next MP3 folder.
Selection of the previous/next page of a list.

13. Selection of the previous/next radio station.
Selection of the previous/next CD or MP3 track.
Selection of the previous/next line of a list.

14. Buttons 1 to 6:
Selection of the stored radio station.
Long press: store the current radio station.

15. SD card reader (navigation SD card only).

16. Dial for selection of the screen display and
according to the context of the menu.
Short press: contextual menu or confi rmation.
Long press press: contextual menu specifi c
to the list displayed.

FIRST STEPS


MyWay CONTROL PANEL

3 - 4. Long press: access to the audio settings:
front/rear fader and left/right balance,
bass/treble, equaliser, loudness, automatic
volume adjustment, initialise the settings.

02
249

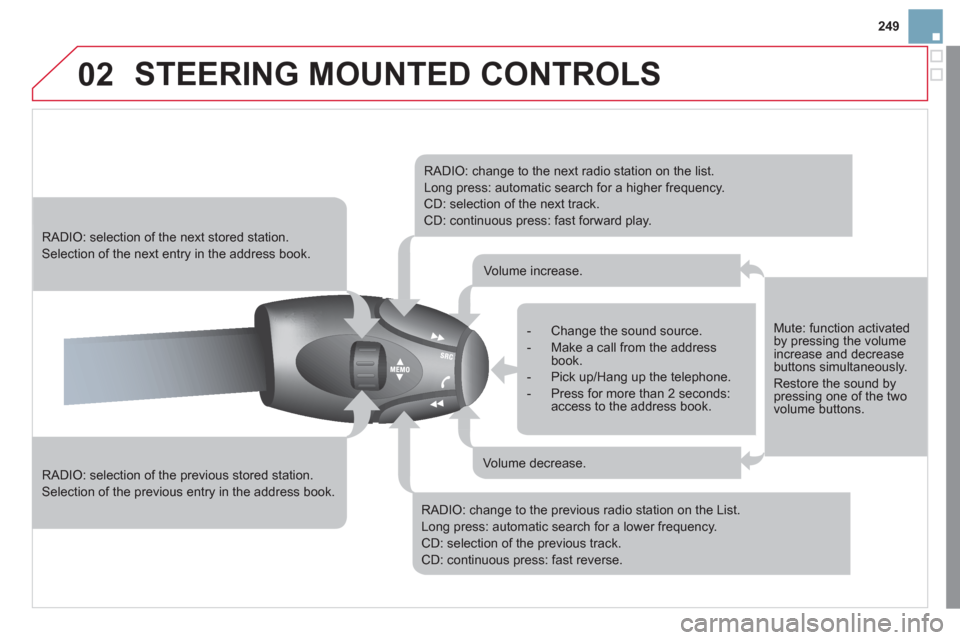

STEERING MOUNTED CONTROLS


RADIO: selection of the previous stored station.
Selection of the previous entry in the address book.

RADIO: selection of the next stored station.
Selection of the next entry in the address book.
RADIO: change to the next radio station on the list.
Long press: automatic search for a higher frequency.
CD: selection of the next track.
CD: continuous press: fast forward play.

RADIO: change to the previous radio station on the List.
Long press: automatic search for a lower frequency.
CD: selection of the previous track.
CD: continuous press: fast reverse.


- Change the sound source.

- Make a call from the address
book.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:
access to the address book.

Volume increase.

Volume decrease.
Mute: function activated
by pressing the volume
increase and decrease
buttons simultaneously.
Restore the sound by
pressing one of the two
volume buttons.

06
3 2 1 1
263







SELECTING A STATION


When the current radio station is
displayed on the screen, press
the dial.

The radio source short-cuts menu appears and provides access to
the following short-cuts:

Select the function required and
press the dial to confi rm to gain
access to the corresponding settings.
TA


RDS, if displayed, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do not
cover 100 % of the territory. This explains the loss of reception of
the station during a journey.
The external environment (hill, building, tunnel, underground car park...)
may interfere with the reception, including in RDS following mode. This
phenomenon is a normal result of the way in which radio waves are
transmitted and does not in any way indicate a failure of the audio equipment.






RDS - REGIONAL MODE


Press the RADIO button to display
the list of stations received locally
sorted in alphabetical order.
Select the station required by turning
the dial and press to confi rm.

Regional prog.

Radiotext

RDS


While listening to the radio, press one of the
buttons to select the previous or next station on
the list.

Press one of the buttons on the numeric keypad for more than
2 seconds to store the current station.
Press the button on the numeric keypad to recall the stored radio
station.

AM



A long press of one of the buttons starts the
automatic search for a station with a lower or
higher frequency.

RADIO

07
3 2 1
6
4
5
265












SELECTING/PLAYING MUSIC
CD, MP3/WMA CD

The playing and displaying of an MP3/WMA compilation may
depend on the recording programme and/or the settings used.
We recommend the ISO 9660 fi le standard.

Press the MUSIC button.

Select the "Select music" function
and press the dial to confi rm.
Press the up or down button to select
the next/previous folder.
Select the music source required:
CD, MP3/WMA CD. Press the dial to
confi rm. Play begins.

Select music


Press the MUSIC button again or
select the Music Menu function and
press the dial to confi rm.
Press one of the buttons to select a
music track.
Press and hold one of the buttons for
fast forward or rewind play.

Music Menu


The list of tracks or MP3/WMA fi les appears under Music Menu.

MUSIC MEDIA PLAYERS

01
1 2
1011
13 14 153456 789
12
FIRST STEPS








1. On/Off and volume adjustment.

2. CD eject.

3. Selection of the display on the screen from
the following modes:
Audio (AUDIO), Trip Computer (TRIP) and
Telephone (TEL) functions.

4. Selection of source:
radio, audio CD/MP3 CD, USB, Jack
connection, Streaming.

5. Selection of FM1, FM2, FMast and AM
wavebands.

6. Setting audio options: front/rear fader, left/
right balance, loudness, sound ambience.

7. Display the list of local stations, of the
tracks on the CD or of the MP3 folders.
8. Abandon current operation.

9. TA (Traffi c Announcement) function on/off.
Long press: access to the PTY (Types of
radio programme) mode.

10. Confi rmation.

11. Automatic search for a lower/higher
frequency.
Selection of previous/next CD, MP3 or
USB track.

12. Selection of a lower/higher radio frequency.
Selection of the previous/next MP3 folder.
Selection of the previous/next USB device
folder/genre/artist/playlist.
13. Display the main menu.

14. Buttons 1 to 6:
Selection of a stored radio station.
Long press: store a station.

15. The DARK button changes the display
on the screen to improve driving comfort
at night.
1st press: lighting the upper band only.
2nd press: display of a black screen.
3rd press: return to the standard display.

02
283
STEERING MOUNTED CONTROLS


RADIO: selection of the next stored station.
USB: selection of the next genre/artist/folder from
the classifi cation list.
Selection of the next item on a menu.









RADIO: selection of the previous stored station.
USB: selection of the previous genre/artist/folder
from the classifi cation list.
Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency.
CD/MP3/USB: selection of the next track.
CD/USB: continuous press: fast forwards play.
Selection of the previous item.

RADIO: automatic search for a lower frequency.
CD/MP3/USB: selection of the previous track.
CD/USB: continuous press: fast reverse.
Selection of the next item.



- Change of sound source.

- Confi rmation of a selection.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:
access to the telephone menu.

Volume increase.

Volume decrease.
Mute: press the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.

04
1
2
3
4
1
2
3
4
285
AUDIO

Press the SOURCE button several
times in succession and select
the radio.

Press the BAND AST button to select
a waveband: FM1, FM2, FMast, AM.

Briefl y press one of the buttons to
carry out an automatic search of the
radio stations.

Press one of the buttons to carry out a
manual search of the radio stations.

Press the LIST REFRESH button to
display the list of stations received
locally (30 stations maximum).
To update this list, press for more than
two seconds.
The external environment (hills, buildings, tunnels, basement car parks, ...)
may block reception, including in RDS mode. This is a normal effect of the
way in which radio waves are transmitted and does not indicate any failure
of the audio system.

RDS






RADIO


SELECTING A STATION
Press the MENU button.
Select AUDIO FUNCTIONS then
press OK.
Select the FM WAVEBAND
PREFERENCES function then press
OK.
Select ACTIVATE RDS then press
OK. RDS appears on the screen.
The RDS, if displayed, enables you to continue listening to the same
station by automatic retuning to alternative fequencies. However, in
certain conditions, coverage of an RDS station may not be assured
throughout the country as radio stations do not cover 100 % of the
territory. This explains the loss of reception of the station during a journey.
