2011 Citroen C ZERO Owner's Manual

6
Child safety
63


Passenger airbag OFF


Child seats recommended by CITROËN
CITROËN offers a complete range of recommended child seats which are secured using
a three point seat belt
:


Group 0+: from bir th to 13 kg






L1


"RÖMER Baby-Safe Plus"
Installed in the rear wards-facing position.


Groups 2 and 3: from 15 to 36 kg






L3


"RECARO Star t''



L4


"KLIPPAN Optima"
From the age of 6 years
(approximately 2 2 kg),
the booster is used on
its own.




L5


"RÖMER KIDFIX"
Can be fitted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

Child safety
64














Installing child seats using the seat belt
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)

in accordance with the weight of the child and the seat in the vehicle.


Weight of the child and indicative age




Seat



Under 13 kg


(groups 0 ( b ) and 0+)
Up to approx 1 year

From 9 to 18 kg


(group 1)
1 to 3 years approx

From 15 to 25 kg


(group 2)
3 to 6 years approx

From 22 to 36 kg


(group 3)
6 to 10 years approx
Front passenger seat ( c )

L1



ISOFIX ROMER Duo
Plus (secured with
the seat belt)



X



X


Outer rear seats

U



U



U



U



(a)
Universal child seat: child seat that can be installed in all vehicles using a seat belt.

(b

)
Group 0: from bir th to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat.

(c

)
Consult the legislation in force in your country before installing your child on this seat.

U : Seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear wards-facing" and/or "forwards-facing".

X:
Seat not suitable for the installation of a child seat of the indicated weight group.

6!
Child safety
65
Your vehicle has been approved in accordance
with the new
ISOFIX regulation
.
The seats, represented below, are fitted with
regulation ISOFIX mountings:


















"ISOFIX" mountings

There are three rings for each seat:


- two rings A
located in the angle between
the vehicle seat's cushion and backrest,
indicated by a label. This ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats
are fitted with two
latches which are secured on the two rings A
.
Some seats also have an upper strap
which is
secured to the ring B
.
To attach this strap, remove the head restraint
from the vehicle's seat. Attach the hook to
the ring B
, then tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information regarding the ISOFIX child
seats which can be installed in your vehicle,
refer to the table showing the locations for
installing ISOFIX child seats.
- a ring B
for securing the upper strap called
the TOP TETHER
, located in the boot.

i
Child safety
66

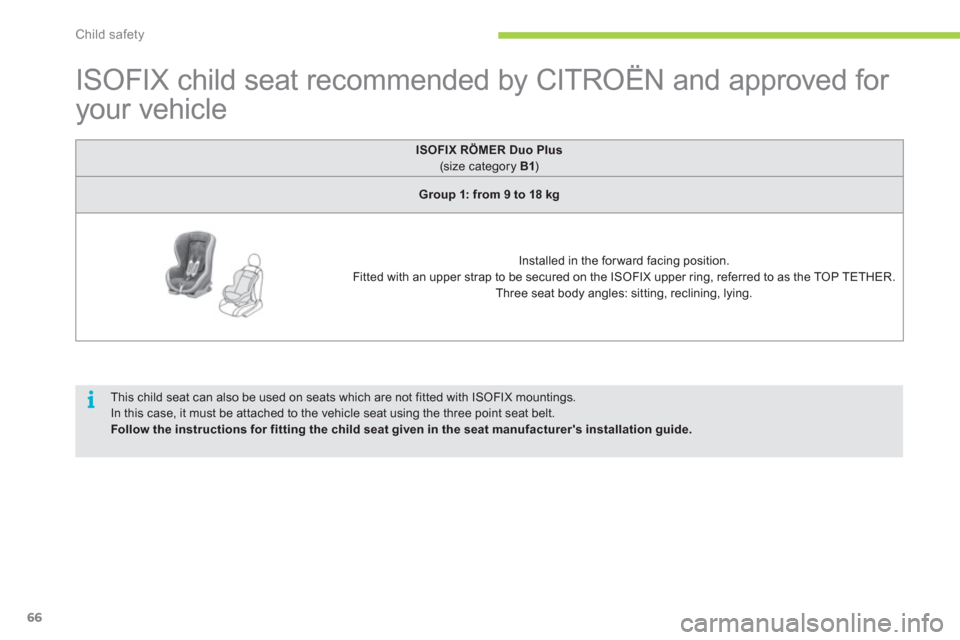

ISOFIX child seat recommended by CITROËN and approved for
your vehicle




ISOFIX



RÖMER Duo Plus


(size category B1
)


Group 1: from 9 to 18 kg





Installed in the for ward facing position.
Fitted with an upper strap to be secured on the ISOFIX upper ring, referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
This child seat can also be used on seats which are not fitted with ISOFIX mountings.
In this case, it must be attached to the vehicle seat using the three point seat belt.

Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide.

6
Child safety
67
















Installing ISOFIX child seats
In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitted with
ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter between A
and G
, is
indicated on the child seat next to the ISOFIX logo.

IUF:
seat suitable for the installation of an I
sofix U
niversal seat, " F
or ward facing" and secured using the "Top Tether" upper strap.

X:
seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.



Weight of the child
/indicative age


Less than 10 kg
(group 0)


Up to 6 months
approx

Less than 10 kg
(group 0)


Less than 13 kg
(group 0+)


Up to 1 year approx

From 9 to 18 kg (group 1)


From 1 to 3 years approx


Type of ISOFIX child seat



Infant car seat

*


"rear facing"



"rear facing"



"forward facing"




ISOFIX size category



F



G



C



D



E



C



D



A



B



B1




Universal and semi-universal ISOFIX child
seats which can be installed on the outer
rear seats



X



X



X



X



X



IUF



*
Infant car seats and "car cots" cannot be installed on the front passenger seat.

!
Child safety
68
The incorrect installation of a child seat in a
vehicle compromises the child's protection
in the event of an accident.
When installing a child seat using the seat
belt, check that the seat belt is tightened
correctly on the child seat and that it
secures the child seat firmly on the seat of
your vehicle.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
in
relation to the child's body to a minimum,
even for shor t journeys.
For optimum installation of the "for wards-
facing" child seat, ensure that the back of
the child seat is in contact with the back
of the vehicle's seat and that the head
restraint does not cause any discomfor t.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Children under the age of 10 must not travel
in the "for wards-facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
Deactivate the passenger airbag * when a
"rear wards-facing" child seat is installed on
the front seat. Other wise, the child would
risk being seriously injured or killed if the
airbag were to inflate.

Advice on child seats


Installing a booster seat

The chest par t of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a
booster seat which has a back, fitted with a
seat belt guide at shoulder level.
As a safety precaution, do not leave:


- one or more children alone and
unsuper vised in a vehicle,

- a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,

- the keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors,
use the "Child lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.


*
According to country and current local
legislation.








Child lock

Mechanical system to prevent opening of the
rear doors using their interior controls.
The control is located on the edge of each rear
door.


Child lock on



)
Lower the control A
to position 1
.



Child lock off



)
Raise the control A
to position 2
.

7
i
Safety
69











Direction indicators

Selection of the left or right direction indicators
to signal a change of direction of the vehicle.


)
Left: lower the lighting stalk beyond the
point of resistance.

)
Right: raise the lighting stalk beyond the
point of resistance.









Hazard warning lamps

A visual warning by means of the direction
indicators to aler t other road users to a vehicle
breakdown, towing or accident.


)
Press this button, the direction indicators
flash.
They can operate with the ignition off.






Horn

Audible warning system to aler t other road
users to an imminent danger.


)
Press the central part of the steering
wheel.
Use the horn moderately and only in the
following circumstances:


- immediate danger,

- approaching a location lacking
visibility.

!
Safety
70

















Braking assistance systems







Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the stability and
manoeuvrability of your vehicle when braking,
in par ticular on poor or slippery sur faces. Group of supplementary systems which help
you to obtain optimum braking in complete
safety in emergency situations:


- anti-lock braking system (ABS),

- electronic brake force distribution (EBFD),

- emergency braking assistance (EBA).









Emergency or
assistance call
This system allows you to make an emergency
or assistance call to the emergency ser vices or
to the dedicated CITROËN ser vice.
For more information on the use of this
function, refer to the "Audio and telematics"
section.
When braking in an emergency, press
very firmly without releasing the
pressure.


Activation

The anti-lock braking system comes into
operation automatically when there is a risk of
wheel lock.
Normal operation of the ABS may make itself
felt by slight vibration of the brake pedal.
