2011 Citroen C ZERO Owner's Manual

.Familiarisation
7
Instruments and controls



1.
Driver’s airbag.
Horn.

2.
Instrument panel.

3.
Wiper stalk.

4.
Side vents.

5.
Window demisting vent.

6.
Electric window switches and switch
for deactivating the the front and rear
passenger electric window controls.

7.
Opening control for the fast charging flap
(vehicle left hand side).

8.
Bonnet release lever.

9.
Opening control for the normal charging
flap (vehicle right hand side).

10.
Fusebox.

11.
Door mirror controls.

12 .
Headlamp height adjustment.
ASR /ESP deactivation switch.

13.
Steering lock and ignition switch.

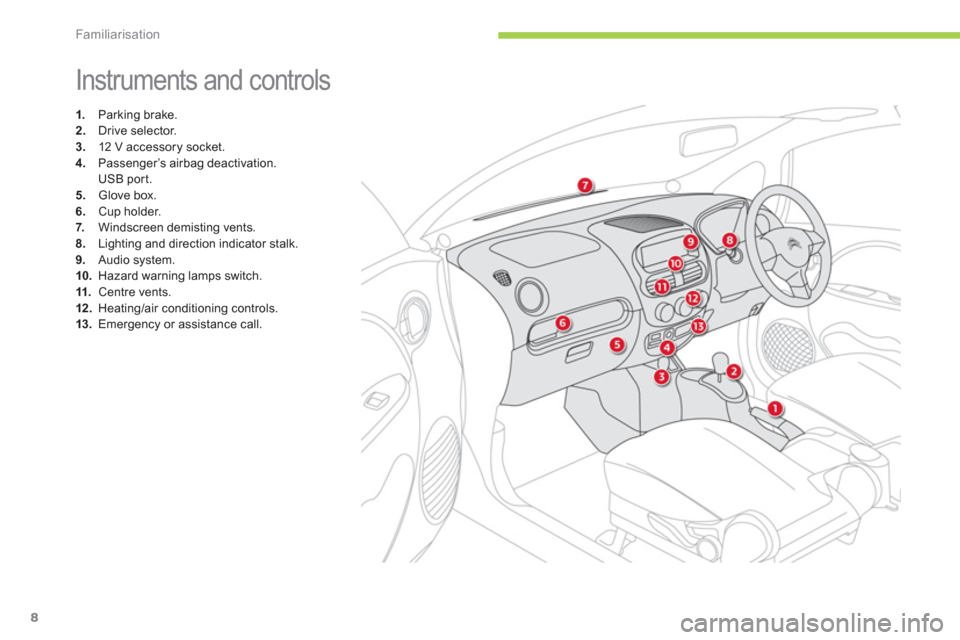

Familiarisation
8
Instruments and controls



1.
Parking brake.

2.
Drive selector.

3.
12 V accessory socket.

4.
Passenger’s airbag deactivation.
USB por t.

5.
Glove box.

6.
Cup holder.

7.
Windscreen demisting vents.

8.
Lighting and direction indicator stalk.

9.
Audio system.

10.
Hazard warning lamps switch.

11.
Centre vents.

12 .
Heating/air conditioning controls.

13.
Emergency or assistance call.

.Familiarisation
9
Sitting comfortably


Front seats


38





1.
Head restraint height adjustment.

2.
Backrest angle adjustment.

3.
Driver’s seat cushion height adjustment.

4.
Seat forwards-backwards adjustment.

Familiarisation
10
Sitting comfortably


Door mirrors




A.
Selection of the mirror.

B.
Adjusting the position of the mirror glass.

C.
Folding/Unfolding.

42





Rear view mirror


Manual day/night type



1.
Selecting the "day" position of the rear view mirror.

2.
Rear view mirror adjustment.

43





1.
Fitting the belt.

2.
Fastening the buckle.

3.
Checking the fastening by pulling on the
belt webbing.


Seat belts


73

.Familiarisation
11
Seeing clearly


Lighting


Ring A

Ring B


Wipers


56





Windscreen wiper


59




Rear wiper


59


Dipped or main beam headlamps.
Sidelamps.
Automatic illumination of headlamps.
Lighting off.
Front and rear foglamps. Park.
Intermittent wipe.
Wash/wipe. Single wipe.
Park.
Intermittent wipe (speed adjustable
manually).
Slow.
Fast.

Familiarisation
12
Vent ilat ion


Air conditioning

Te m p e r a t u r e a d j u s t m e n t .
Air flow adjustment. Air distribution adjustment.
Air intake/Air recirculation. Air conditioning On/Off.
"MA X" button.

49

.Familiarisation
13
Passenger safety



1.
Inser t the key.

2.
Select position:
"ON"
(activation), with front passenger or
"for wards facing" child seat,
"OFF"
(deactivation), with "rear facing"
child seat.


Front passenger’s airbag

Two rings A
, located between the seat cushion
and backrest are used to secure an ISOFIX
child seat.
A ring B
is used to secure an upper strap called
the TOP TETHER
.


ISOFIX mountings


77




Child lock



A.
Child lock on.

B.
Child lock off.

68



65

Familiarisation
14
Monitoring



1.
With the ignition on, the orange and red
warning lamps come on.

2.
With the engine running, these warning
lamps go off.
If a warning lamp remains on, refer to
the relevant page.

Warning lamps


19



A.
"Neutral" position.

B.
Energy consumption.

C.
"Eco" zone.

D.
"Charge" zone.


Energy consumption/
generation indicator

27

Four successive aler ts indicate that the energy
available in the main battery is dropping to a
low level:


- 2 bars of the energy gauge in the
instrument panel, on and flashing:
star ting to use the reser ve.

- The last bar in the energy gauge flashing.

- The last bar disappears:
display of the range disappears; the heating
and air conditioning are switched off.

Low energy alerts


- Display of this warning lamp in
the instrument panel:
Progressive reduction in the
power available from the motor.

26
