2011 CITROEN BERLINGO FIRST Handbook (in English)

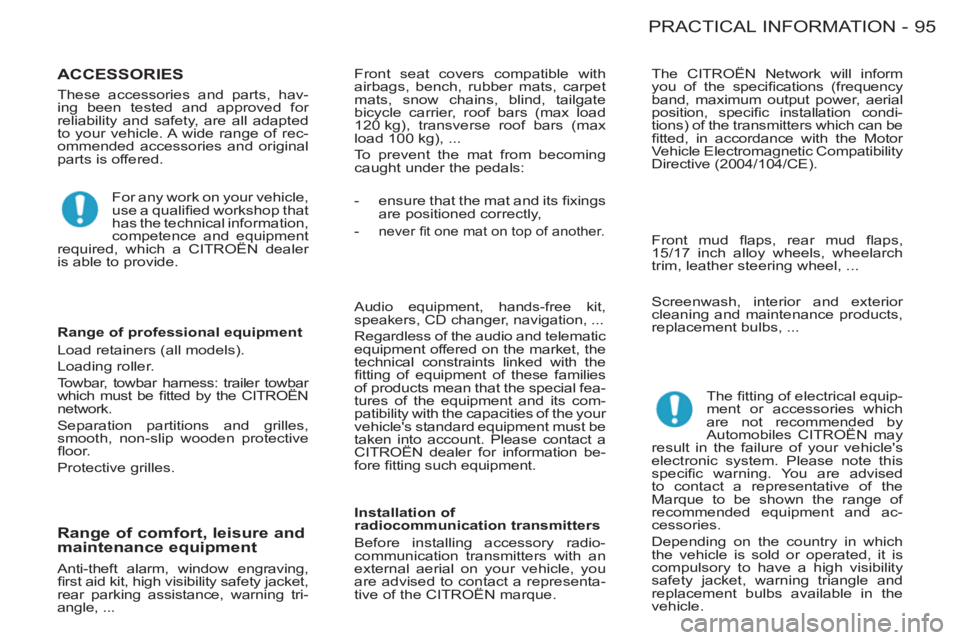

95 PRACTICAL INFORMATION
-

ACCESSORIES

These accessories and parts, hav-
ing been tested and approved for
reliability and safety, are all adapted
to your vehicle. A wide range of rec-
ommended accessories and original
parts is offered.

The fi tting of electrical equip-
ment or accessories which
are not recommended by
Automobiles CITROËN may
result in the failure of your vehicle's
electronic system. Please note this
specifi c warning. You are advised
to contact a representative of the
Marque to be shown the range of
recommended equipment and ac-
cessories.
Depending on the country in which
the vehicle is sold or operated, it is
compulsory to have a high visibility
safety jacket, warning triangle and
replacement bulbs available in the
vehicle.

Screenwash, interior and exterior
cleaning and maintenance products,
replacement bulbs, ...

Anti-theft alarm, window engraving,
fi rst aid kit, high visibility safety jacket,
rear parking assistance, warning tri-
angle, ...


Audio equipment, hands-free kit,
speakers, CD changer, navigation, ...
Regardless of the audio and telematic
equipment offered on the market, the
technical constraints linked with the
fi tting of equipment of these families
of products mean that the special fea-
tures of the equipment and its com-
patibility with the capacities of the your
vehicle's standard equipment must be
taken into account. Please contact a
CITROËN dealer for information be-
fore fi tting such equipment.
Front mud fl aps, rear mud fl aps,
15/17 inch alloy wheels, wheelarch
trim, leather steering wheel, ...

Range of professional equipment
Load retainers (all models).
Loading roller.
Towbar, towbar harness: trailer towbar
which must be fi tted by the CITROËN
network.
Separation partitions and grilles,
smooth, non-slip wooden protective
fl oor.


Protective grilles.


Installation of
radiocommunication transmitters
Before installing accessory radio-
communication transmitters with an
external aerial on your vehicle, you
are advised to contact a representa-
tive of the CITROËN marque.

Range of comfort, leisure and
maintenance equipment

Front seat covers compatible with
airbags, bench, rubber mats, carpet
mats, snow chains, blind, tailgate
bicycle carrier, roof bars (max load
120 kg), transverse roof bars (max
load 100 kg), ...
To prevent the mat from becoming
caught under the pedals:

For any work on your vehicle,
use a qualifi ed workshop that
has the technical information,
competence and equipment
required, which a CITROËN dealer
is able to provide. The CITROËN Network will inform
you of the specifi cations (frequency
band, maximum output power, aerial
position, specifi c installation condi-
tions) of the transmitters which can be
fi tted, in accordance with the Motor
Vehicle Electromagnetic Compatibility
Directive (2004/104/CE).


- ensure that the mat and its fi xings
are positioned correctly,

-
never fi t one mat on top of another.

TECHNICAL DATA
96 -
EXTERIOR DIMENSIONS (IN MM)

97 TECHNICAL DATA
-




Light van
Ludospace


L1


4 137


L2


4 437
-


H


1 796 to 1 819
1 810







A


2 693


B


836


C


608


D


570
550


E


1 440
1 440 or 1 452


F


1 960


G


1 420
1 420 or 1 436


I


1 724

TECHNICAL DATA
98 -
INTERIOR DIMENSIONS (IN MM) AND VOLUMES (IN M3) LIGHT VAN



L1



L2




J


1 155


K


1 320


M


1 190


N


1 190


O


568


P


1 340
1 640


m
3


3.25
3.6

99 TECHNICAL DATA
-
INTERIOR DIMENSIONS (IN MM) LUDOSPACE






L1



L2




Row 2
bench
seat in
position




- normal



1.25
1.75



- fully folded



2.8
3.25
VOLUMES (IN M3) LUDOSPACE 5 SEAT VERSION

TECHNICAL DATA
100 -

PETROL ENGINES AND GEARBOXES


Model codes


GA/GB/GC/GD/GF/GG/GJ...


...KFWC



GA/GJ/GK/GN...


...NFUC



ENGINES


1.4 litre



1.6 litre


Cubic capacity (cc)
1 360
1 587
Bore x stroke (mm)
75 x 77
78.5 x 82
EU standard maximum power (kW)
55
80
Maximum power at engine speed (rpm)
5 500
5 800
EU standard maximum torque (Nm)
120
147
Maximum torque at engine speed (rpm)
3 400
4 000
Fuel
Ron 95 - Ron 98
Ron 95 - Ron 98
Catalytic converter
Yes
Yes

Gearbox

Manual (5 speed)
Manual (5 speed)

Oil capacity (in litres)


Engine (with cartridge replacement)
3 (1) - 3.25 (2)
3.2 (1) - 3.4 (2)
(1) Draining by gravity - (2) Draining by suction

101 TECHNICAL DATA
-

Model codes


GA/GB/GC/GD/GF/GG/
GJ/GK/GN...


...9HWC



GA/GB/GC/GD/GF/GG/
GJ/GK/GN
...
... 9HXC



GA/GB/GC/GD/GF/GG/
GJ/GK/GN...


... WJYB



ENGINES


1.6 litre Turbo HDI 75



1.6 litre Turbo HDI 92



1.9 litre


Cubic capacity (cc)
1 560
1 560
1 867
Bore x stroke (mm)
75 x 88.3
75 x 88.3
82.2 x 88
EU standard maximum power (kW)
55
66
51
Maximum power at engine speed (rpm)
4 000
4 000
4 600
EU standard maximum torque (Nm)
175
215
125
Maximum torque at engine speed (rpm)
1 750
1 750
2 500
Fuel
Diesel
Diesel
Diesel
Catalytic converter
Yes
Ye s
Yes

Gearbox

Manual (5 speed)
Manual (5 speed)
Manual (5 speed)

Oil capacity (in litres)


Engine (with cartridge replacement)
3.75
3.8
4.8


DIESEL ENGINES AND GEARBOXES

TECHNICAL DATA
102 -










Quality of the fuel used for petrol engines












Quality of the fuel used for Diesel engines


The petrol engines are perfectly compatible with E10 type petrol biofuels (containing 10 % ethanol), conforming to European
standards EN 228 and EN 15376.
E85 type fuels (containing up to 85 % ethanol) are reserved exclusively for vehicles marketed for the use of this type of fuel
(BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15293.
For Brazil only, special vehicles are marketed to run on fuels containing up to 100 % ethanol (E100 type).


The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (Diesel
fuel which complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the
pumps (containing up to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing
conditions. Contact a CITROËN dealer or a qualifi ed workshop.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).
