2011 CITROEN BERLINGO FIRST Handbook (in English)

Page 81 of 132

CITROEN BERLINGO FIRST 2011  Handbook (in English) 79 PRACTICAL INFORMATION
-
  SPECIAL FEATURES
OF ALLOY WHEELS


Fitting the spare wheel
  If your vehicle is equipped with a
steel spare wheel, when fi tting it, it is
  normal
 to notice tha

Page 82 of 132

CITROEN BERLINGO FIRST 2011  Handbook (in English) PRACTICAL INFORMATION
80 -
  CHANGING A BULB

Front lamps

To replace a dipped/main beam
headlamp or sidelamp bulb:

Remove the grille



-   Remove the screw ( 1
).

-   Unclip

Page 83 of 132

CITROEN BERLINGO FIRST 2011  Handbook (in English) 81 PRACTICAL INFORMATION
-

Partially remove the bumper



-   Remove the screws ( 1
),

-   Remove the screws ( 2
),
-   Pull lightly on the side of the bum-
per ( 3
),

-   P

Page 84 of 132

CITROEN BERLINGO FIRST 2011  Handbook (in English) PRACTICAL INFORMATION
82 -

Dipped/Main beam headlamps
(H4-60/55W)
  After following the procedure for re-
moval of the headlamp:

-   Turn and remove the protector ( 6
),
-   Disconnect

Page 85 of 132

CITROEN BERLINGO FIRST 2011  Handbook (in English) 83 PRACTICAL INFORMATION
-

Side lights (W 5 W)
  After following the procedure for re-
moval of the headlamp:


-   Turn and remove the protector ( 6
).

-   Unclip the the bulb holder

Page 86 of 132

CITROEN BERLINGO FIRST 2011  Handbook (in English) PRACTICAL INFORMATION
84 -


-   Open the rear door.

-   Unscrew the nut  A
.

-   Push the light unit gently towards
the interior of the vehicle to unclip
the two side retaining clips

Page 87 of 132

CITROEN BERLINGO FIRST 2011  Handbook (in English) 85 PRACTICAL INFORMATION
-

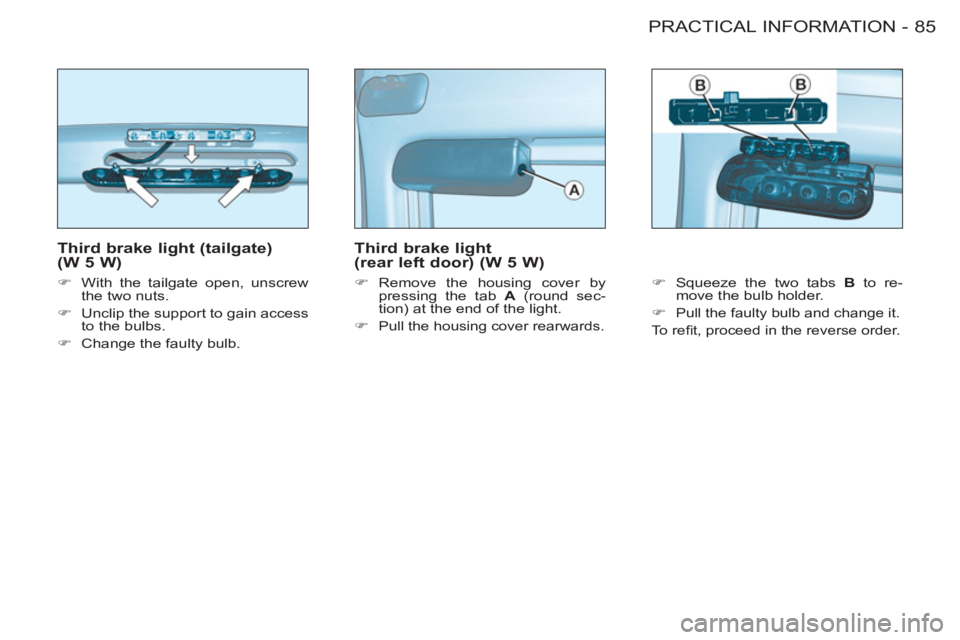

Third brake light (tailgate)
(W 5 W)


�)
  With the tailgate open, unscrew
the two nuts.

�)
  Unclip the support to gain access
to the bulbs.

�)

Page 88 of 132

CITROEN BERLINGO FIRST 2011  Handbook (in English) PRACTICAL INFORMATION
86 -

Removing and fi tting a fuse
  Before changing a fuse, the cause
of the fault must be found and reme-
died. The fuse numbers are indicated
on the fusebox.
  Use the
