2011 CHRYSLER 200 CONVERTIBLE Owners Manual

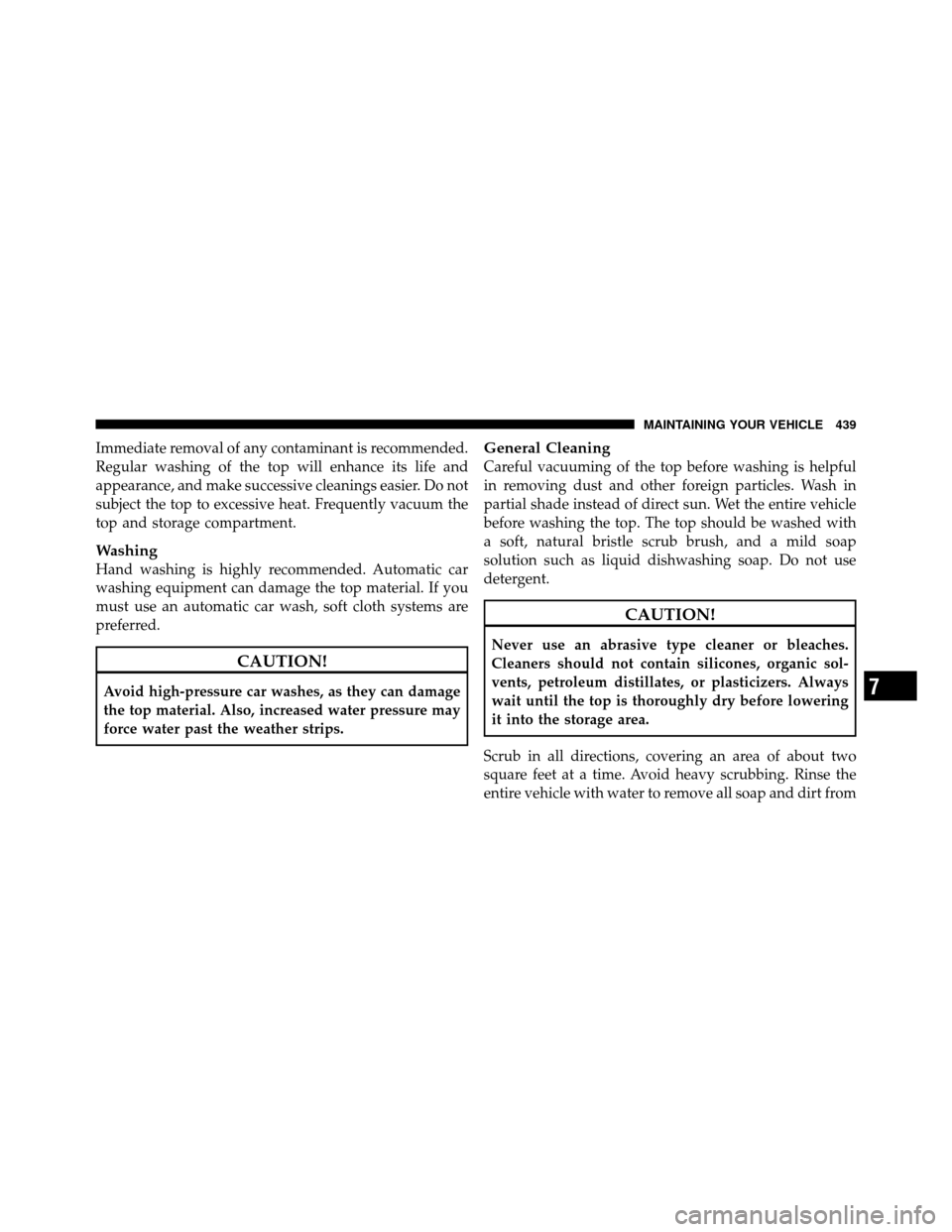

Immediate removal of any contaminant is recommended.
Regular washing of the top will enhance its life and
appearance, and make successive cleanings easier. Do not
subject the top to excessive heat. Frequently vacuum the
top and storage compartment.
Washing
Hand washing is highly recommended. Automatic car
washing equipment can damage the top material. If you
must use an automatic car wash, soft cloth systems are
preferred.
CAUTION!
Avoid high-pressure car washes, as they can damage
the top material. Also, increased water pressure may
force water past the weather strips.
General Cleaning
Careful vacuuming of the top before washing is helpful
in removing dust and other foreign particles. Wash in
partial shade instead of direct sun. Wet the entire vehicle
before washing the top. The top should be washed with
a soft, natural bristle scrub brush, and a mild soap
solution such as liquid dishwashing soap. Do not use
detergent.
CAUTION!
Never use an abrasive type cleaner or bleaches.
Cleaners should not contain silicones, organic sol-
vents, petroleum distillates, or plasticizers. Always
wait until the top is thoroughly dry before lowering
it into the storage area.
Scrub in all directions, covering an area of about two
square feet at a time. Avoid heavy scrubbing. Rinse the
entire vehicle with water to remove all soap and dirt from
7
MAINTAINING YOUR VEHICLE 439

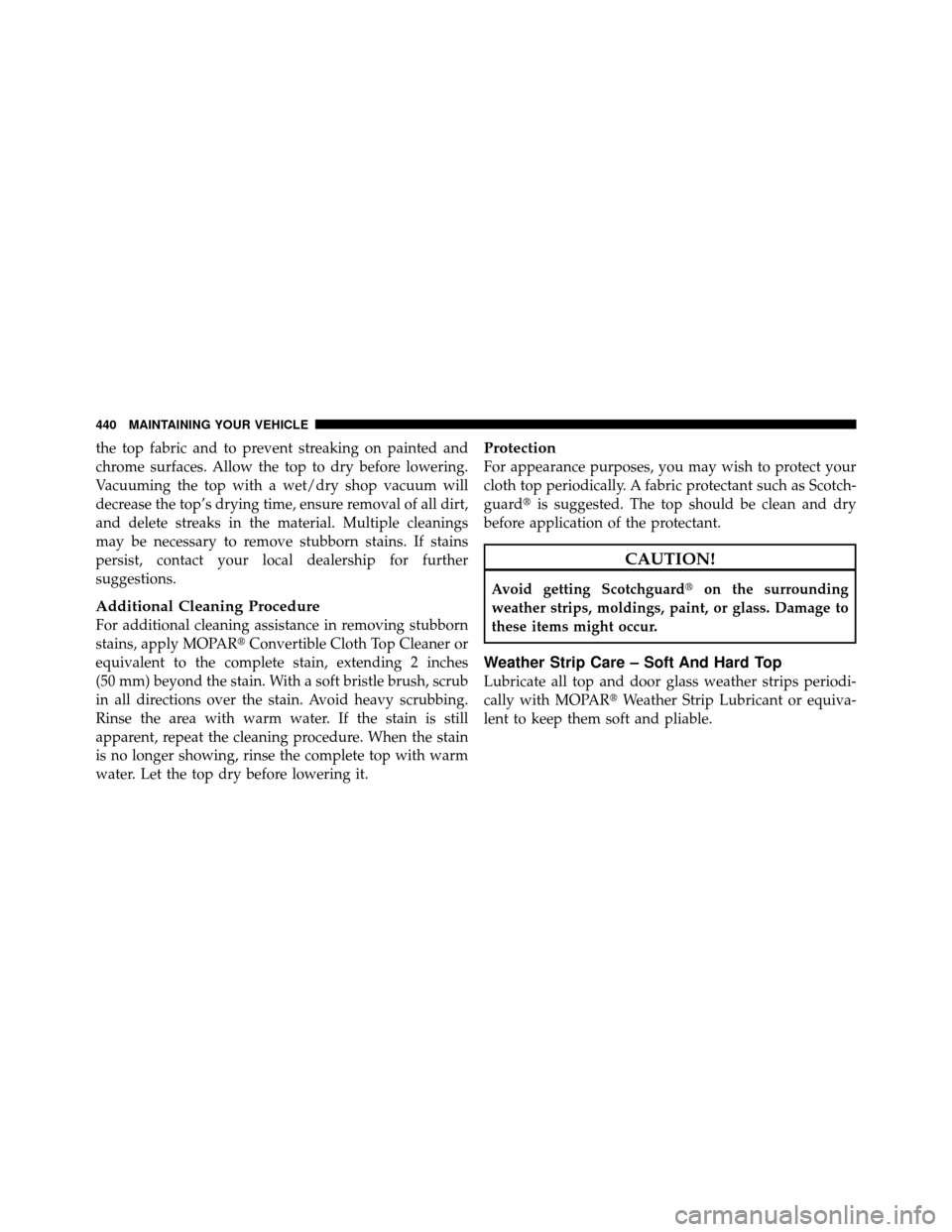

the top fabric and to prevent streaking on painted and
chrome surfaces. Allow the top to dry before lowering.
Vacuuming the top with a wet/dry shop vacuum will
decrease the top’s drying time, ensure removal of all dirt,
and delete streaks in the material. Multiple cleanings
may be necessary to remove stubborn stains. If stains
persist, contact your local dealership for further
suggestions.
Additional Cleaning Procedure
For additional cleaning assistance in removing stubborn
stains, apply MOPARConvertible Cloth Top Cleaner or
equivalent to the complete stain, extending 2 inches
(50 mm) beyond the stain. With a soft bristle brush, scrub
in all directions over the stain. Avoid heavy scrubbing.
Rinse the area with warm water. If the stain is still
apparent, repeat the cleaning procedure. When the stain
is no longer showing, rinse the complete top with warm
water. Let the top dry before lowering it.
Protection
For appearance purposes, you may wish to protect your
cloth top periodically. A fabric protectant such as Scotch-
guard is suggested. The top should be clean and dry
before application of the protectant.
CAUTION!
Avoid getting Scotchguard on the surrounding
weather strips, moldings, paint, or glass. Damage to
these items might occur.
Weather Strip Care – Soft And Hard Top
Lubricate all top and door glass weather strips periodi-
cally with MOPAR Weather Strip Lubricant or equiva-
lent to keep them soft and pliable.
440 MAINTAINING YOUR VEHICLE

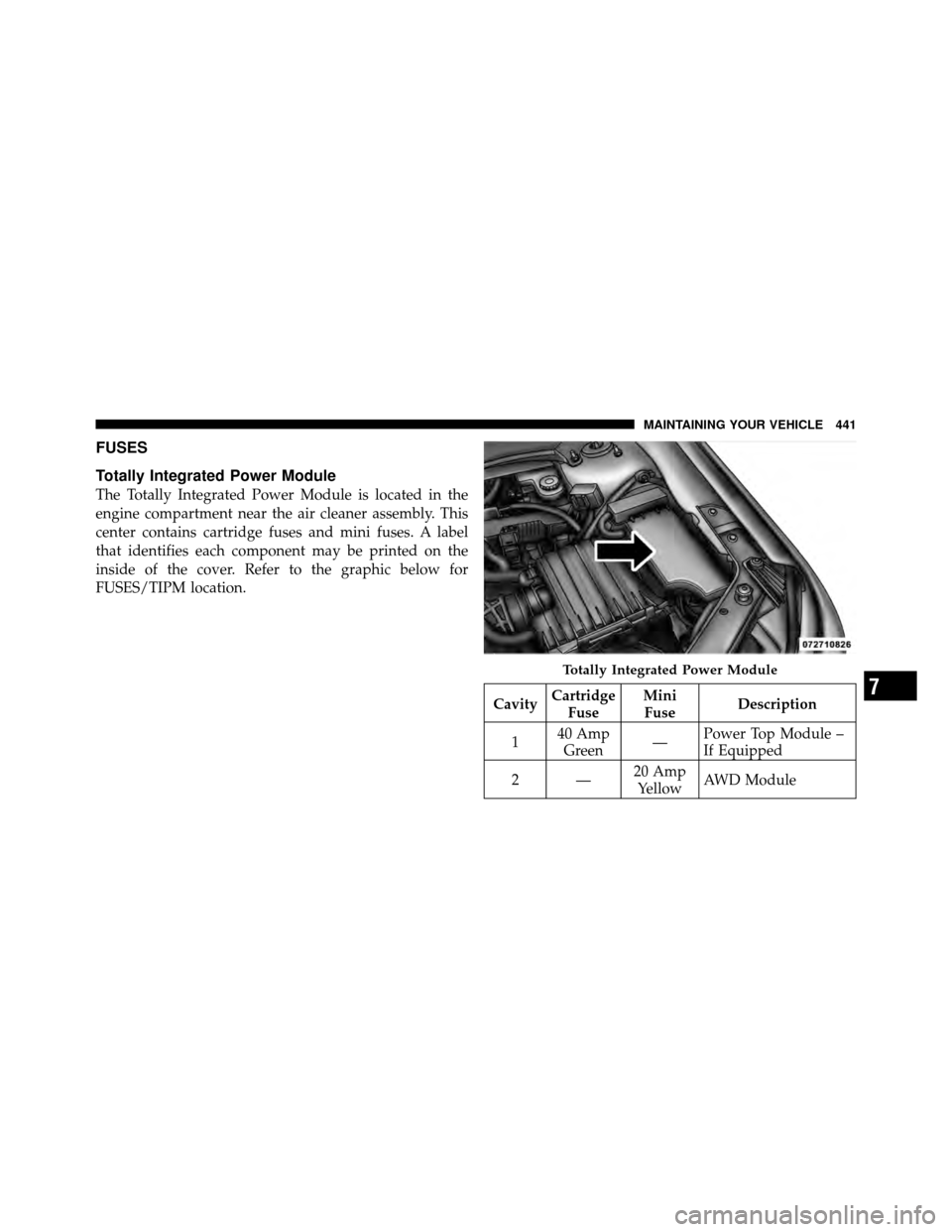

FUSES
Totally Integrated Power Module
The Totally Integrated Power Module is located in the
engine compartment near the air cleaner assembly. This
center contains cartridge fuses and mini fuses. A label
that identifies each component may be printed on the
inside of the cover. Refer to the graphic below for
FUSES/TIPM location.
CavityCartridge
Fuse Mini
Fuse Description
1 40 Amp
Green —Power Top Module –
If Equipped
2— 20 Amp
Yellow AWD Module
Totally Integrated Power Module
7
MAINTAINING YOUR VEHICLE 441

CavityCartridge
Fuse Mini
Fuse Description

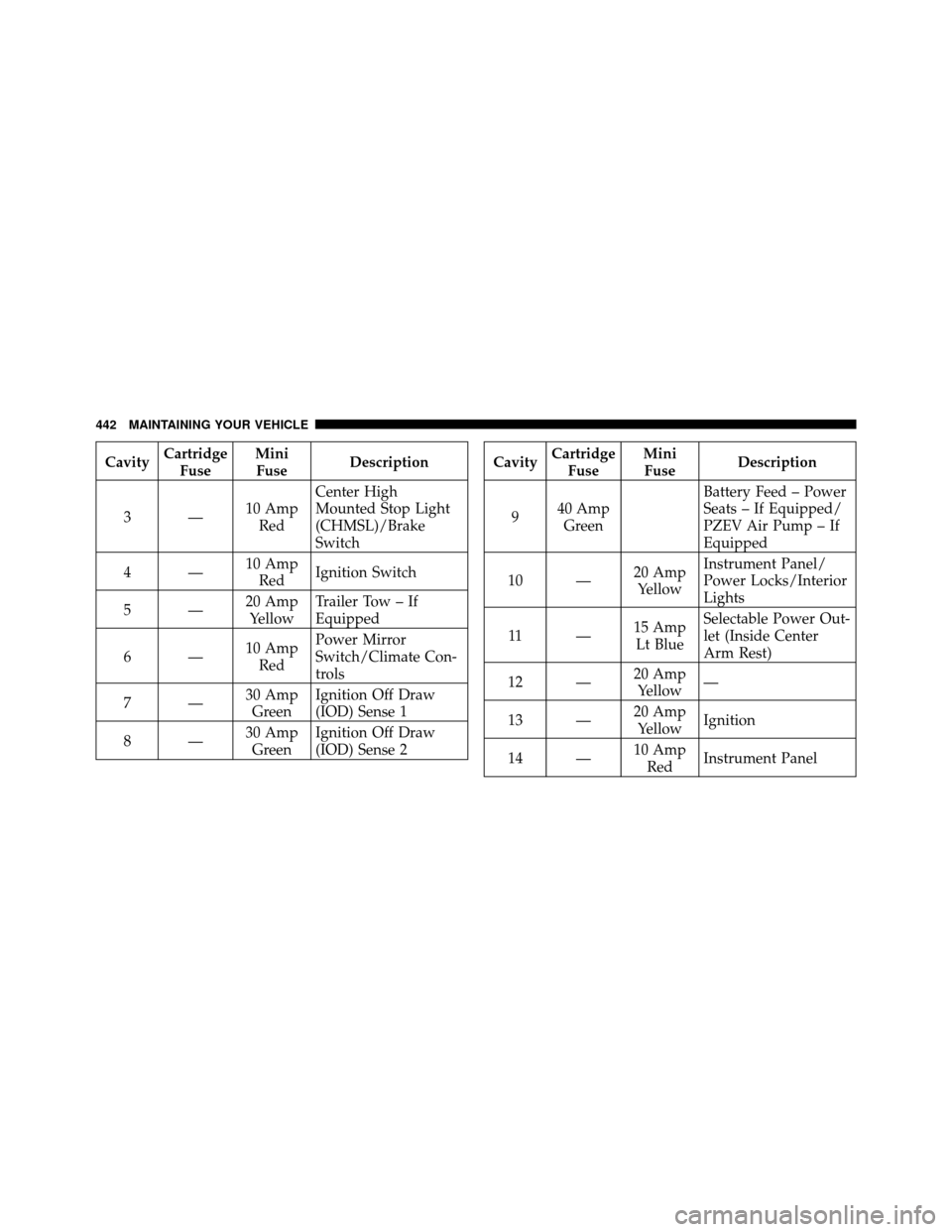

3— 10 Amp
Red Center High
Mounted Stop Light
(CHMSL)/Brake
Switch
4— 10 Amp
Red Ignition Switch
5— 20 Amp
Yellow Trailer Tow – If
Equipped
6— 10 Amp
Red Power Mirror
Switch/Climate Con-
trols
7— 30 Amp
Green Ignition Off Draw
(IOD) Sense 1
8— 30 Amp
Green Ignition Off Draw
(IOD) Sense 2Cavity
Cartridge
Fuse Mini
Fuse Description
9 40 Amp
Green Battery Feed – Power
Seats – If Equipped/
PZEV Air Pump – If
Equipped
10 — 20 Amp
Yellow Instrument Panel/
Power Locks/Interior
Lights
11 — 15 Amp
Lt Blue Selectable Power Out-
let (Inside Center
Arm Rest)
12 — 20 Amp
Yellow —
13 — 20 Amp
Yellow Ignition
14 — 10 Amp
Red Instrument Panel
442 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini
Fuse Description
15 40 Amp
Green — Radiator Fan Relay
16 — 15 Amp
Lt. Blue Cigar Lighter/
Sunroof – If
Equipped
17 — 10 Amp
Red Wireless Control
Module (WCM)/
Clock/Steering Con-
trol Module (SCM)
18 40 Amp
Green —Auto Shutdown
(ASD) Relay
19 — 20 Amp
Yellow Audio Amplifier – If
Equipped
20 — 15 Amp
Lt. Blue Radio
21 — 10 Amp
Red Siren – If EquippedCavity Cartridge
Fuse Mini
Fuse Description
22 — 10 Amp
Red Ignition Run – Cli-
mate Controls/Hot
Cupholder – If
Equipped
23 — 15 Amp
Lt. Blue Auto Shutdown
(ASD) Relay 3
24 — 25 Amp
Natural Sunroof – If
Equipped
25 — 10 Amp
Red Ignition Run —
Heated Mirrors - If
Equipped
26 — 15 Amp
Lt. Blue Auto Shutdown
(ASD) Relay 2
7
MAINTAINING YOUR VEHICLE 443

CavityCartridge
Fuse Mini
Fuse Description
27 — 10 Amp
Red Ignition Run – Occu-
pant Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
28 — 10 Amp
Red Ignition Run — Occu-
pant Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
29 — — Hot Car (No Fuse
Required)
30 — 20 Amp
Yellow Ignition Run –
Heated Seats – If
Equipped
31 — 10 Amp
Red Headlamp Washer –
If EquippedCavity
Cartridge
Fuse Mini
Fuse Description
32 30 Amp
Pink —Auto Shutdown
(ASD) Relay 1
33 — 10 Amp
Red Switch Bank/
Diagnostic Link
Connector/
Powertrain Control
Module (PCM)
34 30 Amp
Pink —Anti-Lock Brakes
(ABS) Module – If
Equipped/Electronic
Stability Control
(ESC) Module – If
Equipped
444 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini
Fuse Description

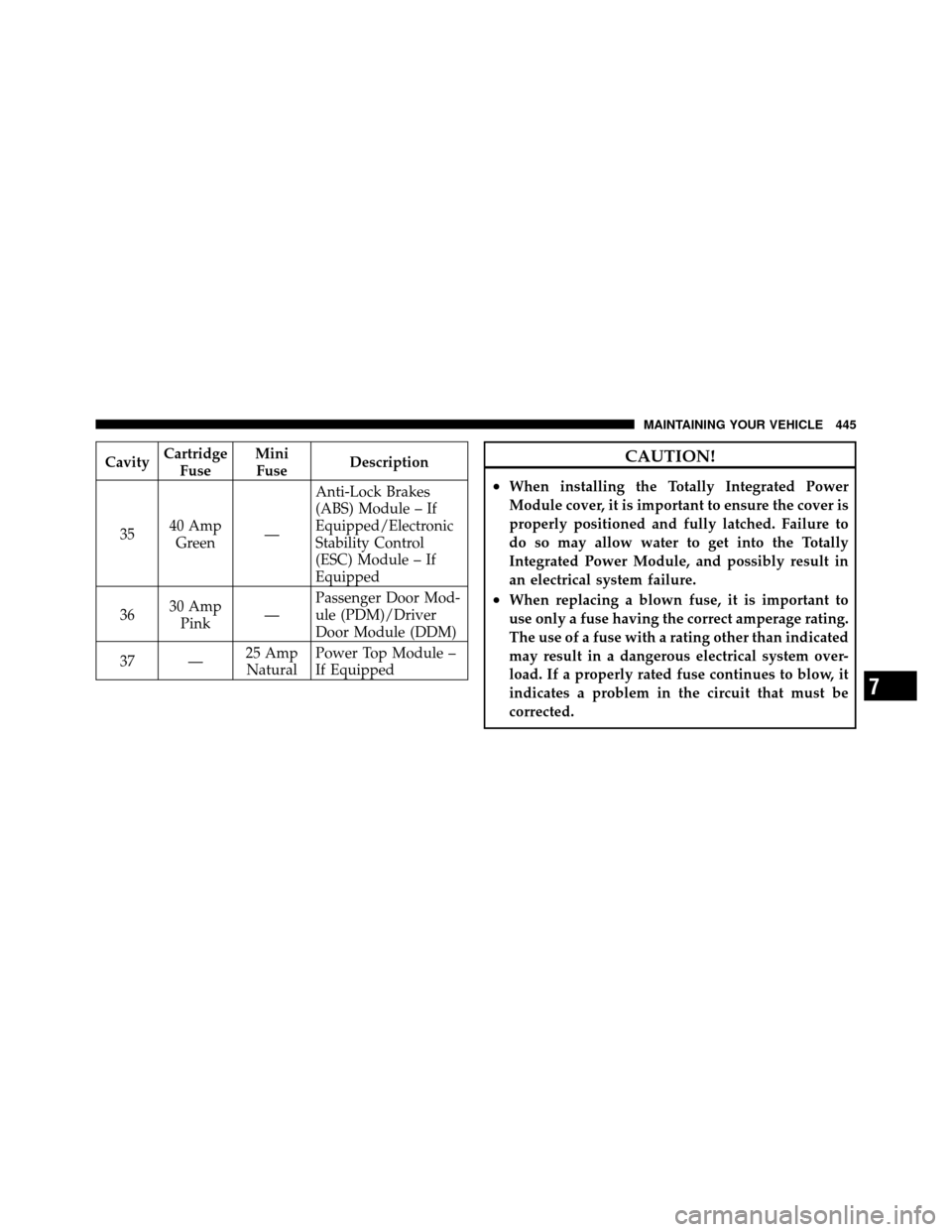

35 40 Amp
Green —Anti-Lock Brakes
(ABS) Module – If
Equipped/Electronic
Stability Control
(ESC) Module – If
Equipped
36 30 Amp
Pink —Passenger Door Mod-
ule (PDM)/Driver
Door Module (DDM)
37 — 25 Amp
Natural Power Top Module –
If EquippedCAUTION!
•When installing the Totally Integrated Power
Module cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the Totally
Integrated Power Module, and possibly result in
an electrical system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
7
MAINTAINING YOUR VEHICLE 445

VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Or disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb No.
Front Courtesy/Reading Lamp..........578/W5W
Center Courtesy/Reading Lamp ..........578/W5W
Visor Vanity Lamp ...................... A6220
Glove Box Lamp ....................... A6220
Shift Indicator Lamp ................. IKLE14140
Rear Compartment (Trunk) Lamp ............. 579
NOTE: For lighted switches, see your authorized dealer
for replacement.
446 MAINTAINING YOUR VEHICLE
