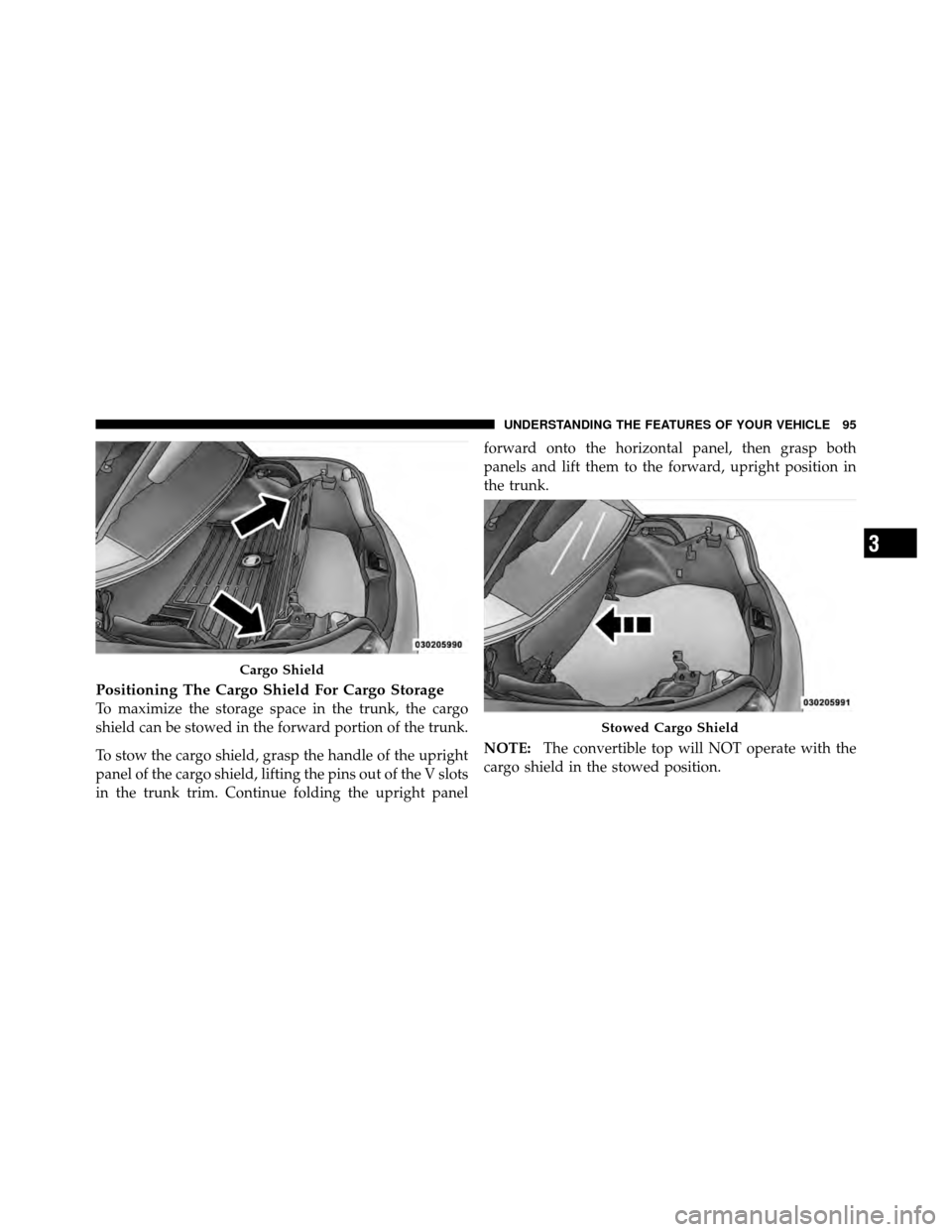

Positioning The Cargo Shield For Cargo Storage
To maximize the storage space in the trunk, the cargo
shield can be stowed in the forward portion of the trunk.
To stow the cargo shield, grasp the handle of the upright
panel of the cargo shield, lifting the pins out of the V slots
in the trunk trim. Continue folding the upright panelforward onto the horizontal panel, then grasp both
panels and lift them to the forward, upright position in
the trunk.
NOTE:
The convertible top will NOT operate with the
cargo shield in the stowed position.
Cargo Shield
Stowed Cargo Shield
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

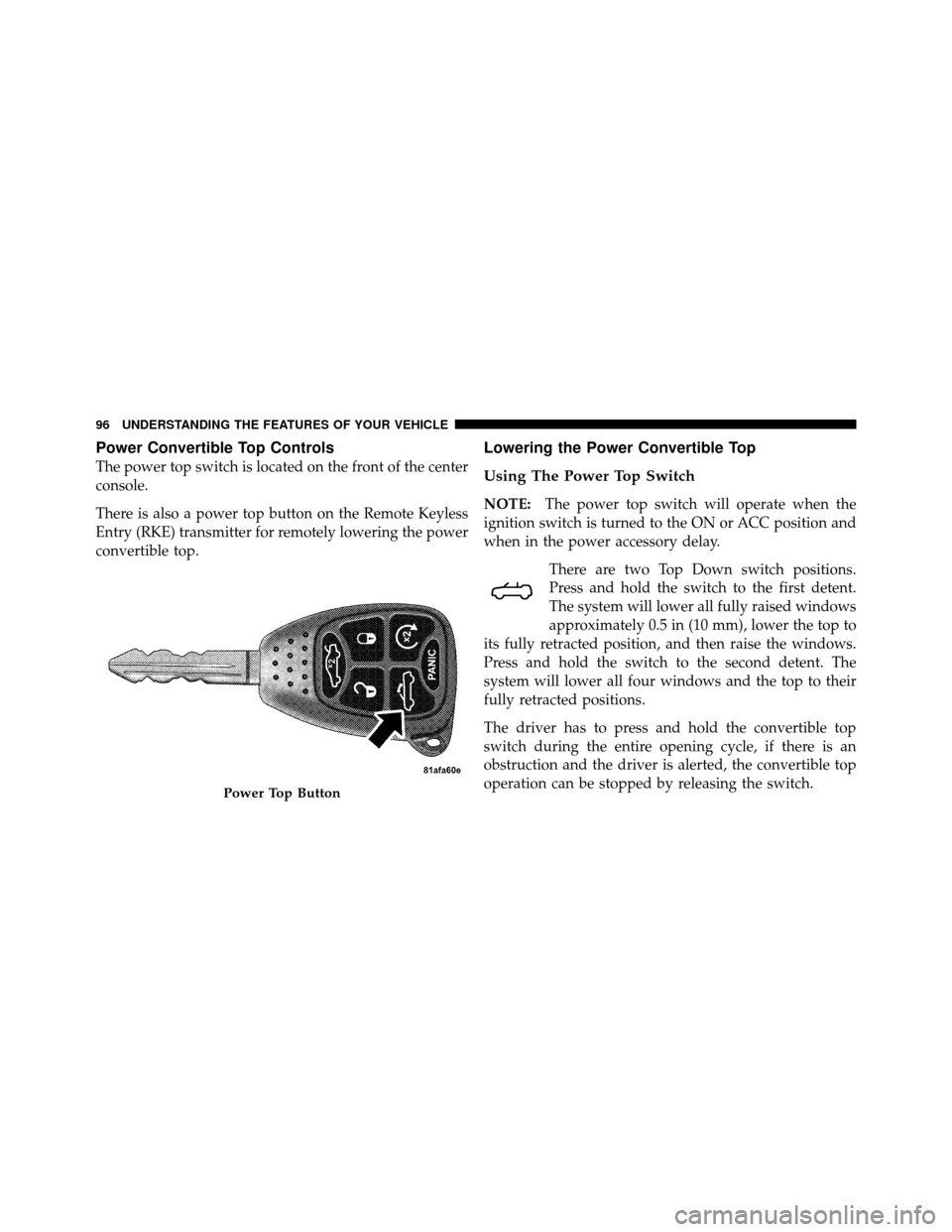

Power Convertible Top Controls
The power top switch is located on the front of the center
console.
There is also a power top button on the Remote Keyless
Entry (RKE) transmitter for remotely lowering the power
convertible top.
Lowering the Power Convertible Top
Using The Power Top Switch
NOTE:The power top switch will operate when the
ignition switch is turned to the ON or ACC position and
when in the power accessory delay.
There are two Top Down switch positions.
Press and hold the switch to the first detent.
The system will lower all fully raised windows
approximately 0.5 in (10 mm), lower the top to
its fully retracted position, and then raise the windows.
Press and hold the switch to the second detent. The
system will lower all four windows and the top to their
fully retracted positions.
The driver has to press and hold the convertible top
switch during the entire opening cycle, if there is an
obstruction and the driver is alerted, the convertible top
operation can be stopped by releasing the switch.
Power Top Button
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Using The Remote Keyless Entry Transmitter

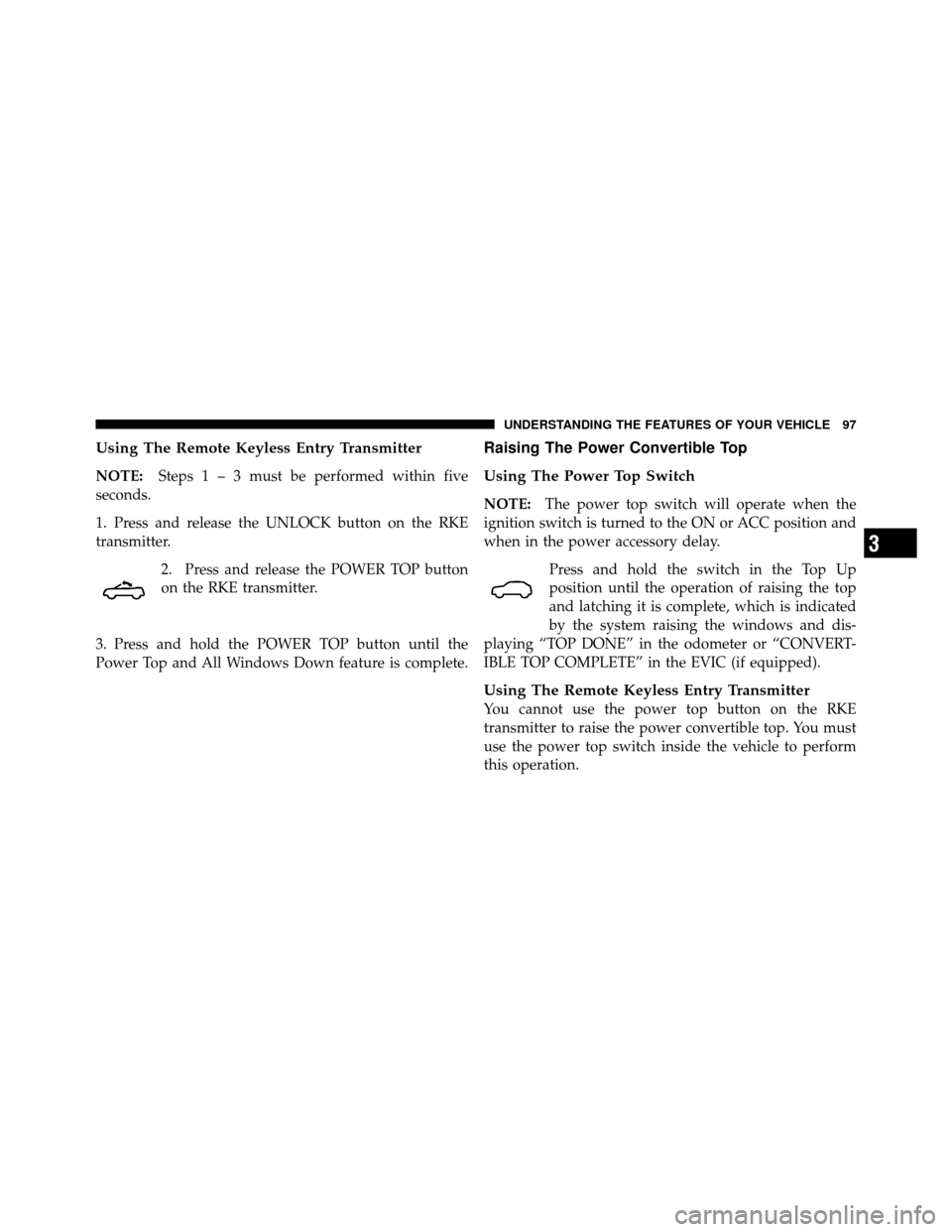

NOTE:Steps1–3must be performed within five
seconds.
1. Press and release the UNLOCK button on the RKE
transmitter.
2. Press and release the POWER TOP button
on the RKE transmitter.
3. Press and hold the POWER TOP button until the
Power Top and All Windows Down feature is complete.
Raising The Power Convertible Top
Using The Power Top Switch
NOTE: The power top switch will operate when the
ignition switch is turned to the ON or ACC position and
when in the power accessory delay.
Press and hold the switch in the Top Up
position until the operation of raising the top
and latching it is complete, which is indicated
by the system raising the windows and dis-
playing “TOP DONE” in the odometer or “CONVERT-
IBLE TOP COMPLETE” in the EVIC (if equipped).
Using The Remote Keyless Entry Transmitter
You cannot use the power top button on the RKE
transmitter to raise the power convertible top. You must
use the power top switch inside the vehicle to perform
this operation.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

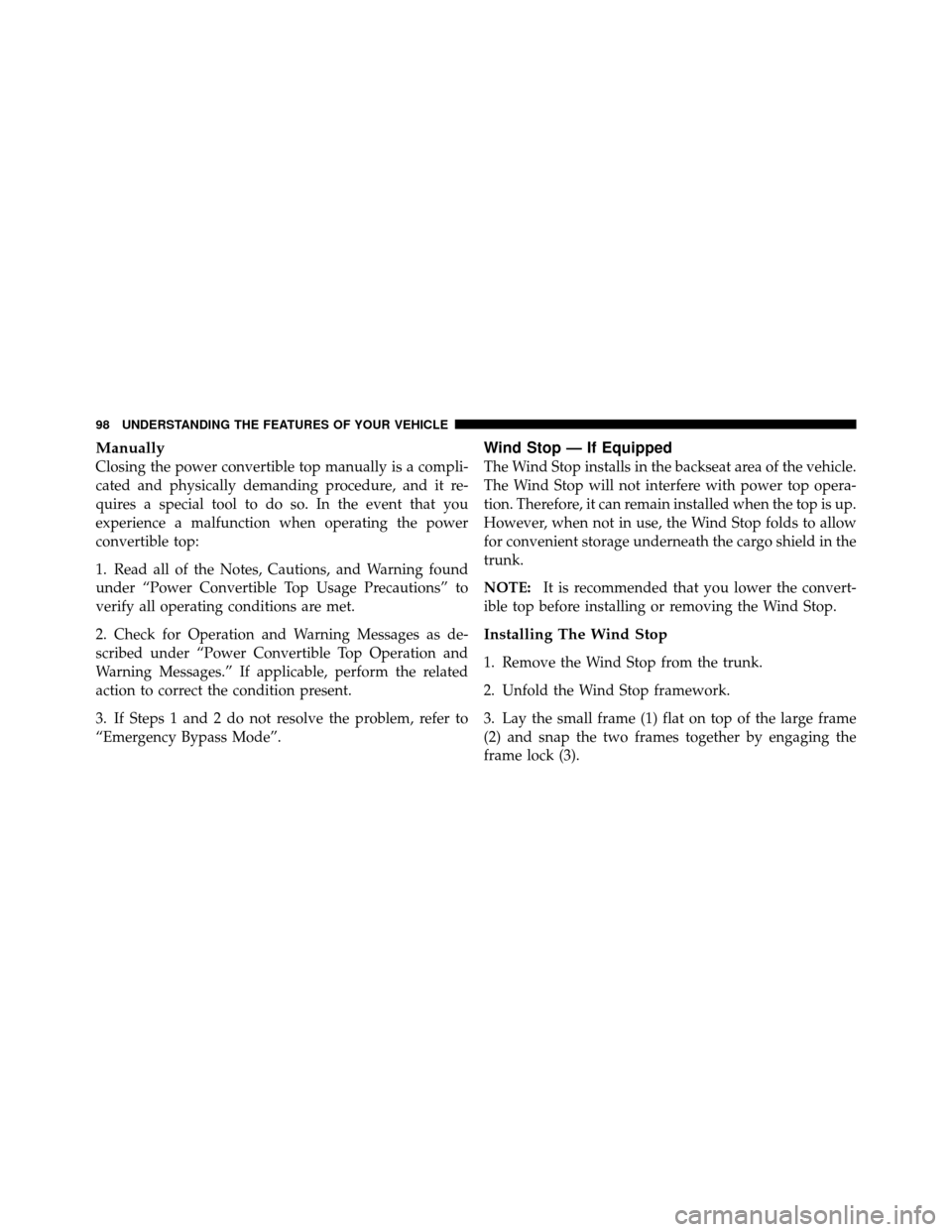

Manually
Closing the power convertible top manually is a compli-
cated and physically demanding procedure, and it re-
quires a special tool to do so. In the event that you
experience a malfunction when operating the power
convertible top:
1. Read all of the Notes, Cautions, and Warning found
under “Power Convertible Top Usage Precautions” to
verify all operating conditions are met.
2. Check for Operation and Warning Messages as de-
scribed under “Power Convertible Top Operation and
Warning Messages.” If applicable, perform the related
action to correct the condition present.
3. If Steps 1 and 2 do not resolve the problem, refer to
“Emergency Bypass Mode”.
Wind Stop — If Equipped
The Wind Stop installs in the backseat area of the vehicle.
The Wind Stop will not interfere with power top opera-
tion. Therefore, it can remain installed when the top is up.
However, when not in use, the Wind Stop folds to allow
for convenient storage underneath the cargo shield in the
trunk.
NOTE:It is recommended that you lower the convert-
ible top before installing or removing the Wind Stop.
Installing The Wind Stop
1. Remove the Wind Stop from the trunk.
2. Unfold the Wind Stop framework.
3. Lay the small frame (1) flat on top of the large frame
(2) and snap the two frames together by engaging the
frame lock (3).
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

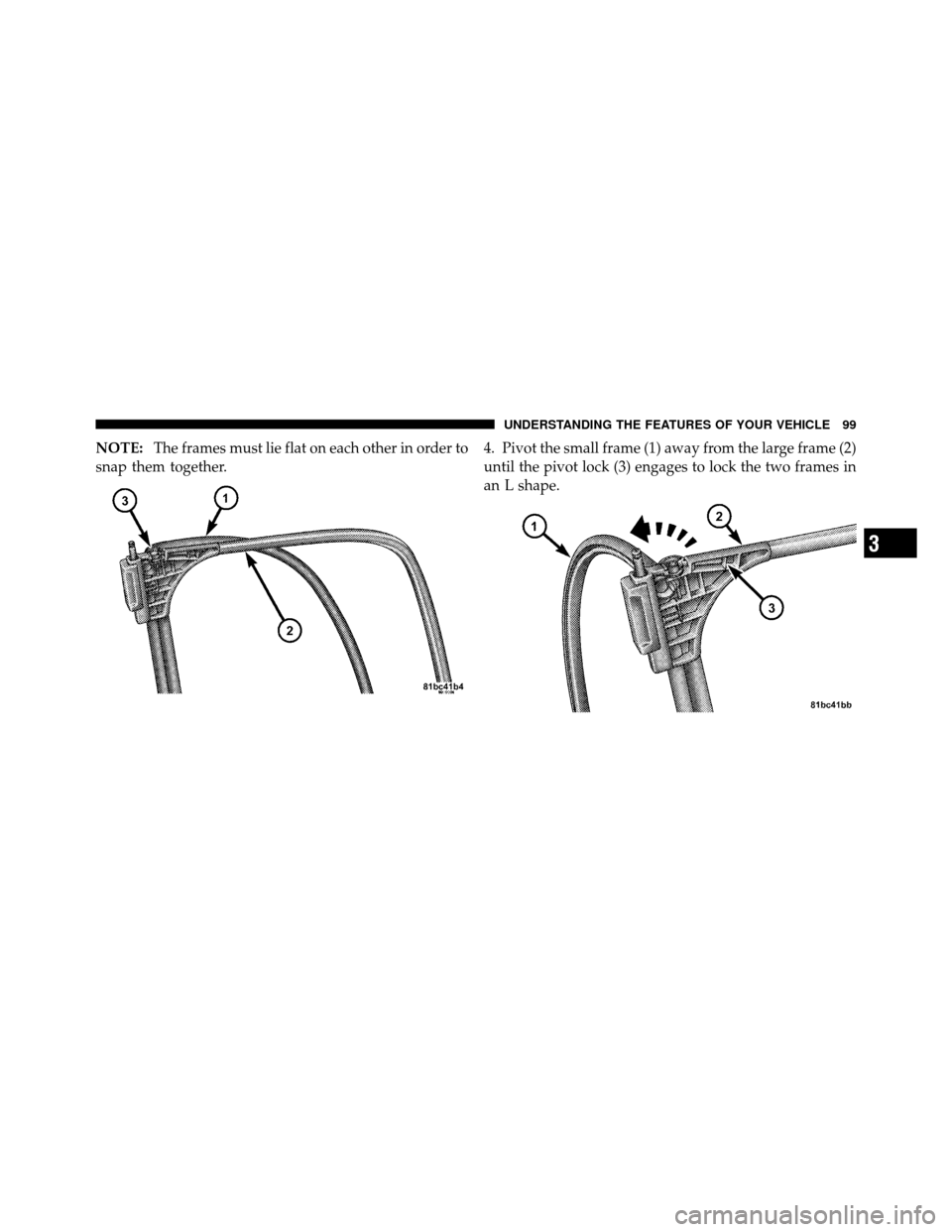

NOTE:The frames must lie flat on each other in order to
snap them together. 4. Pivot the small frame (1) away from the large frame (2)
until the pivot lock (3) engages to lock the two frames in
an L shape.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

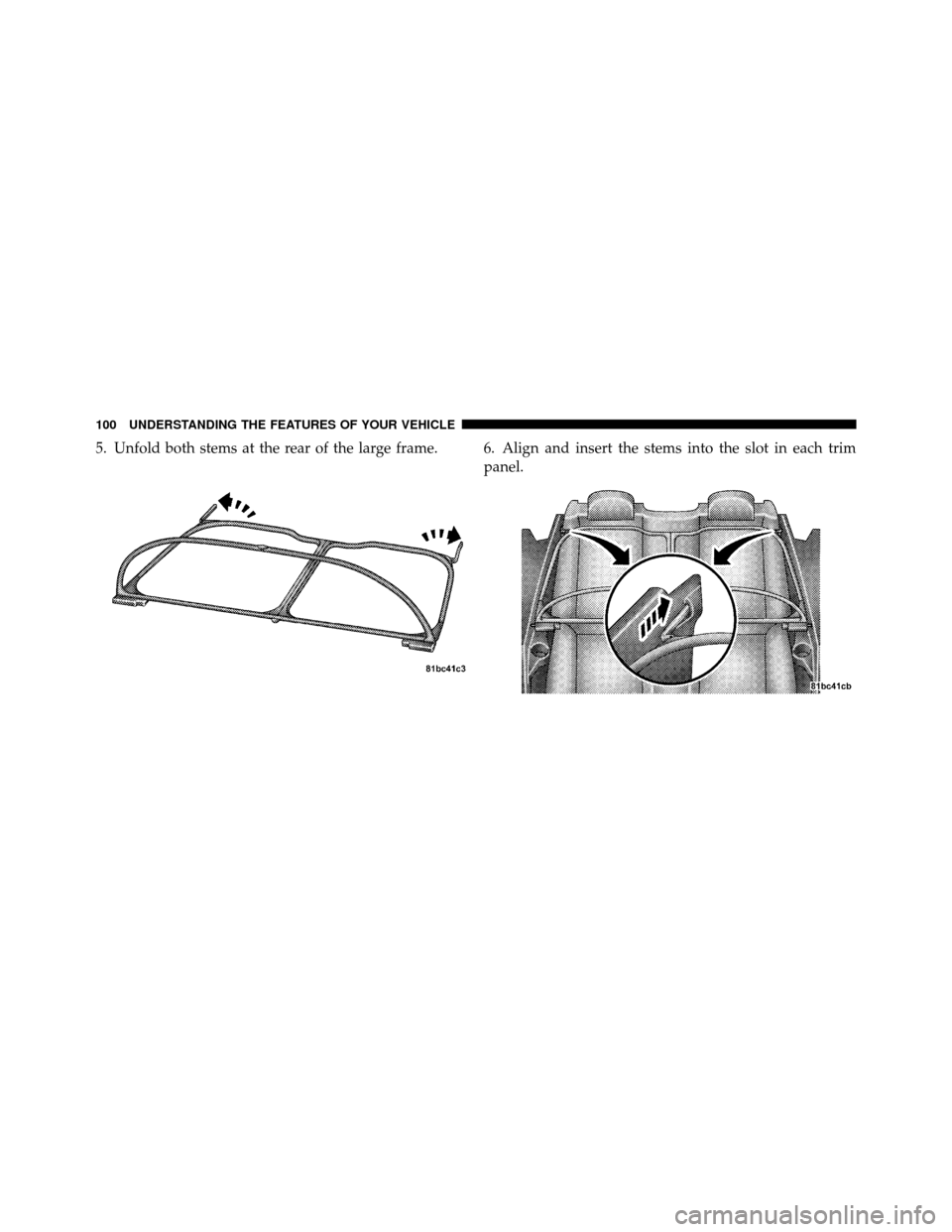

5. Unfold both stems at the rear of the large frame. 6. Align and insert the stems into the slot in each trimpanel.
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

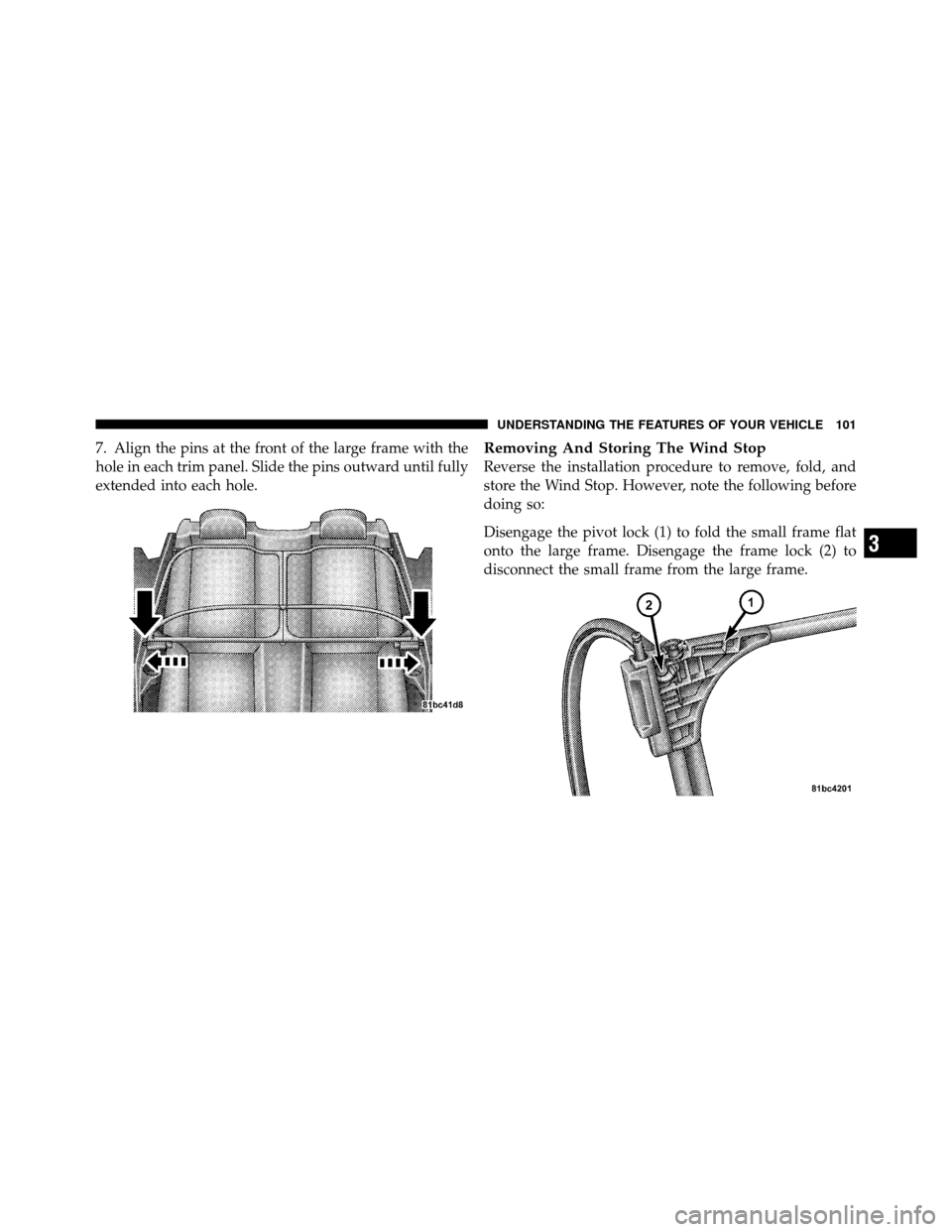

7. Align the pins at the front of the large frame with the
hole in each trim panel. Slide the pins outward until fully
extended into each hole.Removing And Storing The Wind Stop
Reverse the installation procedure to remove, fold, and
store the Wind Stop. However, note the following before
doing so:
Disengage the pivot lock (1) to fold the small frame flat
onto the large frame. Disengage the frame lock (2) to
disconnect the small frame from the large frame.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

Power Convertible Top Operation And Warning Messages
When the appropriate conditions exist, the PTCM displays various power convertible top operation and warning
messages in the Electronic Vehicle Information Center (EVIC) – if equipped, or in the Odometer for vehicles not
equipped with the EVIC. Refer to the following chart for message related information:
EVIC
Message\bEVIC
Message
Display
Time\bOdometer
Message
(< 5 mph
[8 km/h])
\b\bOdometer
Message
Display
Time\b\b
Odometer
Message
(> 5 mph
[8 km/h])
\b\bOdometer
Message
Display
Time\b\b
Chime Condition Operator
Action
Required
CONVERT-
IBLE TOP
NOT SE-
CURED Until Op-
eration is
Complete
TOP nOT
SECUrE
Until Op-
eration is
Complete— — — The System is
Lowering or
Raising the
To p—
CONVERT-
IBLE TOP
COM-
PLETE 9 sec. TOP
DONEDisplay
Scrolls for
6 sec.— — Single
ChimeThe System
Completes
Operation of
Lowering or
Raising the
To p —
