Headlamp Aiming
The vehicle has a visual optical
headlamp aiming system. The aim
of the headlamps have been preset
at the factory and should need no
further adjustment.
However, if the vehicle is damaged
in a crash, the aim of the headlamps
may be affected and adjustment
may be necessary.
If oncoming vehicles flash their high
beams at you, this may mean the
vertical aim of the headlamps needs
to be adjusted.
It is recommended that the vehicle
is taken to your dealer for service if
the headlamps need to be adjusted.
It is possible however, to re-aim the
headlamps as described.The vehicle should:.Be placed so the headlamps are
7.6 m (25 ft.) from a light colored
wall or other flat surface.
.Have all four tires on a level
surface which is level all the way
to the wall or other flat surface.
.Be placed so it is perpendicular
to the wall or other flat surface.
.Not have any snow, ice, or mud
on it.
.Be fully assembled and all other
work stopped while headlamp
aiming is being performed.
.Be normally loaded with a full
tank of fuel and one person or
75 kg (160 lbs) sitting on the
driver seat.
.Have the tires properly inflated.
.Have the spare tire is in its
proper location in the vehicle.Headlamp aiming is done with the
vehicle's low-beam headlamps.
The high-beam headlamps will be
correctly aimed if the low-beam
headlamps are aimed properly.
To adjust the vertical aim:
1. Open the hood. See
Hood on
page 10‑5 for more information.2. Locate the center of the
projector lens of the low‐beam
headlamp.

Black plate (38,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-38 Vehicle Care
3. Record the distance from theground to the center of the
projector lens of the low‐beam
headlamp.
4. At a wall, measure from the
ground upward (A) to the
recorded distance from
Step 3 and mark it. 5. Draw or tape a horizontal line (B)
on the wall the width of the
vehicle at the height of the mark
in Step 4.
Notice: Do not cover a headlamp
to improve beam cut-off when
aiming. Covering a headlamp may
cause excessive heat build-up
which may cause damage to the
headlamp.
6. Turn on the low-beam
headlamps and place a piece
of cardboard or equivalent in
front of the headlamp not being
adjusted. This allows only the
beam of light from the headlamp
being adjusted to be seen on the
flat surface.
7. Locate the vertical headlampaiming screws, which are under
the hood near each headlamp
assembly.
8. Turn the vertical aiming screw until the headlamp beam is
aimed to the horizontal tape
line. Turn it clockwise or
counterclockwise to raise or
lower the angle of the beam.

Black plate (39,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Vehicle Care 10-39
9. Make sure that the light from theheadlamp is positioned at the
bottom edge of the horizontal
tape line. The lamp on the
left (A) shows the correct
headlamp aim. The lamp
on the right (B) shows the
incorrect headlamp aim.
10. Repeat Steps 7 through 9 for the opposite headlamp.
Bulb Replacement
For the proper type of replacement
bulbs, see Replacement Bulbs on
page 10‑41.
For any bulb‐changing procedure
not listed in this section, contact
your dealer.
High Intensity Discharge
(HID) Lighting
{WARNING
The low beam high intensity
discharge lighting system
operates at a very high voltage.
If you try to service any of the
system components, you could
be seriously injured. Have your
dealer or a qualified technician
service them. The vehicle may have HID
headlamps. After an HID headlamp
bulb has been replaced, you may
notice that the beam is a slightly
different shade than it was originally.
This is normal.
LED Lighting
The vehicle may have LED
headlamps. For replacement of
the LED lighting assembly contact
your dealer.

Black plate (40,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-40 Vehicle Care
Back-Up Lamps
To replace this bulb:
1. Open the liftgate. SeeLiftgate
(Manual) on page 2‑9 orLiftgate
(Power) on page 2‑10 for more
information.
2. Remove the two screws from the
taillamp assembly.
3. Pull the taillamp assembly rearward until the inner pins
on the taillamp assembly
disengage from the vehicle.
4. Press the release tab, if the bulb socket has one, and turn the
socket counterclockwise to
remove it from the taillamp
assembly. 5. Pull the old bulb straight out
from the socket.
6. Press a new bulb into the socket, insert the socket into
the taillamp assembly and turn
the socket clockwise into the
taillamp assembly until it clicks.
7. Reinstall the taillamp assembly. When reinstalling, make sure to
line up the pins on the taillamp
assembly with the vehicle. If the
pins do not line up correctly, the
taillamp assembly will not be
able to be installed properly.
If the taillamp, stoplamp, or turn
signal need to be replaced, see your
dealer for service.

Black plate (41,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Vehicle Care 10-41
License Plate Lamp
1. Remove the two screws holdingeach of the license plate lamps
to the molding that is part of the
liftgate.
2. Twist and pull the license plate lamp assembly forward through
the molding opening. 3. Remove the bulb socket from
the lamp assembly by turning it
counterclockwise. Pull the bulb
straight out of the socket.
4. Install the new bulb.
5. Reverse Steps 1 through 2 to reinstall the license plate lamp.
Replacement Bulbs
Exterior Lamp Bulb
Number
Back-up Lamp 7441
License
Plate Lamp 168LL
(W5WLL)
For replacement bulbs not listed
here, contact your dealer.
Electrical System
Electrical System
Overload
The vehicle has fuses and circuit
breakers to protect against an
electrical system overload.
When the current electrical load
is too heavy, the circuit breaker
opens and closes, protecting the
circuit until the current load returns
to normal or the problem is fixed.
This greatly reduces the chance of
circuit overload and fire caused by
electrical problems.

Black plate (42,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-42 Vehicle Care
Fuses and circuit breakers protect
the following in the vehicle:
.Headlamp Wiring
.Windshield Wiper Motor
.Power Windows and Other
Power Accessories
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road
and a fuse needs to be replaced,
the same amperage fuse can be
borrowed. Choose some feature of
the vehicle that is not needed to use
and replace it as soon as possible.
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have
the headlamp wiring checked right
away if the lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage. Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow
or ice, be sure to get it fixed.
Fuses and Circuit
Breakers
If the vehicle is a hybrid, see
the hybrid supplement for more
information.
The wiring circuits in the vehicle
are protected from short circuits
by a combination of fuses, circuit
breakers and fusible thermal links.
This greatly reduces the chance of
fires caused by electrical problems.

Black plate (43,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Vehicle Care 10-43
Look at the silver-colored band
inside the fuse. If the band is broken
or melted, replace the fuse. Be sure
you replace a bad fuse with a new
one of the identical size and rating.
If you ever have a problem on the
road and don't have a spare fuse,
you can borrow one that has the
same amperage. Just pick some
feature of your vehicle that you can
get along without–like the radio
or cigarette lighter –and use its
fuse, if it is the correct amperage.

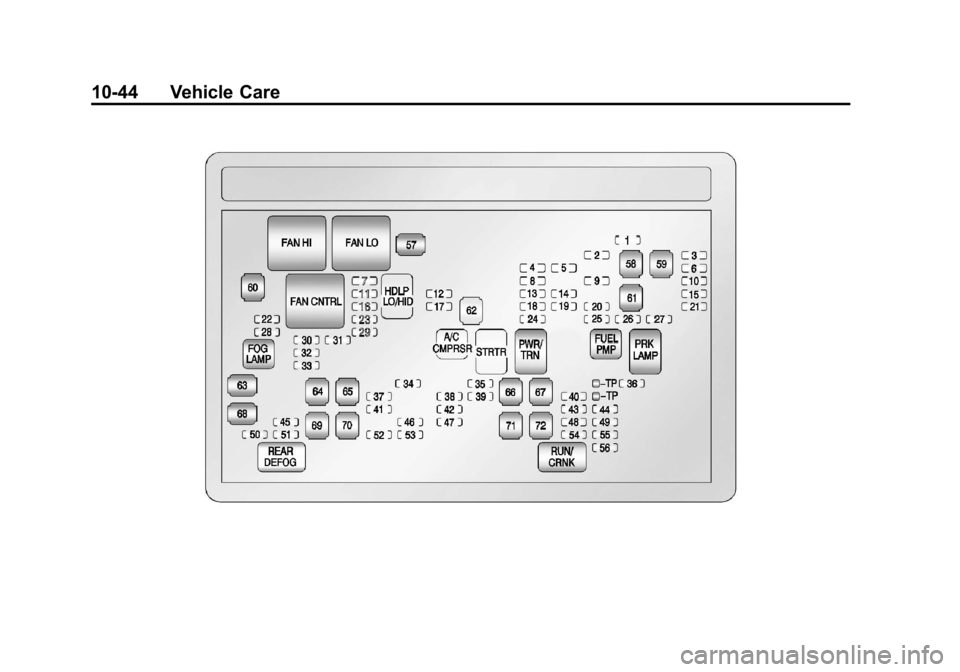

Replace it as soon as you can.Engine Compartment
Fuse Block
The Engine Compartment Fuse
Block is located in the engine
compartment, on the driver side
of the vehicle. Lift the cover for
access to the fuse/relay block. If the vehicle is a hybrid, see
the hybrid supplement for more
information.
Notice:
Spilling liquid on any
electrical component on the
vehicle may damage it. Always
keep the covers on any electrical
component.
To remove fuses, hold the end of
the fuse between your thumb and
index finger and pull straight out.
