2011 AUDI R8 SPYDER stop start

as a pulsing motion of the brake pedal, ac­
companied by some noises. In order for ABS
to be able to operate optimally in th is range,
you must keep the brake pedal depressed -
never "pump the brakes" . You should not ex­
pect that braking d istances w ill be
shortened
under all circumstances with ABS . Braking dis­
tance may even be slightly
longer, for exam­
p le on gravel or wi th fresh snow on a slippery
surface .
If a sign ificant
speed differential between the
d rive wheels on one axle is determined (for
examp le, on a su rface that is s lippery
on one
side),
the EDS brakes the spinn ing whee l and
transfers power to the other drive whee ls.
This is done up to a speed of about 60 mph (100 km/h) . Noises from the brake system
signal that whee l spin is being controlled.
I f one whee l spins when starting from a com­
p lete stop because o f a different grip (for ex­
ample , one wheel o n ice), keep your foot
hard
on the accelerator until the veh icle starts to
move.
If the wheels spin , ASR wi ll automatically re­
duce engine torque and match power to road
surface conditions .
Switching on Sport mod e
In specific driving situations (e.g. Launch Con ­
trol), you swi tch ASR and ESP to Sport mode
by pressing the
[!I button once . The indicator
light
11 illuminates and ESP sport -Wa rni ng!
Restric ted stab ility
appears . "Slip" is matched
to the speed. You should do this only if your
driving skill and traffic cond it ions permit .
Switching ASR /ESP off
In certain sit uations (e .g . in deep snow, on a
l oose surface, o r when rocking the vehicle
free), switch ASR and ESP off by pressing the
[ill button for more than 3 seconds. The ind ica­
tor light
I) illuminates and ES P sw itc hed off -
Warning! R estricted stability
appears . You
should do th is only if your driving skill and
traffic cond itions pe rmit .
Int ellig ent technolog y 151
Switching ASR /ESP on
Activate ASR/ ESP by p ressing the [!I button
again. The message
ESP on appears in the d is­
play briefly.
Brake overheating
So that the disc b rake on a b raked wheel does
not overheat, the EDS switches off automati­
ca lly if there is un usua lly severe loa ding at
th is wheel. The vehicle is st ill drivable and has
the same properties as a vehicle wit hout EDS .
As soon as the brake has cooled down, EDS
swi tches on aga in automatically.
A WARNING
- Even ESP, ABS, EDS and ASR cannot over ­
come the laws of physics . You should
keep this in m ind in particular on an icy
or wet road. If the systems intervene,
you shou ld adjust your speed immediate­
ly to road and traff ic conditions . Do not
be tempted by the increased safety pro­
vided to take risks -you risk having an
accident.
- Please keep in mind that the r isk of an
accident is i ncreased by driving too fast,
pa rti cularly in corners and on icy or wet
ro ads, and by drivi ng too close to the ve­
hicle ahead . Even ES P, ABS, E DS and ASR
cannot eliminate the increased risk of
having an accident.
-Apply the throttle ca re fully when accel ­
erating on a consistently s lippery sur­
face, e.g. on ice and snow . The drive
wheels can spin in spite of the EDS and thereby affect vehicle stability -you risk
having an accident .
- Please note that when ASR or ESP/ASR is
deactivated, the drive wheels can spin on
icy and slippery roads and the veh icle can
break away -the re is a risk of skidd ing!
(D Tips
- In the event of a defect in the rear spoil-
er system or in Audi magnet ic ride, it can
happen that ASR and ASR/ESP cannot be .,.
•
•

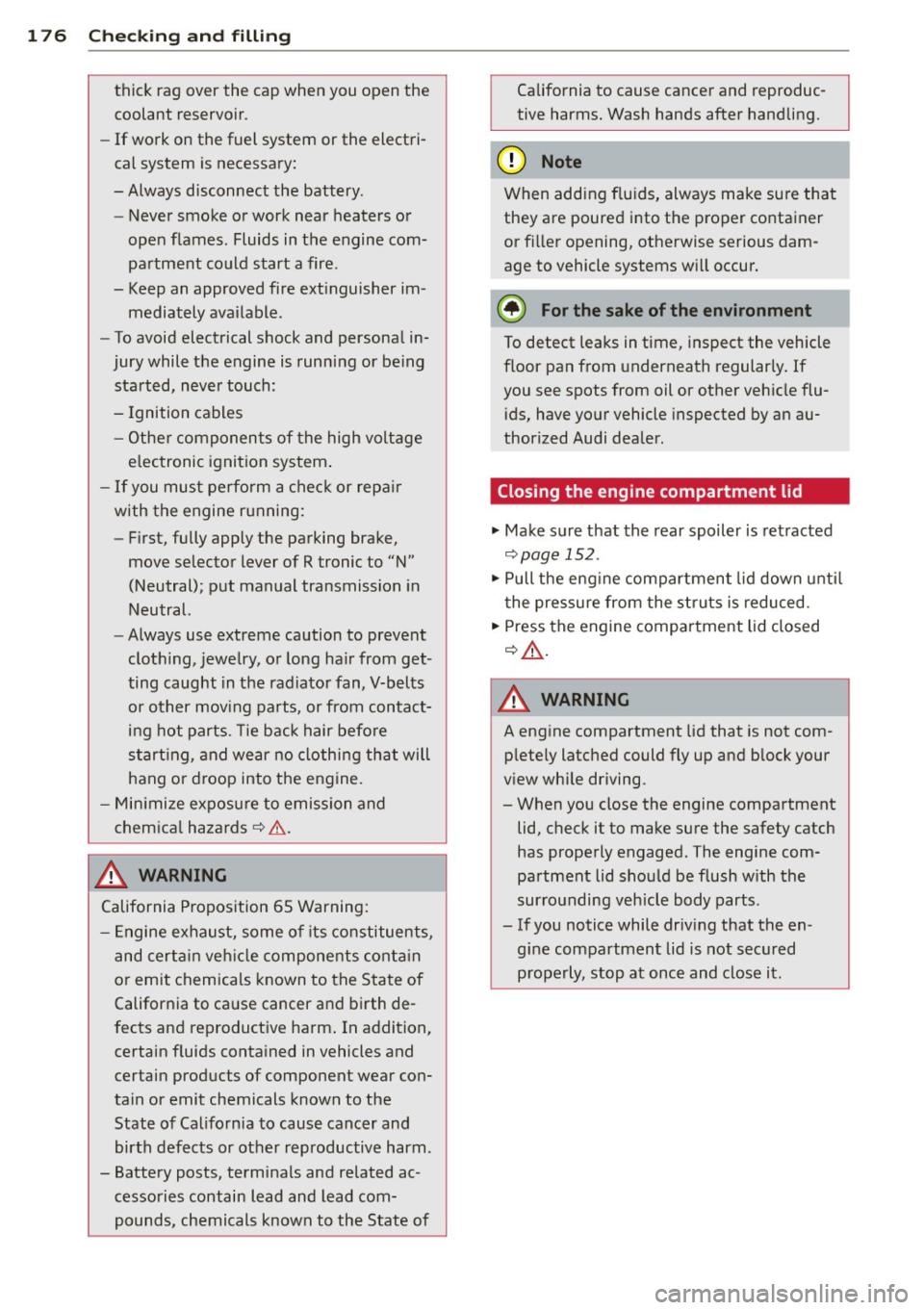

176 Checking and filling
thick rag over the cap when you open the coolant reservoir .
-If work on the fuel system or the electri­
cal system is necessary:
- Always disconnect the battery .
- Never smoke or work near heaters or
open flames. Fluids in the engine com­ partment could start a fire .
- Keep an approved fire extinguisher im ­
mediately available.
- To avoid electrical shock and personal in­
jury while the engine is running or being
started, never touch:
- Ignition cables
- Other components of the high voltage
electronic ignition system.
- If you must perform a check or repair
with the engine running:
- First, fully apply the parking brake,
move selector lever of R tronic to "N"
(Neutral); put manual transmission in
Neutral.
- Always use extreme caution to prevent
clothing, jewelry, or long hair from get ­
ting caught in the radiator fan, V-belts
or other moving parts, or from contact­
ing hot parts . Tie back hair before
starting, and wear no clothing that will
hang or droop into the engine.
- Minimize exposure to emission and
chemical hazards~&. .
.&_ WARNING
California Proposition 65 Warning:
- Engine exhaust, some of its constituents,
and certain vehicle components contain
or emit chemicals known to the State of
California to cause cancer and birth de­
fects and reproductive harm. In addition,
certain fluids contained in vehicles and
certain products of component wear con­
tain or emit chemicals known to the
State of California to cause cancer and
birth defects or other reproductive harm .
- Battery posts, terminals and related ac­ cessories contain lead and lead com­
pounds, chemicals known to the State of California to cause cancer and
reproduc­
tive harms. Wash hands after handling.
@ Note
When adding fluids, always make sure that
they are poured into the proper container
or filler opening, otherwise serious dam­
age to vehicle systems will occur.
@ For the sake of the environment
To detect leaks in time, inspect the vehicle
floor pan from underneath regularly. If
you see spots from oil or other vehicle flu­
ids, have your vehicle inspected by an au­
thorized Audi dealer.
Closing the engine compartment lid
... Make sure that the rear spoiler is retracted
~page 152.
""Pull the engine compartment lid down until
the pressure from the struts is reduced.
.., Press the engine compartment lid closed
c::>& .
A WARNING ,_
A engine compartment lid that is not com­
pletely latched could fly up and block your
view while driving.
- When you close the engine compartment lid, check it to make sure the safety catch
has properly engaged . The engine com­
partment lid should be flush with the
surrounding vehicle body parts .
- If you notice while driving that the en ­
gine compartment lid is not secured properly, stop at once and close it.

soon as possible, and inflate them to the
proper pressure. Driving on a significant ly un­
der-inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation a l­
so reduces fuel efficiency and tire tread l ife,
and may affect the veh icle 's handling and
stopping ab ility.
Please note that the TPMS is not a substitute
for proper t ire maintenance, and it is the dr iv­
er's responsib ility to ma inta in correct t ire
p ress ure , even if under- inflation has not
reached the leve l to t rigger illumination of the
TPMS low tire pressure telltale .
Your veh icle has also been equ ipped with a
TPMS malfunction indicato r to indicate when
the system is not ope rating properly. The
TPMS malfunc tion indica to r i s combined wi th
the low t ire p ressu re tell ta le. When the sys ­
tem detec ts a malf unct ion, the te lltale will
flash for approximately one minute and then remain continuo usly ill uminated . This se­
q uence will cont inue upon subsequent vehicle
start-ups as long as the ma lfunction ex ists.
When the malfunction indicator is ill uminat ­
ed, the system may not be able to detect or
signa l low t ire pressure as intended . TPMS
malfunct ions may occ ur for a variety of rea­
sons, including the ins talla tion of replace­
ment or alternate tires o r whee ls on the veh i­
cle that prevent the TPMS from funct io ni ng
p roperly . Always check the TPMS malfunct ion
t ellta le afte r replacing one o r more t ires or
wheels o n your veh icle to ensure tha t the re­
p lacemen t or a lternate tires and wheels allow
the TPMS to continue to function properly .
Introduction
The tire pressure monitoring system monitors
air pressure in all four road wheels while the
vehicle is moving .
As soon as the tire pressu re mo nitor ing sys­
tem senses a s ignificant loss o f air pressure in
one or severa l ti res, text messages and yellow
symbo ls appear in the instr ument cluster dis ­
p lay to alert the driver. The
[al warning light
Tire s an d wheel s 207
in the instrument cluster comes on when the
ti re is significant ly underinflated
Q page 34.
The wa rni ng lig ht [al also illu minates i n the
case of a system mal fun ct io n.
Be aware that t ire pressure is a lso dependent
o n the tempe ratu re of the t ire. For eve ry 18 ° F
(10 °C) incre ase in tir e te mper ature, tire pres­
s u re inc reases by about 1.5 psi (0 .1 bar). The
ti re warms up while the vehicle is moving and
ti re p ress ure rises . So you sho uld ad just tire
pressure only when they a re
cold, when the
temperature of the tires is roughly the same
as the ambient a ir temperature.
In order to keep the tire press ure monitoring
system p roperly ca librated, t ire press ure on
all four tires sho uld be checked at regu lar in­
terva ls.
The tire pressure is shown on the label located
on the dr iver's side B-pillar (v is ib le when the
door is open) .
A WARNING
When the tire pressure mo nitoring system
war ning light is lit , one o r more of your
tires is s ignificantly under-infla ted . You
shou ld stop and check your tires as soon as
pos sib le, and in flate t hem to the proper
p ress ure a s in dic ate d on the ve hicle's ti re
p ress ure lab el
¢page 19 3. D riving on a
significantly under -inflated ti re causes t he
tire to over heat and can lead to tire failure .
Under-inflat ion also is like ly to impair the
vehicle's handling and stopping ab ility.
@ For the sake of the environment
D riving wit h un der -inflated tires red uces
fuel efficiency an d tire t read life.
(D Tips
- E ach tire should be chec ked monthly
w hen the tem perature of the tires is
about the same as amb ient a ir tempera­
t u re and set to the recommended infla­
tion pressure as specified on the tire
pressure label
¢ pag e 193.
•
•

216 What do I do now?
• Switch the electric air pump off - switch in
position
0. If the required tire pressure of at
l east 1.8 bar has not been reached, it is not
poss ible to make a repa ir with the tire seal­
ant. Seek professional ass istance.
Di sas sembling T ire Mobilit y Sy stem
• Remove the hose from the valve and pull the
plug out of the socket.
• Screw the dust cap onto the valve.
• Place the empty sealant bottle back in the
original packaging and clip it in place under
the floor so that no tire sealant can run out into the vehicle .
• Start driving right away so that the sealant
is d istr ibuted in the tire.
.&_ WARNING
- Follow the manufacturer's safety instruc­
tions on the deca l for the air pump and
the sea lant bott le .
- If a tire pressure of 1.8 bar cannot be
achieved after pumping for S minutes,
the tire is too severely damaged. Do not continue to drive.
- Seek professional assistance if it is not
poss ible to repair the tire with the tire
sealant.
(D Tips
- Do not operate the electric ai r pump for
more than 8 min utes without stopping,
otherwise it can overheat. When the air
pump has cooled down, you can continue
to use it.
- If sealant has escaped, allow it to dry, then you can peel it off.
Final check
After driving for a short distance, t ire pressure
must be checked .
• After driving for about 10 minutes, stop and
check the t ire pressure.
• If tire pressure is still at least 1.3 bar, in ­
flate the t ire to specified pressure (see driv­
er's side B-pillar), dr ive to the next repair shop and have the tire and the sealant bot
­
tle replaced.
• If tire pressure is less than 1.3 bar, the t ire
is too severely damaged. Do not continue to
drive . Seek professional assistance.
.&_ WARNING
If t ire pressure is less than 1.3 bar after
d riving for 10 minutes, the t ire is too se­
ve rely damaged. Do not cont inue to drive.
See k professional ass istance.
(D Tips
After a tire repair, have the sealant bottle
r eplaced at a dealership. This restores full
funct ionality to the T ire Mobility System .
What should I be
aware of when
changing a tire?
Tires with unidirectional tread design
-
Tires with unidirectional tread design mu.st be
mounted with their tread pattern pointed the
right direction.
A un idirectional tire can be identified by ar­
row s on the sid ewall , which point in the di rec­
t ion of the rota tion. Yo u m ust follow the
speci fied direction o f rotation. This is necessa­
ry in order for these tires to develop t heir op ­
timum characteristics regarding grip, road
noise, wear, and hydrop lan ing .
· Anti-theft wheel bolts
A special adopter is needed to turn the anti­
theft wheel bolts.
Fi g. 158 Anti-theft wheel bolts w it h adapte r

Use of jumper cables
Make sure to connect the jumper cable
clamps in exactly the order described below'
Fig . 162 Luggage co m pa rtme nt: connec tor s for a
ch arge r and jump start cab les
F ig . 163 Ju m p sta rt usin g t he batte ry in a not her ve hi­
cl e: A -Fem ale socket , B · Dis charge
The batte ry is located in the luggage compart­
ment ¢
page 185. The front lid can be opened
in an emergency
C? page 43 .
Do not connect the negat ive cable directly to
the negative termina l on the battery. Connect
it to a
j u mp start pin instead ¢ fig. 162.
Connect the posi tive cable (red) to the
posit ive t ermin al
1. Connect one end of the red jumper cable
¢
fig. 163 (D to the positive te rm inal of
d ischarged battery @.
2. Connect the other end of the red jumper
cable to the positive termina l@ of the
booster battery @.
Conn ect the negat ive cable (black ) to the
n egati ve ter minal
3. Connect one end of the black jumper ca­
b le @ to the negative terminal of the
booster battery @.
What do I d o now ? 221
4. Secure the other end to the jump start pin
@for the discharged battery @.
Starting the engine
~ Start the engine of the veh icle providing as­
sistance and al low it to run at idle.
~ Now sta rt the engine of the vehicle with the
discharged battery .
~ If the engine does not start: Stop trying af­
ter 10 seconds and then try again after
about 30 seconds.
~ Disconnect the cable while the engine is
running in exactly
reverse order to that de ­
scribed .
The ba ttery is ven ted to the ou tside to prevent
gases from entering the vehicle interior . Make
sure that the jumper clamps are well connect­
ed with their
metal parts in full contact with
the battery term inals .
.&, WARNING
To avoid serious personal injury and dam­
age to the veh icle, heed all warnings and
instructions o f the jumper cable manufac­
turer . If in doubt, call for road service.
- Ju mper cables m ust be long enough so
that the vehicles do not touch.
- When connecting jumper cables, make
sure that they cannot get caught in any
mov ing parts in the engine compart­
ment.
- Before you check anything in the engine
compartment, always read and heed a ll
WARNINGS ¢
page 175, Working in the
engine compar tment.
(D Note
Improper hook-up of jumper cables can ru ­
in the generator .
- Always connect POSITIVE(+) to POSI ­
TIVE(+), and NEGATIVE( -) to NEGATIVE
( - ) ground post of the battery manager
control unit.
- Check that all screw p lugs on the battery
cells are screwed in firm ly. If not, tighten
plugs prior to connecting clamp on nega-
-
tive battery terminal. .,..

Energy management .... ... .. .. .. .. . 155
Battery power . . . . . . . . . . . . . . . . . . . . 156
Driver notification ..... ... .. .. .. .. . 156
E ng ine
Coolan t .......................... 181
E ng ine compartment lid ... .. .. .. .. . 175
Starting . . . . . . . . . . . . . . . . . . . . . . 77, 78
Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . 79
E ng ine compartmen t ................ 177
Safety ins truc tions ........ .. .. .. .. . 17 5
Eng ine compartment lid
C losing . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Release lever . . . . . . . . . . . . . . . . . . . . . 17 5
Eng ine coolant system ............... 181
Malfunct io n . . . . . . . . . . . . . . . . . . . . . . . 32
T emperature gauge ................. 11
Engine data .. .... .. .... ... .. .. .. ... 228
E ng ine oi l ... ............. .... .. ... 178
Adding .. .. ............. .. .. .. ... 180
Addit ives . . . . . . . . . . . . . . . . . . . . . . . . . 180
Chec king the engine oi l level . ... .. .. . 180
D ry s ump lubrication ... ... .. .. .. .. . 157
Indications and cond it ions requ iring ex-
tra check ing ............. .... .. ... 180
Level ............................. 33
O il consumption ................. .. 179
O il grades .. ... .. .. ... ... .. .. .. .. . 178
Sensor defective .................... 33
Specification and viscos ity .. .. .. .. .. . 178
Tempe ra tu re d isp lay ................ 10
Eng ine oil pressure
Malfunct io n ... ........... ...... ... 33
Eng ine speed limitat ion .. ... .. .. .... .. 36
E nvi ro nment
Ca tal ytic conve rter ........ .. .. .. .. . 158
Fu el . .... .. .. .... .. .... ... .. .. ... 172
Un leaded fu el .... ..... ... .. .. .. ... 170
E PC
refer to E lectronic powe r control ( EPC) . 15
ESP
refer to Electronic Stabilizat io n Pro-
g ram .. .. .. .. ........ ..... ... ... . 150
refer to Electronic stab ilization p rogram
( E SP) ............................. 16
Event Data Recorder (EDR) . . . . . . . . . . . . 150
E xhaust tail pipes
C lea ning ... .. ... ..... ... .. .. .. ... 165
Inde x 233
Expansion tank . . . . . . . . . . . . . . . . . . . . . 182
F
Fan ................................ 74
Fastening Boos ter seats .. .. .. . .. .... ...... . .
Co nvertib le child safety seats ....... .
Infan t seats . .. .. ................ .
Flat bed truck
Flat tire 145
144
1
4 3
222
Changi ng ... .... .. . .. .. ..... ... .. 216
Floor mats ...... .. .. ..... .......... 104
Fo ld ing top
Care and cleaning . .... ............. 163
Foot peda ls ... .. .... . ... ...... ... .. 104
Fo r the sake of the envi ronment
Gasoline fumes and t he env ironme nt .. 172
L etting your eng ine w arm up ......... 78
Ref ueling . . . . . . . . . . . . . . . . . . . . . . . . 172
Front a irbags
Desc ription . . . . . . . . . . . . . . . . . . . . . . . 121
How they wor k ... .... ......... .. .. 126
Frontal coll is io ns and the laws of p hys ics 111
Fron t lid
Emergency re lease . .. .. .. ..... ... .. . 43
li ght . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Power locking system .......... .. .. . 42
Tr unk escape handle ............... 213
Front passenger
refer to Seating position . . . . . . . 100, 101
Fron t seats . . . . . . . . . . . . . . . . . . . . . . . . . 66
Child res traints in the fro nt sea t ...... 119
Front towing loop .. .. ........... .... 222
Fuel Additives . ... .... .. . .. .. ..... ... .. 170
B lended gaso line ... .. ... ..... ... .. 170
C ur rent fuel mileage ................ 23
Filler neck ... .. ...... ............. 171
Fuel supply too low . . . . . . . . . . . . . . . . . 33
Gasoline add it ives .. .............. . 171
Octane rat ing .. ... ........... .... . 170
Recommendat ion . ............. .... 170
Ref ueling . . . . . . . . . . . . . . . . . . . . . . . . 172
Rese rve ... .. .. .. ... ............ .. . 12
Tank capacity ....... .. .. ..... ... .. 228
U nl ocking the fuel fi lle r flap by hand .. 173
•
•

Safety belts Cleaning ... ..... ..... ... .. .. .. ... 168
Danger to passengers who do not wear a
sa fety belt . . . . . . . . . . . . . . . . . . . . . . . 1 12
Fastening .. .... ......... .... .. .. . 112
General notes ................. .... 109
Improperly worn . . . . . . . . . . . . . . . . . . 114
Not worn ...................... .. 112
P retens ioners . . . . . . . . . . . . . . . . . . . . . 115
Safety bel t position . . . . . . . . . . . . . . . . 113
Safety instructions ..... ... .. .. .. .. . 110
Securing ch ild safety seats ... .. .. .. . 146
Special consid erations for pregna nt
women .. .. .. ........... .. .. .. .. . 1 14
Unfasten ing ............. .... .. ... 114
Warn ing/ indicator light .... .. .. . 17, 109
Whyyoumustwearthem ....... .... 110
Wo rn properly . . . . . . . . . . . . . . . . . . . . 110
Safety compliance st icker ... .. .. .. .. . 226
Safety equipment . . . . . . . . . . . . . . . . . . . . 99
Safety features for occupant restraint and protection . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Safety guide lines
Seat adjustment . . . . . . . . . . . . . . . . . . . . 66
Safety ins truc tions
F or using chi ld safety seats ... .. .. ... 1 41
F or using safety be lts .. ... .. .. .. .. . 110
Mo nitoring the Advanced Airbag Sys-
tem . .. .. .. .. ............. .. .. .. . 130
Safety systems Warn ing/ indicato r light . ... .. .. .. .. .. 17
Seat adjustment Driver's seat . . . . . . . . . . . . . . . . . . . . . . . 66
Fr ont passenge r's seat . . . . . . . . . . . . . . . 67
Fr ont se ats . . . . . . . . . . . . . . . . . . . . . . . . 66
H ead res traints . . . . . . . . . . . . . . . . . . . 102
Power seats . ... ...... ... .. .. .. .... 67
Safety guideli nes . ..... ... .. .. .. .. .. 66
Seating capacity ...... ..... .... .. .. . 109
Sea ting position
Driver ... .. .. .... .... ..... ... ... . 100
F ront passenge r ............... .... 101
Incorrect seat position ......... ... .. 103
Seats Number of seats 109
Selector lever
D efective . . . . . . . . . . . . . . . . . . . . . . . . . 3 5
Inde x 237
Serv ice
Airbag system 130
Se rv ice and disposa l
Safety be lt p re tensioner ... ..... .. .. 115
Serv ice interval display .... .... ... .. .. . 21
Serv ice position for windsh ield wipers . .. 61
Set me nu .. ... .. .... .......... ...... 25
Setting the time . .. ........ ......... . 11
S ide a irbags
Desc ription . ... .... . ... ...... ... .. 135
How they work . . . . . . . . . . . . . . . . . . . . 136
S ide mar ker lights . . . . . . . . . . . . . . . . . . . 55
Snow cha ins .. .. .. .. ............... 204
Socket ... .. .. .... ... .. .. ..... ... .. . 69
Sound system display . . . . . . . . . . . . . . . . . 20
Sources of information abo ut child re -
stra ints and their use ....... ..... .. .. 149
Speedometer . . . . . . . . . . . . . . . . . . . . . . . 12
Speed rat ing letter code ............. . 200
Speed warning . ..... . .. .. ..... ... .. . 34
Speed warning system . . . . . . . . . . . . . . . . 28
Spoi ler ....... .. .. .. . .............. 152
Star ting on h ills
Hill ho ld assist ..... . .. .. ..... ... .. . 80
Starting the e ngine . . . . . . . . . . . . . . . . . . 77
Steering co lumn
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . 77
Locking the steering . . . . . . . . . . . . . . . . 77
Steps for determining correct load limit . 197
Stopping the eng ine ................. . 79
Storage .... .. .. .. ................. . 70
Sun visors . ... .. .... . ... ...... ... .. . 59
Symbols Red symbo ls in the cente r display . .. .. . 30
Ye llow symbo ls in the ce nte r display 30
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . 11
T ank flap
U nlocking the fuel filler flap by hand .. 173
T echnical modifications .. ..... ... .. .. 211
T emperature .. .. .. .. .......... ...... 73
Tire mob ility system . ... .. .... ... .. .. 213
T ire pressu re .. .. .. .... ............. 195
•
•
