Indicated temperatures just above the
freezing point do not guarantee that the
road surface is free of ice. The road may
still be icy, especially in wooded areas or
on bridges. Your vehicle could start to skid
if you do not adjust your driving style
accordingly.
Therefore, always adjust your driving style
to the prevailing road and weather
conditions.
Freeze warning (Canada vehicles only)
When the outside temperature falls below
3 ¥ , the multifunction display makes you
aware of the fact that the road may be icy.
An additional freeze warning, i.e. an ice
crystal symbol, in the multifunction
display flashes. After 60 seconds, the
freeze warning stops flashing but
continues to be displayed. When the
outside temperature rises above 3 ¥, the
freeze warning goes out.
Fuel level display
Example illustration (U.S. vehicles)
The fuel level display shows the tank’s fuel
level with the aid of eight segments. The
number of dark segments indicates the fuel
level in the tank. If all eight segments are
dark, the tank is full.
You are driving on reserve fuel if there are
no more than 1.0 US gal (3.78 l) of fuel in the
tank.
If this occurs,
R the fuel pump symbol in the fuel level
display flashes
R the reserve fuel indicator shows the fuel
level in the tank in 0.1 US gal (0.5 l)
increments
For selecting the reserve fuel indicator to
be displayed in the status indicator, see
“Reserve fuel indicator” ( Y page 88).
Selecting display for status indicator
You can select the information to be
displayed in the status indicator:
R Trip odometer display ( Y page 88)
R Maintenance service interval display
( Y page 88)
R Reserve fuel indicator ( Y page 88)
0046Selecting display for status indicator,
setting the clock, activating
maintenance service interval display0047Setting the clock, adjusting instrument
cluster illuminationInstrument cluster87>> Controls.451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 87Z

Trip odometer display
Example illustration (U.S. vehicles)
XSelecting trip odometer display: Press
left button 0046 (Y page 87) repeatedly
until the trip odometer display appears
in the status indicator.XResetting trip odometer display: Press
and hold left button 0046 (Y page 87) until
the value is set to 0.
Maintenance service interval display
Example illustration (U.S. vehicles)
i Canada vehicles: The maintenance
service interval display shows km
instead of miles.
The maintenance service interval display
will notify you approximately one month
before the next maintenance service is
due.
The following information will be
displayed after starting the engine:
R Days or distance to next maintenance
service
This information will be displayed
instead of the main odometer display.
The main odometer display will reappear
after approximately ten seconds
( Y page 85).
R Type of service that is due
This information will be displayed in
the status indicator.XStart the engine.XSelecting maintenance service interval
display: Press left button 0046 (Y page 87)
repeatedly until the maintenance
service interval display appears in the
status indicator.
Depending on the type of maintenance
service that is due, symbol ¬ or } is
displayed.XClearing maintenance service interval
display: Press left button 0046 (Y page 87)
once.
The maintenance service interval
display is cleared.XActivating maintenance service
interval display: Press left button 0046
( Y page 87) twice in quick succession.
Reserve fuel indicator
Example illustration (U.S. vehicles)
88Instrument cluster>> Controls.
451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 88

The reserve fuel indicator is only
displayed when driving on reserve fuel.XSelecting reserve fuel indicator: Press
left button 0046 (Y page 87) repeatedly
until the reserve fuel indicator appears
in the status indicator.
Auxiliary instruments*
0046Tachometer0047Cockpit clock
Tachometer*
The tachometer displays the engine speed
in units of 1 000 rpm.
The tachometer can be turned by
approximately 90°.
The tachometer illumination comes on when
you turn the key to starter switch position
1 .
! Do not hang any objects on the
tachometer.
This could cause the tachometer to be
torn from its mountings and damage it.
Cockpit clock*
The cockpit clock can be turned by
approximately 90°.
The cockpit clock illumination comes on
when you turn the key to starter switch
position 1 and the parking lamps are
switched on.
The buttons for setting the time are on the
top of the cockpit clock.XSetting the time back in 1 minute
increments: Press button 0046 repeatedly
until the desired time is set.XSetting the time back quickly: Press
button 0046 for longer than two seconds.
The setting speed accelerates.XSetting the time forward in 1 minute
increments: Press button 0047 repeatedly
until the desired time is set.XSetting the time forward quickly: Press
button 0047 for longer than two seconds.
The setting speed accelerates.
! Do not hang any objects on the cockpit
clock.
This could cause the cockpit clock to be
torn from its mounting and damage it.
Adjusting instrument cluster
illumination
You can adjust the illumination of the
switches, the dials in the instrument
cluster, the radio*, the climate control*
panel and the auxiliary instruments*. Five
settings are possible.
Instrument cluster89>> Controls.* optional451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 89Z

XMake sure the key is in starter switch
position 1.XSwitch on the parking lamps.XTo brighten or dim illumination: Press
right button 0047 (Y page 87) repeatedly
until the desired setting is reached.
The current setting is stored.
Audio system*
GWarning!
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings with the vehicle at a
standstill and operate the system only when
road and traffic conditions permit. Always
pay full attention to traffic conditions
first before operating system controls
while driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
GWarning!
Always select a volume that allows you to
still hear ambient sound in your immediate
vicinity (e.g. horns, emergency rescue
vehicles, police vehicles, etc.). You could
otherwise cause an accident.
GWarning!
If you wish to have a radio other than an
original smart radio fitted in your
vehicle, please always have the necessary
work performed at an authorized smart
center.
This is particularly important if your
vehicle is fitted with a radio
preinstallation. Improper connection can
result in the failure of important vehicle
functions, thereby endangering the
operating safety of your vehicle and thus
your own safety and that of other people.
The following pages contain a brief
description of the audio systems available
for the coupé and cabriolet.
The devices are described with their full
complement of equipment, including radio
mode and CD changer* mode. The
description for your individual equipment
specification applies.
Please refer to the separate operating
instructions for detailed functions.
smart radio 9*
The smart radio 9 system contains the
following functions:
R Radio (FM/AM)
R CD player
R AUX-socket ( Y page 91)
! Please be sure to read the operating
instructions for the smart radio 9 before
using the unit. Familiarize yourself
with the various functions of the unit so
that you are able to operate it easily,
reliably and correctly at any time.
0046On/off switch0047Random button008AStation buttons0088Display0086CD eject button0087Control panel for selecting functions
for radio, CD, AUX90Audio system*>> Controls.* optional451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 90

006EControl panels for selecting functions
for tone settings, menu, frequency band006FVolume
smart radio 10*
The smart radio 10 system contains the
following functions:
R Radio (FM/AM)
R MP3 player
R CD changer
R AUX-socket ( Y page 91)
! Please be sure to read the operating
instructions for the smart radio 10
before using the unit. Familiarize
yourself with the various functions of the
unit so that you are able to operate it
easily, reliably and correctly at any
time.
0046On/off switch0047CD load button008AStation buttons0088Display0086CD eject button0087Control panel for selecting functions
for radio, radio CD, CD changer, MP3006EControl panels for selecting functions
for tone settings, menu, frequency band006FVolumesmart sound package*
The smart sound package supplements the
existing speakers with additional
speakers (including active subwoofer).
You can connect mobile audio devices such
as an MP3 player via smart MP3 interface*
(AUX-socket*) using a commercially
available 3.5 mm socket plug.
The AUX-socket is located in the glove box
on the passenger side.0046AUX-socket
HVAC (Heating, Ventilation, Air
Conditioning)
Notes on HVAC
GWarning!
Follow the recommended settings for
heating and cooling given on the following
pages. Otherwise the windows could fog up,
impairing visibility and endangering you
and others.
Air conditioning with climate control*
The air conditioning improves the level of
comfort when driving at high outside
temperatures by cooling and
dehumidifying the air.
Nearly all dust particles, pollutants, are
filtered out by an integrated particle
filter before outside air enters the
passenger compartment through the air
distribution system. It also operates when
HVAC (Heating, Ventilation, Air Conditioning)91>> Controls.* optional451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 91Z

the air conditioning is switched off and
you have switched on the blower.
The air conditioning only works when the
engine is running and the blower is
switched on. Maximum effectiveness is
achieved if you drive with the windows
closed.i In warmer weather, ventilate the
passenger compartment for a short
period of time before utilizing the air
conditioning.
Control panels HVAC
Heating
0046Air volume control0047Rear window defroster switch008AAir distribution control0088Temperature control
Air conditioning with climate control*
0046Air volume control0047Air conditioning switch008ARear window defroster switch0088Air recirculation switch0086Temperature control0087Air distribution control92HVAC (Heating, Ventilation, Air Conditioning)>> Controls.* optional451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 92

Switching HVAC on/off
Heating
Control panel ( Y page 92).
XSwitching on: Make sure the key is in
starter switch position 1.XPush temperature control 0088 up.XSwitching off: Push temperature
control 0088 fully down.
Air conditioning with climate control*
Control panel ( Y page 92).
XMake sure the engine is running.XSwitching on: Push air volume
control 0046 to level 1 or higher.XPress air conditioning switch 0047.
The indicator lamp in air conditioning
switch 0047 comes on.XSwitching off: Press air conditioning
switch 0047 once more.
The indicator lamp in air conditioning
switch 0047 goes out.
i
The stored status is restored, if you
switch on the ignition again.
i The air condition will be suspended
temporarily:
R if the engine speed is too low
R when driving off
The air condition is switched off:
R at a coolant temperature of more than
239 ¦ (115 ¥)
R at outside temperatures below 38 ¦
(3 ¥ )
Setting the temperature
Heating
Control panel ( Y page 92).
i You should raise or lower the
temperature setting in small
increments.
XIncreasing or decreasing: Push
temperature control 0088 up or down.
Rapid cooling
XPush air volume control 0046 fully up.XTurn air distribution control 008A to
position 009E.XPush temperature control 0088 fully down.XAdjust the air vents as desired.
Rapid heating
XPush air volume control 0046 to level 3.XTurn air distribution control 008A to a
position between 0087 and 009D .XPush temperature control 0088 fully up.XAdjust the air vents towards the
occupants.
Air conditioning with climate control*
Control panel ( Y page 92).
i You should raise or lower the
temperature setting in small
increments, preferably starting at 70 ¦
(21 ¥).
XIncreasing or decreasing: Push
temperature control 0086 up or down.
Adjusting air vents
GWarning!
When operating the heating or air
conditioning with climate control*, the
air that enters the passenger compartment
HVAC (Heating, Ventilation, Air Conditioning)93>> Controls.* optional451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 93Z

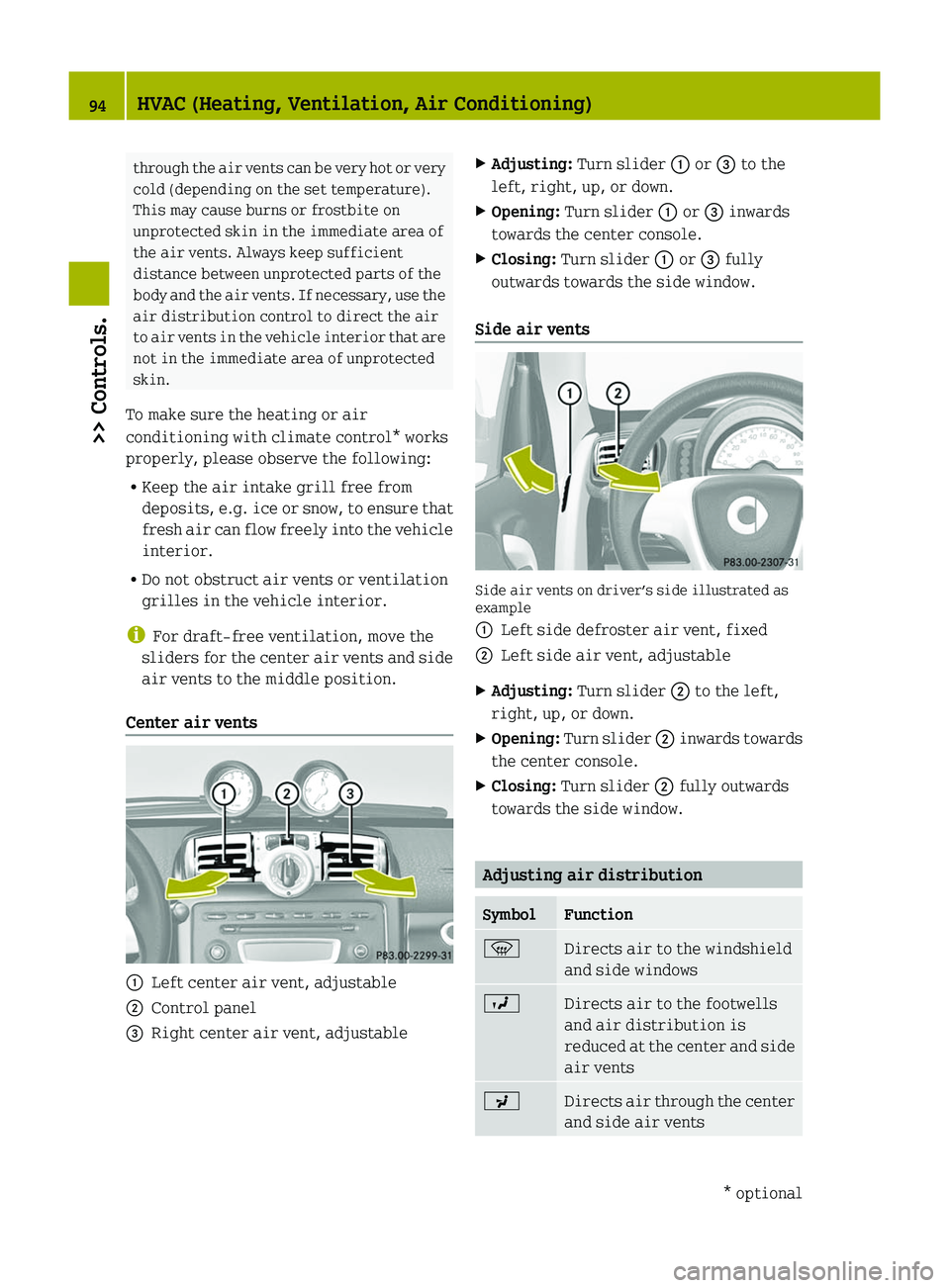

through the air vents can be very hot or very
cold (depending on the set temperature).
This may cause burns or frostbite on
unprotected skin in the immediate area of
the air vents. Always keep sufficient
distance between unprotected parts of the
body and the air vents. If necessary, use the
air distribution control to direct the air
to air vents in the vehicle interior that are
not in the immediate area of unprotected
skin.
To make sure the heating or air
conditioning with climate control* works
properly, please observe the following:
R Keep the air intake grill free from
deposits, e.g. ice or snow, to ensure that
fresh air can flow freely into the vehicle
interior.
R Do not obstruct air vents or ventilation
grilles in the vehicle interior.
i For draft-free ventilation, move the
sliders for the center air vents and side
air vents to the middle position.
Center air vents0046Left center air vent, adjustable0047Control panel008ARight center air vent, adjustableXAdjusting: Turn slider 0046 or 008A to the
left, right, up, or down.XOpening: Turn slider 0046 or 008A inwards
towards the center console.XClosing: Turn slider 0046 or 008A fully
outwards towards the side window.
Side air vents
Side air vents on driver’s side illustrated as
example
0046Left side defroster air vent, fixed0047Left side air vent, adjustableXAdjusting: Turn slider 0047 to the left,
right, up, or down.XOpening: Turn slider 0047 inwards towards
the center console.XClosing: Turn slider 0047 fully outwards
towards the side window.
Adjusting air distribution
SymbolFunction0087Directs air to the windshield
and side windows009DDirects air to the footwells
and air distribution is
reduced at the center and side
air vents009EDirects air through the center
and side air vents94HVAC (Heating, Ventilation, Air Conditioning)>> Controls.* optional451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 94
