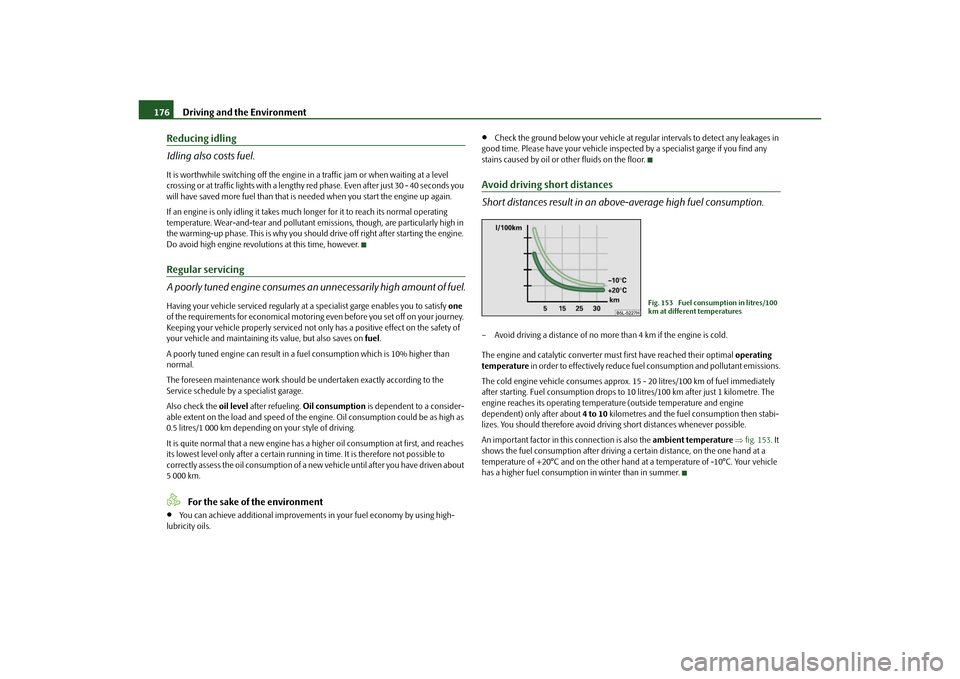

2010 SKODA YETI Owner's Manual

Driving and the Environment
176
Reducing idling
Idling also costs fuel.It is worthwhile switching off the engine in a traffic jam or when waiting at a level
crossing or at traffic lights with a lengthy red phase. Even after just 30 - 40 seconds you
will have saved more fuel th an that is needed when you start the engine up again.
If an engine is only idling it takes much longer for it to reach its normal operating
temperature. Wear-and-tear and pollutant emis sions, though, are particularly high in
the warming-up phase. This is why you should drive off right after starting the engine.
Do avoid high engine revolu tions at this time, however.Regular servicing
A poorly tuned engine consumes an unnecessarily high amount of fuel.Having your vehicle serviced regularly at a specialist garge enables you to satisfy one
of the requirements for economical motoring even before you set off on your journey.
Keeping your vehicle properly serviced not on ly has a positive effect on the safety of
your vehicle and maintaining its value, but also saves on fuel.
A poorly tuned engine can result in a fu el consumption which is 10% higher than
normal.
The foreseen maintenance work should be undertaken exactly according to the
Service schedule by a specialist garage.
Also check the oil level after refueling. Oil consumption is dependent to a consider-
able extent on the load and speed of the en gine. Oil consumption could be as high as
0.5 litres/1 000 km depending on your style of driving.
It is quite normal that a new engine has a higher oil consumption at first, and reaches
its lowest level only after a certain running in time. It is therefore not possible to
correctly assess the oil consumption of a new vehicle until after you have driven about
5 000 km.
For the sake of the environment

You can achieve additional improvements in your fuel economy by using high-
lubricity oils.

Check the ground below your vehicle at regular intervals to detect any leakages in
good time. Please have your vehicle inspec ted by a specialist garge if you find any
stains caused by oil or other fluids on the floor.
Avoid driving short distances
Short distances result in an above-average high fuel consumption.– Avoid driving a distance of no more than 4 km if the engine is cold.
The engine and catalytic converter mu st first have reached their optimal operating
temperature in order to effectively reduce fuel consumption and pollutant emissions.
The cold engine vehicle cons umes approx. 15 - 20 litres/100 km of fuel immediately
after starting. Fuel co nsumption drops to 10 litres/100 km after just 1 kilometre. The
engine reaches its operating temperat ure (outside temperature and engine
dependent) only after about 4 to 10 kilometres and the fuel consumption then stabi-
lizes. You should therefore avoid driving short distances whenever possible.
An important factor in this connection is also the ambient temperature fig. 153 . It
shows the fuel consumption af ter driving a certain distance, on the one hand at a
temperature of +20°C and on the other hand at a temperature of -10°C. Your vehicle
has a higher fuel consumptio n in winter than in summer.
Fig. 153 Fuel consumption in litres/100
km at different temperatures
s2ug.6.book Page 176 Friday, April 9, 2010 2:24 PM

Driving and the Environment177
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Checking tyre inflation pressures
Tyres which are correctly inflated save fuel.Always ensure that your tyres are inflated to the correct pressure at all times. The rolling
resistance will be increased if the tyre filling pressure is too low. This will not only
increase fuel consumption but also tyre we ar and the driving behaviour will worsen.
Always check the inflation pr essure of the tyres when cold.
Do not drive with winter tyres all year round for this costs about 10 % more fuel. They
are also louder and have poorer handling characteristics and higher wear at tempera-
tures more than 10°C.No unnecessary ballast
Transporting ballast costs fuel.The fact that every kilogram of extra weight increases your fuel consumption means
that it is worth taking a look in the luggage compartment to avoid transporting any
unnecessary ballast.
It is particularly in town traffic, when one is accelerating quite often, that the vehicle
weight will have a significant effect upon the fuel consumption. A rule of thumb here
is that an increase in weight of 100 kilograms will cause an increase in fuel consump-
tion of about 1 litre/100 kilometres.
You may frequently also leave a roof rack fitted on just out of convenience, although
you no longer need it. The increased aerodyna mic drag of your vehicle causes it to use
about 10% more fuel than normal at a speed of 100 - 120 km/h, even when you are not
carrying a load on the roof.Saving electricity
Generating electricity costs fuel.– Switch off electrical components as soon as you no longer need them.
When the engine is running, the alternator generates and supplies electrical power.
The greater the load on the alternator as a result of having a large number of electrical components switched on, the more fuel
will be consumed for operating the
alternator.
Keeping a log of your fuel consumptionIf you really wish to keep a close check on your fuel consumption, it is best to enter
the figures in a logbook. This does not take much time but is a very worthwhile exer-
cise. It enables you to detect any change (p ositive and negative) at an early stage and
to take any appropriate action.
If you find that your fuel consumption is too high, you should reflect on how, where
and in what conditions you have driven the vehicle since you last refuelled.Environmental compatibilityEnvironmental protection has played a major role in the design, selection of materials
and manufacture of your new Škoda. Particular emphasis has been paid to a number
of aspects, including:
Design measures
Joints designed to be easily detached.

Simplified disassembly due to the modular structure system.

Improved purity of differ ent classes of materials.

Identification of all plastic parts in accordance with VDA Recommendation°260.

Reduced fuel consumption and exhaust emission CO
2.

Minimum fuel leakage during accidents.

Reduced noise.
Choice of materials

Extensive use of re cyclable material.

Air conditioning filled with CFC-free refrigerant.

No cadmium.

No asbestos.

Reduction in the “vaporisation” of plastics.
s2ug.6.book Page 177 Friday, April 9, 2010 2:24 PM

Driving and the Environment
178
Manufacture
Solvent-free cavity protection.

Solvent-free protection of the vehicle for transportation from the production plant
to the customer.

The use of solvent-free adhesives.

No CFCs used in the production process.

Without use of mercury.

Use of water-soluble paints.
Trade-in and recycling of old cars
Škoda Auto meets the requirements of the brand and its products regarding environ-
ment and ressource protection. All new Škoda vehicles can be utilized up to 95% and
always
12) be returned. In a lot of countries sufficient trade-in networks have been
created, where you can trade-in your vehicle. After you trade-in your vehicle, you will
receive a confirmation stating the recycling in accordance with environmental regula-
tions.
Vehicles with special built-on types
Technical documents regarding changes carried out on the vehicle must be kept by the
vehicle user, in order to hand over later to the old car user. This ensures the recycling
in accordance with en vironmental regulations.
Note
Detailed information about the trade-in and recycling of old cars is available from a
Škoda Service Partner.
Motoring abroadGeneral
Other circumstances may exist abroad.It is also possible, in certain countries, that the Škoda Service Partner network is limited
or has not been established yet. This is the reason why obtaining certain spare parts
may be somewhat complicated and specialist garage personnel may only be able to
make limited repairs. Škoda Auto in the Czech Republic and relevant importers are
happy to provide information about technical aspects of the vehicle, required mainte-
nance work and possibilities for getting repairs done.Unleaded petrolA vehicle fitted with a petrol engine must always be refuelled with unleaded petrol
 page 174. The automobile associations can provide you with information regarding
the locations of filling stations which offer unleaded petrol.HeadlightThe low beam of your headligh ts is set asymmetrically. It illuminates the side of the
road on which you are driving to a greater ex tent. If you drive abroad on the other side
of the road, you will da zzle oncoming traffic.
In order to prevent the dazzling of oncoming tr affic, it is necessary that an adjustment
of the headlights is carried out by a specialist garage.
The adaptation of the headlights with Xe non lights* (applies to vehicles which are
designed for driving on the left and on the right) is performed in the menu Setup
Tra v e l m o d e of the information display*  page 24.
Note
You can obtain further information regarding masking over the headlights from a
specialist garage.
12)Subject to fulfilment of the national legal requirements.s2ug.6.book Page 178 Friday, April 9, 2010 2:24 PM

Driving and the Environment179
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Avoiding damage to your vehicleWhen driving on poor roads and lanes or when driving over kerbstones, steep ramps
etc., you must pay particular attention to ensuring that any low-slung parts of the
vehicle, such as spoiler and exhaust, do not touch the ground and get damaged.
This particularly applies to models with a lowered suspen sion (sport suspension) and
also when your vehicle is fully laden.Driving through bodies of water on roadsIn order to avoid damage to the vehicle wh en driving through bodies of water (e.g.
flooded roads), observe the following:
Determine the depth of the water when driv ing through bodies of water. The water
can reach at the maximum the web on the lower sill of the vehicle fig. 154 .

Drive no more than at walking speed. At a higher speed, a water wave can form in
front of the vehicle which can cause water to penetrate into the air induction system of
the engine or into other parts of the vehicle.

Never let the vehicle stand in the water, never drive backwards and do not switch
off the engine.
WARNING

Driving through water, mud, sludge etc. can reduce the braking power and
extend the braking distance - risk of accident!

Avoid sudden and severe braking manoeuvres immediately after driving
through bodies of water.

After driving through bodies of water, the brakes must be cleaned and dried
as soon as possible by intermittent braking. Only apply the brakes for the
purpose of drying and cleaning the brake discs if the traffic conditions permit
this. Do not place any other road users in jeopardy.Caution

When driving through bodies of water, pa rts of the vehicle such as the engine,
gearbox, catalytic converter, chassis or electrics can be severely damaged.

Oncoming vehicles can generate water waves which ca n exceed the permissible
water level for your vehicle.

Potholes, mud or rocks can be hidden under the water making it difficult or impos-
sible to drive through the body of water.

Do not drive through salt water. The salt can lead to corrosion. Immediately rinse
all the parts of the vehicle, which came into contact with the salt water, with fresh
water.Note
After driving through a body of water, we recommend that the vehicle is checked by a
specialist garage.Off-road drivingImportant information
WARNING

Never drive too fast, particularly not around curves, and never undertake
extreme driving manoeuvres.

Always adjust your speed and adapt your style of driving to suit road, off-
road, traffic and weather conditions.
Fig. 154 Crossing bodies of water
WARNING (continued)
s2ug.6.book Page 179 Friday, April 9, 2010 2:24 PM

Driving and the Environment
180

In case the vehicle is stationary on a hillside at a steep angl e, do not exit the
vehicle when it is facing downhill. Throug h this the overall centre of gravity can
shift in such a way that the vehicle tilts and rolls down the hillside - hazard!
Always carefully exit your vehicle on the side facing uphill page 186.

A lack of experience and knowledge when driving off-road can lead to crit-
ical situations an d serious injuries.

Never choose a dangerous route and never take a risk which could jeop-
ardize your safety and that of your passengers. If you cannot go on or if you
doubt the safety of the route, turn back and choose another way. Even a terrain,
which looks harmless, can be difficult and dangerous, and may bring you and
your passengers into a critical situation.

If you have not fastened your seat belt correctly or you are not wearing your
seat belt at all, or you are holding the steering wheel incorrectly when driving
off-road, the risk of severe or even fata l injuries increases. Correctly fastened
seat belts reduce serious injuries in case of sudden braking manoeuvers and
accidents. As long as the vehicle is in motion, always have your seat belt and
those of your passen gers correctly fastened. Take yo ur thumbs off the steering
wheel when driving off-road. Should resist ance build up in front of the wheels,
the steering wheel may suddenly and unexpect edly spin and hur t you. Hold the
steering wheel with both hands firmly on the outer edge in the 9 o'clock and 3
o'clock position.

If you have not fastened your seat belt correctly or you are not wearing your
seat belt at all, or you are holding the steering wheel incorrectly when driving
off-road, the risk of severe or even fatal injuries increases.

Correctly fastened seat belts reduce serious injuries in case of sudden
braking manoeuvers and accidents. Th erefore you and your passengers must
always fasten your seat belts correctl y as long as the vehicle is moving.

Take your thumbs off the steering wh eel when driving off-road. If the
wheels hit an obstac le, the steering wheel may suddenly and unexpectedly spin
and hurt you!

Never use the cruise control system wh en driving off-road. The use of the
cruise control system when driving of f-road is unsuitable and can even be
dangerous.

Do not drive over embankments, ramps or hillsides at too high a speed. This
can lead to the wheels of the vehicle lifting off the ground so that you can no
longer steer and control the vehicle.

If the wheels lose contact with the ground, for example when the vehicle
rebounds while driving over corrugations, steer straight ahead. If the wheels
are turned when making the contact with the ground again, the vehicle can roll
over.

There should never be any person in front or behind the vehicle when rocks,
scrub, wood pieces or other objects ar e placed under the wheels in order to
achieve traction on a sandy or slippery ground. Turning the wheels can trans-
form these objects into dangerous “bullets” – hazard!
Warning of a rolloverVehicles of this type have a higher centre of gravity than ordinary vehicles. This
increases the risk of vehicle rollover when driving on-road and off-road. Therefore, you
must always pay attention to the safety information which is stated in the Owner's
Manual.
WARNING

In the event of a vehicle rollover, an occupant of the vehicle who is not
wearing a seat belt is exposed to a clearly higher risk of injury compared to an
occupant who is wearing a seat belt.

Luggage and other items, which are transported on the roof of the vehicle,
additionally raise the centre of gravity and thus increase the risk of a rollover.

Avoid driving at an angle on a hillside page 186.

Observe the important guidelines page 179.
Important informationOff-road driving is not suitable for everyone. Small children, expectant mothers and
elderly or physically di sabled persons are particularly at risk if the ride is rough and
help is far away.
WARNING (continued)
WARNING (continued)
s2ug.6.book Page 180 Friday, April 9, 2010 2:24 PM

Driving and the Environment181
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The first priority
should always be safety.
Never overestimate your own capabilities and never underestimate the difficulties of
driving off-road.
We cannot discuss all the possible driving situations in this manual, because there are
so many types of terrains which may hide different risks and dangers. The examples
listed in this manual are general rules for safe off-road driving. It is however not
possible to predict if these rules are valid for all the situations which may occur. Before
driving through unknown terrain, it is ther efore important that you know what lies
ahead of you. This way you can estima te any possible danger in advance.
For the sake of the environment
When driving off-road, show respect and appreciation for the environment and its
preservation for future generations.Before driving off-road for the first timeBefore driving off-road, we recommend that you take part in an Off-road driver
training course. This is especial l y i m p o r t a n t i f y o u h a v e l i t t l e o r n o e x p e r i e n c e o f d r i v i n g
off-road. In a driver training course, you learn how to use th e vehicle in many different
off-road situations and how to handle the vehicle safely when driving through rough
terrain.
Driving off-road requires entirely different skills from the driver and a very different
behaviour than driving on the road. Your pers onal safety and that of your passengers
depend on you, your capabili ties and your cautiousness.
Do not drive off-road where it is not suitable for your vehicle or where the demands
on you are too high. Although your vehicle can handle off-road driving, it is not
designed for travels with expedition characteristics.
Before each journey off-road, make sure that the vehicle is appropriately equipped for
the planned journey page 182. The standard equipmen t of your vehicle may not be
sufficient for your journey. With the standard tyres you can drive with your off-road
vehicle through easy terrain, such as flat forest roads, meadows and fields. Please note
however, that driving the vehicle on a diffic ult, muddy and sandy ground is restricted
and that the traction of the standard tyres is reduced when driving off-road. If you have
planned prolonged or difficul t off-road trips, we recommend that you equip your
vehicle with suitable off-road tyres.
WARNING
Observe the important guidelines page 179.Rules of conduct for responsible off-road drivingObserve the valid national legal requirements when driving off-road.Explanation of technical termsFig. 155 Embankment angle / slope angle
Fig. 156 Ground clearance / ramp angleThe technical data page 245, “Angle (in degree)” refer to ideal conditions. These
values may differ depending on the load and composition of the soil and the environ-
ment. The driver is responsible to decide whether a vehicle can overcome a certain
situation.
s2ug.6.book Page 181 Friday, April 9, 2010 2:24 PM

Driving and the Environment
182
Embankment angle (front and rear)
Transition from the horizontal plane to an upward slope or from a downward slope
back to the plane. The angle indication determines the angle at which you can drive the
vehicle down the embankment, at a slow speed, without the bumper or the under-
body of the vehicle touching the ground.
Slope angle
The difference of altitude (upward slope) which is overcome on a stretch of road of 100
m, is indicated in percentage or degrees, i. e the gradiant at which the vehicle can climb
a hill on its own (among other things, depe nding on the road surface and the engine
power).
Ground clearance
The distance between the road surface and the deepest point of the vehicle under-
body.
Ramp angle
The angle indication determines the angle at which you can drive the vehicle over a
ramp, at a slow speed, without the underbody of the vehicle touching the ramp edge.
WARNING
When exceeding the maximum value given in the table page 245, “Angle (in
degree)”, this can result in serious inju ries and/or vehicle damage. All of the
data was determined on flat, firm and no n-slip road surfaces as well as under
dry weather conditions. There are no id eal off-road conditions. Therefore,
never completely go according to the maximum values, but always leave a
safety margin.Useful utensilsMany items can be very useful wh en driving off-road, for example:
compass and maps,

torch and spare batteries,

mobile phone or CB radio,

tow bar or tow rope with sufficient tear strength,

electrically driven tyre pump for connect ing to the 12-volt power outlet of the
vehicle,

a blanket and rubber boots,

snow chains,

a timber plank which is approximately 4 cm thick and about 1 metre long can be
used as a traction aid when the vehicle is stuck or as a base for the lifting jack,

additional tools and a folding yardstick or a measuring tape,

spare wheel and tyre repair kit,

shovel.
Safe off-road drivingAdopt a correct seated position and always fa sten the seat belt correctly. Make sure
that your front passenger and your passengers seated on the rear seats always fasten
their seat belts correctly.
When driving off-road, it is perhaps more useful to adopt a slightly different seated
position. Depending on the terrain, an incr eased force may be required to turn the
steering wheel because the force is transferred from the front wheels to the steering
wheel. You must be seated in such a way that you have good front visibility, especially
when driving uphill or downhill. You must never be seated in such a way that the
distance between your chest and the midd le of the airbag cover is less than 25 cm
 page 148.
Under no circumstances must you drive off-ro ad with high heels, slippery or open
shoes. You should wear shoes which fit your feet well and allow you to get a feel for the
pedals.
WARNING
Observe the important guidelines page 179.Before driving off-road
Make sure the tyres are suitable for the pl anned off-road journey. Be fore you dri ve
through difficult terrain, equip yo ur vehicle with off-road tyres.
AA
AB
AC
AD
s2ug.6.book Page 182 Friday, April 9, 2010 2:24 PM

Driving and the Environment183
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

Fill up your tank. The fuel consumption of the vehicle is much higher when driving
off-road than when driving on the road.

Install the towing eye at the front or at the rear before driving off-road. It is not
always possible to install the towing eye if the vehicle got stuck.

Always check the inflation pressure of a ll the tyres and if necessary correct it.

Check the vehicle tool kit and supplement it according to your needs.

Fill with engine oil up to the line , so that the engine is sufficiently supplied with
engine oil when the vehicle is in a tilted position page 205, “Check engine oil level”.

Top up wash fluid.

Stow your load as low as possible in th e vehicle and attach all the items which are
loose.
Off-road driving
Never be alone when driving off-road and be prepared to encounter unexpected
situations. Travel together with at least two off-road vehicles. Equipment with which
you can call for help in an emer gency is particularly useful.

Drive slowly through unclear terrain.

You must stop when encountering difficul t passages and explore the continuation
of the route on foot. If you cannot go on or if you doubt the safety of the route, turn
back and choose another way.

Drive slowly over hilltops. Ma ke sure that the wheels of the vehicle do not lift off
the ground, as this could severely damage the vehicle and it may become disabled.

Drive slowly on difficult stretches of the route. When driving on a slippery ground,
s h i f t u p i n to t h e n e xt h i g h e r g e a r a n d m a ke s u re t h a t t he v e h i c l e a l w a y s s t a y s i n m o t i o n.
Do not drive too fast so that you do n't lose control over your vehicle.

If your vehicle got stuck in sand, snow or sludge, it may be more effective to reverse
the vehicle than trying to drive forwards.

Place stones, footmats or pieces of wood under the spinning wheels in order to
achieve traction on a sandy or slippery ground.

Do no drive throug h water before reading what you must take into account
 page 179.

Keep sufficient distance from other vehicles even at low speeds. When the first
vehicle suddenly gets stuck, the following vehi cle can still stop in time without getting
stuck itself.

Do not plan day trips which are too far in distance.

Do not use the cruise control system when driving off-road. It is only intended for
driving on the road.
WARNING

The intelligent engineering of your ve hicle cannot overcome the physical
limits of your vehicle.

Be very alert and look ahead when driving off-road. Excessive speed or
incorrect driving manoeuvres can caus e damage to the vehicle and lead to
serious injuries.

Observe the important guidelines page 179.Caution

Pay attention to the ground clearance of the vehicle! The vehicle can be severely
damaged and become disabled once it touches the ground.

Never drive off-road with an almost empty fuel tank. The fuel supply to the engine
can be interrupted and therefore the cata lytic converter can be severely damaged.

Do not leave your foot on the clutch pedal or let the clutch slip when driving off-
road. Overwise you may unintentionally de press the clutch pedal on uneven ground
leading to a loss of control over the vehicle. In addition, the force for connecting the
engine and the gearbox is lost. Moreover, driving while letting the clutch slip causes a
fast wear of the clutch linings.Note
The fuel consumption is high er when driving off-road than when driving on conven-
tional roads, especially through difficult terr ain. When you prepare for your journey, be
aware of an increase in fuel consumption; the nearest filling station may be far away.
AA
s2ug.6.book Page 183 Friday, April 9, 2010 2:24 PM
