CockpitOverviewThis overview will help you to quic kly familiarise yourself with the
displays and the control elements.
Button for automatically opening and closing the windows* . . . . . . .
Switch for adjusting the exterior mirrors* . . . . . . . . . . . . . . . . . . . . . . . .
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lever for the multi-functional switch:
 Turn signal light, headlight and parking light, headlight flasher . .
 Cruise control system* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering wheel:
 with horn
 with driver airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster: Instruments and indicator lights . . . . . . . . . . . . . .
Lever for the multi-functional switch:
 Multi-functional indicator* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Windshield wiper and wash system . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control knob for heating on the driver's seat* . . . . . . . . . . . . . . . . . . . .
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Button for switching the hazard warning light system on and off . . .
Storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio*
Control for heating on the front passenger's seat* . . . . . . . . . . . . . . . .
Storage compartment on the front passenger side . . . . . . . . . . . . . . . .
Key-operated switch for activating/deactivating the front passenger
airbag* (in front passenger storage compartment) . . . . . . . . . . . . . . . .
Front passenger airbag* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse box (on side of dash panel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control for headlamp beam adjustment . . . . . . . . . . . . . . . . . . . . . . . . . Lever for releasing the bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage compartment on the driver's side . . . . . . . . . . . . . . . . . . . . . . . .
Lever for the adjustable steering column . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Depending on equipment fitted:

Controls for the heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Controls for Climatic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Button for switching the Traction Control System (TCS) system on and
off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gearshift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tyre inflation pressure-control system* . . . . . . . . . . . . . . . . . . . . . . . . . .
Depending on equipment fitted:
 Ashtray* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Storage compartment* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator light showing deactivated front seat passenger airbag* . . .
Note

Cars with factory-fitted radio are supplied with separate instructions for operating
such equipment.

The arrangement of the control elements on right-hand drive models may differ to
some extent from that shown in page 8, fig. 1 . However the symbols correspond to
the individual control elements.
A1
39
A2
50
A3
70
A4
4482
A5
95
A6
15
A7
1847
A8
56
A9
70
A10
44
A11
66
A12A13
56
A14
66
A15
101
A16
95
A17
169
A18
42
A19
43
A20
139
A21
66
A22
10
A23
77
A24
7173
A25
112
A26
80
A27
116
A28
6467
A29
101
s2bs.2.book Page 9 Monday, September 27, 2010 9:53 AM

The brief instruction11
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Seat belt height adjuster– Move the height adjuster in the desired direction up or down fig. 4 .
– Then pull firmly on the belt to ensure that the seat belt height adjuster has correctly
locked in place.
Further information page 91, “Seat belt height adjuster”.
WARNING
Adjust the height of the belt in such a way that the shoulder part of the belt is
positioned approximately across the middle of your shoulder - on no account
across your neck!Adjusting the front seats
Adjusting a seat in a forward/back direction
Adjusting height of seat*
Adjust the angle of the seat backrest
Adjusting lumbar support*
Further information page 52, “Adjusting the front seats”.
WARNING
Only adjust the driver seat when the ve hicle is stationary - risk of injury!Electric exterior mirror adjustment*Further information page 50, “Exterior mirror”.
Fig. 4 Front seat: Seat belt height
adjusterFig. 5 Controls at seat

Heating of the external mirror

Adjusting left and right exterior mirrors simultaneously

Adjusting the right-hand exterior mirror

Switching off operating control
A1A2A3A4
Fig. 6 Inner part of door: Rotary knob
s2bs.2.book Page 11 Monday, September 27, 2010 9:53 AM

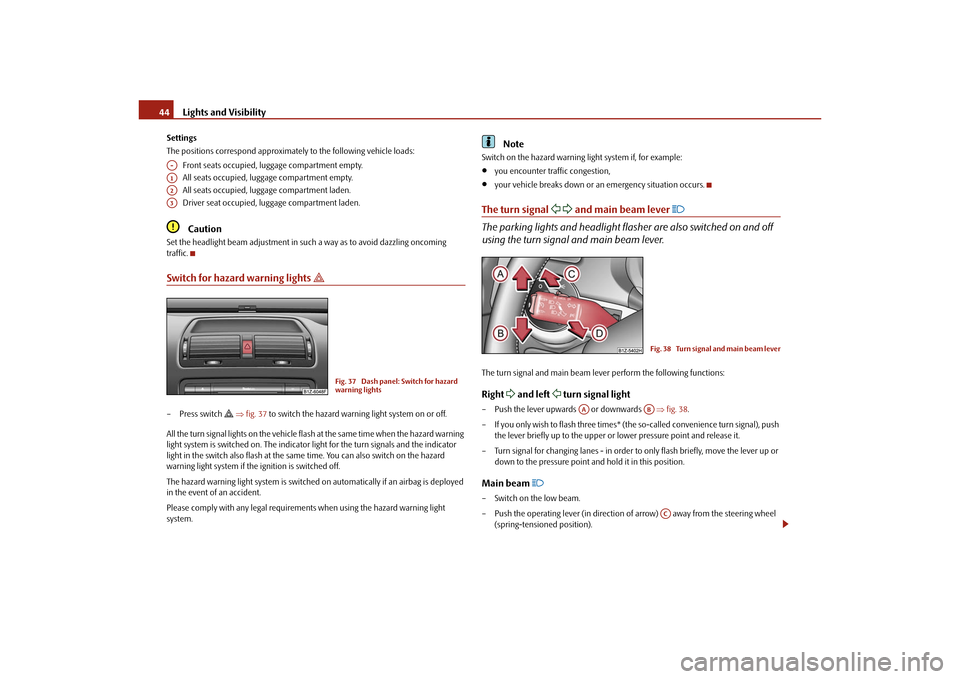

Lights and Visibility
44
Settings
The positions correspond approximately to the following vehicle loads:
Front seats occupied, luggage compartment empty.
All seats occupied, luggage compartment empty.
All seats occupied, luggage compartment laden.
Driver seat occupied, lu ggage compartment laden.
Caution
Set the headlight beam adjustment in su ch a way as to avoid dazzling oncoming
traffic.Switch for hazard warning lights

– Press switch
  fig. 37 to switch the hazard warning light system on or off.
All the turn signal lights on the vehicle flas h at the same time when the hazard warning
light system is switched on. The indicator light for the turn signals and the indicator
light in the switch also flash at the same time. You can also switch on the hazard
warning light system if the ignition is switched off.
The hazard warning light system is switched on automatically if an airbag is deployed
in the event of an accident.
Please comply with any legal requirements when using the hazard warning light
system.
Note
Switch on the hazard warning light system if, for example:
you encounter traffic congestion,

your vehicle breaks down or an emergency situation occurs.
The turn signal
  and main beam lever

The parking lights and headlight flasher are also switched on and off
using the turn signal and main beam lever.The turn signal and main beam le ver perform the following functions:Right
 and left
 turn signal light
– Push the lever upwards or downwards fig. 38 .
– If you only wish to flash three times* (the so-called convenience turn signal), push
the lever briefly up to the upper or lower pressure point and release it.
– Turn signal for changing lanes - in order to only flash briefly, move the lever up or down to the pressure point and hold it in this position.Main beam

– Switch on the low beam.
– Push the operating lever (in direction of arrow) away from the steering wheel
(spring-tensioned position).
A-A1A2A3
Fig. 37 Dash panel: Switch for hazard
warning lights
Fig. 38 Turn signal and main beam lever
AA
AB
AC
s2bs.2.book Page 44 Monday, September 27, 2010 9:53 AM

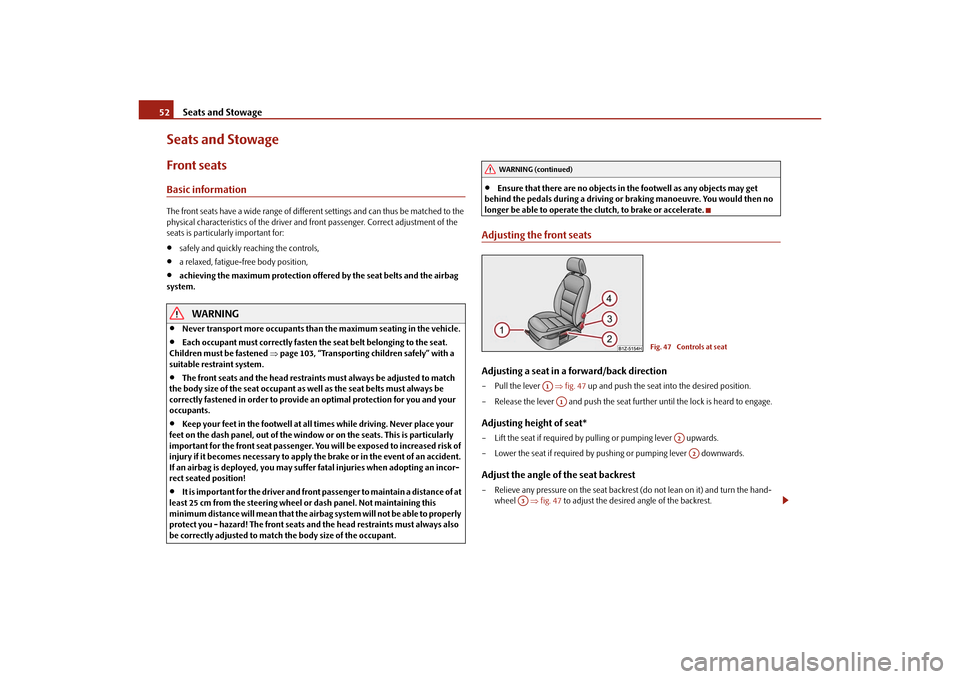

Seats and Stowage
52
Seats and StowageFront seatsBasic informationThe front seats have a wide range of differ ent settings and can thus be matched to the
physical characteristics of the driver and front passenger. Correct adjustment of the
seats is particularly important for:
safely and quickly reaching the controls,

a relaxed, fatigue-free body position,

achieving the maximum protection offered by the seat belts and the airbag
system.
WARNING

Never transport more occupants than the maximum seating in the vehicle.

Each occupant must correctly fasten the seat belt belonging to the seat.
Children must be fastened page 103, “Transporting children safely” with a
suitable restraint system.

The front seats and the head restraints must always be adjusted to match
the body size of the seat occupant as well as the seat belts must always be
correctly fastened in order to provide an optimal protection for you and your
occupants.

Keep your feet in the footwell at al l times while driving. Never place your
feet on the dash panel, out of the window or on the seats. This is particularly
important for the front seat passenger. You will be exposed to increased risk of
injury if it becomes necessary to apply the brake or in the event of an accident.
If an airbag is deployed, you may suffer fatal injuries when adopting an incor-
rect seated position!

It is important for the driver and front passenger to maintain a distance of at
least 25 cm from the steering wheel or dash panel. Not maintaining this
minimum distance will mean that the airbag system will not be able to properly
protect you - hazard! The front seats and the head restraints must always also
be correctly adjusted to match the body size of the occupant.

Ensure that there are no objects in the footwell as any objects may get
behind the pedals during a driving or braking manoeuvre. You would then no
longer be able to operate the clutch, to brake or accelerate.
Adjusting the front seatsAdjusting a seat in a forward/back direction– Pull the lever fig. 47 up and push the seat into the desired position.
– Release the lever and push the seat further until the lock is heard to engage.Adjusting height of seat*– Lift the seat if required by pu lling or pumping lever upwards.
– Lower the seat if required by pushing or pumping lever downwards.Adjust the angle of the seat backrest– Relieve any pressure on the seat backrest (do not lean on it) and turn the hand- wheel fig. 47 to adjust the desired angle of the backrest.
WARNING (continued)
Fig. 47 Controls at seat
A1A1
A2A2
A3
s2bs.2.book Page 52 Monday, September 27, 2010 9:53 AM

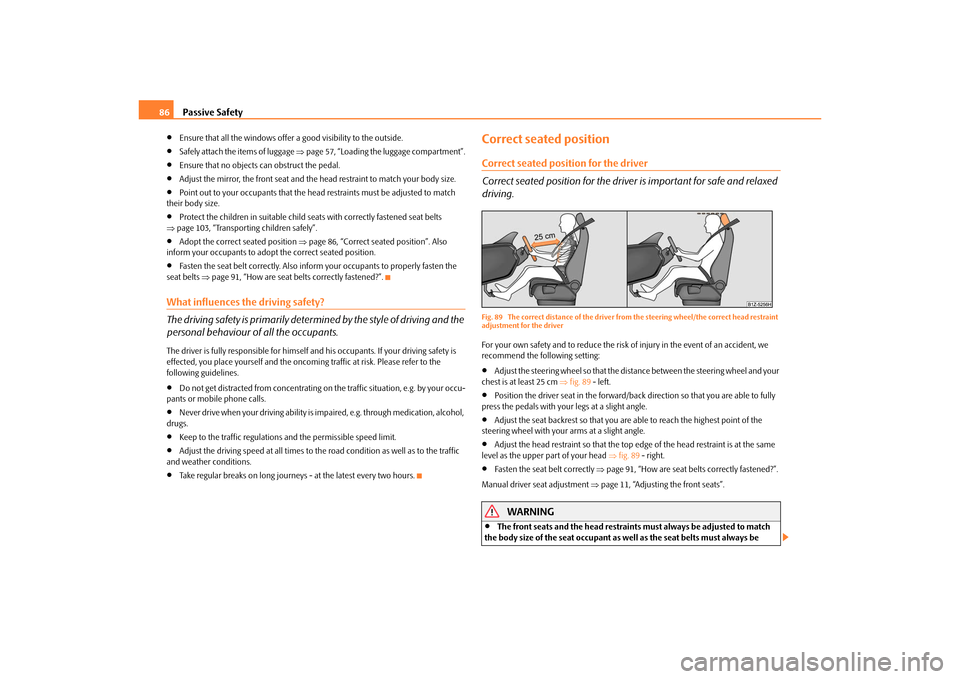

Passive Safety
86

Ensure that all the windows offer a good visibility to the outside.

Safely attach the items of luggage page 57, “Loading the luggage compartment”.

Ensure that no objects can obstruct the pedal.

Adjust the mirror, the front seat and the head restraint to match your body size.

Point out to your occupants that the head restraints must be adjusted to match
their body size.

Protect the children in suitable child seats with correctly fastened seat belts
 page 103, “Transporting children safely”.

Adopt the correct seated position page 86, “Correct seated position”. Also
inform your occupants to adopt the correct seated position.

Fasten the seat belt correctly. Also inform your occupants to properly fasten the
seat belts page 91, “How are seat belts correctly fastened?”.
What influences the driving safety?
The driving safety is primarily determined by the style of driving and the
personal behaviour of all the occupants.The driver is fully responsible for himself an d his occupants. If your driving safety is
effected, you place yourself and the oncomi ng traffic at risk. Please refer to the
following guidelines.
Do not get distracted from concentrating on the traffic situation, e.g. by your occu-
pants or mobile phone calls.

Never drive when your driving ability is impaired, e.g. through medication, alcohol,
drugs.

Keep to the traffic regulations and the permissible speed limit.

Adjust the driving speed at all times to the road condition as well as to the traffic
and weather conditions.

Take regular breaks on long journe ys - at the latest every two hours.
Correct seated positionCorrect seated position for the driver
Correct seated position for the driver is important for safe and relaxed
driving.Fig. 89 The correct distance of the driver fr om the steering wheel/the correct head restraint
adjustment for the driverFor your own safety and to reduce the risk of injury in the event of an accident, we
recommend the following setting:
Adjust the steering wheel so that the distance between the steering wheel and your
chest is at least 25 cm fig. 89 - left.

Position the driver seat in the forward/back direction so that you are able to fully
press the pedals with your legs at a slight angle.

Adjust the seat backrest so that you are able to reach the highest point of the
steering wheel with your arms at a slight angle.

Adjust the head restraint so that the top edge of the head restraint is at the same
level as the upper part of your head fig. 89 - right.

Fasten the seat belt correctly  page 91, “How are seat belts correctly fastened?”.
Manual driver se at adjustment page 11, “Adjusting the front seats”.
WARNING

The front seats and the head restraints must always be adjusted to match
the body size of the seat occupant as well as the seat belts must always be
s2bs.2.book Page 86 Monday, September 27, 2010 9:53 AM

Passive Safety87
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
correctly fastened in order to provide an optimal protection for you and your
occupants.

The driver must maintain a distance of
at least 25 cm to the steering wheel
 page 86, fig. 89 - left. Not maintaining this minimum distance will mean that
the airbag system will not be able to properly protect you - hazard!

When driving, hold the st eering wheel with both hands firmly on the outer
edge in the 9 o'clock and 3 o'clock po sition. Never hold the steering wheel
firmly in the 12 o'clock position or in another way (e.g. in the middle of the
steering wheel or at the inner steering wheel edge). In such cases, injuries to the
arms, the hands and the head can occur when the driver airbag is deployed.

The seat backrests must not be angled too far back when driving otherwise
this will affect proper operation of the se at belts and of the airbag system - risk
of injury!

Ensure that there are no objects in the footwell as any objects may get
behind the pedals during a driving or braking manoeuvre. You would then no
longer be able to operate the clutch, to brake or accelerate.
Correct seated position for the front passenger
The fro n t p assen ger must mai n tai n a d i stan ce of a t l ea st 25 c m from th e
dash panel so that the airbag offers him the greatest possible safety it is
deployed.For the safety of the front passenger and to reduce the risk of injury in the event of an
accident, we recommend the following setting:
Adjust the front passenger seat as far as possible to the rear.

Adjust the head restraint so that the top edge of the head restraint is at the same
level as the upper part of your head page 86, fig. 89 - right.

Fasten the seat belt correctly page 91, “How are seat belts correctly fastened?”.
In exceptional cases the front pass enger airbag can be deactivated page 101,
“Deactivating an airbag”.
Manual front passenger adjustment page 11, “Adjusting the front seats”.
WARNING

The front seats and the head restraints must always be adjusted to match
the body size of the seat occupant as well as the seat belts must always be
correctly fastened in order to provide an optimal protection for you and your
occupants.

The front passenger must maintain a distance of at least 25 cm to the dash
panel. Not maintaining this minimum distance will mean that the airbag
system will not be able to properly protect you - hazard!

Keep your feet in the footwell at all times while driving. Never place your
feet on the dash panel, out of the window or on the seats. You will be exposed
to increased risk of injury if it becomes necessary to apply the brake or in the
event of an accident. If an airbag is de ployed, you may suffer fatal injuries when
adopting an incorrect seated position!

The seat backrests must not be angled too far back when driving otherwise
this will affect proper operation of the se at belts and of the airbag system - risk
of injury!
Correct seated position for the occupants on the rear seats
Occupants on the rear seats must sit upright, keep the feet in the foot-
well and must have their se at belts correctly fastened.To reduce the risk of injury in the event of a sudden braking manoeuvre or an accident,
the occupants on the rear seats must observe the following:
Adjust the head restraints so that the top edge of the head restraints is at the same
level as the upper part of your head page 86, fig. 89 - on the right.

Fasten the seat belt correctly  page 91, “How are seat belts correctly fastened?”.

If you are transporting page 103, “Transporting children safely” children in the
vehicle, please use a suitable child restraint system.
WARNING

The head restraints must always be adjusted to match the body size, in order
to offer an optimal protection for you and your occupants.
WARNING (continued)
s2bs.2.book Page 87 Monday, September 27, 2010 9:53 AM

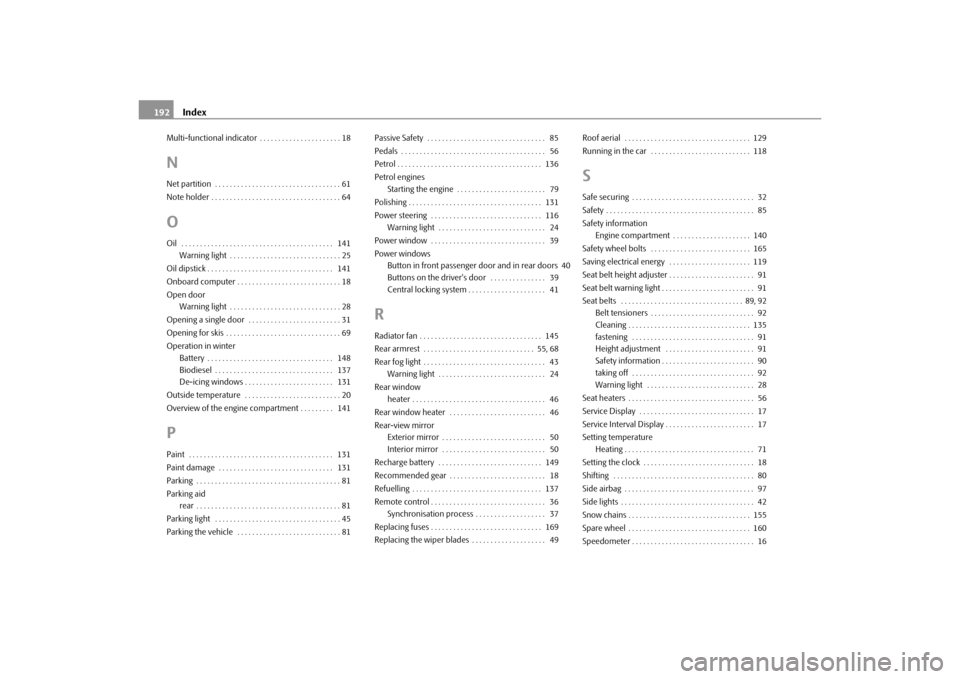

Index
192
Multi-functional indicator . . . . . . . . . . . . . . . . . . . . . . 18NNet partition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64OOil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Onboard computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Open door Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Opening a single door . . . . . . . . . . . . . . . . . . . . . . . . . 31
Opening for skis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Operation in winter Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
De-icing windows . . . . . . . . . . . . . . . . . . . . . . . . 131
Outside temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Overview of the engine compartment . . . . . . . . . 141PPaint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Paint damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Parking aid rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Parking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Passive Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Petrol engines
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . 79
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Power window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Power windows Button in front passenger door and in rear doors 40
Buttons on the driver's door . . . . . . . . . . . . . . . 39
Central locking system . . . . . . . . . . . . . . . . . . . . . 41
RRadiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Rear armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55, 68
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Rear window heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Rear window heater . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Rear-view mirror Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Recharge battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Recommended gear . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Synchronisation process . . . . . . . . . . . . . . . . . . . 37
Replacing fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Replacing the wiper blades . . . . . . . . . . . . . . . . . . . . 49 Roof aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Running in the car . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
SSafe securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Safety information
Engine compartment . . . . . . . . . . . . . . . . . . . . . 140
Safety wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Saving electrical energy . . . . . . . . . . . . . . . . . . . . . . 119
Seat belt height adjuster . . . . . . . . . . . . . . . . . . . . . . . 91
Seat belt warning light . . . . . . . . . . . . . . . . . . . . . . . . . 91
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89, 92 Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
fastening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Height adjustment . . . . . . . . . . . . . . . . . . . . . . . . 91
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . 90
taking off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Seat heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Service Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . . . 17
Setting temperature Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
s2bs.2.book Page 192 Monday, September 27, 2010 9:53 AM
