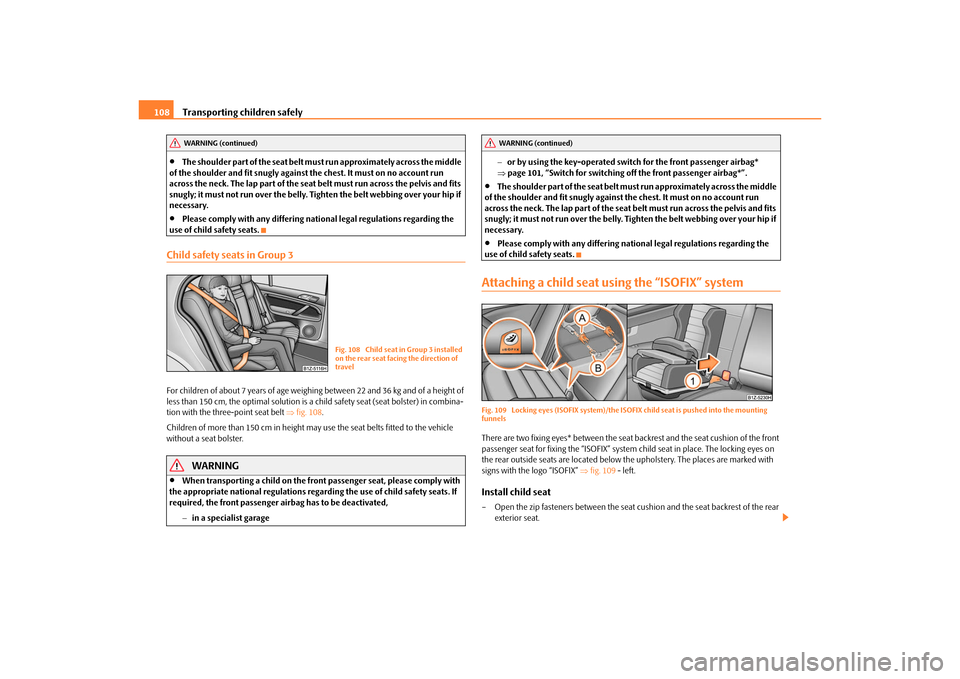

Transporting children safely
108

The shoulder part of the seat belt mu st run approximately across the middle
of the shoulder and fit snugly against the chest. It must on no account run
across the neck. The lap part of the seat belt must run across the pelvis and fits
snugly; it must not run over the belly. Tighten the belt webbing over your hip if
necessary.

Please comply with any differing nati onal legal regulations regarding the
use of child safety seats.
Child safety seats in Group 3For children of about 7 years of age weighing between 22 and 36 kg and of a height of
less than 150 cm, the optimal solution is a ch ild safety seat (seat bolster) in combina-
tion with the three-point seat belt fig. 108 .
Children of more than 150 cm in height may use the seat belts fitted to the vehicle
without a seat bolster.
WARNING

When transporting a child on the front passenger seat, please comply with
the appropriate national regu lations regarding the use of child safety seats. If
required, the front passenger ai rbag has to be deactivated,
 in a specialist garage 
or by using the key-operated swit ch for the front passenger airbag*
 page 101, “Switch for switching off the front passenger airbag*”.

The shoulder part of the seat belt mu st run approximately across the middle
of the shoulder and fit snugly against the chest. It must on no account run
across the neck. The lap part of the seat belt must run across the pelvis and fits
snugly; it must not run over the belly. Tighten the belt webbing over your hip if
necessary.

Please comply with any differing nati onal legal regulations regarding the
use of child safety seats.
Attaching a child seat using the “ISOFIX” systemFig. 109 Locking eyes (ISOFIX system)/the ISOF IX child seat is pushed into the mounting
funnelsThere are two fixing eyes* between the seat backrest and the seat cushion of the front
passenger seat for fixing the “ISOFIX” system child seat in place. The locking eyes on
the rear outside seats are located below th e upholstery. The places are marked with
signs with the logo “ISOFIX” fig. 109 - left.Install child seat– Open the zip fasteners between the seat cushion and the seat backrest of the rear
exterior seat.
WARNING (continued)
Fig. 108 Child seat in Group 3 installed
on the rear seat facing the direction of
travel
WARNING (continued)
s2bs.2.book Page 108 Monday, September 27, 2010 9:53 AM

Fuel137
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
DieselDiesel fuelYour vehicle can only be operated with diesel fuel, which complies with the standard
EN 590 (standard DIN 51628 in Germany, standard ÖNORM C 1590 in Austria).
Fuel additives
You must not use fuel additives, so-called “flow improvers” (petrol and similar prod-
ucts) in diesel fuel.
You can find information on refuelling page 137, “Refuelling”.
Caution

Therefore, only operate your vehicle with diesel fuel which complies with the
standard EN 590 (standard DIN 51628 in Germany, standard ÖNORM C 1590 in
Austria). Filling the tank even only once with diesel fuel that does not comply with the
standard can result in damage to the engine parts, the lubrication system, the fuel and
exhaust system.

If you inadvertently fill up the vehicle with fuel other than the prescribed diesel
fuel, e.g. petrol, do not under any circumstan ces start the engine or turn on the igni-
tion. Extensive engine damage is possible! Contact a specialist garage who will clean
out the fuel system.

Water which has collected in the fuel fi lter can result in engine problems.

Your vehicle is not adapted for use of bio-diesel (RME), therefore this fuel must not
be refuelled and driven. Using this biodiesel can lead to damage to the engine or the
fuel system.
Operation in winterWinter-grade diesel fuel
A different grade of diesel fuel is available at filling stations in winter than during the
summer. Using “summer-grade diesel fuel” at temperatures below 0 °C can result in
operational problems because th e diesel becomes viscous as a result of paraffin sepa-
ration. It is therefore the case that the standard
EN 590 (standard DIN 51628 in Germany,
standard ÖNORM C 1590 in Austria) is the diesel fu el class prescribed for certain
periods of the year which can also be purc hased at the corresponding time during the
year. “Winter-grade diesel fuel” will still operate properly even at a temperature of -20
°C.
It is often the case in countri es with different climatic conditions that diesel fuels avail-
able have a different temperature characteristic. The authorised Škoda Service Part-
ners and filling stations in the country conc erned will be able to provide you with infor-
mation regarding the diesel fuels available.
Prewarming fuel
The vehicle is fitted with a fu el filter prewarming system. This secures operation of a
vehicle using diesel fuel down to an environmental temperature of -25 °C.
Caution
It is not permitted to add the various fuel additives on the market, including petrol, to
diesel fuel in order to improve its flow properties.RefuellingFig. 119 Right rear side of the vehicle: Open fuel filler flap/fuel filler flap with cap unscrewedOpening the fuel filler cap– Press in the middle of the left area of the fuel filler flap in direction of arrow
fig. 119 .
– Unlock the fuel filler cap on the fuel fi ller tube to the left using the vehicle key.
A1
s2bs.2.book Page 137 Monday, September 27, 2010 9:53 AM

Fuel
138
– Unscrew the fuel filler cap anti-clockwise and place the fuel filler cap from above
on the fuel filler flap page 137, fig. 119 - right.Closing fuel filler cap– Screw on the fuel filler cap by turning it to the right until it is heard to click.
– Lock the fuel filler cap on the fuel filler tube by turning the vehicle key to the right
and withdraw the key.
– Close the fuel filler flap until it locks.
The correct grade of fuel for your vehicle as well as the tyre size and inflation pressures
are stated on a sticker affixed to the inside of the fuel filler flap. Further information on
fuel page 136.
The fuel tank has a capa city of about 55 litres.
WARNING
Pay attention to any legal requirements if you do carry a spare canister in the
vehicle. We do not recommend carrying any fuel canisters in your vehicle for
safety reasons. The canister can be damaged in the event of an accident and fuel
may leak out.
Caution

Remove any fuel which has spilled onto th e paintwork of your vehicle immediately
- risk of paint damage!

Vehicles fitted with catalytic converter should never be allowed to let the fuel tank
to run completely empty. An irregular supply of fuel to the engine can result in misfiring
and unburnt fuel may get into the exhaust sy stem, which may result in overheating and
damage to the catalytic converter.

Make sure that the valve is not pressed into the filler tube when inserting the pump
nozzle into the filler tube. Otherwise you are unintentiona lly filling up the volume,
which in case of heat can cause an expansion of the fuel. This can lead to an overflow
of fuel or damage to parts of the fuel reservoir.

The fuel tank is full just as soon as th e pump nozzle switches off for the first time,
provided the nozzle has been operated prop erly. Do not continue refuelling - other-
wise the expansion volume is filled up.
s2bs.2.book Page 138 Monday, September 27, 2010 9:53 AM

Inspecting and replenishing
140
Working in the engine compartment
Particular care is required when carrying out any work in the engine
compartment!There is a risk of injuries, scalding, acci dents and fire when working in the engine
compartment, e.g. inspecting and replenishing oil and other fluids. For this
reason, it is essential to comply with the warning instructions stated below and
with the general applicable rules of safe ty. The engine compartment of your car
is a hazardous area  .
WARNING

Never open the bonnet if you see that steam or coolant is flowing out of the
engine compartment - risk of scalding! Wait long enough until the steam or
coolant has stopped escaping.

Switch off the engine and pull out the ignition key.

Apply the handbrake firmly.

Move the gear lever into the Neutral position.

Allow the engine to cool down.

Keep children clear of the engine compartment.

Never spill oil and other fluids over the hot engine. Such fluids (e.g. the anti-
freeze contained in the coolant) may ignite!

Avoid short circuits in the electrical system - particularly on the battery.

Never place your hand into the radiator fan as long as the engine is still
warm. The fan might suddenly start running!

Never open the cap of the coolant expans ion bottle as long as the engine is
still warm. The cooling system is pressurized!

Cover over the cap of the coolant expansion reservoir with a large cloth
when opening it as protection for your face, hands and arms from hot steam or
hot coolant.

Do not let objects, such as e.g. cleaning cloth or tools lie in the engine
compartment.

If you wish to work under the vehicl e, you must secure the vehicle from
rolling away and support it with suitable supporting blocks; the lifting jack* is
not sufficient for this - risk of injury!

In cases where it be necessary to carry out inspection work when the engine
is running there is an additional risk fr om rotating parts (e.g. the V-ribbed belt,
alternator, radiator fan) and from the high-voltage ignition system. Please
observe in addition the following:
Never touch the electrical cabl es of the ignition system.
 Absolutely avoid any jewellery, loose it ems of clothing or long hair from
getting into the rotating parts of the engine - Hazard! Therefore remove any
jewellery beforehand, tie up your hair and wear tight fitting clothing.

Please also comply with the warnin g instructions stated below when
carrying out any essential work on the fu el system or on the electrical system:
 Always separate the car battery from the electrical system.
 Do not smoke.
 Never carry out any work close to naked flames.
 Always keep a working fire extinguisher at hand.Caution
When replenishing fluids in the engine, always ensure that the fluids are on no account
mixed up. This may result in major oper ating problems and also vehicle damage!
WARNING (continued)
s2bs.2.book Page 140 Monday, September 27, 2010 9:53 AM

Index191
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 119 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
GGauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
General view Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Hazard warning light system . . . . . . . . . . . . . . . . . . . 44Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Headlights Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Heated windscreen washer nozzles . . . . . . . . . . . . 47 Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . 72
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . 73
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
IIgnition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Interior light Luggage compartment . . . . . . . . . . . . . . . . . . . . . 46
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Interior monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Intermittent wiping . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108JJacking points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 165, 166KKey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30LLashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Leather care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134 Lifting jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159, 164
Lighting of the interior of the vehicle . . . . . . . . . . . . 45
Lights
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 172
converting/masking over . . . . . . . . . . . . . . . . . 123
Range adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 43
switching on and off . . . . . . . . . . . . . . . . . . . . . . . 42
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Lights and Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Lock Central locking system . . . . . . . . . . . . . . . . . . . . . 33
lock Central locking system . . . . . . . . . . . . . . . . . . . . . 33
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Locking and unlocking from inside . . . . . . . . . . . . . 33
Low beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Lugagge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Luggage compartment . . . . . . . . . . . . . . . . . . . . . 35, 57 Folding hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Luggage rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42, 44 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Manual shifting of gears . . . . . . . . . . . . . . . . . . . . . . . 80
Memory for the on-board computer . . . . . . . . . . . . 18
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
s2bs.2.book Page 191 Monday, September 27, 2010 9:53 AM
