Instruments and warning lights
15
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Instruments and warning lightsOverview of the instrument cluster
Engine revolutions counter
page 15
Display  with counter for distance driven
page 17
 with Service Interval Display
page 17
 with digital clock
page 18
 with Multi-functional indicator*
page 19
 with Information display*
page 22
Speedometer
page 16
Coolant temperature gauge*
page 16
Button for display mode: Set hours / minutes  Activating / deactivating the second speed in mph or km/h*  Service interval - Display of the remaining number of days, kilometres or miles to the next Inspection Service / Reset*
1)
Button for:  Reset trip counter for distance driven  Resetting Service
Interval Display
 Set hours / minutes  Activate / deactivate display mode Fuel gauge*
page 16
Engine revolutions counterThe red zone of the rev counter scale
fig. 15
indicates the range in which the
engine control unit begins to limit the engi
ne speed. The engine
control unit restricts
the engine speed to a steady limit value.
Fig. 15 Instrument cluster
A1A2A3A4A5
1)Valid for countries where the values ar
e indicated in British measuring units.
A6A7
A1
s3j8.a.book Page 15 Tuesday, April 20, 2010 1:10 PM

Instruments and warning lights
16Shift into the next higher gear or select th
e selector lever position D of the automatic
gearbox before reaching the red zone of the rev counter scale. Avoid high engine speeds du
ring the driving time and before the engine has been
warmed up to operating temperature
page 145.
For the sake of the environment
Shif ting to a highe r g ear in g ood tim e hel p
s to reduce the fuel
consumption, minimises
operating noise levels, protects the environment and contributes to a longer life and reliability of the engine.SpeedometerWarning against excessive speeds* An acoustic warning signal will sound when
the vehicle speed exceeds 120 kilometres
per hour. The acoustic warning signal will switch off again when the vehicle speed goes below this speed limit.
Note
This function is only
valid for some countries.
Coolant temperature gauge*The coolant temperature gauge
page 15, fig. 15
operates only when the ignition
is switched on. In order to avoid any damage to the engine,
please pay attention to the following notes
regarding the temperature ranges. Cold range If the pointer is in the left-hand area of the scale it means that the engine has not yet reached its operating temperatur
e. Avoid running at high engine speeds, at full throttle
and at severe engine loads.
The operating range The engine has reached its operating temperature as soon as the pointer moves into the mid-range of the scale. The pointer may
also move further to the right at high
engine loads and high outside temperatures. This is not critical provided the warning symbol
 in the instrument cl
uster does not flash.
If the symbol
 in the instrument cluster flashes it means that either the coolant
temperature
is too high or the coolant
level
is too low. Observe the guidelines
 page 29, “Coolant temperature/coolant quantity
 ”.
WARNING
Pay attention to the warning notes
page 166, “Working in the engine
compartment” before opening the bonn
et and inspecting the coolant level.
Caution
Additional headlights and other attached components in front of the fresh air inlet impair the cooling effi
ciency of the coolant. There is
then a risk of the engine over-
heating at high outside temper
atures and high engine loads.
Fuel gauge*The fuel gauge
page 15, fig. 15
only operates when the ignition is switched on.
The fuel tank has a capacity of
about 45 litres. The warning symbol
 in the instrument
cluster lights up when the pointer reaches the reserve marking. There are now about 7 litres of fuel remaining in the tank.
This symbol is a reminder for you,
that you must
refuel
.
The following will be displayed in the information display*:
Please refuel!
An audible signal sounds as an additional warning signal.On some vehicles, the fuel gauge is shown
in the display of the instrument cluster.
A4
A7
s3j8.a.book Page 16 Tuesday, April 20, 2010 1:10 PM

Instruments and warning lights
26Warning lightsOverview The warning lights indicate certain functions or faults.
Fig. 22 Instrument cluster with warning lights

Turn signal lights (to the left)
 page 27

Turn signal lights (to the right)
page 27

Main beam light
page 27

Low beam light
page 27

Rear fog light
page 28

Failure of the light bulbs
page 28

Dynamo
page 28

Fog lights*
page 28

Electrohydraulic power steering
page 28

EPC fault light (petrol engine)
page 28

Glow plug system (diesel engine)
page 29


Coolant temperature/coolant level
page 29

Fuel reserve
page 29
s3j8.a.book Page 26 Tuesday, April 20, 2010 1:10 PM

Instruments and warning lights
29
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Glow plug system

(diesel engine)
The warning light
 lights up for a
cold
engine when switching on the ignition (pre-
heat position)
page 89. Start the engine after the indicator light goes out.
The glow plug indicato
r light will come on for about 1
second if the engine is at a
normal operating temperature
or if the outside temperature is above +5°C. This
means that you can start the engine
right away
.
There is a fault in the glow plug system if the
warning light
 does not come on
or
lights up continuously
; contact a specialist garage as soon as possible to obtain
assistance. If the
warning light
 begins
to flash
while driving, a fault exists in the engine
control. The engine management system
selects an emergency programme which
enables you to drive to the nearest specialist garage by adopting a gentle style of driving. The following text will be displayed in the information display*:
Engine fault: Workshop!
Coolant temperature/coolant quantity


The warning light
 lights up until the engine reaches operating temperature
3). Avoid
running at high engine speeds, at full
throttle and at se
vere engine loads.
The warning light
 comes on for a few seconds when
the ignition is switched on.
The coolant temperature is too high or the
coolant level too low if the warning light

lights up or flashes while driving. An audible signal sounds as a warning signal.In this case stop and switch the engine off
and check the coolant level; top up the
coolant as necessary
page 170, “Replenishing the coolant”.
Do not continue your journey
if for some reason it is not possible under the condi-
tions prevailing to top up with coolant.
Keep the engine switched off
and obtain
professional assistance from a specialist garage, otherwise it could lead to severe engine damage.
If the coolant is within the specified range, the increased temperature may be caused by an operating problem at the coolant fan.
Check the fuse for the coolant fan, replace
it if necessary
page 199, “Fuse assignment at th
e battery (automatic gearbox)”.
If the warning light
 does not go out although the coolant is at the correct level and
also the fuse of the fan is in proper order,
do not continue driving
. Contact a specialist
garage to obtain assistance. Please refer to the following guidelines
page 169, “Cooling system”.
The following text will be displayed in the information display*:
Check coolant! Owner's manual
WARNING
If you must stop for technical reasons, then park the vehicle at a safe distance from the traffic and switch off the engine and switch on the hazard warning light system
page 51, “Switch for hazard warning lights
”.
Fuel reserve

The warning light
 comes on, if the fuel level is less than 7 litres.
An audible signal sounds as an additional warning signal.The following text will be displayed in the information display*:
Please refuel! Range...km
Engine oil


The warning light

lights up red (low oil pressure)
The warning light comes on for a few seconds
4) when the ignition is switched on.
Stop the vehicle and switch the engine off
if the warning light does not go off after
the engine has started or flashes while driving. Check the oil level and top up with oil as necessary
page 167.
3)Not valid for vehicles with information display.
A2
4)The warning light
 on vehicles fitted with information
display does not come on after switch-
ing the ignition on, but only if a fault exists or the engine oil level is too low.
s3j8.a.book Page 29 Tuesday, April 20, 2010 1:10 PM

Instruments and warning lights
303 peeps sound as an additional warning signal. Do not continue your journey
if for some reason it is
not possible under the condi-
tions prevailing to top up with oil.
Keep the engine switched off
and obtain profes-
sional assistance from a specialist garage, otherwise it could lead to severe engine damage. Do not drive any further
if the warning light flashes even if the oil is at the correct
level. Do not run the engine
not at idling speed either. Contact the nearest specialist
garage to obtain professional assistance. The following text will be displayed in the information display*:
Oil Pressure: Engine off! Owner's manual!
The warning light

lights up yellow* (oil quantity too low)
If the warning light lights up yellow, the quantity of oil in the engine is probably too low. Check as soon as possible the oil level or top up
page 167 with engine oil.
A peep sounds as an additional warning signal.The following text will be displayed in the information display*:
Check oil level!
The warning light will go out if the bonnet is le
ft open for more than 30 seconds. If no
engine oil has been replenished, the warning light will come on again after driving about 100 km. The warning light

flashes yellow* (engine oil level sensor faulty)
A fault on the engine oil level sensor is indicated additionally by an audible signal and the warning light coming on several times after the ignition has been switched on. In this case have the engine inspected without delay by a specialist garage.The following text will be displayed in the information display*:
Oil sensor. Workshop!
WARNING

If you must stop for technical reasons, then park the vehicle at a safe
distance from the traffic and switch off the engine and switch on the hazard warning light system
page 51.

The red oil pressure light

is not an oil level indicator! One should there-
fore check the oil level at regular interval
s, preferably after every refueling stop.

Pay attention to the following instructions
page 166, “Working in the
engine compartment” before checking
the coolant fluid level and opening the
bonnet.Open door

The warning light
 comes on if one or several doors are opened or if the boot lid is
opened. If one of the doors opens whil
e driving, the warning light lights
 up and an
audible signal sounds. The warning light comes on even when the ignition is switched off. The warning light lights up for a maximum of 5 minutes. On vehicles with information display* this wa
rning light is replaced by a vehicle symbol
 page 23.Windshield washer fluid level*

The warning light
 comes on when the ignition is swit
ched on if there is insufficient
fluid in the windshield washer system. Top up with liquid
page 176.
The following text will be displayed in the information display*:
To p u p w a s h f l u i d !
Control system for exhaust

The warning light
 comes on after the ignition has been switched on.
If the warning light does not go out after starti
ng the engine or it li
ghts up when driving,
a fault exists in an exhaust relevant co
mponent. The engine management system
selects an emergency programme which enables you to drive to the nearest specialist garage by adopting a ge
ntle style of driving.
WARNING (continued)
s3j8.a.book Page 30 Tuesday, April 20, 2010 1:10 PM

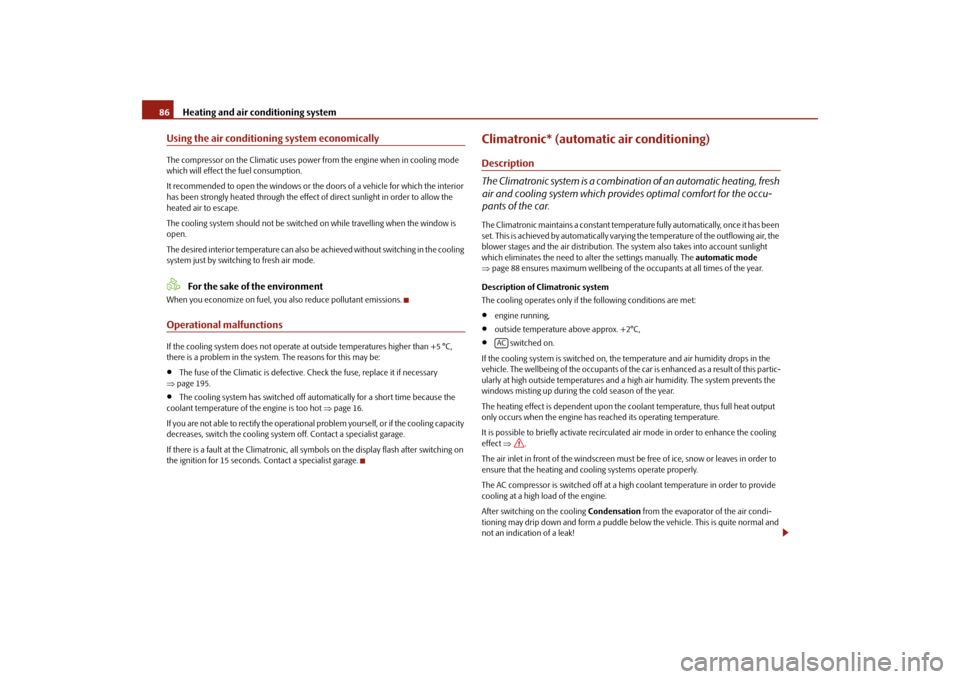

Heating and air conditioning system
86Using the air conditioning system economicallyThe compressor on the Climatic uses powe
r from the engine when in cooling mode
which will effect the fuel consumption. It recommended to open the windows or the
doors of a vehicle for which the interior
has been strongly heated through the effect
of direct sunlight in order to allow the
heated air to escape. The cooling system should not be switched
on while travelling when the window is
open. The desired interior temperature can also be achieved without switching in the cooling system just by switching to fresh air mode.
For the sake of the environment
When you economize on fuel, you also reduce pollutant emissions.Operational malfunctionsIf the cooling system does not operate at outside temperatures higher than +5 °C, there is a problem in the system. The reasons for this may be:
The fuse of the Climatic is defective. Check the fuse, replace it if necessary
 page 195.
The cooling system has switched off automatically for a short time because the
coolant temperature of the engine is too hot
page 16.
If you are not able to rectify the operational
problem yourself, or if the cooling capacity
decreases, switch the cooling system off. Contact a specialist garage. If there is a fault at the Climatronic, all symbols on the display flash after switching on the ignition for 15 seconds. Contact a specialist garage.
Climatronic* (automatic air conditioning)Description The Climatronic system is a combinat
ion of an automatic heating, fresh
air and cooling system which provides optimal comfort for the occu- pants of the car.The Climatronic maintains a constant temperat
ure fully automatically, once it has been
set. This is achieved by automatically varying the temperature of the outflowing air, the blower stages and the air distribution. The system also takes into account sunlight which eliminates the need to
alter the settings manually. The
automatic mode

 page 88 ensures maximum wellbeing of the
occupants at all times of the year.
Description of Climatronic system The cooling operates only if the following conditions are met:
engine running,

outside temperature above approx. +2°C,

switched on.
If the cooling system is switched on, th
e temperature and air humidity drops in the
vehicle. The wellbeing of the occupants of the car is enhanced as a result of this partic-ularly at high outside temperatures and a high air humidity. The system prevents the windows misting up during the cold season of the year. The heating effect is dependent upon the coolant temperature, thus full heat output only occurs when the engine has reached its operating temperature. It is possible to briefly activate recirculat
ed air mode in order to enhance the cooling
effect

.
The air inlet in front of the windscreen must be free of ice, snow or leaves in order to ensure that the heating and cooling systems operate properly. The AC compressor is switched off at a high
coolant temperature in order to provide
cooling at a high load of the engine. After switching on the cooling
Condensation
from the evaporator of the air condi-
tioning may drip down and form a puddle be
low the vehicle. This is quite normal and
not an indication of a leak!
AC
s3j8.a.book Page 86 Tuesday, April 20, 2010 1:10 PM

Starting-off and Driving
91
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

Avoid high engine revolutions, full throttle and high engine loads as long as the
engine has not yet reached its normal oper
ating temperature - risk of damaging the
engine!
Vehicles which are fitted with an exhaust gas catalytic converter should not be tow-
started over a distance of more than 50 metres.
For the sake of the environment
Never warm up the engine when the vehicle is standing. Drive off right away. When driving the engine reaches its operating te
mperature more rapidly and the pollutant
emissions are lower.Petrol enginesThese engines are fitted with a starter system which selects the correct fuel-air mixture for every external air temperature.
Do not operate accelerator before and when starting engine.

Interrupt the attempt at starting after 10
seconds if the engine does not start right
awayand wait for about 30 seconds before repeating the attempt.
It is possible that the fuse on the electric
al fuel pump is defect if the engine still
does not start. Check the fuse and replace it if necessary
page 195.

If the engine does not start, contact the nearest specialist garage to obtain profes-
sional assistance. It may be necessary, if the engine is
very hot
, to slightly depress the accelerator after
the engine has started.Diesel enginesGlow plug system Diesel engines are equipped with a glow
plug system, the preglow period being
controlled automatically in line with the coolant temperature and outside tempera- ture. The preglow indicator light
 comes on after the ignition has been switched on.
You should not switch on any major electrical components during the heating period otherwise the vehicle battery will be drained unnecessarily.

You should start the engine immediately after the glow plug warning light
 has
gone out.
The glow plug warning light will come on for about one second if the engine is at a
normal operating temperature or if the outside temperature is above +5°C. This means that you can start the engine
right away
.

Interrupt the attempt at starting after 10 seconds if the engine does not start right
awayand wait for about 30 seconds before repeating the attempt.
It is possible that the fuse
on the diesel preglow system is defect if the engine still
does not start. Check the fuse and replace it if necessary
page 195.

Contact the nearest specialist garage to obtain professional assistance.
Starting the engine after fuel tank has run dry It may take longer than normal to start the
engine after refuelling if the fuel tank has
run completely dry - up to one minute. This is
because the fuel system must first of all
be filled while the attempting to start the engine.Switching off the engine– The engine can be switched off by turnin
g the ignition key from position into
 page 89, fig. 94
.
WARNING

Never switch off the engine before the ve
hicle is stationary - risk of accident!

The brake booster only operates when the engine is running. Greater phys-
ical effort for braking is required when en
gine is switched off.
Because if you do
not stop as normal, this can cause an accident and severe injuries.
Caution
you should not switch the engine off right away at the end of your journey after the engine has been operated for a lengthy period
at high loads but should be allowed it
to run at idling speed for about 2 minutes.
This prevents any accumulation of heat
when the engine is switched off.
A1
s3j8.a.book Page 91 Tuesday, April 20, 2010 1:10 PM
