Accesses
READY TO SET OFF
2

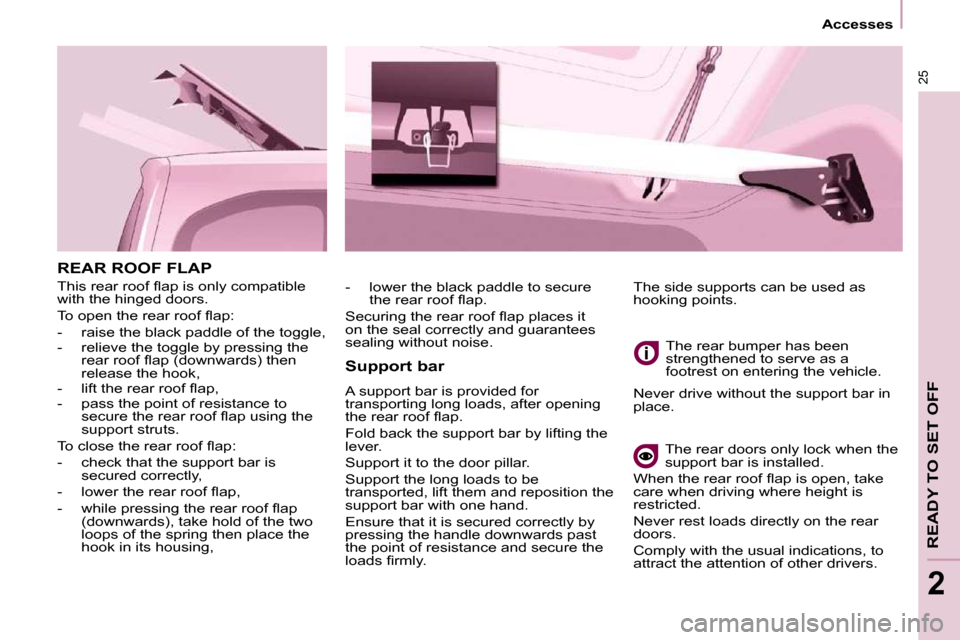

REAR ROOF FLAP
This rear roof fl ap is only compatible
with the hinged doors.
To open the rear roof fl ap:
- raise the black paddle of the toggle,
- relieve the toggle by pressing the rear roof fl ap (downwards) then
release the hook,
- lift the rear roof fl ap,
- pass the point of resistance to secure the rear roof fl ap using the
support struts.

To close the rear roof fl ap:
- check that the support bar is secured correctly,
- lower the rear roof fl ap,
- while pressing the rear roof fl ap (downwards), take hold of the two
loops of the spring then place the
hook in its housing, Support bar
A support bar is provided for
transporting long loads, after opening
the rear roof fl ap.
Fold back the support bar by lifting the
lever.
Support it to the door pillar.
Support the long loads to be
transported, lift them and reposition the
support bar with one hand.
Ensure that it is secured correctly by
pressing the handle downwards past
the point of resistance and secure the
loads fi rmly. The rear bumper has been
strengthened to serve as a
footrest on entering the vehicle.
Never drive without the support bar in
place.
The rear doors only lock when the
support bar is installed.
When the rear roof fl ap is open, take
care when driving where height is
restricted.
Never rest loads directly on the rear
doors.
Comply with the usual indications, to
attract the attention of other drivers.
The side supports can be used as
hooking points.
- lower the black paddle to secure
the rear roof fl ap.
Securing the rear roof fl ap places it
on the seal correctly and guarantees
sealing without noise.

26
Accesses
CENTRAL LOCKING An initial press permits
central locking of the vehicle,
when all of the doors are
closed.
A second press permits central
unlocking of the vehicle.
The control is inactive when the vehicle
has been locked using the remote
control or the key from the outside.
The doors can still be opened from the
inside.
Door open warning light
The control diode:
- fl ashes when the doors are locked
with the vehicle stationary and the
engine off,
- comes on when the doors are locked and from the time the
ignition is switched on. Protection against attack
If this warning light comes on,
check that all of your vehicle's
doors are closed correctly.
Locking while driving
When the vehicle moves off, as soon
as you reach approximately 6 mph
(10 km/h), the system locks the doors.
A noise characteristic of central locking
is heard. The diode on the control
on the fascia central control panel
comes on.
During the journey, opening a door
results in complete unlocking of the
vehicle.
In the event of a serious impact, the
doors are unlocked automatically
to permit access by the emergency
services.
Activating/deactivating
the function
With the ignition on, press
and hold this button to
activate or deactivate the
function.

READY TO SET OFF
22
Instruments and controls

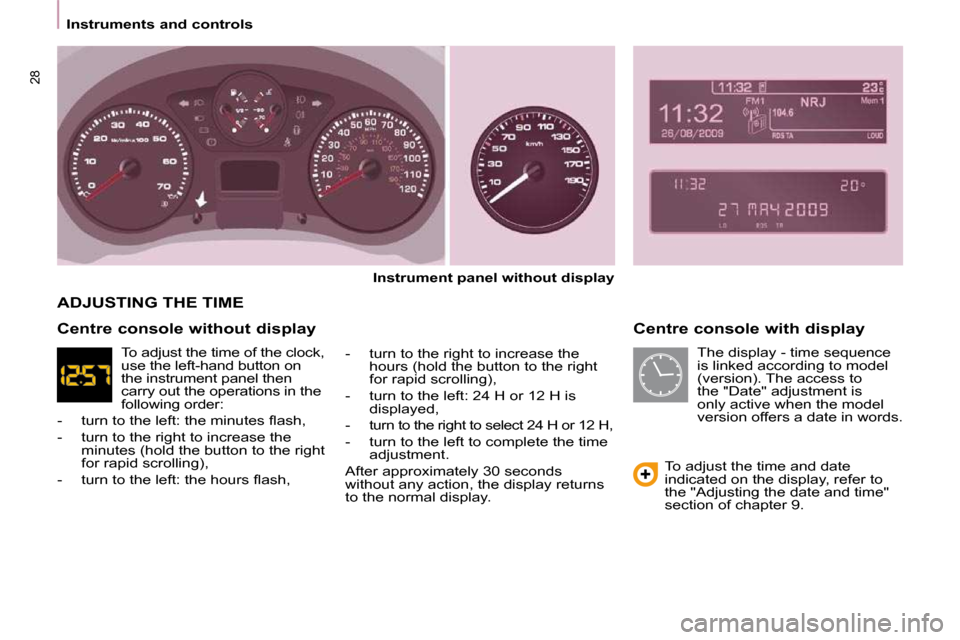

INSTRUMENT PANEL Displays
INSTRUMENTS AND CONTROLS
Screens
The information is presented on board
the vehicle in different display formats
according to the vehicle's equipment.
Dials

1.
Distance recorder in kilometres/miles.

2. Display.

3. Fuel level, coolant temperature.

4. Rev counter.

5. Trip distance recorder/service
indicator zero reset.

6. Instrument panel lighting rheostat. - Speed limiter/cruise control.
- Kilometres/Miles travelled.
- Service indicator, engine oil level
indicator, total kilometres/miles.
- Presence of water in the diesel fi lter.
- Diesel pre-heating.

28
Instruments and controls Centre console with display

Instrument panel without display
- turn to the right to increase the hours (hold the button to the right
for rapid scrolling),
- turn to the left: 24 H or 12 H is displayed,
- turn to the right to select 24 H or 12 H,
- turn to the left to complete the time adjustment.
After approximately 30 seconds
without any action, the display returns
to the normal display.
ADJUSTING THE TIME
To adjust the time and date
indicated on the display, refer to
the "Adjusting the date and time"
section of chapter 9.
Centre console without display
The display - time sequence
is linked according to model
(version). The access to
the "Date" adjustment is
only active when the model
version offers a date in words.
To adjust the time of the clock,
use the left-hand button on
the instrument panel then
carry out the operations in the
following order:
- turn to the left: the minutes fl ash,
- turn to the right to increase the minutes (hold the button to the right
for rapid scrolling),
- turn to the left: the hours fl ash,

29
READY TO SET OFF
22
Instruments and controls
WARNING LAMPS
Each time the vehicle is started: a series of warning lamps comes o n applying a self-test check. They switch off almost
immediately. When the engine is running: the warning lamp becomes a warning if it remains on continuously or fl ashes.
This initial warning may be accompanied by an audible signal and a message which appears on the display.
Do not ignore these warnings.

Warning lamp is indicates Solution - action

STOP lit, associated
with another
warning
lamp and
accompanied
by a message
on the display. major faults linked with
the "Brake fl uid level",
"Engine oil pressure and
temperature", "Coolant
temperature", "Electronic
brake force distribution" and
"Power steering" warning
lights.

You must stop, park and switch off the
ignition. Have the fault checked by a
PEUGEOT dealer.

Handbrake/
Brake fl uid
level/EBFD lit.
that the handbrake is applied
or has not been released fully. Releasing the handbrake switches off the warning
lamp.
lit. a low brake fl uid level. Top up using a fl uid recommended by PEUGEOT.
remaining on even
though the level
is correct and
associated with the
ABS warning lamp.
a failure of the electronic
brake force distribution.
You must stop, park and switch off the
ignition. Have the fault checked by a
PEUGEOT dealer.

Engine oil
pressure and
temperature lit while
driving.
insuffi cient pressure or a
high temperature. Park and switch off the ignition then allow to
cool. Visually check the level. Chapter 6, "Levels"
section.
remaining on,
even though the
level is correct. a major fault. Have the fault checked by a PEUGEOT dealer.

30
Instruments and controls

Warning lamp is indicates Solution - action

Coolant
temperature
and level lit with needle
in the red
zone.
an abnormal increase in
temperature.
Park and switch off the ignition then allow to cool.
Visually check the level.
fl ashing. a drop in the coolant level. Chapter 6, "Levels" section. Consult a PEUGEOT
dealer.

Service lit temporarily. minor faults or warnings.
Consult the warnings log on the display or on
the screen. If your vehicle is equipped with a
trip computer or a screen: refer to the "Audio
equipment - Trip computer" section of chapter 9.
Consult a PEUGEOT dealer.
remaining on. major faults.

Driver's
seat belt not
fastened lit then
fl ashing.
the driver has not fastened
his seat belt.
Pull the strap then insert the tongue in the buckle.
accompanied
by an audible
signal then
remains on. the vehicle is moving with
the driver's seat belt not
fastened.
Check that the seat belt is fastened by pulling the
strap. Chapter 4, "Seat belts" section.

31
READY TO SET OFF
22
Instruments and controls

Warning lamp is indicates Solution - action

Front/side air
bag fl ashing or
remaining on.
a failure of an air bag. Have the system checked by a PEUGEOT
dealer without delay. Chapter 4, "Air bags"
section.

Front
passenger air
bag disarmed lit. the intentional disarming of
this air bag in the presence
of a rear-facing child seat. Chapter 4, "Air bags-child safety" section.

Low fuel
level lit with gauge
needle in the
red zone.
that there remain 8 litres of
fuel when the lamp comes
on. You must fi ll up with fuel to avoid running out.
This warning lamp comes on each time you
switch on the ignition until you have fi lled up.
Capacity of the tank: approximately 60 litres.
Never risk driving until the tank is empty, this
could damage the antipollution and injection
systems.
fl ashing. cutting off of the supply
following a serious impact. Restore the supply. Chapter 6, "Fuel" section.

EOBD
emission
control
system fl ashing or
remaining on.
a failure of the system. There is a risk of damage to the catalytic
converter. Have the system checked by a
PEUGEOT dealer.

Battery
charge lit.
a fault in the charging
circuit. Check the battery terminals, … Chapter 7,
"Battery" section.
fl ashing. placing of the active
functions on standby
(economy mode). Chapter 7, "Battery" section.
remaining on,
in spite of the
checks. a faulty circuit, an ignition or
injection malfunction.
Have the fault checked by a PEUGEOT dealer.

ABS
32
Instruments and controls

Warning lamp is indicates Solution - action

Power
steering lit. a malfunction of the system. The vehicle retains conventional steering without
assistance. Have the system checked by a
PEUGEOT dealer.

Door open
detection lit and
accompanied
by a message
on the display. that a door is not closed
correctly.
Check that all of the doors are closed.

ABS remaining on. a failure of the anti-lock
braking system. The vehicle retains conventional braking.
Consult a PEUGEOT dealer.

ESP fl ashing.
triggering of the ASR or
ESP regulation. The system optimises drive and permits
improvement of the directional stability of the
vehicle. Chapter 4, "Driving safety" section.
remaining on. a malfunction of the system.
E.g.: under-infl ation of the
tyres. E.g.: check the pressure of the tyres. Have the
system checked by a PEUGEOT dealer. (Wheel
speed sensor, hydraulic block, ...).
remaining on
with the diode
on the button
(on the fascia)
lit. deactivation of the system
at the request of the driver.
Operation of the system is deactivated.
Reactivation is automatic above 30 mph (50 km/h)
or after pressing the button (on the fascia).
