Equipment
A further range is also available,
structured around comfort, leisure and
maintenance: Anti-theft alarm, window
engraving, fi rst aid kit, high
visibility jacket, rear parking
assistance, warning triangle, ...
Seat covers compatible with air
bags for the front seats, bench
seat, rubber mats, carpet mats,
snow chains, blinds, tailgate
bicycle carrier, ... Audio equipment, hands-free
kit, speakers, CD changer,
navigation, ...
Regardless of the audio and
telematic equipment offered on
the market, the technical constraints
linked with the fi tting of equipment of
these product groups mean that the
special features of the equipment and
its compatibility with the capacities
of your vehicle's standard equipment
must be taken into account. Please
ask a PEUGEOT dealer for further
information before fi tting such
equipment.
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat and its fi xings are positioned correctly,
- never fi t one mat on top of another. Maximum weights on bars
- Zénith Transverse bars on
longitudinal bars: 75 Kg (these
bars are not compatible with the
Modutop roof).
These accessories and parts, having
been tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide range of recommended
accessories and original parts is offered. Installing radiocommunication
transmitters
You are advised to contact a
PEUGEOT dealer before installing
accessory radiocommunication
transmitters with external aerial on
your vehicle.
The PEUGEOT network will inform you
of the characteristics (frequency band,
maximum output power, aerial position,
specifi c conditions of installation) of
the transmitters which can be fi tted,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).

124
Equipment The fi tting of electrical equipment
or accessories which are not
recommended by PEUGEOT
may result in a failure of your vehicle's
electronic system. Please note this
specifi c warning. You are advised
to contact a dealer to be shown the
range of recommended equipment or
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a high visibility jacket, warning
triangle and spare bulbs available in
the vehicle. "Active Fleet Data" telematic
unit
Connected directly to the heart of the
vehicle (multiplexed network: "Full
CAN"), the telematic unit, by means of
a "ready to use" service, permits the
sending in real time of information such
as:
- distance travelled,
- distance remaining before the next
service,
- warnings and faults (oil level, coolant level, oil temperature,
coolant temperature, etc...).
This enables "Fleet" managers
to optimise the monitoring and
management of their professional
vehicles.
Depending on country, contact a
PEUGEOT dealer for further information.
Front mud fl aps, rear mud
fl aps, 15/17 inch alloy wheels,
wheelarch trim, leather steering
wheel, ...
Screenwash, interior and
exterior cleaning and
maintenance products, spare
bulbs, ...

126
Opening the bonnet
OPENING THE BONNET
Bonnet strut
Secure the strut in its location,
identifi ed by a sticker on the left-hand
panel side of the vehicle, to hold the
bonnet open.
Before closing the bonnet, put the strut
back in its clip without using excessive
force.

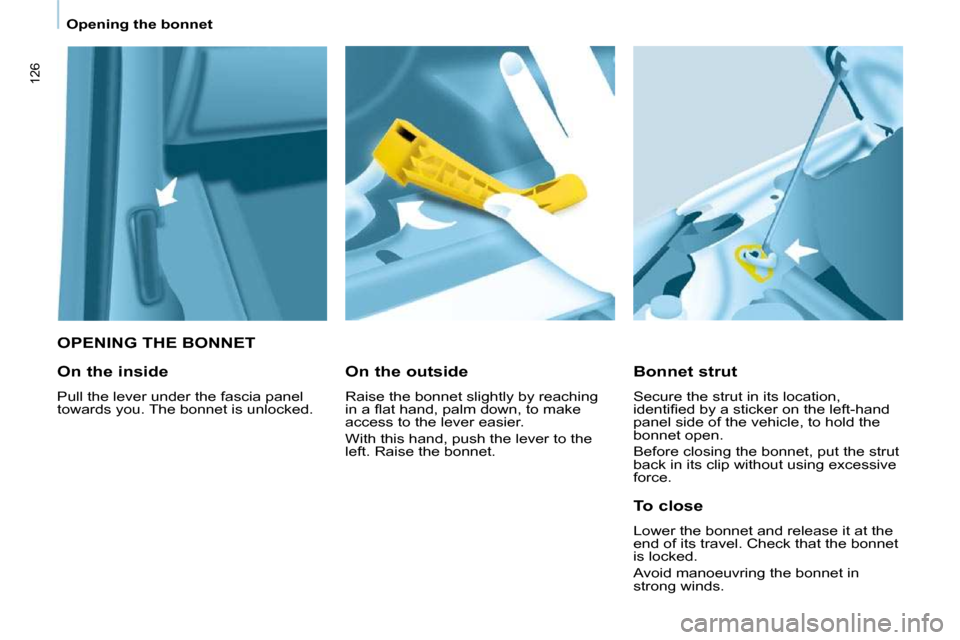

On the outside
Raise the bonnet slightly by reaching
in a fl at hand, palm down, to make
access to the lever easier.
With this hand, push the lever to the
left. Raise the bonnet.
On the inside
Pull the lever under the fascia panel
towards you. The bonnet is unlocked.
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is locked.
Avoid manoeuvring the bonnet in
strong winds.

127
6
Under the bonnet

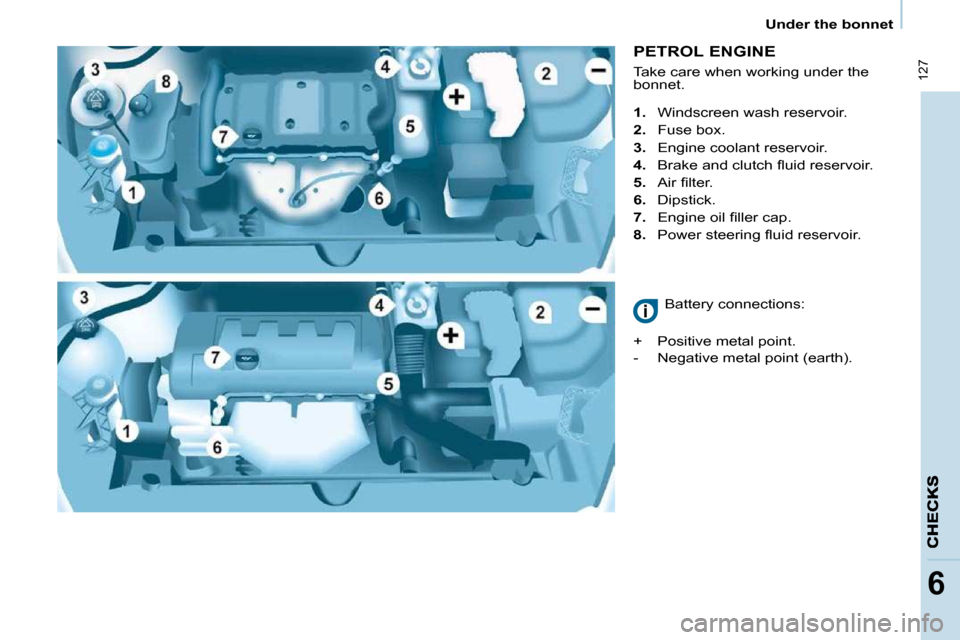

PETROL ENGINE

1. Windscreen wash reservoir.

2. Fuse box.

3. Engine coolant reservoir.

4. Brake and clutch fl uid reservoir.

5. Air fi lter.

6. Dipstick.

7. Engine oil fi ller cap.

8. Power steering fl uid reservoir.
Battery connections:
+ Positive metal point.
- Negative metal point (earth).
Take care when working under the
bonnet.

128
Under the bonnet

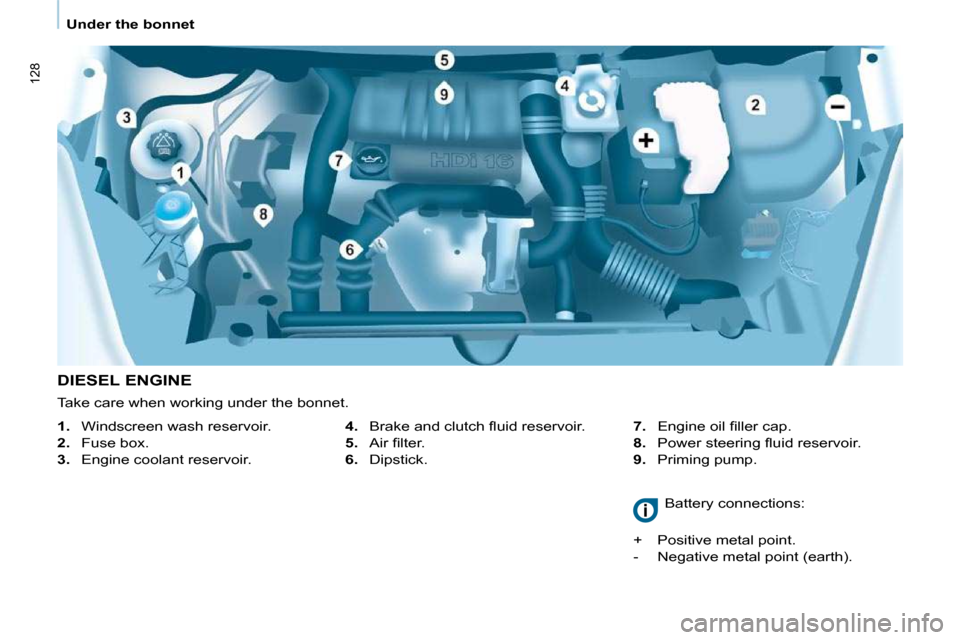

DIESEL ENGINE
4. Brake and clutch fl uid reservoir.

5. Air fi lter.

6. Dipstick.
7. Engine oil fi ller cap.

8. Power steering fl uid reservoir.

9. Priming pump.

1. Windscreen wash reservoir.

2. Fuse box.

3. Engine coolant reservoir.
Battery connections:
+ Positive metal point.
- Negative metal point (earth).
Take care when working under the bonnet.

129
CHECKS
6
Levels
LEVELS
Oil change
It is imperative that this is carried
out at the intervals specifi ed and the
viscosity grade of the oil selected must
fulfi l the requirements in accordance
with the manufacturer's servicing
schedule. Consult the instructions at a
PEUGEOT dealer.
Remove the dipstick before fi lling.
Check the level after fi lling (never
exceed the max mark).
Screw the cap back onto the sump
before closing the bonnet. Changing the brake fluid
The brake fl uid must be changed at
the intervals stated, according to the
manufacturer's servicing schedule.
Use fl uids recommended by the
manufacturer, which fulfi l DOT4
standards.
The level must be between the MIN
and MAX marks on the reservoir.
If fl uid has to be added frequently,
this indicates a failure which must be
checked by a PEUGEOT dealer as
soon as possible.
Warning lights
If you have to remove/refi t the
engine style cover, handle it with
care to avoid damaging the fi xing
clips.
Oil level
Check the level regularly and top up
between changes.
Check the level with the vehicle level,
engine cold, using the dipstick.
Dipstick
There are two marks on
the dipstick:

A = maximum
If you fi ll past this mark,
consult a PEUGEOT
dealer.

B = minimum
Never allow the level to
fall below this mark.
To maintain the reliability
of engines and emission
control systems, the use
of additives in engine oil
is prohibited. Viscosity selection
In all cases, the oil selected must meet
the manufacturer's requirements.
These regular maintenance
operations will keep your vehicle
in good running order. Consult the
instructions at a PEUGEOT dealer or
in the servicing booklet enclosed in the
handbook pack.
Checking by means of the
warning lights on the instrument
panel is described in chapter 2,
refer to the "Instruments and
controls" section.

130
Levels
Cooling system
Only use the fl uid recommended by the
manufacturer.
Otherwise, you risk seriously damaging
your engine.
When the engine is warm, the
temperature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to
release the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and top
up the level with coolant.
If fl uid has to be added frequently,
this indicates a failure which must be
checked by a PEUGEOT dealer as
soon as possible. Power steering fluid level
The vehicle must be parked on level
ground with the engine cold. Unscrew
the cap integrated with the gauge and
check the level which must be between
the MIN and MAX marks.
In order to regenerate the fi lter, you
are advised to drive at a speed higher
than 40 mph (60 km/h) for at least fi ve
minutes as soon as possible, when
traffi c conditions permit (until the
message disappears and the service
warning light is switched off).
During regeneration of the particle
emission fi lter, relay noise may be
heard under the fascia.
If the message is still displayed and if
the service warning light remains on,
consult a PEUGEOT dealer.
Topping up
The level must be between the MIN
and MAX marks on the expansion
bottle. If more than 1 litre of fl uid is
required to top up the level, have
the system checked by a PEUGEOT
dealer. Windscreen wash and headlamp
wash level
For best quality cleaning and for your
safety, we would advise that you use
products of the PEUGEOT range.
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up or replaced with water.
Capacity of the screenwash reservoir:
approximately 4.5 litres.
If your vehicle is fi tted with headlamp
washers, the capacity of the reservoir
is 7.5 litres.
Diesel additive level
(Diesel with particle
emission filter)
The minimum level of this
additive is indicated by lighting of the
service warning light, accompanied by
an audible signal and a message on
the display.
When this occurs with the engine
running it is due to the start of
saturation of the particle emission fi lter
(exceptionally prolonged urban type
driving conditions: low speed, long
traffi c jams, ...). Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer
without delay.
Used oil
Avoid prolonged contact of used oil
with the skin.
Brake fl uid is harmful to health and
very corrosive.
Do not dispose of used oil, brake fl uid
or coolant into drains or into the ground
but into the containers dedicated to this
use at PEUGEOT dealer.

Checks
131
6
CHECKS
Carbon filter and passenger
compartment filter
An access fl ap below the glove box
permits replacement of the fi lters.
The carbon fi lter permits continuous
and effective fi ltering of dust.
If the passenger compartment fi lter
becomes clogged, this may reduce
the performance of the air conditioning
system and generate unpleasant
odours.
We recommend the use of a combined
passenger compartment fi lter. By
means of its second special active
fi lter, it contributes to the purifi cation
of the air breathed by the occupants
and the cleanness of the passenger
compartment (reduction of allergic
symptoms, unpleasant odours and
greasy deposits). Particle emission filter (Diesel)
It is imperative that particle emission
fi lter maintenance is carried out by a
PEUGEOT dealer.
On acceleration after the vehicle has
been running for a prolonged period
at very low speed or at idle, you may,
in exceptional circumstances, notice
the emission of water vapour at the
exhaust. This water vapour does not
have any adverse effect on vehicle
handling or the environment.
Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer.
Brake pads
Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances. It may be necessary to
check the thickness of the pads, even
between services.
Unless there is a leak on the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.
Brake disc/drum wear status
For any information relating to
checking the brake disc/drum wear
status, consult a PEUGEOT dealer.
Handbrake
Where the handbrake travel is too
great or there is a reduction in the
performance of the system, the
handbrake should be adjusted, even
between services.
Have the system checked by a
PEUGEOT dealer.
Oil filter
Change the fi lter regularly in
accordance with the servicing
schedule.
Refer to the servicing booklet to fi nd
out the replacement interval for these
components.
Depending on the environment (dusty
atmosphere...) and the use of the
vehicle (urban driving...), change them
twice as often if necessary.
CHECKS
