2010 Peugeot 207 Dag Owner's Manual

221

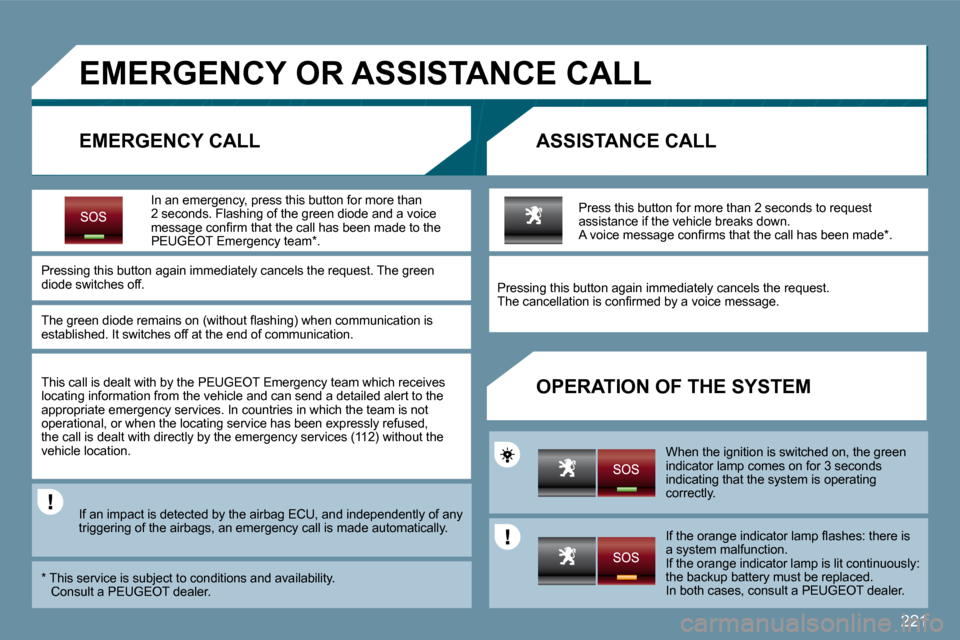

EMERGENCY OR ASSISTANCE CALL
EMERGENCY CALL ASSISTANCE CALL
OPERATION OF THE SYSTEM
In an emergency, press this button for more than 2 seconds. Flashing of the green diode and a voice message confi rm that the call has been made to the PEUGEOT Emergency team * .
Pressing this button again immediately cancels the request. The green diode switches off.
The green diode remains on (without fl ashing) whe n communication is established. It switches off at the end of communication.
This call is dealt with by the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in whi ch the team is not operational, or when the locating service has been expressly refused, the call is dealt with directly by the emergency services (112) without the vehicle location.
If an impact is detected by the airbag ECU, and independently of any triggering of the airbags, an emergency call is mad e automatically.
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
Press this button for more than 2 seconds to requ est assistance if the vehicle breaks down. A voice message confi rms that the call has been mad e * .
Pressing this button again immediately cancels the request. The cancellation is confi rmed by a voice message.
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
If the orange indicator lamp fl ashes: there is a system malfunction. If the orange indicator lamp is lit continuously: the backup battery must be replaced. In both cases, consult a PEUGEOT dealer.

10
168
TECHNICAL DATA
SALOON WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.4 litre Turbo
HDI 70 hp
1.6 litre Turbo
HDI 90 hp

1.6 litre Turbo HDI 90 hp 99g
1.6 litre Turbo
HDI 110 hp

Gearboxes
Manual Manual Manual Manual
- Kerb weight
1 261 - 1 251 - 1 269 1 280 - 1 272 - 1 290 1 260 - 1 279 1 328 - 1 319 - 1 358
- Payload 399 - 369 - 341 420 - 408 - 340 445 - 450 382 - 391 - 323
- Gross vehicle weight (GVW)
1 660 - 1 620 - 1 610 1 700 - 1 680 - 1 630 1 630 - 1 654 1 710 - 1 710 - 1 681
- Gross train weight (GTW)
on a 12 % gradient
2 242 - 2 265 2 650 1 630 - 1654 2 690
-
Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 600 950 - 970 - 1 020 980
on an 8 % gradient - 980 - 1 000 1 030
- Braked trailer ** (with load transfer within GTW limit) 850 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 46 46 46
The GTW and towed load values indicated apply up to a ma ximum altitude of 1 000 metres; the towed load mentioned mu st
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
** The weight of the braked trailer may be increa
sed, within the GTW limit, on condition that the GV W of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.
