2010 NISSAN VERSA HATCHBACK Quick Reference Guide

7
03 CD BUTTON
Press the CD button to play a cd.
05 AUX BUTTON

Press the AUX button to play a compatible device such as an MP3 player when it is
plugged into the AUX (auxiliary) jack.

Pressing the AUX button will also change the satellite band (A uX, SAT1 and SAT2)
(if so equipped).
n OT e: You may need to adjust the volume on any compatible device plugged into the auxiliary
jack to find the most desired sound level of the audio system.
06 EJECT BUTTON
EJECT A DISC - Press the
button for less than 1.5 seconds. The cd will then eject.
07 DISP/TEXT BUTTON
Press the DISP/TEXT button to change the text displayed while playing an fM radio station,
cd or iPod
®.
08 SEEK/TRACK BUTTON

To scan quickly through each broadcasting station, press the SEEK/TRACK button.

To skip from one track to another on a cd, press the SEEK/TRACK button.
10 STATION SELECT BUTTONS
Your radio is equipped with three separate banks, each with six station presets. choose a
radio band AM, f M1 or fM2 using the FM/AM button. Tune to the desired station using
SEEK/TRACK or S CAN tuning. Press and hold any of the desired station select buttons
(1 - 6 ) until a beep is heard. now the station is set in memory.
11 SCAN/RPT BUTTON

Press the SCAN/RPT button to stop at each broadcasting station for 5 seconds.
Pressing the button again during this 5-second period will stop scan tuning and the radio
will remain tuned to that station.

Press the SCAN/RPT button to change the play pattern while listening to a cd, MP3
cd or iPod®.
13 AUDIO BUTTON

To adjust the bass, treble, fade, balance, Speed Sensitive Volume (SSV) (if so equipped)
and beep settings, press the AUDIO button until the desired mode appears in the display.

Press the TUNE or SEEK buttons to adjust the selected mode to the desired level.

Once you’ve adjusted the sound quality to the desired level, press th\
e AUDIO button
repeatedly until the radio or cd mode appears on the display.
15 TUNE/FF-REW/FOLDER BUTTON

To manually tune the radio, press the TUNE/FF-REW/FOLDER button.

While listening to a cd, press the TUNE/FF-REW/FOLDER button for more than
1.5 seconds to
fast forward or rewind. When the button is released, the cd returns
to normal play.

if playing a cd that is formatted with MP3/WMA folders, press the TUNE/FF-REW/
FOLDER button to scroll through the available folders.

8
iPod® PLAYER OPERATION (if so equipped)
The iPod
® outlet connector is located on the center console. connect the cable to the iPod®
connector and then connect the other end of the cable to your iPod®. Your vehicle is equipped
with the specialized cable for connecting the iPod® to your vehicle’s audio unit. if compatible, the
battery of your iPod® will charge while connected to the vehicle.
PLAYING AN iPod
®
The interface for iPod® operation shown on the vehicle’s display is similar to the iPod® interface.
The iPod® can only be operated by the vehicle audio controls while connected.
04 iPOD® BUTTON

Press the iPod® button to switch to the iPod® mode.
09 iPOD® MENU BUTTON

Press the iPod® MENU button to show the interface for iPod® operation on the audio display.
TUNE/FF-REW/FOLDER BUTTON

When the TUNE/FF-REW/FOLDER button is pressed for more than 1.5 seconds, the
iPod® will play while fast forwarding or rewinding. When the button is released, the iPod®
will return to normal play.

When the TUNE/FF-REW/FOLDER button is pressed for less than 1.5 seconds while
the iPod® is playing, the next track or the beginning of the current track on the iPod® will
be played.
SCAN/RPT BUTTON

Press the SCAN/RPT button to change the iPod® play pattern.
DISP/TEXT

Press the DISP/TEXT button to change the displayed program information (Album Title,
Artist name, Song Title, normal Mode, Podcast) while a program is playing.
12 ENTER AND 14 BACK BUTTONS
Press the ENTER button while the top menu is displayed to show program details on the
audio display. use the SEEK button to scroll through the choices and press the ENTER
button to make a selection. Press the BACK button to return to the previous display.
*XM
® Satellite Radio is only available on vehicles equipped with optional XM® Satellite
subscription service.
CLOCK SET/ADJUSTMENT
Pressing the CLOCK button displays the clock with the radio on or off.
To set the clock:
1. Press and hold the CLOCK button until the clock display starts to flash.
2. Press the SEEK/TRACK button to adjust the hours.
3. Press the TUNE/FF-REW/FOLDER button to adjust the minutes.
4. Press the CLOCK button again to exit the clock set mode.

9
TWIN TRIP ODOMETER
The twin trip odometer records the distance of two
individual trips.

Press the button
01 to change the display as follows:
Trip A
Trip B
Trip A.

Press and hold the button
01 for more than 1 second
to reset the currently displayed trip odometer to zero.
01
4-SPEED AUTOMATIC TRANSMISSION (if so equipped)
The 4-speed automatic transmission is electronically controlled to produce
maximum power and smooth operation.

The automatic transmission in your vehicle is designed so that the brake
pedal must be depressed before shifting from P (P ARk) to any gear
position while the ignition switch is in the O n position.

The shift lever cannot be moved out of P (P ARk) and into any of the other
gear positions if the ignition is turned to the LO ck position or if the key
is removed.
CONTINUOUSLY VARIABLE TRANSMISSION (CVT) (if so equipped)
The cVT does not produce a gear change
sensation like traditional automatic transmissions.

R (ReVe RSe) speed for cVT vehicles is limited
to 15 MPH (25 km/h).
The transmission in your vehicle requires a special
fluid available only at your ni SSAn dealer. no other
fluid will meet the exact requirements of the cVT.
STARTin G THe enGine W iTH cVT
(ni SSAn intelligent k ey™ models only)
depress the brake pedal.

Push the ignition knob in.

confirm the intelligent k ey system warning light is illuminated green.

Turn the ignition knob to start the engine.
Tu Rnin G TH e enGine O ff WiTH cVT (ni SSAn intelligent k ey™ models only)
Shift the shift lever into the P (P ARk) position.

Turn the ignition knob to the LO ck position.
OVeRd RiVe (O/ d) Off SW iTc H
each time your vehicle is started, the cVT is automatically “reset” to Overdrive on.

To turn Overdrive mode off, push the O/D OFF switch
01 . The light in the instrument panel
will illuminate.

use the Overdrive off mode when you need improved engine braking.
01

10
VEHICLE DYNAMIC CONTROL (VDC) OFF SWITCH (if so equipped)
The Vehicle dynamic control (Vdc) system uses various sensors to monitor driver inputs and
vehicle motion. under certain driving situations, the system will control braking and engine output to
help keep the vehicle on its steered path. V dc may need to be temporarily shut off if you are trying
to free a vehicle stuck in snow or mud.

Push the Vehicle dynamic control (VDC) OFF switch to deactivate the
Vdc system. The

light
will illuminate in the instrument panel gauge area.

Push the Vehicle dynamic control (VDC) OFF switch again to activate
the Vdc system. The

light in the instrument panel gauge area will

turn off.

The V dc system is active while the vehicle is running until the switch is
pressed to turn it off.
5-SPEED MANUAL TRANSMISSION (if so equipped)
To change gears, depress the clutch pedal fully and shift into the
appropriate gear, then release the clutch pedal slowly.

Start the vehicle in 1st gear and shift into 2nd, 3rd, 4th and 5th
gear according to the vehicle speed.

On the 5-speed manual transmission, you cannot shift directly
from 5th gear into R (ReVe RSe). Stop the vehicle completely,
move the shift lever into the n (neuTRAL) position, then move
into the R (ReVe RSe) position.
6-SPEED MANUAL TRANSMISSION (if so equipped)
LOck O uT
in 6-speed manual transmission equipped vehicles,
the shift lever is equipped with a Reverse lock-out
feature that prevents accidental selection of
Reverse (instead of 1st gear).
SHifTin G TO R eVeRSe
Lift up on the collar just below the shift knob, then
move the shift lever left and up into Reverse.

11
FRONT PASSENGER AIR BAG STATUS LIGHT
This vehicle is equipped with the nissan Advanced Air Bag System.
under some conditions, depending on the type of occupant or object
detected in the front-passenger’s seat by the occupant classification
sensor, the front passenger air bag is designed to automatically turn
OFF. When the front passenger air bag is OFF, the front passenger
air bag status light will illuminate*. f or example:

When the system detects that the front-passenger’s seat is
occupied by a small adult, child or child restraint as outlined in
the Owner’s Manual, the

will illuminate to indicate that
the front passenger air bag is OFF and will not inflate in a crash.

When the front-passenger’s seat is occupied and the passenger meets th\
e conditions
outlined in the Owner’s Manual, the

will not illuminate to indicate that the front
passenger air bag is operational.
*When the system detects that the front-passenger’s seat is unoccupie\
d, the front
passenger air bag status light will not illuminate even though the front\
passenger
air bag is OFF.
TIRE PRESSURE MONITORING SYSTEM (TPMS)
This system monitors tire pressure. if the low tire pressure warning light
illuminates, check the tire pressure in all four tires.
Adjust the low tire pressure to the recommended cOL d tire pressure
shown on the Tire and Loading information label, located in the driver’s
door opening. After tire pressures are adjusted, the vehicle will need to
be driven at speeds above 16 MPH (25 km/h) to activate the TPMS and
turn off the low tire pressure warning light.
SEAT BELT WARNING LIGHT AND CHIME
The light and chime remind you to fasten your seat belts. The
light illuminates whenever the ignition switch is placed in the
On or START position and remains illuminated until the driver’s
seat belt is fastened. At the same time, the chime sounds for
approximately 6 seconds unless the driver’s seat belt is
securely fastened.

With the ignition O n, the seat belt warning light may also
illuminate if the front-passenger’s seat is occupied with the
front-passenger’s seat belt unfastened.

12
HIGH AND LOW TEMPERATURE INDICATOR
HiGH Te MPeRATu Re indic ATOR (Red)
When the ignition switch is in the O n position, the high temperature warning light
illuminates and then turns off.
LOW Te MPeRATu Re indic ATOR (Blue)
When the ignition switch is in the O n position, the low temperature indicator light illuminates and
then turns off after the engine coolant has warmed up.
CHILD SAFETY REAR DOOR LOCKS
The child safety lock levers are located on the edge of the
rear doors.

child safety locks help prevent the rear doors from being
opened accidentally, especially when small children are in
the vehicle.

When the lever is in the LO ck position, the door can only
be opened from the outside.
MOONROOF CONTROLS (if so equipped)
The ignition switch must be in the O n position to operate
the moonroof.
Ti LTin G TH e MOO nROO f
To tilt the moonroof up, push the tilt switch toward the

01 position.

To tilt the moonroof down, push the tilt switch toward
the

02 position.
SLidin
G THe MOO nROO f
To open the moonroof, push the switch toward the
02 position.

To close the moonroof, push the switch toward the
01 position.

To open or close the moonroof part way, push the switch in either direction 01 or
02 while
the moonroof is sliding to stop in the desired position.
01
02

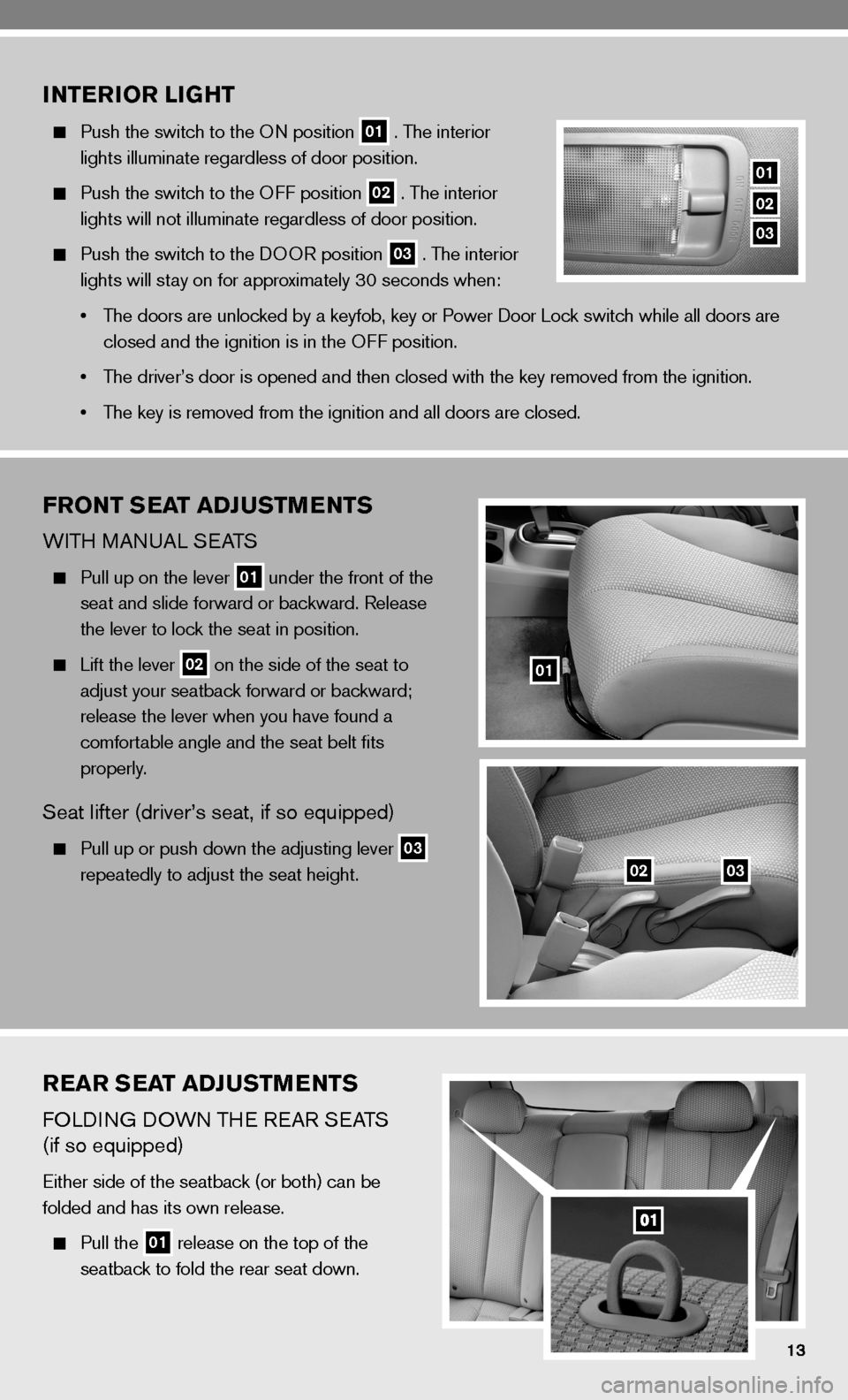

REAR SEAT ADJUSTMENTS
fOLdinG dOWn TH e ReAR S eATS
(if so equipped)
either side of the seatback (or both) can be
folded and has its own release.

Pull the 01 release on the top of the
seatback to fold the rear seat down.
INTERIOR LIGHT
Push the switch to the O n position 01 . The interior
lights illuminate regardless of door position.

Push the switch to the O ff position 02 . The interior
lights will not illuminate regardless of door position.

Push the switch to the d OOR position 03 . The interior
lights will stay on for approximately 30 seconds when:
• The doors are unlocked by a keyfob, key or Power door Lock switch while all doors are
closed and the ignition is in the O ff position.
• The driver’s door is opened and then closed with the key removed from \
the ignition.
• The key is removed from the ignition and all doors are closed.
FRONT SEAT ADJUSTMENTS
WiTH MAnu AL SeATS
Pull up on the lever 01 under the front of the
seat and slide forward or backward. Release
the lever to lock the seat in position.

Lift the lever 02 on the side of the seat to
adjust your seatback forward or backward;
release the lever when you have found a
comfortable angle and the seat belt fits
properly.
Seat lifter (driver’s seat, if so equipped)
Pull up or push down the adjusting lever 03
repeatedly to adjust the seat height.
01
0203
01
02
03

14
BLUETOOTH® HANDS-FREE PHONE SYSTEM (if so equipped)
With an overhead microphone and sound
transmitted through the audio system speakers,
the Bluetooth
® Hands-free Phone System
utilizes Bluetooth® wireless technology and
voice recognition to provide hands-free
cellular phone communication.
SYSTe M OPeRATin G TiPS
close all windows. Surrounding noises
may interfere with system operation and
performance.

Press the
button on the steering wheel to activate voice recognition.

Wait for the tone before speaking.

Begin speaking a command within 5 seconds of the tone.

Speak in a clear and natural voice without pausing between words.

To go back to the previous command, say “Go back” or “correction.”

To cancel a voice recognition session, simply wait 5 seconds, say “cancel” or “Quit,” or
press the

button.

To increase or decrease the volume of the voice prompts, push the VOL (volume) control
switch on the steering wheel or turn the POWER/VOLUME knob on the audio system
while the system is responding.

if the Voice Recognition system does not recognize your voice commands, train th\
e system
using the Speaker Adaptation Mode. See your Owner’s Manual for detailed information.

Some commands are not available while the vehicle is in motion.

The “Help” command can be used in any menu to hear a list of availa\
ble commands.

Please refer to the cellular phone manufacturer’s Owner’s Manual for detailed information
regarding your Bluetooth® phone.

For recommended phones and detailed instructions, please visit
www.nissanusa.com/bluetooth.
cO nnec Tin G YO uR PHO ne
To use the hands-free feature, you need to set up, or connect, the system to recognize your
cellular phone(s). five Bluetooth®-enabled phones can be connected. After setup, the system
automatically connects with a connected phone when the ignition is in th\
e A cc or On position,
as long as the phone is on and in the vehicle.
n OTe: Some cellular phones require the user to enable the automatic reconnec\
tion feature. Please
refer to the cellular phone manufacturer’s Owner’s Manual for Blue\
tooth
® setup information.
