2010 NISSAN LATIO relay

COOLING FAN CONTROLEC-61
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Models with A/C
Models without A/C
Cooling Fan Relay Operation
The ECM controls cooling fan relays via the CAN communication line.
PBIB2483E
PBIB3335E
Cooling fan speed
Cooling fan relay
123
Stop (OFF) OFFOFF OFF
Low (LOW) ONOFF OFF
High (HI) ONON ON
Revision: January 20102010 Versa

EC-102
< FUNCTION DIAGNOSIS >[HR16DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
*: The item is indicated, but not used.
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.PURG VOL C/V %
• Indicates the EVAP canister purge volume control so-
lenoid valve control value computed by the ECM ac-
cording to the input signals.
• The opening becomes larger as the value increases.
INT/V TIM(B1) °CA • Indicates [ °CA] of intake camshaft advance angle.
INT/V SOL(B1) %• The control value of the intake valve timing control so-
lenoid valve (determined by ECM according to the in-
put signals) is indicated.
• The advance angle becomes larger as the value in- creases.
AIR COND RLY ON/OFF • The air conditioner relay control condition (determined
by ECM according to the input signals) is indicated.
FUEL PUMP RLY ON/OFF • Indicates the fuel pump relay control condition deter-
mined by ECM according to the input signals.
VENT CONT/V ON/OFF • The control condition of the EVAP canister vent control
valve (determined by ECM according to the input sig-
nals) is indicated.
ON: Closed
OFF: Open
THRTL RELAY ON/OFF • Indicates the throttle contro
l motor relay control condi-
tion determined by the ECM according to the input sig-
nals.
COOLING FAN HI/LOW/
OFF• Indicates the condition of the cooling fan (determined
by ECM according to the input signals).
HI: High speed operation
LOW: Low speed operation
OFF: Stop
HO2S2 HTR (B1) ON/OFF • Indicates [ON/OFF] condition of heated oxygen sen-
sor 2 heater determined by ECM according to the in-
put signals.
I/P PULLY SPD rpm • Indicates the engine speed computed from the prima-
ry sped sensor signal.
VEHICLE SPEED km/h or
mph • The vehicle speed computed from the vehicle speed
signal sent from TCM is displayed.
IDL A/V LEARN YET/CM-
PLT • Display the condition of Idle Air Volume Learning
YET: Idle air volume learning has not been performed
yet.
CMPLT: Idle air volume learning has already been per-
formed successfully.
TRVL AFTER MIL km or
mile • Distance traveled while MIL is activated.
A/F S1 HTR(B1) % • Air fuel ratio (A/F) sensor 1 heater control value com-
puted by ECM according to the input signals.
• The current flow to the heater becomes larger as the value increases.
AC PRESS SEN V • The signal voltage from the refrigerant pressure sen-
sor is displayed.
A/F ADJ-B1 —• Indicates the correction of factor stored in ECM. The
factor is calculated from the difference between the
target air-fuel ratio stored in ECM and the air-fuel ratio
calculated from A/F sensor 1 signal.
HO2 S2 DIAG2 (B1)
*
[INCMP/CMPLT] —• Indicates DTC P0139 self-diagnosis (slow responce)
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.
Monitored item Unit
DescriptionRemarks
Revision: January 20102010 Versa

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-103
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ACTIVE TEST MODE
Test Item
*: Leaving cooling fan OFF with CONSULT-III while engine is running may cause the engine to overheat.
DTC & SRT CONFIRMATION MODE
SRT STATUS Mode
For details, refer to
EC-84, "Diagnosis Description".
PERMANENT DTC STATUS Mode
For details, refer to EC-84, "Diagnosis Description".
NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.
TEST ITEMCONDITION JUDGMENTCHECK ITEM (REMEDY)
FUEL INJECTION • Engine: Return to the original
trouble condition
• Change the amount of fuel injec-
tion using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
• Harness and connectors
• Fuel injector
• Air fuel ratio (A/F) sensor 1
IGNITION TIMING • Engine: Return to the original
trouble condition
• Timing light: Set
• Retard the ignition timing using
CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
• Perform Idle Air Volume Learning.
POWER BALANCE • Engine: After warming up, idle
the engine.
• A/C switch OFF
• Selector lever: P or N position (A/ T), Neutral position (M/T)
• Cut off each fuel injector signal one at a time using CONSULT-
III. Engine runs rough or dies.
• Harness and connectors
• Compression
• Fuel injector
• Power transistor
• Spark plug
• Ignition coil
COOLING FAN* • Ignition switch: ON
• Turn the cooling fan “LOW”, “HI”
and “OFF” using CONSULT-III. Cooling fan moves and stops. • Harness and connectors
• IPDM E/R (Cooling fan relay)
• Cooling fan motor
ENG COOLANT
TEMP • Engine: Return to the original
trouble condition
• Change the engine coolant tem- perature using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
• Harness and connectors
• Engine coolant temperature sen-
sor
• Fuel injector
FUEL PUMP RELAY • Ignition switch: ON (Engine
stopped)
• Turn the fuel pump relay “ON” and “OFF” using CONSULT-III
and listen to operating sound. Fuel pump relay makes the operat-
ing sound.
• Harness and connectors
•Fuel pump relay
PURG VOL CONT/V • Engine: After warming up, run
engine at 1,500 rpm.
• Change the EVAP canister purge volume control solenoid
valve opening percent using
CONSULT-III. Engine speed changes according
to the opening percent.
• Harness and connectors
• Solenoid valve
FUEL/T TEMP SEN • Change the fuel tank temperature using CONSULT-III.
VENT CONTROL/V • Ignition switch: ON (Engine
stopped)
• Turn solenoid valve “ON” and
“OFF” using the CONSULT-III
and listen to operating sound. Solenoid valve makes an operating
sound.
• Harness and connectors
• Solenoid valve
V/T ASSIGN ANGLE • Engine: Return to the original
trouble condition
• Change intake valve timing us- ing CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
• Harness and connectors
• Intake valve timing control sole-
noid valve
Revision: January 20102010 Versa

EC-338
< COMPONENT DIAGNOSIS >[HR16DE]
P0461 FUEL LEVEL SENSOR
2. Release fuel pressure from fuel line, refer to
EC-496, "Inspection".
3. Remove the fuel feed hose on the fuel level sensor unit.
4. Connect a spare fuel hose where the fuel feed hose was removed.
5. Turn ignition switch OFF and wait at least 10 seconds then turn ON.
6. Select “FUEL LEVEL SE” in “DAT A MONITOR” mode with CONSULT-III.
7. Check “FUEL LEVEL SE” output voltage and note it.
8. Select “FUEL PUMP RELAY” in “ACTIVE TEST” mode with CONSULT-III.
9. Touch “ON” and drain fuel approximately 30 (7-7/8 US gal, 6-5/8 Imp gal) and stop it.
10. Check “FUEL LEVEL SE” output voltage and note it.
11. Fill fuel into the fuel tank for 30 (7-7/8 US gal, 6-5/8 Imp gal).
12. Check “FUEL LEVEL SE” output voltage and note it.
13. Confirm whether the voltage changes more than 0.03 V during step 7 to 10 and 10 to 12.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-338, "
Diagnosis Procedure".
3.PERFORM COMPONENT FUNCTION CHECK
Without CONSULT-III
NOTE:
Start from step 8, if it is possibl e to confirm that the fuel cannot be drained by 30 (7-7/8 US gal, 6-5/8
Imp gal) in advance.
1. Prepare a fuel container and a spare hose.
2. Release fuel pressure from fuel line. Refer to EC-496, "
Inspection".
3. Remove the fuel feed hose on the fuel level sensor unit.
4. Connect a spare fuel hose where the fuel feed hose was removed.
5. Turn ignition switch ON.
6. Drain fuel by 30 (7-7/8 US gal, 6-5/8 Imp gal) from the fuel tank using proper equipment.
7. Confirm that the fuel gauge indication varies.
8. Fill fuel into the fuel tank for 30 (7-7/8 US gal, 6-5/8 Imp gal).
9. Confirm that the fuel gauge indication varies.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-338, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005398494
1.CHECK COMBINATION METER FUNCTION
Refer to DI-14, "
Trouble Diagnosis".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Refer to DI-14, "
Trouble Diagnosis"
2.CHECK INTERMITTENT INCIDENT
Refer to EC-114, "
Diagnosis Procedure".
>> INSPECTION END
Revision: January 20102010 Versa

EC-362
< COMPONENT DIAGNOSIS >[HR16DE]
P1217 ENGINE OVER TEMPERATURE
P1217 ENGINE OVER TEMPERATURE
DTC LogicINFOID:0000000005398526
DTC DETECTION LOGIC
NOTE:
•
If DTC P1217 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.
• If DTC P1217 is displayed with DTC P0607, first perform the trouble diagno sis for DTC P0607. Refer
to EC-351, "
DTC Logic".
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnorma lly high temperature condition, a malfunction is
indicated.
CAUTION:
When a malfunction is indicated, be su re to replace the coolant. Refer to CO-12, "
Changing Engine
Coolant". Also, replace the engine oil. Refer to LU-8, "Draining" and LU-8, "Refilling".
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to use coolant with the proper mixture ratio. Refer to MA-15, "
Anti-freeze Coolant Mixture Ratio".
2. After refilling coolant, run engine to en sure that no water-flow noise is emitted.
DTC CONFIRMATION PROCEDURE
1.PERFORM COMPONENT FUNCTION CHECK
Perform component function check. Refer to EC-362, "
Component Function Check".
NOTE:
Use component function check to check the overall function of the cooling fan. During this check, a DTC might
not be confirmed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-363, "
Diagnosis Procedure".
Component Function CheckINFOID:0000000005398527
1.PERFORM COMPONENT FUNCTION CHECK-I
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P1217 Engine over temperature
(Overheat) • Cooling fan does not operate properly (Over-
heat).
• Cooling fan system does not operate properly (Overheat).
• Engine coolant was not added to the system using the proper filling method.
• Engine coolant is not within the specified range. • Harness or connectors
(The cooling fan circuit is open or
shorted.)
• IPDM E/R (Cooling fan relay-1)
• Cooling fan relays-2 and -3
• Cooling fan motor
•Radiator hose
•Radiator
•Radiator cap
• Reservoir tank
• Water pump
•Thermostat
• Water control valve
Revision: January 20102010 Versa

P2100, P2103 THROTTLE CONTROL MOTOR RELAYEC-377
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

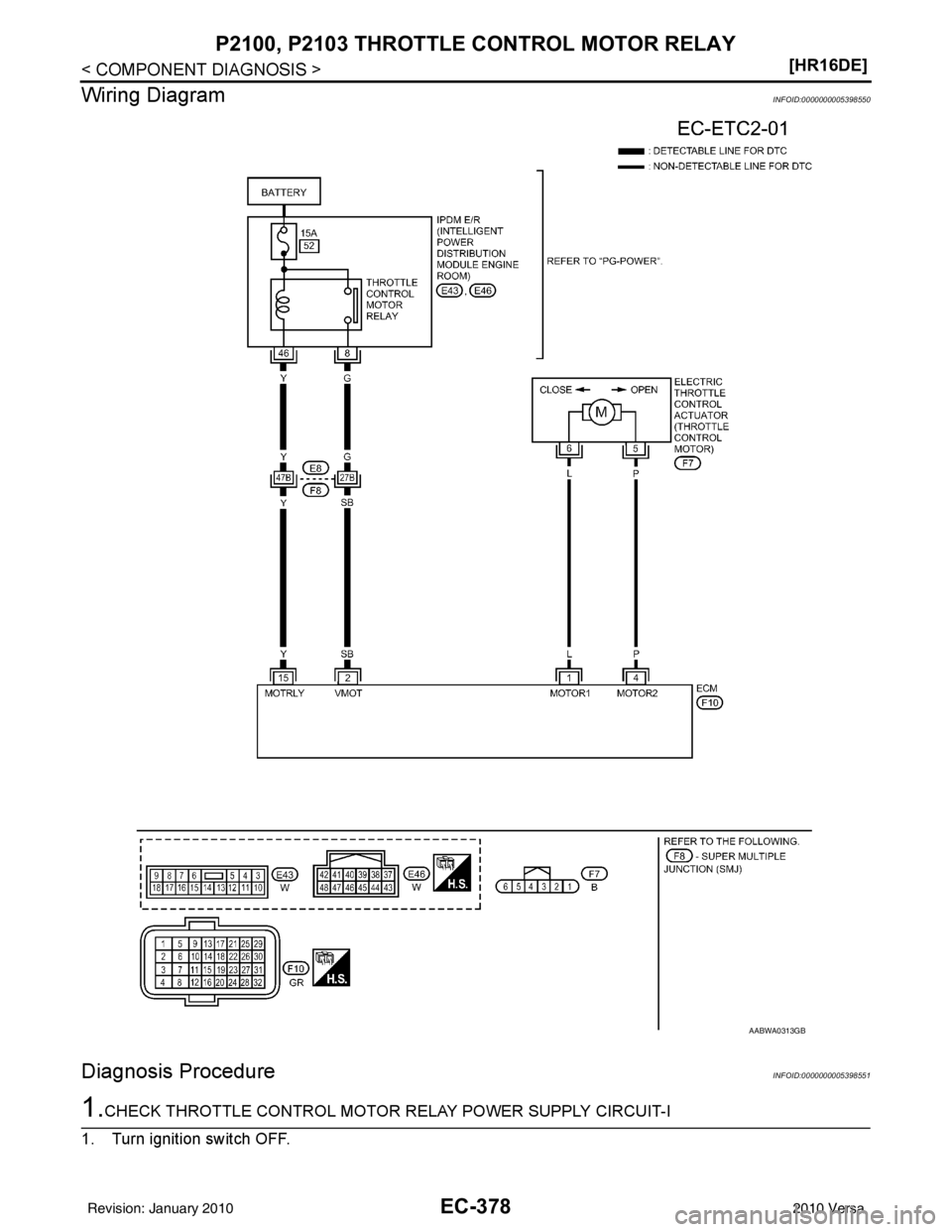

P2100, P2103 THROTTLE CONTROL MOTOR RELAY
DescriptionINFOID:0000000005398548
Power supply for the throttle control motor is provided to the ECM via throttle control motor relay. The throttle
control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends
an ON signal to throttle control motor relay and batte
ry voltage is provided to the ECM. When the ignition
switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not
provided to the ECM.
DTC LogicINFOID:0000000005398549
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, c onfirm that battery voltage is more than 8 V.
Witch DTC is detected?
P2100 >> GO TO 2.
P2103 >> GO TO 3.
2.PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P2100
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
Is DTC detected?
YES >> Go to EC-378, "Diagnosis Procedure".
NO >> INSPECTION END
3.PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P2103
1. Turn ignition switch ON and wait at least 1 second.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-378, "Diagnosis Procedure".
NO >> INSPECTION END
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2100 Throttle control motor
relay circuit open ECM detects a voltage of power source for
throttle control motor is excessively low. • Harness or connectors
(Throttle control motor relay circuit is
open)
• Throttle control motor relay
P2103 Throttle control motor
relay circuit short ECM detect the throttle control motor relay is
stuck ON. • Harness or connectors
(Throttle control motor relay circuit is
shorted)
• Throttle control motor relay
Revision: January 20102010 Versa

EC-378
< COMPONENT DIAGNOSIS >[HR16DE]
P2100, P2103 THROTTLE
CONTROL MOTOR RELAY
Wiring Diagram
INFOID:0000000005398550
Diagnosis ProcedureINFOID:0000000005398551
1.CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
AABWA0313GB
Revision: January 20102010 Versa

P2100, P2103 THROTTLE CONTROL MOTOR RELAYEC-379
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Check the voltage between ECM harness connector and
ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2.CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector.
3. Check the continuity between ECM harness connector and IPDM E/R harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK FUSE
1. Disconnect 15 A fuse (No. 52) from IPDM E/R.
2. Check 15 A fuse for blown.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Replace 15 A fuse.
5.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
Check the voltage between ECM harness connector and ground
under the following conditions.
OK or NG
OK >> GO TO 8.
NG >> GO TO 6.
6.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect IPDM E/R harness connector.
ECM Ground Voltage
Connector Terminal
F10 15 Ground Battery voltage
PBIA9569J
ECM IPDM E/R
Continuity
Connector Terminal Connector Terminal
F10 15 E46 46 Existed
ECM Ground Condition Voltage
Connector Terminal
F10 2 Ground Ignition switch: OFF Approximately 0 V
Ignition switch: ON Battery voltage
PBIA9568J
Revision: January 20102010 Versa
