2010 MITSUBISHI LANCER SPORTBACK remote control

3-52 Features and controls
3
Procedure for replacing the remote control trans-
mitter battery
N00562100024
1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE

Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
transmitter may come out.
2. Remove the old battery.3. Install a new battery with the + side (A) up.
4. Close the remote control transmitter case firmly.
5. Check the keyless entry system to see that it works.
NOTE

You may purchase a replacement battery at an electric
appliance store.


Your authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
CAUTION
!

When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
Coin type battery
CR2032+ side
- side
BK0103001US.book 52 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-63
3 Theft-alarm system
N00510200143
The theft-alarm system is designed to provide protection from
unauthorized entry into the vehicle. This system is operated in
three stages: the first is the “armed” stage, the second is the
“alarm” stage, and third is the “disarmed” stage. If triggered,
the system provides both audible and visual alarm signals.Armed stagePark the vehicle and stop the engine. Arm the system as
described below.
1. Turn the ignition switch to the “LOCK” position.
Also, if a key was used to start the engine, remove the key
from the ignition switch.
2. Make sure that the rear hatch is closed.
3. Lock all doors and the rear hatch by either the remote con-
trol transmitter or the F.A.S.T.-key.At this time, the theft-alarm indicator (A) on the audio
panel flashes for confirmation.
4. The system has entered the armed stage after about 20
seconds, when the theft-alarm indicator (A) flashing
becomes slower.
The theft-alarm indicator (A) continues to flash while the
system is in the armed stage.Arm the system and leave
BK0103001US.book 63 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-64 Features and controls
3
NOTE

The system will be disarmed if, while the theft-alarm indi-
cator (A) is illuminated, all doors and the rear hatch are
unlocked by remote control transmitter, the F.A.S.T.-key.


The system will be disarmed if, while the theft-alarm indi-
cator is illuminated, the ignition switch is turned to “ON”
or “ACC”.


The system will not be armed if a door or a rear hatch is
not completely closed. If this happens, rearm the system
as described above.


The driver should not arm the system until first confirm-
ing that all passengers have left the vehicle. If the driver
arms the system with passenger(s) in the vehicle, the
alarm may be activated when the passenger(s) open the
door.
Alarm stageWhile the vehicle is parked and the system is armed, the alarm
will be activated if one of the doors or a rear hatch is opened
without the remote control transmitter or the F.A.S.T.-key.Type of alarmWhen the alarm is activated:
1. The headlights blink on and off for 3 minutes.
After 3 minutes the headlights automatically shut off.
2. The horn will sound intermittently for 3 minutes.Horn sounds!
Headlights blink on and off!
BK0103001US.book 64 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-65
3
NOTE

The alarm will continue to operate for 3 minutes. At the
end of that period, the alarm will automatically shut off to
save battery power. The system will then be rearmed until
the proper disarming step is taken.


While the alarm is operating, it is displayed on the infor-
mation screen in the multi-information display.
Ty p e 1
Ty p e 2
Alarm deactivationThe alarm can be deactivated in the following ways.

By using the remote control transmitter or the F.A.S.T.-
key to lock or unlock the door or rear hatch.


Turn the ignition switch to the “ON” or the “ACC” posi-
tion.
Disarmed stageThe system will be disarmed when either of the following steps
are taken:
1. All doors and the rear hatch are unlocked by the remote
control transmitter or the F.A.S.T.-key.NOTE

If the UNLOCK button is pressed when all doors and the
rear hatch are closed and no door is opened within approx-
imately 30 seconds, re-arming will automatically occur.
2. The ignition switch is turned to the “ACC” or “ON” posi-
tion.
NOTE

Once the system has been disarmed, it cannot be rearmed
except by repeating the arming procedure.
Disarm...by remote control transmitter or F.A.S.T.-key
BK0103001US.book 65 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-66 Features and controls
3
Testing the theft-alarm systemUse the following procedure to test the system:
1. Lower the driver’s window.
2. Arm the system as explained in “Armed stage”.
3. Make sure that the theft-alarm indicator comes on and
flashes within approximately 20 seconds.
4. Wait a few seconds and then unlock the driver’s side door
by using the inside door lock knob and opening the door.
5. Check to be sure that the horn sounds intermittently and
the headlights blink on and off when the doors or the rear
hatch is opened.
6. Disarm the system by unlocking all doors and the rear
hatch by the remote control transmitter, the F.A.S.T.-key.
Power windows
N00510800325
NOTE

Never try to operate the main switch and sub switch in dif-
ferent directions at the same time. This will freeze the
window in position.


Operating the power windows repeatedly with the engine
stopped will run down the battery. Use the window
switches only while the engine is running.
1- Open (down)
2- Close (up)
BK0103001US.book 66 ページ ２００９年８月２０日　木曜日　午前１０時４５分

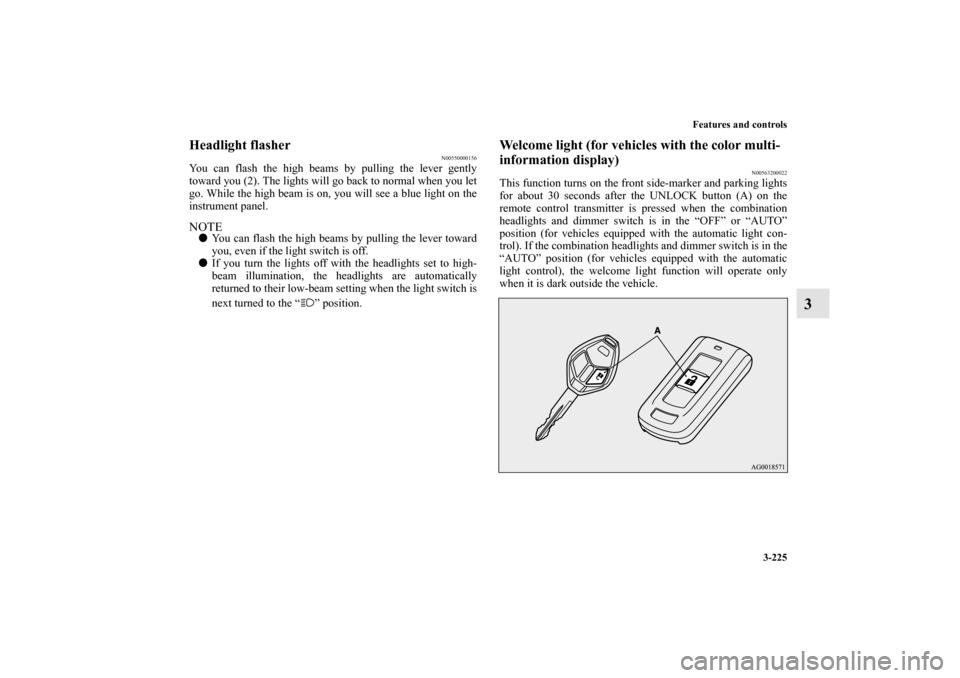

Features and controls
3-225
3
Headlight flasher
N00550000156
You can flash the high beams by pulling the lever gently
toward you (2). The lights will go back to normal when you let
go. While the high beam is on, you will see a blue light on the
instrument panel.NOTE

You can flash the high beams by pulling the lever toward
you, even if the light switch is off.


If you turn the lights off with the headlights set to high-
beam illumination, the headlights are automatically
returned to their low-beam setting when the light switch is
next turned to the “ ” position.
Welcome light (for vehicles with the color multi-
information display)
N00563200022
This function turns on the front side-marker and parking lights
for about 30 seconds after the UNLOCK button (A) on the
remote control transmitter is pressed when the combination
headlights and dimmer switch is in the “OFF” or “AUTO”
position (for vehicles equipped with the automatic light con-
trol). If the combination headlights and dimmer switch is in the
“AUTO” position (for vehicles equipped with the automatic
light control), the welcome light function will operate only
when it is dark outside the vehicle.
BK0103001US.book 225 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-226 Features and controls
3
NOTE

While the welcome light function is operating, perform
one of the following operations to cancel the function.
 Push the LOCK button (B) on the remote control trans-
mitter.
 Turn the combination headlights and dimmer switch to
the “ ” or “ ” position.
 Turn the ignition switch to the “ON” position.


It is possible to modify functions as follows:
 The headlights can be set to come on in the low beam
setting instead of the front side-marker and parking
lights.
 The welcome light function can be deactivated.
For details, consult a Mitsubishi Motors dealer.
Coming home light (for vehicles with the color
multi-information display)
N00547300025
This function turns on the headlights in the low beam setting
for about 30 seconds after the ignition switch is turned to the
“LOCK” position.
1. Turn the combination headlights and dimmer switch to the
“OFF” or “AUTO” position (for vehicles equipped with
the automatic light control).
2. Turn the ignition switch to the “LOCK” position. Also, if
a key was used to start the engine, remove the key from
the ignition switch.
3. Within 60 seconds of turning the ignition switch to the
“LOCK” position, pull the turn signal lever toward you.
BK0103001US.book 226 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-280 Features and controls
3
1- (DOOR)
The dome light comes on when any door or the rear hatch is
opened. When all the doors and the rear hatch are closed, the
dome light goes off after approximately 30 seconds. How-
ever, the light goes off immediately if:

The doors and the rear hatch are closed while the igni-
tion switch is in the “ON” position.

The driver’s door is closed after all the other doors and
the rear hatch are closed while the lock knob of the
driver’s door is in the lock position.

The doors and the rear hatch are closed and the power
door lock switch is used to lock the doors.

The keyless entry system remote control transmitter is
used to lock the doors and the rear hatch.

In vehicles equipped with the F.A.S.T.-key, the doors
and the rear hatch are locked using the F.A.S.T.-key.
NOTE
When the engine is started using the key while the
doors and rear hatch are closed, if you remove the key,
the dome light will illuminate for approximately 30
seconds before going off.

When the engine is started using the F.A.S.T.-key while
the doors and rear hatch are closed, if the ignition
switch is moved to the “LOCK” position, the dome
light will illuminate for approximately 30 seconds
before going off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
2- (OFF)
The dome light goes off.
