Audio Functions 6-3
Audio
Switching to Audio Screen
Audio screens for all media are displayed
from the Navi screen.
NOTE Set the volume so that sound outside the vehicle
can be heard while driving, so as not to interfere with
safe driving.
 If performing operations while driving, make sure not
to hinder safe driving.
 To use [CD] or [DVD], a disk must be inserted into
the device beforehand. 1 Press the [MODE] key
2 Touch one of the items
eng_a310

eng_a313
NOTE If the [PWR] key or [AUDIO] key is pressed when the
audio has been turned OFF, the A/V screen from
before the audio was turned OFF is displayed.
Ending Audio
1 Press the [PWR] key
Playback is stopped and the audio is turned OFF.NOTE Press the [PWR] key again to resume play from
where it stopped.
Adjusting the Volume
The volume can be adjusted within a
range of 46 levels, including mute.
NOTE Set the volume so that sound outside the vehicle
can be heard while driving, so as not to interfere with
safe driving.
 If the playback volume is too loud, distortion may
occur. If this occurs, reduce the volume. 1 Press the [VOL + ] key
eng_a311
The volume is increased.
2 Press the [VOL - ] key
eng_a312
The volume is decreased.
Displaying the Navi Screen
1 Press the [NAVI] key
eng_a313

eng_a302
The current location screen is displayed.









Types of Playable Disks 6-6
Types of Playable Disks
Playable DVDs DVD (12cm and 8cm)
 Disks with region codes “1” or “ALL”
 Disks recorded in NTSC format.Playable CDs CDDA (12cm and 8cm direct)
 CD-TEXT (12cm and 8cm direct)
 CD-R/RW



NOTE Do not use cracked disks or bent disks.
 Playback of disks not described above cannot be
assured.
 Abnormally shaped disks (heart-shaped, etc.), and
disks that are partially transparent cannot be played.
 CD-R/RW disks that have not been nalized cannot
be played.
Non-Standard CDs
CDs can be enjoyed using this device,
but note carefully the following points
concerning CD standards. Use disks conforming to the standards and with the
logo
on the disk label.
 Playback of disks that do not conform to the CD
standard cannot be assured. Further, even if the disk
can be played, the sound quality cannot be assured.
 If playing disks that do not conform to CD standards,
the following symptoms may occur.
- White noise may be mixed in during playback.
Further, the sounds may also jump.
- The disk is not recognized.
- Track 1 is not played.
- Longer time than usual is taken to nd the start.
- Playback starts from the middle of a track.
- Some parts are unplayable.
- The disk freezes during playback.
- The display is incorrect.
Meaning of the Logos on DVDs
Region Codes Regional playback limitations are set in DVDs.
Regional playback limitations are expressed as
region codes, and videos can be played only in the
region shown.
 The North American region code is “1”, and DVDs
labeled with region code “1” or “ALL” can be played
on this device.
 Products displaying the following logos on the DVD
package are playable.

1
2


Package LogosThe meanings of the logos displayed on packages are
as follows:
Region code (Describes the region
where playback is possible)Describes the number of angles that
can be played.Describes the number of languages
that can be displayed as subtitles.Describes the number of languages
that can be played.









Types of Playable Disks 6-7
Audio
MP3/WMA Files
Files in MP3/WMA format written to CD-
ROM and CD-R/RW disks can be played
on this device. The files and media that
can be used are limited, so before writing
les in MP3/WMA format to disk, read the
following carefully. Further, also make sure
to read thoroughly the user manuals to
ensure the correct use of your CD-R/RW
drives and recoding software. Data such
as title information, etc., is stored in the
MP3/WMA le, and can be displayed.
NOTE Distribution of disks or files written (i.e., copied)
from music CDs to others, and uploading to internet
servers, etc., is illegal whether paid or free of charge,
so do not do so.
 Do not add “.mp3/.wma” extensions to files other
than MP3/WMA files. Playing disks to which these
files have been written causes misidentification for
playback, so intense white noise occurs that may
damage the speakers.
 Depending on the recorder and the recording
software used to write to the disk, correct playback
may not be possible. In this case, refer to the user
manuals for the devices and software used.
 Depending on the PC OS type, version, software,
and settings, it may not be possible to add
extensions. In this case,(if it is an MP3/WMA file)
add the “.mp3/.wma” extension to the end of the le
before writing to disk.
 Disks with a mixture of les in MP3 format and WMA
format can be played.
 Where the disk is a mixture of audio tracks and les
in MP3/WMA format, only the files in MP3/WMA
format are played.
Folder Configurations
Up to eight levels of folder can be identi ed.
Tracks can be managed by creating levels
such as genreartistalbumtrack (MP3/WMA
le).
MP3s
MP3 is an abbreviation of “MPEG-
1AudioLayer3”. MPEG is an abbreviation
of “Motion Pictures Experts Group”, and
is the video compression standard used
for video CDs, etc. MP3 is an audio
compression format included in the MPEG
audio standards, and enables files with
a small amount of data to be created
with high quality audio by processing
inaudible sounds that have been buried
in loud noise, as well as sounds in ranges
inaudible to the human ear. The data
on a music CD can be compressed to
approximately 1/10th of its original size
with almost no loss of sound quality, so
it is possible to write approximately the
contents of 10 music CDs to one CD-R/
RW.








Types of Playable Disks 6-8 Playable MP3 File StandardsThe speci cations for playable MP3 les are as follows:
Item Details
Standards MPEG1 AUDIO LAYER3
MPEG2 AUDIO LAYER3
Sampling
frequency
[Hz]MPEG1 32k/44.1k/48k
MPEG2 16k/22.05k/24k
Bit rate [kbps] MPEG1 32/40/48/56/64/80/96/112
/128/160/192/224/256/32
0
MPEG2 32/40/48/56/64/80/96/112
/128/144/160
VBR
(Variable Bit Rate)Compatible
Multi-session Compatible
Channel modeStereo, joint stereo, dual
channel, and monaural
Max. number of levels 8 (including the root
directory)
Max. number of folders 255 folders
Max. number of les400 files (Total number
on disk. Does not include
other than MP3 or WMA
les.)
ID3Tag Ver.1.0 and Ver.1.1
* MP3 les written using standards other than those
described above may not be playable correctly, and
the file names and folder names, etc., may not be
displayed correctly.
WMA
WMA is an abbreviation for Windows
Media Audio and is an audio compression
format from Microsoft Corporation. This
format compresses data using a higher
compression ratio than MP3.* Microsoft and Windows Media are registered
trademarks of Microsoft Corporation in America and
other countries.NOTE WMA supports copyright protection functions (DRM),
so WMA les that are protected by copyright cannot
be played on this audio system.
Playable WMA File StandardsThe specifications for playable WMA files are as
follows:
Item Details
Standards W i ndows Media Audio
Version 7.0
Sampling frequency [Hz] 16k/22.05k/32k/44.1k/48k
Bit rate [kbps] 32/40/48/64/80/96/128/16
0/192
VBR
(Variable Bit Rate)Compatible
Multi-session Compatible
Channel mode Stereo and monaural
Max. number of levels 8 (including the root
directory)
Max. number of folders 255 folders
Max. number of les 400 files
(Total number on
disk. Does not include other
than MP3 or WMA les.)
WMA Tag T i tles, artist names, and
album names
* WMA les written using standards other than those
described above may not be playable correctly, and
the file names and folder names, etc., may not be
displayed correctly.









Listening to Radio 6-10

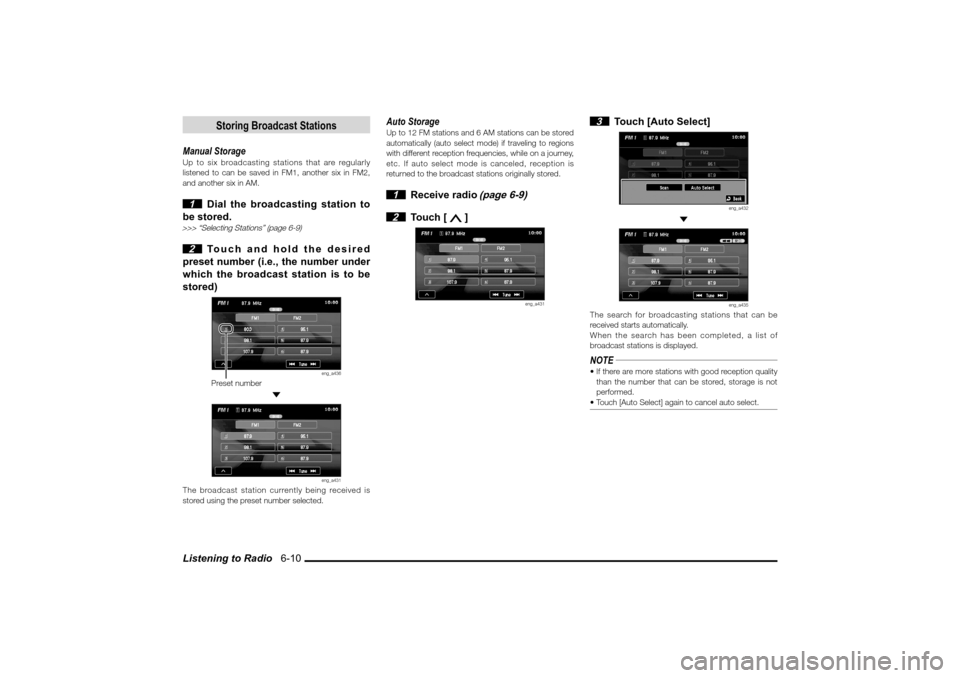

Storing Broadcast Stations
Manual StorageUp to six broadcasting stations that are regularly
listened to can be saved in FM1, another six in FM2,
and another six in AM. 1 Dial the broadcasting station to
be stored.
>>> “Selecting Stations” (page 6-9) 2 Touch and hold the desired
preset number (i.e., the number under
which the broadcast station is to be
stored)
eng_a436
Preset number

eng_a431
The broadcast station currently being received is
stored using the preset number selected.
Auto StorageUp to 12 FM stations and 6 AM stations can be stored
automatically (auto select mode) if traveling to regions
with different reception frequencies, while on a journey,
etc. If auto select mode is canceled, reception is
returned to the broadcast stations originally stored. 1 Receive radio
(page 6-9)
2 Touch [
]
eng_a431
3 Touch [Auto Select]
eng_a432

eng_a435
The search for broadcasting stations that can be
received starts automatically.
When the search has been completed, a list of
broadcast stations is displayed.NOTE If there are more stations with good reception quality
than the number that can be stored, storage is not
performed.
 Touch [Auto Select] again to cancel auto select.








Listening to SIRIUS 6-12
Listening to SIRIUS
Only for vehicles equipped with satellite radio (SIRIUS) tuner
Display Contents
Normal Reception Screen
eng_a437
1) Preset Number
If the channel being received has been preset, the
preset number is displayed.
2) Band
Displays the band which is currently being listened to.3) Band Switching Button
Touch this button to switch bands.
4) TEXT Display
Information about the current channel is displayed.5) Preset Button
The preset number, channel number and channel
name is displayed.
6) [ ]
Touch this button to display the Sub Menu.
7) [Direct] The channel number entered to the screen directly is
displayed.8) [Category]
The category screen is displayed.9) [Text]
This switches the text display.
10) [ Channel], [Channel ]
Moves up and down one channel each time.
Touch and hold one of these buttons to
continuously change the channel. Release the
button to stop on a channel.
11) Incoming Category Name
The name of the category being received is
displayed.
12) Playback Mode

The currently selected playback mode is displayed.13) Incoming Channel and Incoming Channel
Name
The channel and the name of the channel being
received is displayed.
Category List and Channel List
eng_a439eng_a438
1) Category List This displays the category button. Touch the button
to display the channel list.2) Channel List This displays the channel button. Touch the button
to start receiving the relevant channel.3) [CAT-Scan]
This scans the channels in the currently selected
category.
SIRIUS Satellite Radio Inc. “SIRIUS” and related marks
are trademarks of SIRIUS Satellite Radio Inc.
2)
3)4)5)
6) 7) 8) 9) 10)
12) 13)
1)
1)2)3)
11 )









Listening to SIRIUS 6-13
Audio
Selecting Stations
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
NOTE If SIRIUS has already been selected, the band is
switched. 2 Touch either [
Channel] or
[Channel
] to select the channel to
be received
eng_a440

The channels is changed one channel at a time.
Touch and hold one of these buttons to continuously
change the incoming channel. Release the button to
stop on a channel.
Selecting a Category to Be Received
1 Press the [MODE] key, and touch
[SIRIUS]
2 Touch [Category]
eng_a440
The category list is displayed. 3 Touch the category button
eng_a439
The list of channels within the selected category is
displayed. 4 Touch the channel button
eng_a441

The relevant channel is started to be received.
Scanning
It is possible to search for channels that
can be received in the current location.
Scanning ChannelsScan all channels. 1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
2 Touch [
]
eng_a440








Listening to SIRIUS 6-14 2 Touch [Scan]
eng_a442

eng_a437
The search for channels that can be received is started
automatically.
Channels that can be received play for 10 seconds
only, and then the search resumes. 3 Press the [ENT] key
The scan is cancelled, and reception of the current
channel is continued.NOTE Even if [Scan] is touched again, the channel can
continue to be received.
Scanning within CategoriesScan the channels in the currently selected category. 1 Display the channel list
>>> “Selecting a Category to Be Received” (page 6-13) 2 Touch [CAT-Scan]
eng_a441

eng_a438
The search for broadcasting stations that can be
received within the category is started automatically.
Broadcast stations that can be received plays for 10
seconds only, and then the channel search resumes. 3 Press the [ENT] key
The scan is cancelled, and reception of the current
channel is continued.NOTE Even if [CAT-Scan] is touched again, the channel can
continue to be received.
Selecting Channels DirectlyChannels can be selected by entering the channel
number directly. 1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
2 Touch [Direct]
eng_a440
