Trip 9-5
Information
Trip

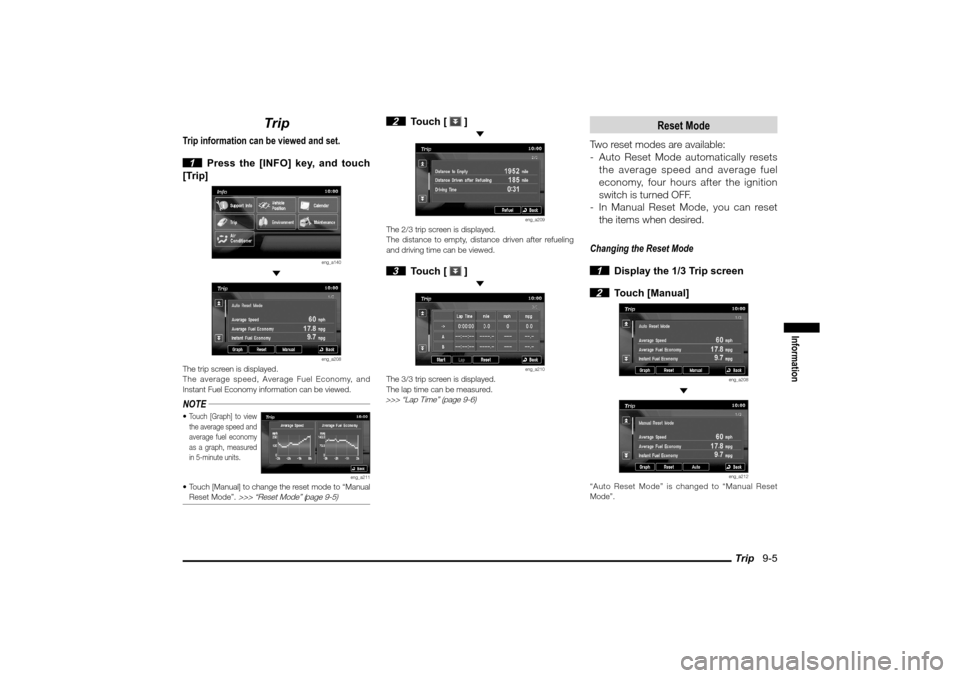

Trip information can be viewed and set.
1 Press the [INFO] key, and touch
[Trip]
eng_a140

eng_a208
The trip screen is displayed.
The average speed, Average Fuel Economy, and
Instant Fuel Economy information can be viewed.NOTE Touch [Graph] to view
the average speed and
average fuel economy
as a graph, measured
in 5-minute units.
eng_a211
 Touch [Manual] to change the reset mode to “Manual
Reset Mode”.
>>> “Reset Mode” (page 9-5)
2 Touch [
]

eng_a209
The 2/3 trip screen is displayed.
The distance to empty, distance driven after refueling
and driving time can be viewed. 3 Touch [
]

eng_a210
The 3/3 trip screen is displayed.
The lap time can be measured. >>> “Lap Time” (page 9-6)
Reset Mode
Two reset modes are available:
- Auto Reset Mode automatically resets
the average speed and average fuel
economy, four hours after the ignition
switch is turned OFF.
- In Manual Reset Mode, you can reset
the items when desired.
Changing the Reset Mode
1 Display the 1/3 Trip screen
2 Touch [Manual]
eng_a208

eng_a212
“Auto Reset Mode” is changed to “Manual Reset
Mode”.










Trip 9-6NOTE Touch [Auto] to return to “Auto Reset Mode”.
 In “Manual Reset Mode” or “Auto Reset Mode”,
touch [Reset] to reset the average speed and
average fuel economy.
Driving Distance and Time
The distance to empty, distance driven
after refueling and driving time can be
viewed on the 2/3 Trip screen.
Distance to EmptyThe displayed distance to empty is calculated from
the current remaining fuel and the recent average fuel
economy.Distance Driven After RefuelingDisplays automatically the distance driven after
refueling.
It is reset when the vehicle is refueled.NOTE If the amount of fuel added is less than approximately
2.6 gallons (10 litres), automatic reset will not be
performed. Press [Refuel] to reset.Driving TimeMeasures the time from when the ignition switch is
turned “ON” to when it is turned “OFF”.
It is reset when the ignition switch is turned from “OFF”
to “ON”.
Lap Time
Time, distance, speed and mileage can be
measured.
1 Display the 3/3 Trip screen
2 Touch [Start]
eng_a210

Total Line
eng_a213
The measurement starts. At this time, the speed and
mileage are being measured, so they are not displayed. 3 Touch [Lap]

eng_a214
The current measurement results are displayed in “A”.
NOTE Touch [Lap] again
and the measurement
results displayed in
“A” are moved to
“B”, and the current
measurement results
are displayed in “A”.
eng_a215
4 Touch [Stop]

eng_a216
The measurements stop and the measurement results
are displayed in the total line.NOTE Touch [Start] to restart the measurements from
where they stopped.
 The measurements stop if the ignition switch is
turned “OFF” during measurement. If this happens,
the measurements restart when the ignition switch is
turned “ON”. 5 Touch [Reset]









Environment 9-8
Environment
The outside air temperature, altitude, and air
pressure can be viewed.
1 Press the [INFO] key, and touch
[Environment]
eng_a140

eng_a218
NOTE The display graph displays the latest information in
5-minute units.
 The units can be changed from Fahrenheit to
Celsius, and from “ft” to “m”. Refer to “Unit” in “System Settings” (page 10-5)
.









Maintenance 9-9
Information
Maintenance
Maintenance timing alerts can be set, such as
for the engine oil and oil filter change.
1 Press the [INFO] key, and touch
[Maintenance]
eng_a140

eng_a220
The maintenance list screen is displayed.NOTE Items that have passed their maintenance timing or
maintenance distance are displayed in a different
color.
Setting the Maintenance Timing
An item can be selected to set the maintenance
timing. 1 On the maintenance screen,
touch the item to be set
eng_a220
The maintenance information screen of the selected
item is displayed.NOTE “Date” displays the date on which the maintenance
was performed.
 “Changed at Odometer” displays the odometer value
at the time of maintenance.
 “Remaining Distance” displays the distance until the
next maintenance timing. 2
Touch [Setup] in the “Maintenance
Fixed Date” settings
eng_a221
NOTE If [USER1], [USER2], or [USER3] has been selected
in Step 1, the item name can be entered by selecting
[Set Name].
 Touch [Default] to return to the factory settings.
 “Maintenance Fixed Date”is used to set the distance
from the performance of maintenance to the time of
the next maintenance.
 “Maintenance Distance” is used to set the number of
months from the performance of maintenance to the
time of the next maintenance. 3 Touch [
] or [ ]to set the next
maintenance date
eng_a222
4 Touch [Set]
The “Maintenance Fixed Date” settings are completed. 5 Touch [Setup] in “Maintenance
Distance”
eng_a221









Air Conditioner 9-11
Information
Air Conditioner
The air conditioner status can be viewed.
1 Press the [INFO] key, and touch
[Air Conditioner]
eng_a140

eng_a203
1) Blower speed indicator
Displayed in 9 levels.
2) Air direction/Outside air intake indicator
3) Auto mode indicator
Displayed when the AUTO mode is operating.
4) Rear window defogger indicatior
Displayed when the rear window defogger is
operating.
5) Air conditioner indicator
Displayed when the air conditioner is operating.
6) Front defroster indicator
Displayed when the windshield defogger is
operating.NOTE When air conditioning operations are performed in the navigation screen display, the display shown below
will appear.
eng_a204
 A short time after air conditioner operations have
been completed, the screen will return to the
navigation display.
1)
2)3) 4) 5) 6)









Mobile Phone 9-12
Mobile Phone
Only for cars equipped with hands-free Bluetooth
®
cellular phone interface systemIt is possible to make and receive phone calls.
For details, refer to the section titled “Features
and controls” in the vehicle owner’s manual.
Making Phone Calls
1 Press the [INFO] key, and touch
[Mobile Phone]
eng_a140

eng_a227
2 Enter the telephone number
eng_a228
NOTE Touch [Redial] to dial again the number previously
dialed.
 Touch [Clear] to delete one character at a time. 3 Touch [Dial]
Receiving Phone Calls
1 When the incoming call screen is
displayed, press the [OFF HOOK] key
eng_a229

eng_a230
Phone plate
The On phone screen is displayed.
NOTE
will be displayed on the current location screen
when a “hands-free Bluetooth
® tcellular phone
interface system” is connected.
 Not displayed in “Turn List” or “Arrow Guide” mode,
or when an intersection information map is shown.
 Touch
to display the phone plate.









Other Info 9-13
Information
Other Info
System information and information about the
current location can be viewed.
Support Info
System information for this navigation
system can be viewed.
1 Press the [INFO] key, and touch
[Support Info]
eng_a140

eng_a159
The support info screen is displayed.
SW Version The software version of the system
is displayed.
MAP Version
The map data version is displayed.
CDDB VersionThe database version of the title
information is displayed.
About version updates To update the map data version, insert the DVD
containing the new map data. A screen for selecting
whether or not data should be automatically updated
will appear.
 Insert the version update key, and follow the
procedures on the screen.
 For the operating procedure, please refer to the
instruction manual included with the MAP Update
DVD (sold separately). (Contact an authorized
Mitsubishi Motors dealer for assistance.)
Vehicle Position
The name of the current location, latitude
and longitude, and the number of GPS
satellites being received can be viewed.
1 Press the [INFO] key, and touch
[Vehicle Position]
eng_a140

eng_a160
The vehicle screen is displayed.NOTE Touch [North-Up] to switch to displaying north at the
top of the map.
 Touch [Heading-Up] to switch to displaying the
vehicle direction at the top of the map.
 Touch [ ], [ ], [ ] and [ ] to view the sky maps
by rotating or changing the angle.









Adjusting the Screen 10-1
Settings
Setting
Adjusting the Screen
Adjustments related to the screen display.
Display Off
Turns OFF the monitor display.
1 Press the [SET] key, and touch
[Display Off]
eng_a018-2

eng_a161
The monitor display is turned OFF.NOTE At this time, although the navigation voice guidance
will be switched off, the AV audio will remain on. To turn ON the display again, either touch the
screen, or press any key.
Picture Control
Adjustments related to the picture quality.
1 Press the [SET] key, and touch
[Picture Control]
eng_a018-2
2
Touch [ - ] or [ + ] for “Brightness”,
“Contrast”, or “Black Level” to adjust
eng_a162
NOTE “Brightness” can be adjusted with headlights ON and
OFF separately. If adjusting the
picture quality
while a DVD image
is displayed,
“Tint” and “Color
Intensity” can also
be adjusted.
eng_a231
3 Touch [Back]
The picture quality adjustment is completed.
Screen Size
Switches between Screen Size and other
displays for DVD image etc..
1 Press the [SET] key, and touch
[Screen Size]
eng_a163-2
2
Touch one of the following buttons
eng_a232
[Normal] Displays the screen in normal 4:3 aspect
ratio.
[Full] Extends the display evenly both left and
right in wide mode.
[Wide]Extends the left and right parts only of
the display while leaving the center as is
in wide mode.
[Zoom] Magni es the image displayed using 4:3
aspect ratio. (I.e., the top and bottom
are out of frame.) 3 Touch [Back]
Screen Size switching is completed.
