2010 MERCEDES-BENZ S450 HYBRID Owner's Manual

Enviromental protection
Have the high-voltage battery disposed of in
an environment-friendly manner by an
authorized Mercedes-Benz Center.GWarning!
The HYBRID system is energized by high
voltage. The components of the HYBRID
system are indicated by yellow warning
labels. High-voltage cables are orange-
colored.
You could be seriously or even fatally injured
when you
R tamper with components or high-voltage
cables of the HYBRID system
R touch components or high-voltage cables
of the HYBRID system after the vehicle has
been involved in an accident
R touch damaged components of the HYBRID
system
Do not remove the high-voltage battery of the
HYBRID system. Have the high-voltage
battery disposed of in an environment-
friendly manner by an authorized Mercedes-
Benz Center.
i For more information on the high-voltage
battery, see ( Y page 26).
Operating safety
GWarning!
When your vehicle is in electric drive mode the
engine produces significantly lower noise
levels. Other motorists or pedestriants,
especially those who are visually or hearing
impaired, may be unable to hear your vehicle
while it is in motion. This is particularly true
when driving at lower speeds and during
parking maneuvers. At all times, it is the
responsibility of the driver to be aware of their
surroundings, especially in these low speed
situtations. Otherwise other road users could
be seriously or fatally injured.GWarning!
Have all work on the vehicle, especially safety-
related work, work on safety-relevant
systems, work on the HYBRID system as well
as maintenance work, carried out by an
authorized Mercedes-Benz Center.
i For more information on operating safety,
refer to the Operator’s Manual.
Vehicle modifications
GWarning!
Improper work on the HYBRID system or
modifications of the vehicle can cause vehicle
systems to cease functioning properly. You
could lose control over the vehicle and cause
an accident.
Therefore, have work on the HYBRID system
and modifications of the vehicle such as
installation or modification of vehicle
equipment carried out by an authorized
Mercedes-Benz Center
i For more information on operating safety,
refer to the Operator’s Manual.
Trailer hitch
! Retrofitting the vehicle with a trailer hitch
is not permissible. Damage caused by
retrofitting the vehicle with a trailer hitch is
not covered by the Mercedes-Benz Limited
Warranty.
Introduction7221_ZA; 1; 21, en-USd2ureepe,Version: 2.11.8.12009-05-13T13:56:31+02:00 - Seite 7Z

Proper use of the vehicle
Proper use of the vehicle requires that you are
familiar with the following information and
rules:
R the safety precautions in this manual
R the “Technical data” section in this manual
R the Operator's Manual
R traffic rules and regulations
R motor vehicle laws and safety standards8Introduction221_ZA; 1; 21, en-USd2ureepe,Version: 2.11.8.12009-05-13T13:56:31+02:00 - Seite 8

Safety notes
Warning labels
GWarning!
Various warning labels are attached to your
vehicle. These warning labels are intended to
make you and others aware of various risks.
Do not remove any of these warning labels
unless explicitly instructed to do so by
information on the label itself. Removing
warning labels may cause you and others to
be unaware of certain risks which may result
in an accident and/or personal injury.
Danger of electric shock
The components of the HYBRID system are
indicated by yellow warning labels to make
you aware of high voltage. High-voltage
cables are orange-colored.
GWarning!
The HYBRID system is energized by high
voltage.
You could be seriously or even fatally injured
when you
Rtamper with components or high-voltage
cables of the HYBRID system
Rtouch components or high-voltage cables
of the HYBRID system after the vehicle has
been involved in an accident
Rtouch damaged components of the HYBRID
system
Do not remove covers of components of the
HYBRID system that carry the yellow warning
label. Do not tamper with any components or
with the orange high-voltage cables of the
HYBRID system.
Engine compartment
Before opening the hood do the following:
XEngage the electronic parking brake.XShift the automatic transmission into park
position P.
XSwitch off the ignition.
The green or yellow READY indicator lamp
(Y page 16) in the instrument cluster
goes out.
XRemove the SmartKey from the starter
switch or remove the SmartKey with
KEYLESS-GO from the vehicle.
XObserve the safety notes on the danger of
electric shock in this manual.
XObserve the safety notes regarding the
hood in the Operator’s Manual.
Safety and security9221_ZA; 1; 21, en-USd2ureepe,Version: 2.11.8.12009-05-13T13:56:31+02:00 - Seite 9Z

Automatic HYBRID system switch-off
The HYBRID system switches off
automatically if
R the Supplemental Restraint System (SRS)
activates the restraint systems in an
accident
R a short circuit in the HYBRID system is
detected
R a plug connection of the HYBRID system is
disconnected
These measures help to prevent you from
coming into contact with high voltage.
High-voltage battery
GWarning!
The high-voltage battery of the HYBRID
system is located in the engine compartment
on the passenger side of the front wall. When
the pressure inside the high-voltage battery
exceeds a certain value, for example in case
of a vehicle fire, inflammable gas will escape
via a duct. The inflammable gas escapes to an
area close to the passenger-side front wheel.
This prevents the high-voltage battery from
exploding.
Stay away from this area of the vehicle.
Driving safety systems
ABS (Antilock Brake System)
Braking
When the ABS engages during braking, the
ABS/ESC warning lamp ÷ in the
instrument cluster ( Y page 14) flashes. The
brake pedal will pulsate only in certain
situations, for example on a slippery road.
i For more information on the ABS, refer to
the Operator's Manual.
RBS (Recuperative Brake System)
The RBS supports you while braking by
electronic controlled brake boost and allows
for regeneration of braking energy. RBS must
be activated when the vehicle is parked each
time before driving off.XMake sure the automatic transmission is in
park position P.XSwitch on the ignition.XApply the brake pedal fully and release it.
The RBS is activated.
While you activate the RBS, less brake pedal
pressure than usual is required and the brake
pedal travel is longer. When you release the
brake pedal, the brake pedal travel is as usual
again.
For more information on the RBS, see
( Y page 12).
GWarning!
If the RBS malfunctions, the yellow RBS
warning lamp é and/or the red brake
warning lamp $ (USA only) or J
(Canada only) in the instrument cluster comes
on. Read and observe the messages in the
multifunction display that may appear. Find
the subentry “Malfunction” of the entry “RBS
(Recuperative Brake System)” in the index of
this manual and follow the steps described in
that section.
GWarning!
If the RBS malfunctions, less brake pedal
pressure than usual may be required and the
brake pedal travel may be longer. The brake
system still functions with full effectiveness.
If required, you have to depress the brake
pedal further. Adapt your speed and driving
accordingly.
GWarning!
Have work on the RBS, e.g. brake pad
replacement, carried out by qualified
technicians only.
10Safety and security221_ZA; 1; 21, en-USd2ureepe,Version: 2.11.8.12009-05-13T13:56:31+02:00 - Seite 10

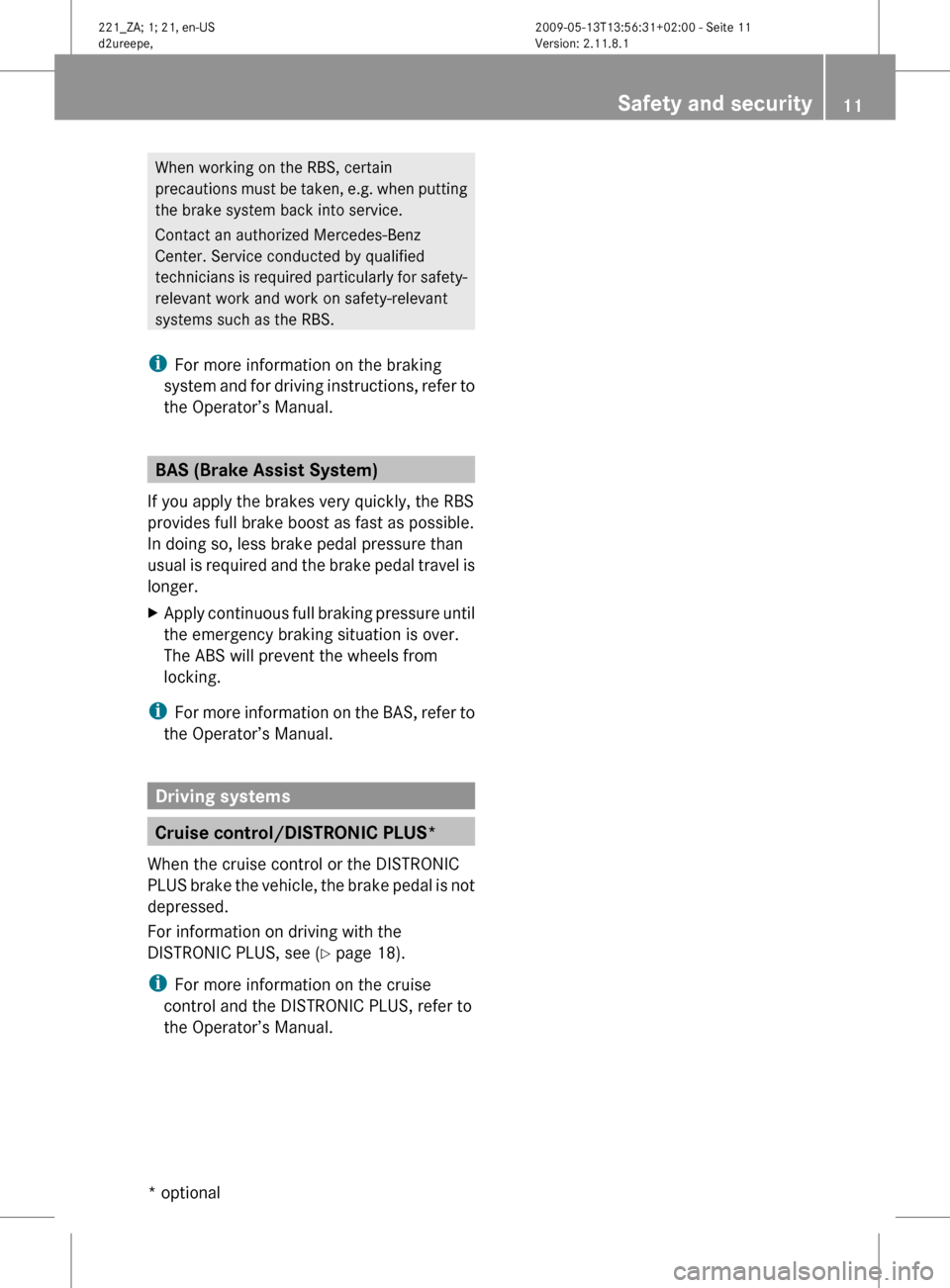

When working on the RBS, certain
precautions must be taken, e.g. when putting
the brake system back into service.
Contact an authorized Mercedes-Benz
Center. Service conducted by qualified
technicians is required particularly for safety-
relevant work and work on safety-relevant
systems such as the RBS.
i For more information on the braking
system and for driving instructions, refer to
the Operator’s Manual.
BAS (Brake Assist System)
If you apply the brakes very quickly, the RBS
provides full brake boost as fast as possible.
In doing so, less brake pedal pressure than
usual is required and the brake pedal travel is
longer.
XApply continuous full braking pressure until
the emergency braking situation is over.
The ABS will prevent the wheels from
locking.
i For more information on the BAS, refer to
the Operator’s Manual.
Driving systems
Cruise control/DISTRONIC PLUS*
When the cruise control or the DISTRONIC
PLUS brake the vehicle, the brake pedal is not
depressed.
For information on driving with the
DISTRONIC PLUS, see ( Y page 18).
i For more information on the cruise
control and the DISTRONIC PLUS, refer to
the Operator’s Manual.
Safety and security11* optional221_ZA; 1; 21, en-USd2ureepe,Version: 2.11.8.12009-05-13T13:56:31+02:00 - Seite 11Z

Introduction
The HYBRID technology combines an
economical combustion engine with a
powerful electric drive. The HYBRID system
selects the most efficient operating mode for
each driving situation automatically. You can
drive the vehicle in the usual manner.
The HYBRID system turns the combustion
engine off when stopping as often as possible
in order to save fuel. You will just have to
continue to keep the brake pedal depressed
or to activate the HOLD function. Thus, the
engine should normally never run at idle
speed.
When you remove the foot from the brake
pedal or accelerate when the HOLD function
is activated, the combustion engine starts
automatically. You can drive off as usual.GWarning!
When the green READY indicator lamp in the
instrument cluster is on while the combustion
engine is off, the combustion engine has been
turned off automatically. All vehicle systems
continue to be active. When you open the
driver’s door, unbuckle the seat belt, or take
your foot off of the brake pedal, the
combustion engine starts automatically. The
vehicle could start to drive off. An accident
causing serious or even fatal personal injury
to you and/or others could be the result.
Therefore, always do the following before
leaving the vehicle:
R Engage the electronic parking brake.
R Shift the automatic transmission into park
position P.
R Switch off the ignition. The green or yellow
READY indicator lamp goes out.
Driving off and accelerating consumes the
most energy. Thus, the electric drive supports
the combustion engine with the energy stored
in the high-voltage battery. The energy is also
used for semi-electrical driving, for operation
of the electric compressor of the cooling
system and to support the 12-volt on-board
power supply. The hybrid drive thereby
contributes significantly to the fuel economy
of your vehicle.
For information on driving and parking, see
( Y page 16).

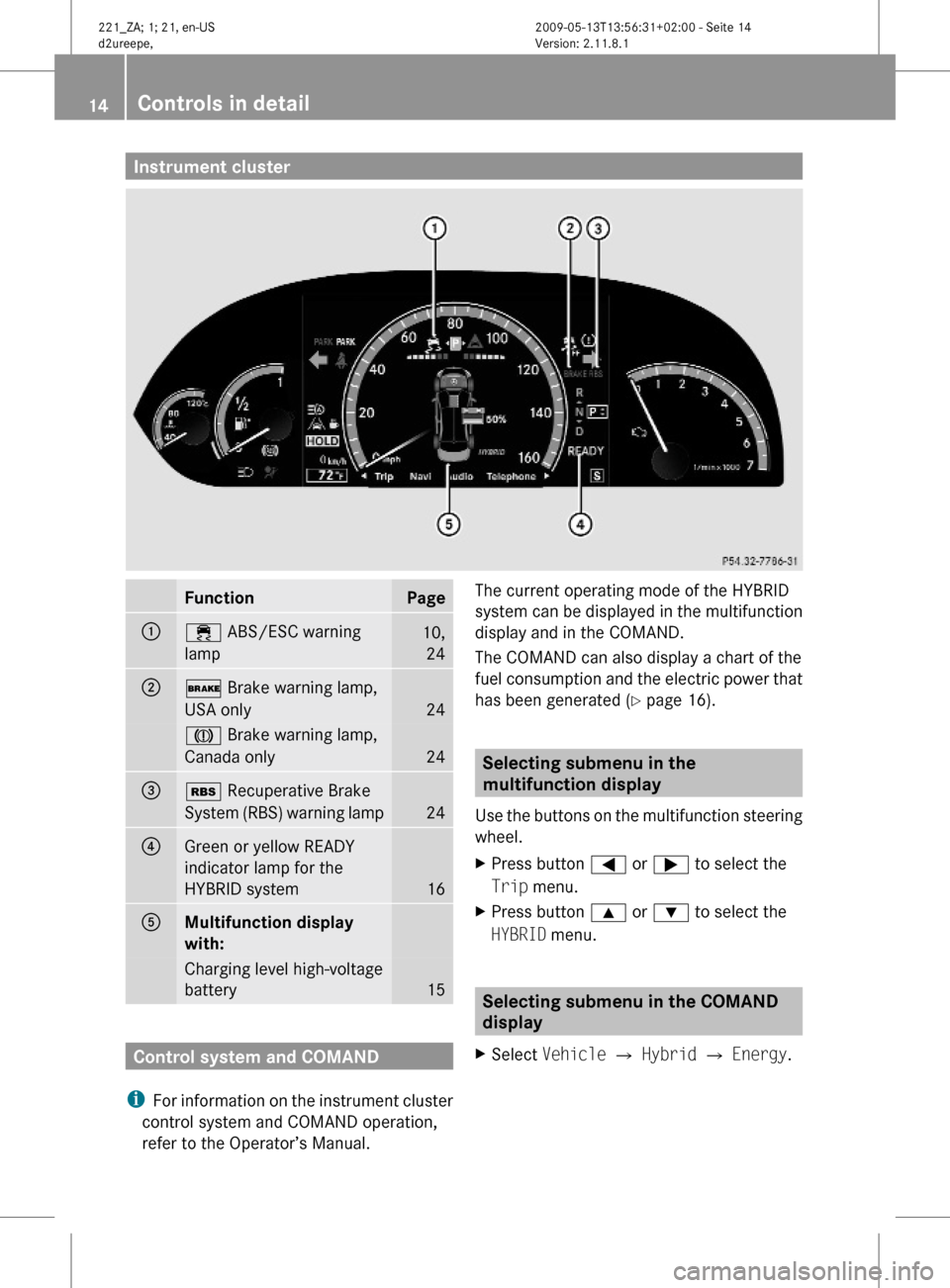

The current operating mode of the HYBRID
system can be displayed in the multifunction
display and in the COMAND display
( Y page 14).
The COMAND can also display a chart of the
fuel consumption and the electric power that
has been generated ( Y page 16).
RBS
With the RBS activated ( Y page 10), the
electric drive functions as a generator when
coasting and braking. HYBRID converts the
energy of movement into electric power and
stores it in the high-voltage battery. The high-
voltage battery does not require additional
charging by other means.
12Controls in detail221_ZA; 1; 21, en-USd2ureepe,Version: 2.11.8.12009-05-13T13:56:31+02:00 - Seite 12

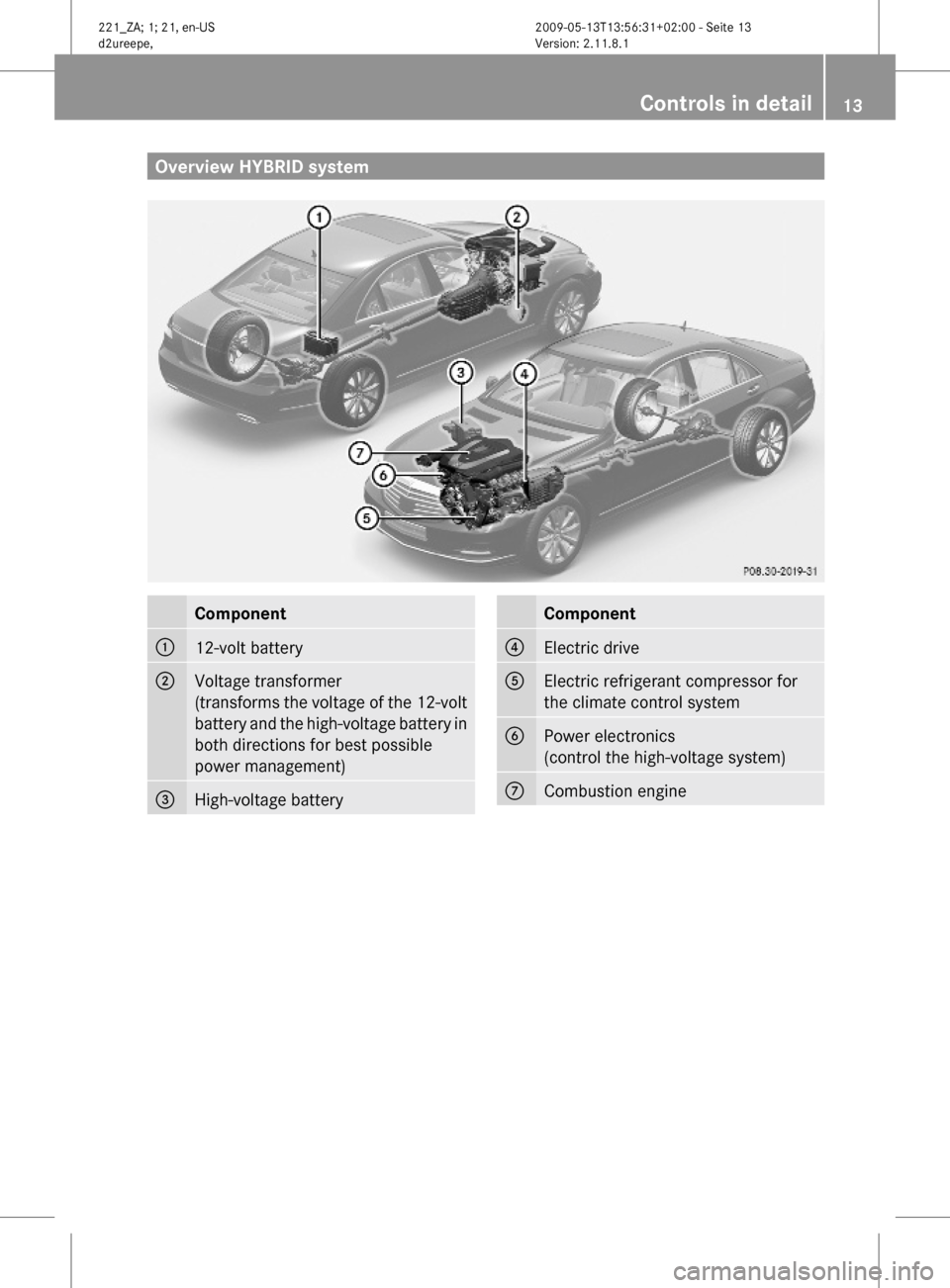

Overview HYBRID systemComponent:12-volt battery;Voltage transformer
(transforms the voltage of the 12-volt
battery and the high-voltage battery in
both directions for best possible
power management)
=High-voltage batteryComponent?Electric driveAElectric refrigerant compressor for
the climate control system
BPower electronics
(control the high-voltage system)
CCombustion engineControls in detail13221_ZA; 1; 21, en-USd2ureepe,Version: 2.11.8.12009-05-13T13:56:31+02:00 - Seite 13Z

Instrument clusterFunctionPage:÷ ABS/ESC warning
lamp
10,
24
;$ Brake warning lamp,
USA only24
J Brake warning lamp,
Canada only24
=é Recuperative Brake
System (RBS) warning lamp24
?Green or yellow READY
indicator lamp for the
HYBRID system16
AMultifunction display
with:
Charging level high-voltage
battery15
Control system and COMAND
iFor information on the instrument cluster
control system and COMAND operation,
refer to the Operator’s Manual.
The current operating mode of the HYBRID
system can be displayed in the multifunction
display and in the COMAND.
The COMAND can also display a chart of the
fuel consumption and the electric power that
has been generated (Y page 16).
Selecting submenu in the
multifunction display
Use the buttons on the multifunction steering
wheel.
XPress button = or ; to select the
Trip menu.
XPress button 9 or : to select the
HYBRID menu.
Selecting submenu in the COMAND
display
XSelect Vehicle Q Hybrid Q Energy.14Controls in detail221_ZA; 1; 21, en-USd2ureepe,Version: 2.11.8.12009-05-13T13:56:31+02:00 - Seite 14
