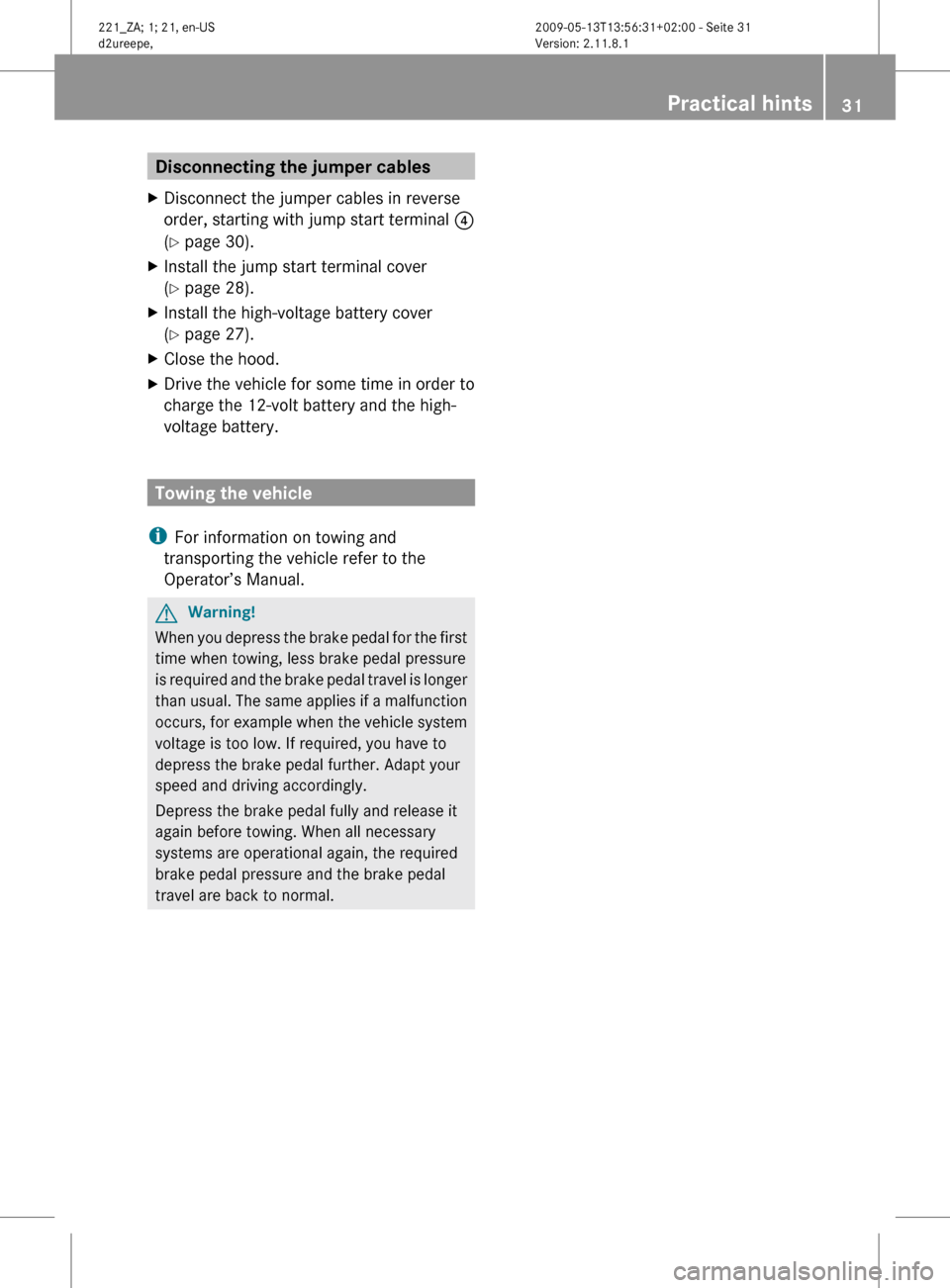

Disconnecting the jumper cablesXDisconnect the jumper cables in reverse
order, starting with jump start terminal 4
( Y page 30).XInstall the jump start terminal cover
( Y page 28).XInstall the high-voltage battery cover
( Y page 27).XClose the hood.XDrive the vehicle for some time in order to
charge the 12-volt battery and the high-
voltage battery.
Towing the vehicle
i For information on towing and
transporting the vehicle refer to the
Operator’s Manual.
GWarning!
When you depress the brake pedal for the first
time when towing, less brake pedal pressure
is required and the brake pedal travel is longer
than usual. The same applies if a malfunction
occurs, for example when the vehicle system
voltage is too low. If required, you have to
depress the brake pedal further. Adapt your
speed and driving accordingly.
Depress the brake pedal fully and release it
again before towing. When all necessary
systems are operational again, the required
brake pedal pressure and the brake pedal
travel are back to normal.
Practical hints31221_ZA; 1; 21, en-USd2ureepe,Version: 2.11.8.12009-05-13T13:56:31+02:00 - Seite 31Z

Identification labels
i For more information on the identification
labels, refer to the Operator’s Manual.
Electric drive
The engine number is engraved on the
housing of the electric drive. For more
information contact an authorized Mercedes-
Benz Center.
Vehicle specification S 400 HYBRID
(221.195)
The quoted data apply only to the standard
vehicle. Contact an authorized Mercedes-
Benz Center for the corresponding data of all
special bodies and special equipment.
Engine S 400 HYBRIDEngine, type272Mode of operation4-stroke engine,
gasoline injectionNo. of cylinders6Bore3.66 in (92.90 mm)Stroke3.39 in (86.00 mm)Total piston
displacement213.5 cu in
(3 498 cm 3
)Compression
ratio11.7:1Output acc. to
SAE J 1349 1275 hp/6
000 rpm
(205 kW/6 000 rpm)Maximum torque
acc. to SAE J 1349258 lb-ft/
3 000 - 5 500
(350 Nm/
3 000 - 5 500 rpm)Engine S 400 HYBRIDMaximum engine
speed6 500 rpmFiring order1-4-3-6-2-5Poly-V-belt2 404 mmElectric drive S 400 HYBRIDTypePermanent-field
synchronous motorOutput20 hp (15 kW)Maximum
starting torque160 NmElectrical system S 400 HYBRIDAlternator14 V/180 ABattery12 V/95 AhSpark plugs, typeBosch Y 7 MPP33Spark plugs,
electrode gap0.031 in (0.8 mm)Spark plugs,
tightening torque15 - 18 lb-ft
(20 - 25 Nm)Main dimensions S 400 HYBRIDOverall vehicle
length206.7 in (5 250 mm)Overall vehicle
width 283.5 in (2
120 mm)Overall vehicle
height58.2 in (1 479 mm)Wheelbase124.6 in (3 165 mm)Track, front63.0 in (1 600 mm)1
Premium fuel required. Performance may vary with fuel octane rating.
2 Exterior rear view mirrors folded out.32Technical data221_ZA; 1; 21, en-USd2ureepe,Version: 2.11.8.12009-05-13T13:56:31+02:00 - Seite 32

Main dimensions S 400 HYBRIDTrack, rear63.2 in (1 606 mm)Turning circle40.0 ft (12.2 m)Weights S 400 HYBRIDRoof loadmax. 220 lb (100 kg)Trunk loadmax. 220 lb (100 kg)
Rims and tires
Same size tires
S 400 HYBRID18" wheelsRims (light alloy)
Wheel offset8.5 J x 18 H2
1.69 in (43 mm)All-season tires 3255/45 R18 99H M+SWinter tires3,4,5255/45 R18 99V M+S
iS 400 HYBRID19" wheelsRims (light alloy)
Wheel offset8.5 J x 19 H2
1.69 in (43 mm)Winter tires 3,4,5255/40 R19 100V XL (Extra Load) M+S
i
Mixed size tires
S 400 HYBRID19" wheelsFront axleRims (light alloy)
Wheel offset8.5 J x 19 H2
1.69 in (43 mm)All-season tires 3255/40 R19 100V XL (Extra Load)
M+SRear axleRims (light alloy)
Wheel offset9.5 J x 19 H2
1.69 in (43 mm)All-season tires 3,6275/40 R19 101V M+S3
Radial-ply tires.
4 For use with snow chains contact an authorized Mercedes-Benz Center.
5 Not available as factory equipment.
6 Must not be used with snow chains.Technical data33221_ZA; 1; 21, en-USd2ureepe,Version: 2.11.8.12009-05-13T13:56:31+02:00 - Seite 33Z

S 400 HYBRID719" wheelsFront axleAMG rims (light alloy)
Wheel offset8.5 J x 19 H2
1.69 in (43 mm)All-season tires 3255/40 R19 100V XL (Extra Load)
M+SRear axleAMG rims (light alloy)
Wheel offset9.5 J x 19 H2
1.69 in (43 mm)All-season tires 3,6275/40 R19 101V M+S
Spare wheel
S 400 HYBRIDRim (steel)4.5 B x 19 H2Wheel offset1.38 in (35 mm)Minispare tire6T 155/70 R19 113MRecommended tire inflation pressure61 psi (4.2 bar)Capacities
Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by Mercedes-
Benz.
For information on tested and approved
products, contact an authorized Mercedes-
Benz Center or visit www.mbusa.com (USA
only).GWarning!
Comply with all valid regulations with respect
to handling, storing, and disposing of service
fluids. Otherwise you could endanger persons
or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct contact
with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.7 Vehicles with AMG Sport Package.
3 Radial-ply tires.
6 Must not be used with snow chains.34Technical data221_ZA; 1; 21, en-USd2ureepe,Version: 2.11.8.12009-05-13T13:56:31+02:00 - Seite 34

Model
S 400 HYBRIDCapacityFuels, coolants,
lubricants, etc.Engine with oil filter8.5 US qt (8.0 l)Approved engine
oilsAutomatic
transmission9.8 US qt (9.3 l)MB Automatic
Transmission FluidRear axle1.2 US qt (1.1 l)Hypoid gear oilPower steeringapprox. 1.1 US qt (1.0 l)MB Power Steering
Fluid or approved
Dexron III ATFBrake system0.63 US qt (0.6 l)MB Brake Fluid
(DOT 4+)Cooling systemapprox. 11.6 US qt 11.0 l)MB 325.0
Anticorrosion/
AntifreezeFuel tank23.8 US gal (90.0 l)Premium unleaded
gasoline (Minimum
Posted Octane 91
[Avg. of
96 RON/86 MON])Fuel tank reserveapprox. 2.9 US gal (11.0 l)Air conditioning
system—R134a refrigerant
and special
PAG lubricant oil
(never R 12)Washer system and
headlamp cleaning
system6.9 US qt (6.5 l)MB Windshield
Washer
Concentrate 8
, see
Operator's Manual
Washer fluid mixing
ratio, see Operator's
Manual8 Mixed with water or commercially available premixed washer solvent/antifreeze.Technical data35221_ZA; 1; 21, en-USd2ureepe,Version: 2.11.8.12009-05-13T13:56:31+02:00 - Seite 35Z

Approved engine oils
Use the table below to determine the
MB sheet number.
Model
S 400 HYBRIDEngine,
typeMB
sheet
number272229.5
i MB sheet numbers are printed on the
outside of oil containers.
i For more information on approved engine
oils, refer to the Operator's Manual.
Coolants
The engine coolant is a mixture of water and
anticorrosion/antifreeze.
The cooling system was filled at the factory
with a coolant providing freeze protection to
approximately -35‡ (-37†) and corrosion
protection.
Model
S 400 HYBRIDApproximate freeze protection-35‡ (-37†)-49‡ (-45†)Cooling system5.0 US qt (4.75 l)5.5 US qt (5.2 l)! Add premixed coolant solution only.
Adding water and MB 325.0 Anticorrosion/
Antifreeze separately from each other,
could cause engine damage not covered by
the Mercedes-Benz Limited Warranty.
i For more information on coolants, refer to
the Operator's Manual.36Technical data221_ZA; 1; 21, en-USd2ureepe,Version: 2.11.8.12009-05-13T13:56:31+02:00 - Seite 36

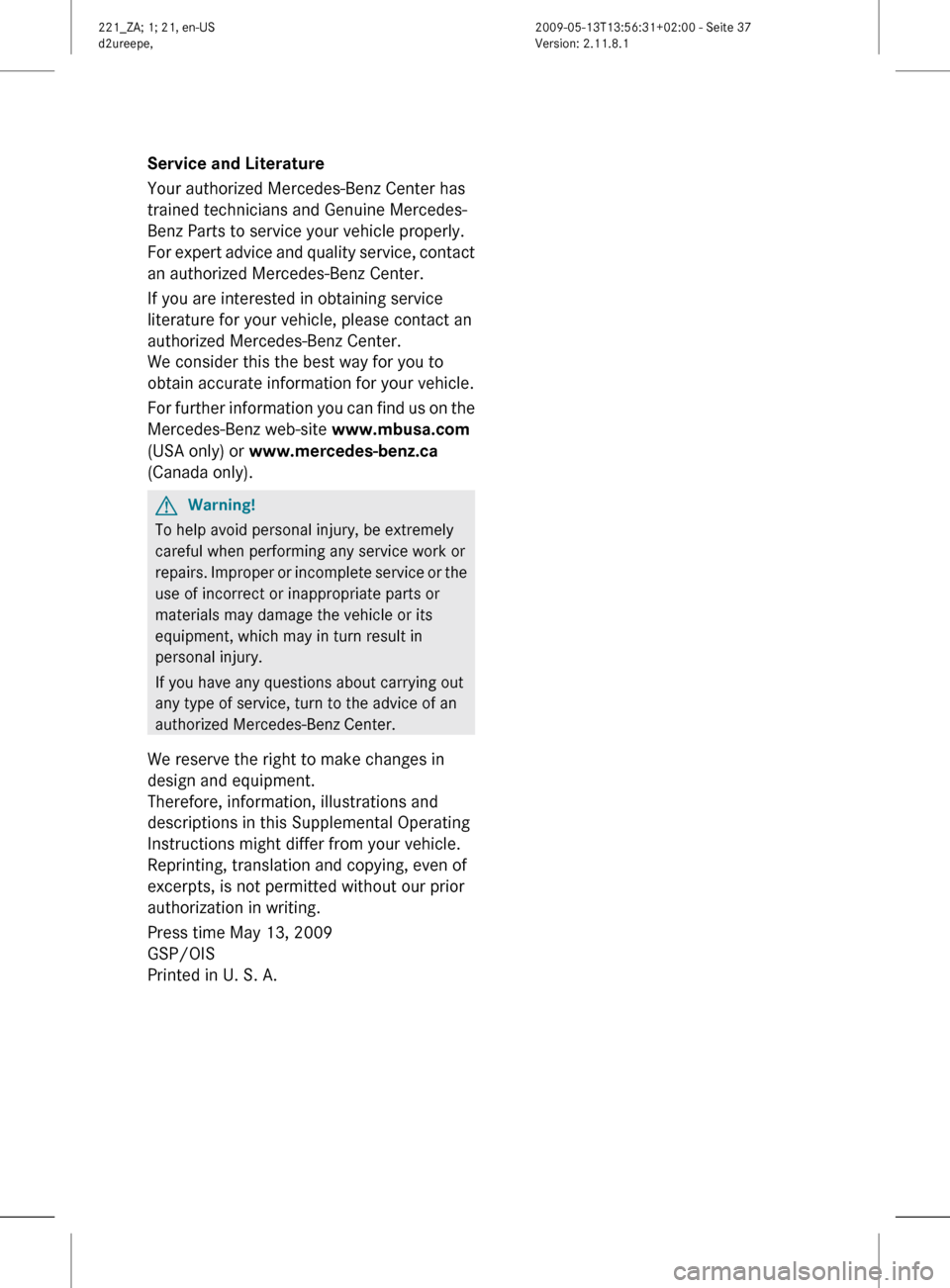

Service and Literature
Your authorized Mercedes-Benz Center has
trained technicians and Genuine Mercedes-
Benz Parts to service your vehicle properly.
For expert advice and quality service, contact
an authorized Mercedes-Benz Center.
If you are interested in obtaining service
literature for your vehicle, please contact an
authorized Mercedes-Benz Center.
We consider this the best way for you to
obtain accurate information for your vehicle.
For further information you can find us on the
Mercedes-Benz web-site www.mbusa.com
(USA only) or www.mercedes-benz.ca
(Canada only).GWarning!
To help avoid personal injury, be extremely
careful when performing any service work or
repairs. Improper or incomplete service or the
use of incorrect or inappropriate parts or
materials may damage the vehicle or its
equipment, which may in turn result in
personal injury.
If you have any questions about carrying out
any type of service, turn to the advice of an
authorized Mercedes-Benz Center.
We reserve the right to make changes in
design and equipment.
Therefore, information, illustrations and
descriptions in this Supplemental Operating
Instructions might differ from your vehicle.
Reprinting, translation and copying, even of
excerpts, is not permitted without our prior
authorization in writing.
Press time May 13, 2009
GSP/OIS
Printed in U. S. A.
