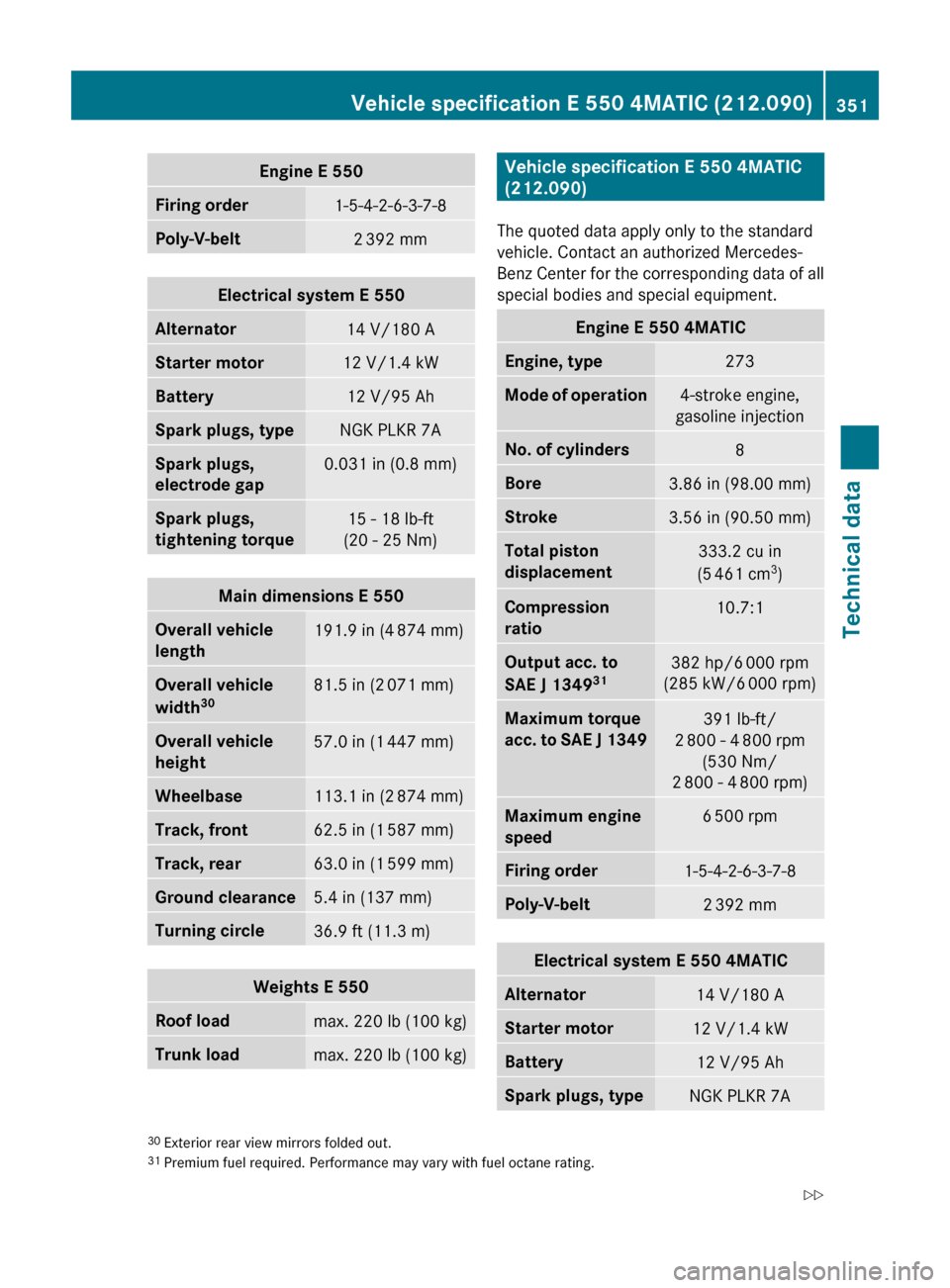

Engine E 550Firing order1-5-4-2-6-3-7-8Poly-V-belt2 392 mmElectrical system E 550Alternator14 V/180 AStarter motor12 V/1.4 kWBattery12 V/95 AhSpark plugs, typeNGK PLKR 7ASpark plugs,
electrode gap0.031 in (0.8 mm)Spark plugs,
tightening torque15 - 18 lb-ft
(20 - 25 Nm)Main dimensions E 550Overall vehicle
length191.9 in (4 874 mm)Overall vehicle
width 3081.5 in (2
071 mm)Overall vehicle
height57.0 in (1 447 mm)Wheelbase113.1 in (2 874 mm)Track, front62.5 in (1 587 mm)Track, rear63.0 in (1 599 mm)Ground clearance5.4 in (137 mm)Turning circle36.9 ft (11.3 m)Weights E 550Roof loadmax. 220 lb (100 kg)Trunk loadmax. 220 lb (100 kg)Vehicle specification E 550 4MATIC
(212.090)
The quoted data apply only to the standard
vehicle. Contact an authorized Mercedes-
Benz Center for the corresponding data of all
special bodies and special equipment.Engine E 550 4MATICEngine, type273Mode of operation4-stroke engine,
gasoline injectionNo. of cylinders8Bore3.86 in (98.00 mm)Stroke3.56 in (90.50 mm)Total piston
displacement333.2 cu in
(5 461 cm 3
)Compression
ratio10.7:1Output acc. to
SAE J 1349 31382 hp/6
000 rpm
(285 kW/6 000 rpm)Maximum torque
acc. to SAE J 1349391 lb-ft/
2 800 - 4 800 rpm
(530 Nm/
2 800 - 4 800 rpm)Maximum engine
speed6 500 rpmFiring order1-5-4-2-6-3-7-8Poly-V-belt2 392 mmElectrical system E 550 4MATICAlternator14 V/180 AStarter motor12 V/1.4 kWBattery12 V/95 AhSpark plugs, typeNGK PLKR 7A30
Exterior rear view mirrors folded out.
31 Premium fuel required. Performance may vary with fuel octane rating.Vehicle specification E 550 4MATIC (212.090)351Technical data212_AKB; 2; 41, en-USd2ureepe,Version: 2.11.8.12009-07-17T09:14:21+02:00 - Seite 351Z

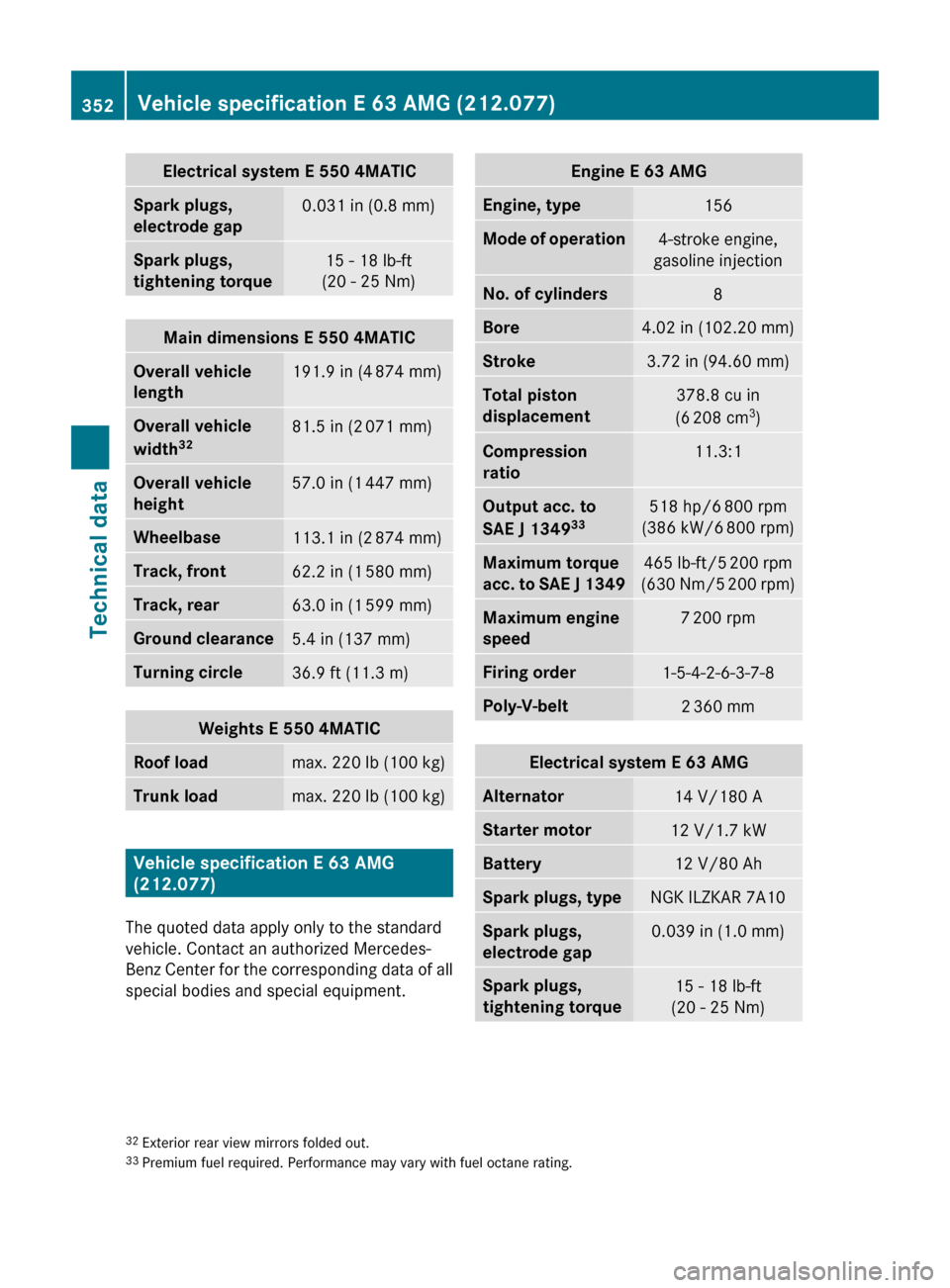

Electrical system E 550 4MATICSpark plugs,
electrode gap0.031 in (0.8 mm)Spark plugs,
tightening torque15 - 18 lb-ft
(20 - 25 Nm)Main dimensions E 550 4MATICOverall vehicle
length191.9 in (4 874 mm)Overall vehicle
width 3281.5 in (2
071 mm)Overall vehicle
height57.0 in (1 447 mm)Wheelbase113.1 in (2 874 mm)Track, front62.2 in (1 580 mm)Track, rear63.0 in (1 599 mm)Ground clearance5.4 in (137 mm)Turning circle36.9 ft (11.3 m)Weights E 550 4MATICRoof loadmax. 220 lb (100 kg)Trunk loadmax. 220 lb (100 kg)
Vehicle specification E 63 AMG
(212.077)
The quoted data apply only to the standard
vehicle. Contact an authorized Mercedes-
Benz Center for the corresponding data of all
special bodies and special equipment.
Engine E 63 AMGEngine, type156Mode of operation4-stroke engine,
gasoline injectionNo. of cylinders8Bore4.02 in (102.20 mm)Stroke3.72 in (94.60 mm)Total piston
displacement378.8 cu in
(6 208 cm 3
)Compression
ratio11.3:1Output acc. to
SAE J 1349 33518 hp/6
800 rpm
(386 kW/6 800 rpm)Maximum torque
acc. to SAE J 1349465 lb-ft/5 200 rpm
( 630 Nm/5 200 rpm)Maximum engine
speed7 200 rpmFiring order1-5-4-2-6-3-7-8Poly-V-belt2 360 mmElectrical system E 63 AMGAlternator14 V/180 AStarter motor12 V/1.7 kWBattery12 V/80 AhSpark plugs, typeNGK ILZKAR 7A10Spark plugs,
electrode gap0.039 in (1.0 mm)Spark plugs,
tightening torque15 - 18 lb-ft
(20 - 25 Nm)32 Exterior rear view mirrors folded out.
33 Premium fuel required. Performance may vary with fuel octane rating.352Vehicle specification E 63 AMG (212.077)Technical data
212_AKB; 2; 41, en-USd2ureepe,Version: 2.11.8.12009-07-17T09:14:21+02:00 - Seite 352

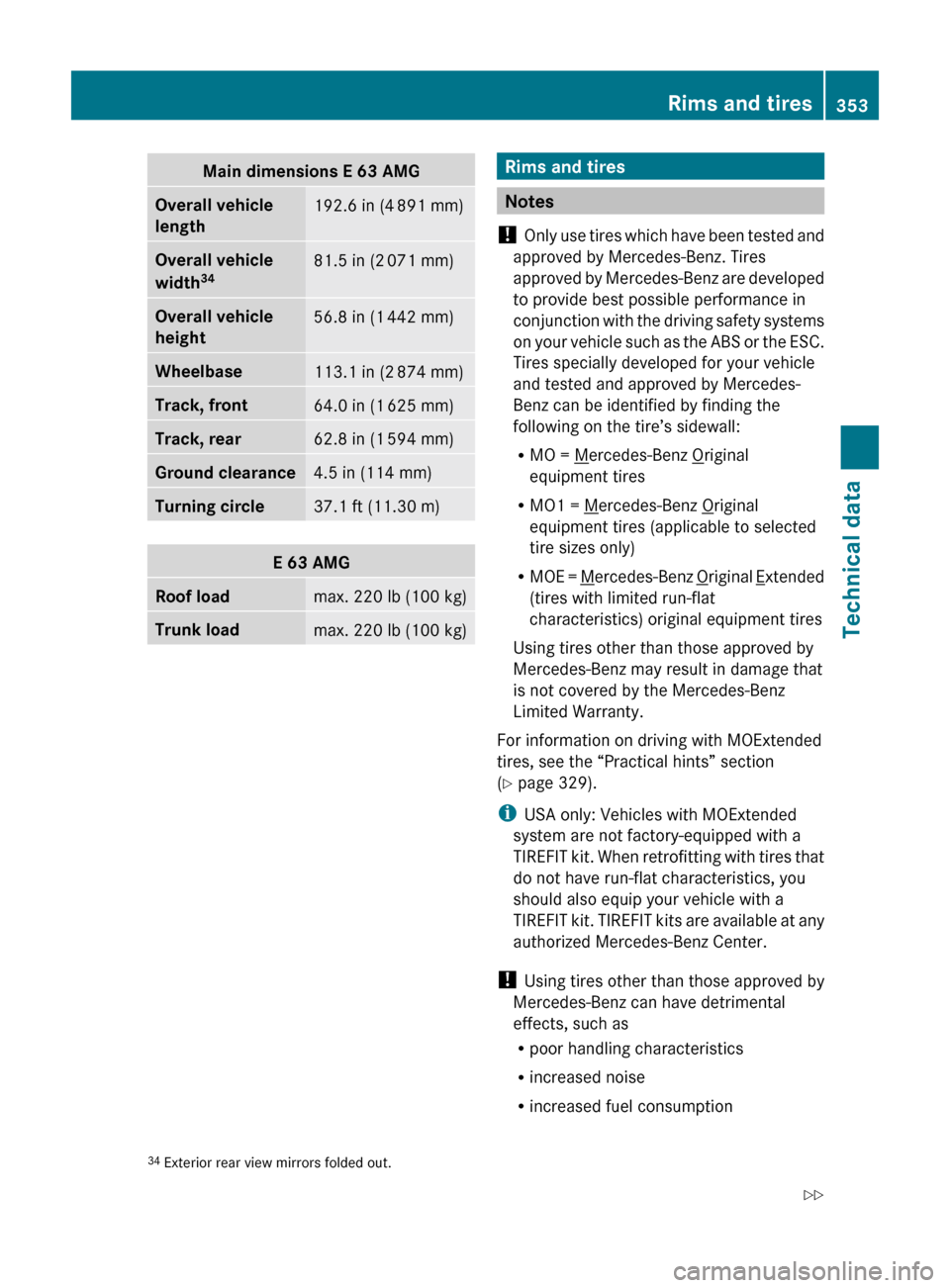

Main dimensions E 63 AMGOverall vehicle
length192.6 in (4 891 mm)Overall vehicle
width 3481.5 in (2
071 mm)Overall vehicle
height56.8 in (1 442 mm)Wheelbase113.1 in (2 874 mm)Track, front64.0 in (1 625 mm)Track, rear62.8 in (1 594 mm)Ground clearance4.5 in (114 mm)Turning circle37.1 ft (11.30 m)E 63 AMGRoof loadmax. 220 lb (100 kg)Trunk loadmax. 220 lb (100 kg)Rims and tires
Notes
! Only use tires which have been tested and
approved by Mercedes-Benz. Tires
approved by Mercedes-Benz are developed
to provide best possible performance in
conjunction with the driving safety systems
on your vehicle such as the ABS or the ESC.
Tires specially developed for your vehicle
and tested and approved by Mercedes-
Benz can be identified by finding the
following on the tire’s sidewall:
R MO =
Mercedes-Benz Original
equipment tires
R MO1 =
Mercedes-Benz Original
equipment tires (applicable to selected
tire sizes only)
R MOE =
Mercedes-Benz Original Extended
(tires with limited run-flat
characteristics) original equipment tires
Using tires other than those approved by
Mercedes-Benz may result in damage that
is not covered by the Mercedes-Benz
Limited Warranty.
For information on driving with MOExtended
tires, see the “Practical hints” section
( Y page 329).
i USA only: Vehicles with MOExtended
system are not factory-equipped with a
TIREFIT kit. When retrofitting with tires that
do not have run-flat characteristics, you
should also equip your vehicle with a
TIREFIT kit. TIREFIT kits are available at any
authorized Mercedes-Benz Center.
! Using tires other than those approved by
Mercedes-Benz can have detrimental
effects, such as
R poor handling characteristics
R increased noise
R increased fuel consumption
34Exterior rear view mirrors folded out.Rims and tires353Technical data212_AKB; 2; 41, en-USd2ureepe,Version: 2.11.8.12009-07-17T09:14:21+02:00 - Seite 353Z

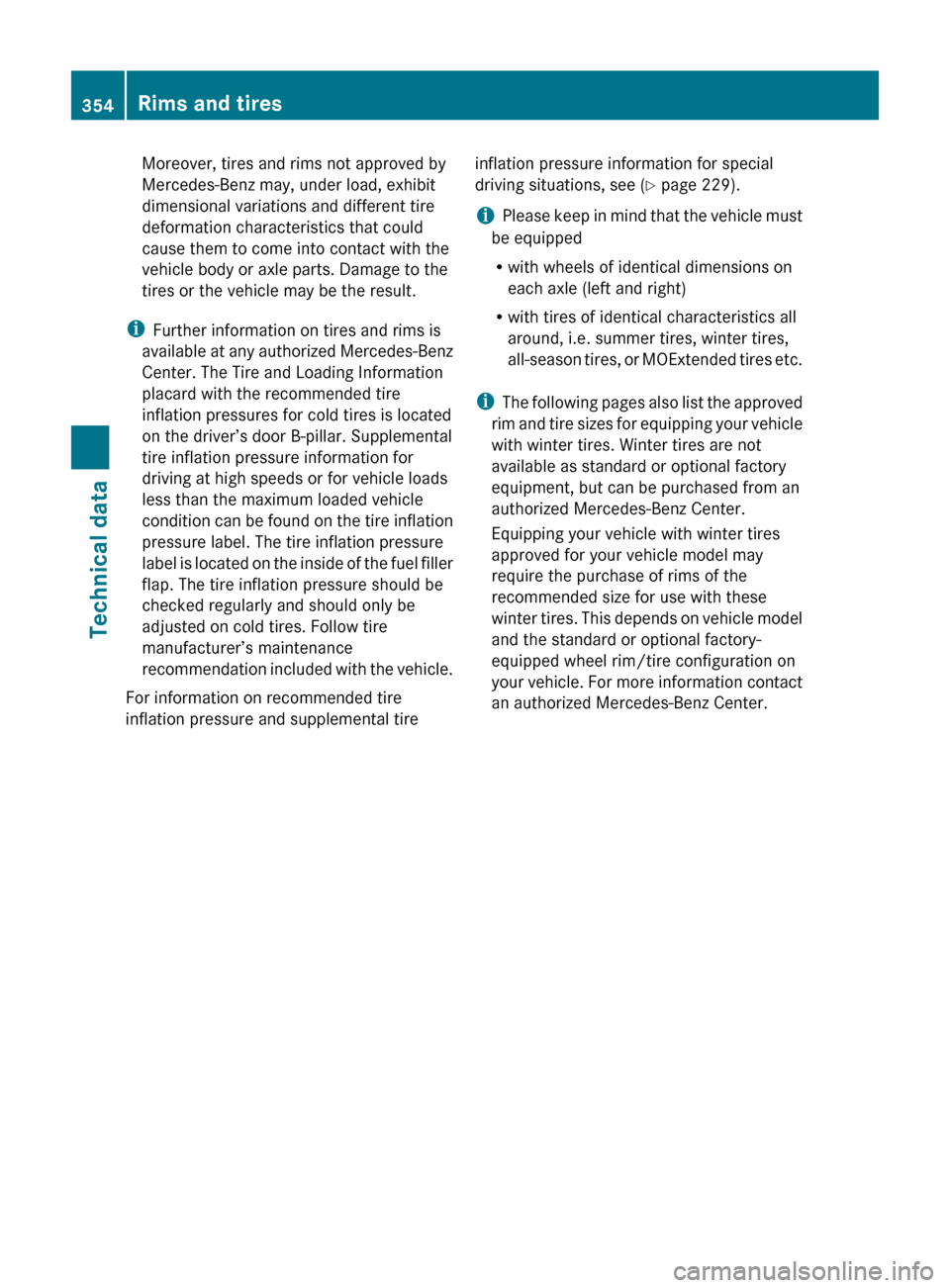

Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit
dimensional variations and different tire
deformation characteristics that could
cause them to come into contact with the
vehicle body or axle parts. Damage to the
tires or the vehicle may be the result.
i Further information on tires and rims is
available at any authorized Mercedes-Benz
Center. The Tire and Loading Information
placard with the recommended tire
inflation pressures for cold tires is located
on the driver’s door B-pillar. Supplemental
tire inflation pressure information for
driving at high speeds or for vehicle loads
less than the maximum loaded vehicle
condition can be found on the tire inflation
pressure label. The tire inflation pressure
label is located on the inside of the fuel filler
flap. The tire inflation pressure should be
checked regularly and should only be
adjusted on cold tires. Follow tire
manufacturer’s maintenance
recommendation included with the vehicle.
For information on recommended tire
inflation pressure and supplemental tireinflation pressure information for special
driving situations, see ( Y page 229).
i Please keep in mind that the vehicle must
be equipped
R with wheels of identical dimensions on
each axle (left and right)
R with tires of identical characteristics all
around, i.e. summer tires, winter tires,
all-season tires, or MOExtended tires etc.
i The following pages also list the approved
rim and tire sizes for equipping your vehicle
with winter tires. Winter tires are not
available as standard or optional factory
equipment, but can be purchased from an
authorized Mercedes-Benz Center.
Equipping your vehicle with winter tires
approved for your vehicle model may
require the purchase of rims of the
recommended size for use with these
winter tires. This depends on vehicle model
and the standard or optional factory-
equipped wheel rim/tire configuration on
your vehicle. For more information contact
an authorized Mercedes-Benz Center.354Rims and tiresTechnical data
212_AKB; 2; 41, en-USd2ureepe,Version: 2.11.8.12009-07-17T09:14:21+02:00 - Seite 354

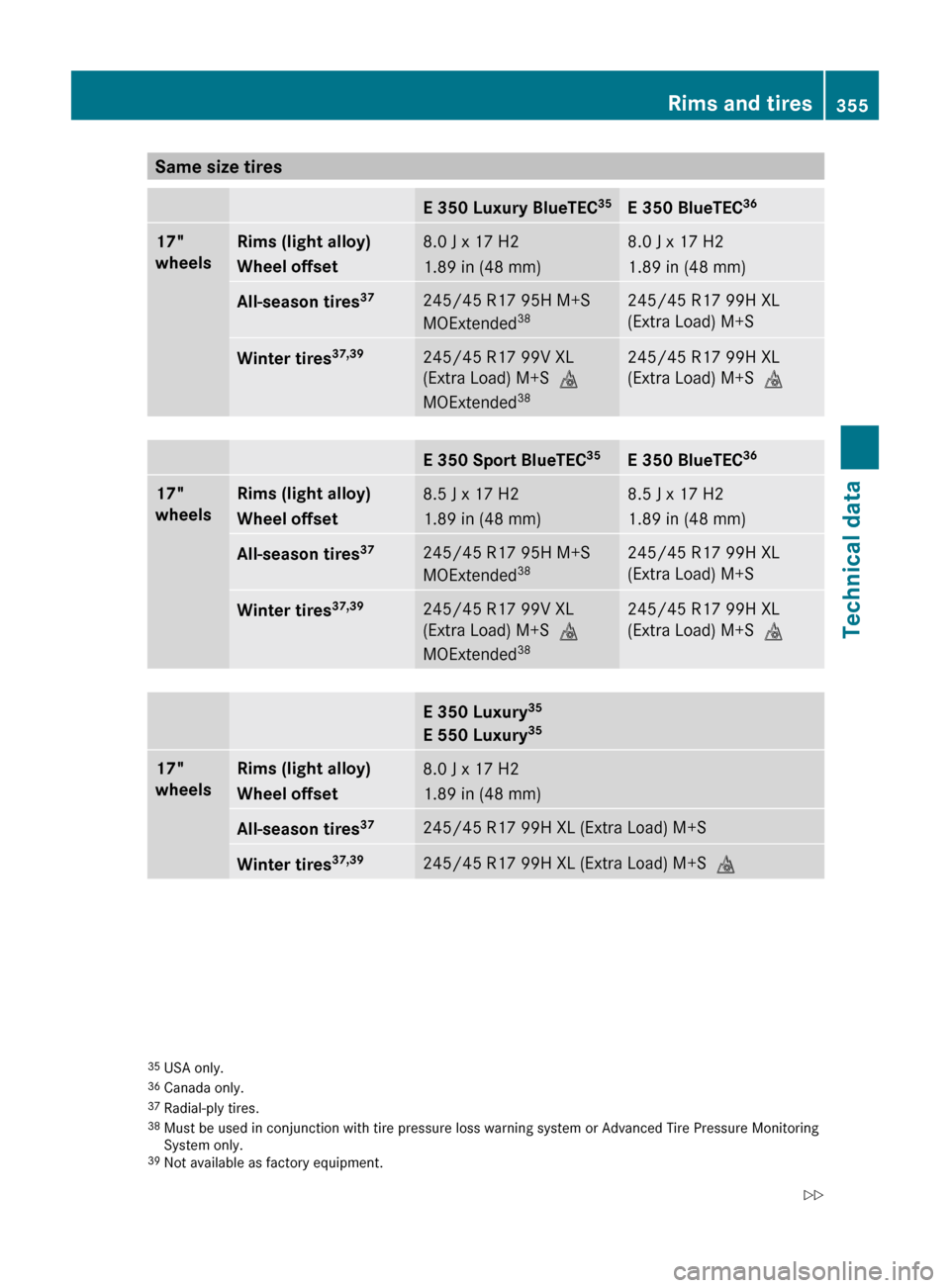

Same size tiresE 350 Luxury BlueTEC35E 350 BlueTEC3617"
wheelsRims (light alloy)
Wheel offset8.0 J x 17 H2
1.89 in (48 mm)8.0 J x 17 H2
1.89 in (48 mm)All-season tires 37245/45 R17 95H M+S
MOExtended 38245/45 R17 99H XL
(Extra Load) M+SWinter tires 37,39245/45 R17 99V XL
(Extra Load) M+S i
MOExtended 38245/45 R17 99H XL
(Extra Load) M+S iE 350 Sport BlueTEC 35E 350 BlueTEC3617"
wheelsRims (light alloy)
Wheel offset8.5 J x 17 H2
1.89 in (48 mm)8.5 J x 17 H2
1.89 in (48 mm)All-season tires 37245/45 R17 95H M+S
MOExtended 38245/45 R17 99H XL
(Extra Load) M+SWinter tires 37,39245/45 R17 99V XL
(Extra Load) M+S i
MOExtended 38245/45 R17 99H XL
(Extra Load) M+S iE 350 Luxury35
E 550 Luxury 3517"
wheelsRims (light alloy)
Wheel offset8.0 J x 17 H2
1.89 in (48 mm)All-season tires 37245/45 R17 99H XL (Extra Load) M+SWinter tires37,39245/45 R17 99H XL (Extra Load) M+S
i35
USA only.
36 Canada only.
37 Radial-ply tires.
38 Must be used in conjunction with tire pressure loss warning system or Advanced Tire Pressure Monitoring
System only.
39 Not available as factory equipment.Rims and tires355Technical data212_AKB; 2; 41, en-USd2ureepe,Version: 2.11.8.12009-07-17T09:14:21+02:00 - Seite 355Z

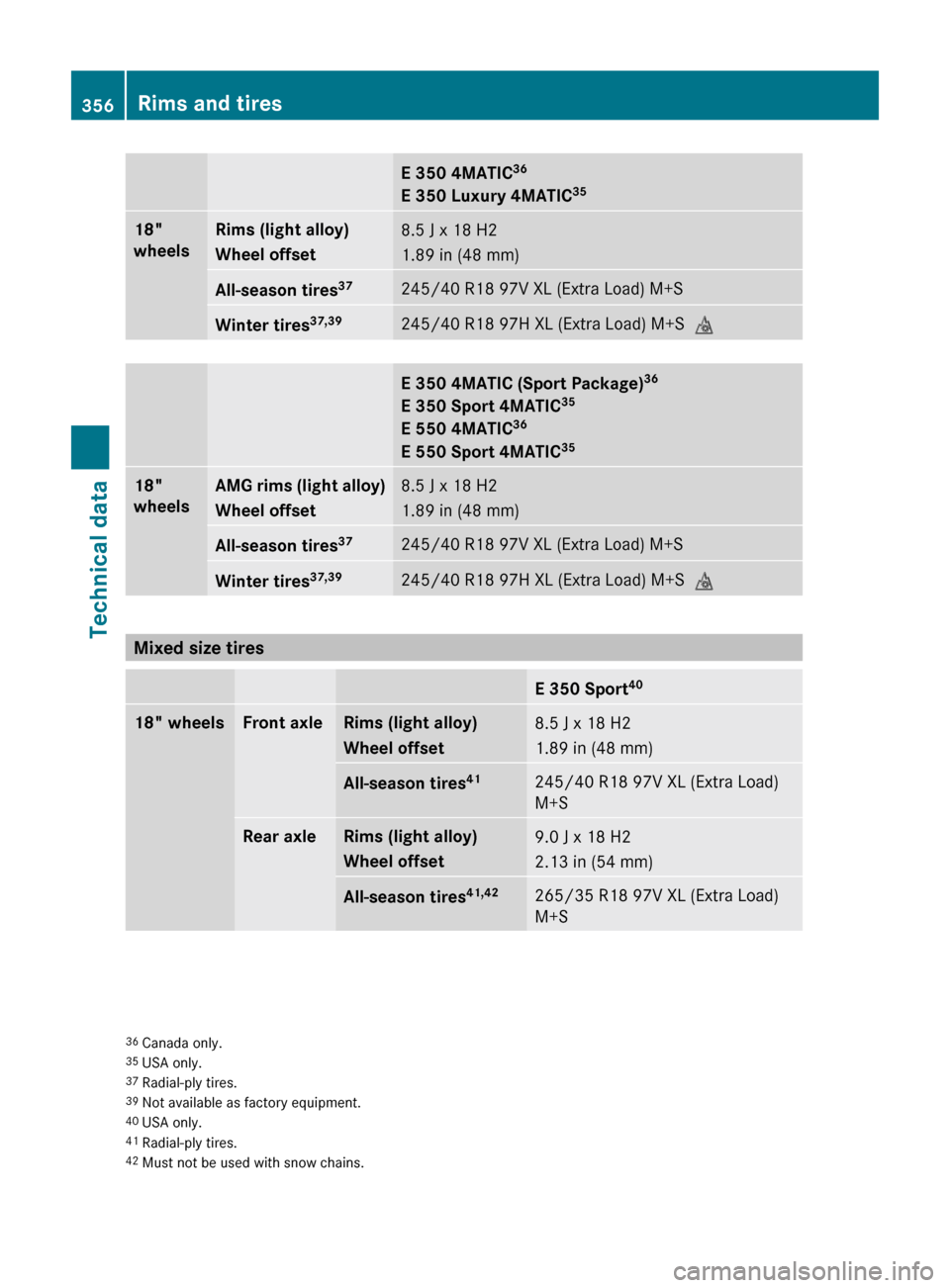

E 350 4MATIC36
E 350 Luxury 4MATIC 3518"
wheelsRims (light alloy)
Wheel offset8.5 J x 18 H2
1.89 in (48 mm)All-season tires 37245/40 R18 97V XL (Extra Load) M+SWinter tires37,39245/40 R18 97H XL (Extra Load) M+S
iE 350 4MATIC (Sport Package)36
E 350 Sport 4MATIC 35
E 550 4MATIC 36
E 550 Sport 4MATIC 3518"
wheelsAMG rims (light alloy)
Wheel offset8.5 J x 18 H2
1.89 in (48 mm)All-season tires 37245/40 R18 97V XL (Extra Load) M+SWinter tires37,39245/40 R18 97H XL (Extra Load) M+S
i
Mixed size tires
E 350 Sport4018" wheelsFront axleRims (light alloy)
Wheel offset8.5 J x 18 H2
1.89 in (48 mm)All-season tires 41245/40 R18 97V XL (Extra Load)
M+SRear axleRims (light alloy)
Wheel offset9.0 J x 18 H2
2.13 in (54 mm)All-season tires 41,42265/35 R18 97V XL (Extra Load)
M+S36 Canada only.
35 USA only.
37 Radial-ply tires.
39 Not available as factory equipment.
40 USA only.
41 Radial-ply tires.
42 Must not be used with snow chains.356Rims and tiresTechnical data
212_AKB; 2; 41, en-USd2ureepe,Version: 2.11.8.12009-07-17T09:14:21+02:00 - Seite 356

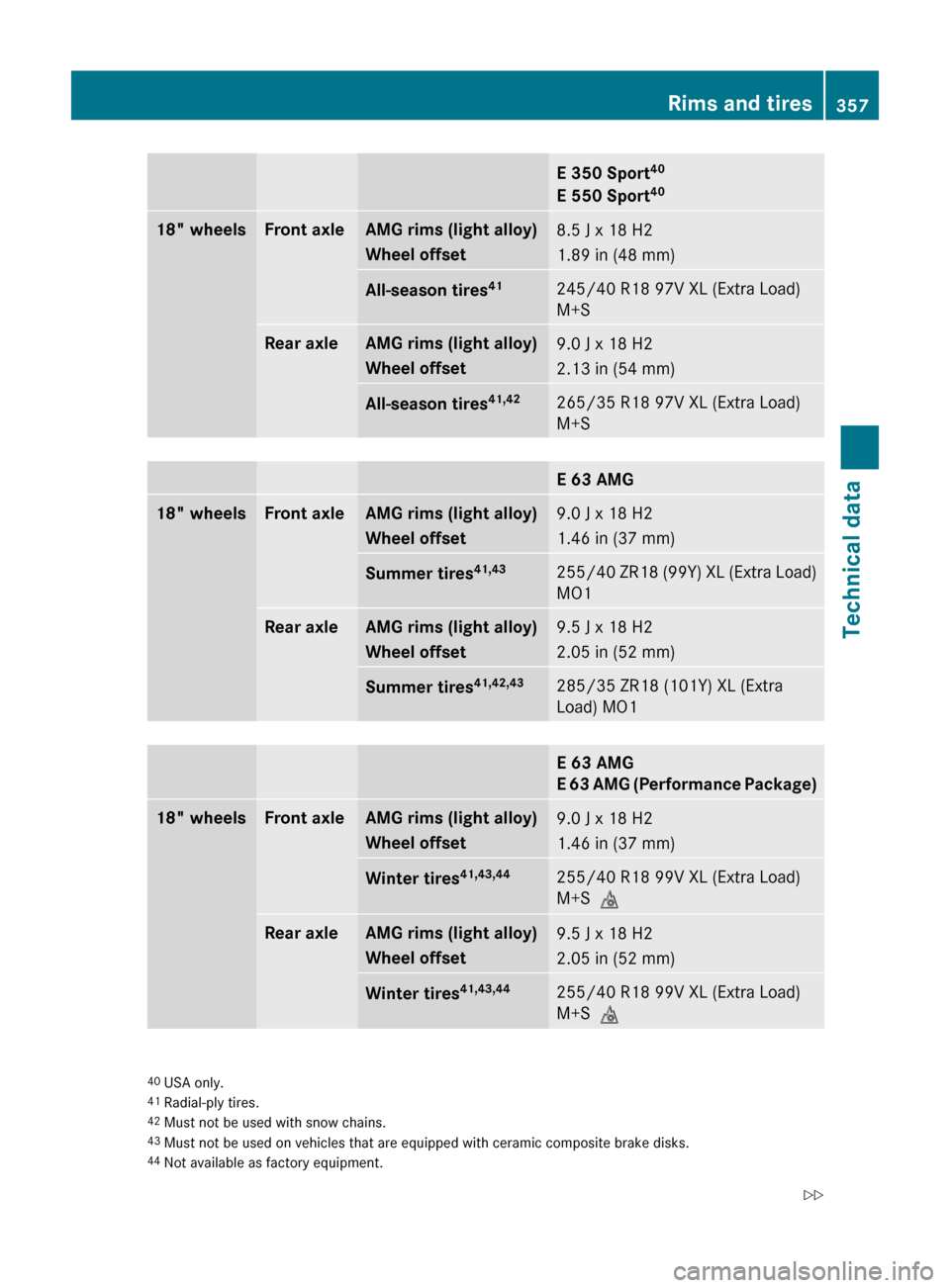

E 350 Sport40
E 550 Sport 4018" wheelsFront axleAMG rims (light alloy)
Wheel offset8.5 J x 18 H2
1.89 in (48 mm)All-season tires 41245/40 R18 97V XL (Extra Load)
M+SRear axleAMG rims (light alloy)
Wheel offset9.0 J x 18 H2
2.13 in (54 mm)All-season tires 41,42265/35 R18 97V XL (Extra Load)
M+SE 63 AMG18" wheelsFront axleAMG rims (light alloy)
Wheel offset9.0 J x 18 H2
1.46 in (37 mm)Summer tires 41,43255/40 ZR18 (99Y) XL (Extra Load)
MO1Rear axleAMG rims (light alloy)
Wheel offset9.5 J x 18 H2
2.05 in (52 mm)Summer tires 41,42,43285/35 ZR18 (101Y) XL (Extra
Load) MO1E 63 AMG
E 63 AMG (Performance Package)18" wheelsFront axleAMG rims (light alloy)
Wheel offset9.0 J x 18 H2
1.46 in (37 mm)Winter tires 41,43,44255/40 R18 99V XL (Extra Load)
M+S iRear axleAMG rims (light alloy)
Wheel offset9.5 J x 18 H2
2.05 in (52 mm)Winter tires 41,43,44255/40 R18 99V XL (Extra Load)
M+S i40
USA only.
41 Radial-ply tires.
42 Must not be used with snow chains.
43 Must not be used on vehicles that are equipped with ceramic composite brake disks.
44 Not available as factory equipment.Rims and tires357Technical data212_AKB; 2; 41, en-USd2ureepe,Version: 2.11.8.12009-07-17T09:14:21+02:00 - Seite 357Z

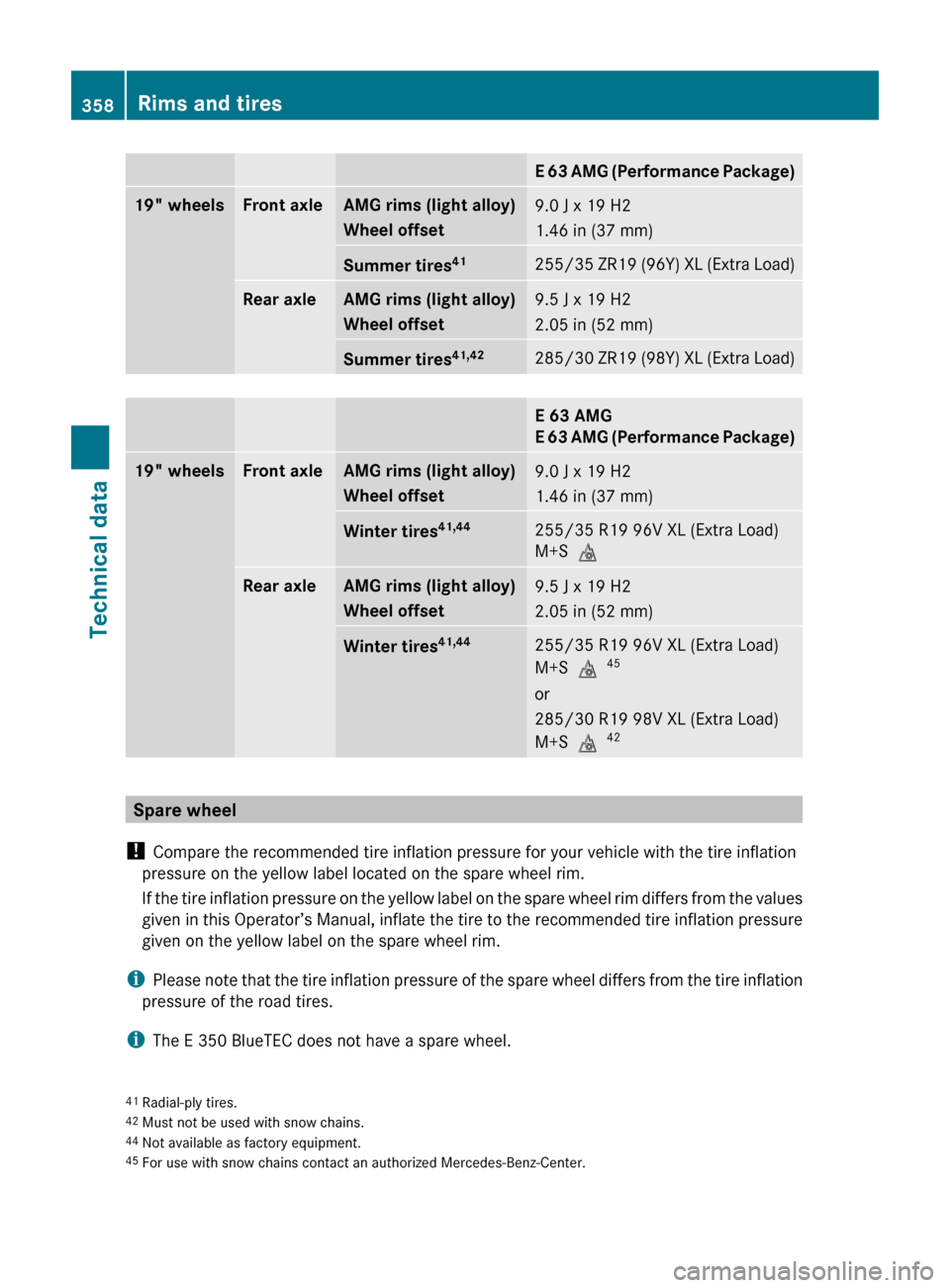

E 63 AMG (Performance Package)19" wheelsFront axleAMG rims (light alloy)
Wheel offset9.0 J x 19 H2
1.46 in (37 mm)Summer tires 41255/35 ZR19 (96Y) XL (Extra Load)Rear axleAMG rims (light alloy)
Wheel offset9.5 J x 19 H2
2.05 in (52 mm)Summer tires 41,42285/30 ZR19 (98Y) XL (Extra Load)E 63 AMG
E 63 AMG (Performance Package)19" wheelsFront axleAMG rims (light alloy)
Wheel offset9.0 J x 19 H2
1.46 in (37 mm)Winter tires 41,44255/35 R19 96V XL (Extra Load)
M+S iRear axleAMG rims (light alloy)
Wheel offset9.5 J x 19 H2
2.05 in (52 mm)Winter tires 41,44255/35 R19 96V XL (Extra Load)
M+S i 45
or
285/30 R19 98V XL (Extra Load)
M+S i 42
Spare wheel
! Compare the recommended tire inflation pressure for your vehicle with the tire inflation
pressure on the yellow label located on the spare wheel rim.
If the tire inflation pressure on the yellow label on the spare wheel rim differs from the values
given in this Operator’s Manual, inflate the tire to the recommended tire inflation pressure
given on the yellow label on the spare wheel rim.
i Please note that the tire inflation pressure of the spare wheel differs from the tire inflation
pressure of the road tires.
i The E 350 BlueTEC does not have a spare wheel.
41
Radial-ply tires.
42 Must not be used with snow chains.
44 Not available as factory equipment.
45 For use with snow chains contact an authorized Mercedes-Benz-Center.358Rims and tiresTechnical data
