Removi
ng Bolts on the AIRCAP draught sto
pbetween the
hea drestra ints in the rea rcompartment
X Use the 4mmhex-socket wrench to turn
the bolts on both sides anti-clockwise by
about 90° and loosen them.
X Pul lthe bolts out of the brackets on the
head restra ints. X
Pul lthe AIRCAP draught stop out of the
guide rails in the direction of the arrow.
Make sure that you pull the AIRCAP draught
stop forwards slightly when doing so. Fitting X
Keeping the AIRCAP draught stop horizon-
tal, guide it into the slot between the head
restrain tsin the direction of the arrow with
both rack sstraight down.
X Push the AIRCAP draugh tstop down until
the bolts are at the same height as the
brackets on the head restraints.
X Insert the bolts into the brackets on both
sides.
X Tighten the bolts with the 4mmhex-socket
wren chuntil they engage.
The markings on the bolts are vertical. 86
Soft top (Cabriolet)Openin
gand closing
BA 20 7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:0
0-Seite 86

Problems wit
hthe soft top Problem Possible causes/consequences and
M Solutions
Th
es oft top will not
open or close. The ignition is not switched on.
X
Make sure that the key is in position 2in the ignition lock. The boot lid is open.
X
Close the boot lid (Y page 83). The boot separator is not closed.
X
Close the boot separator (Y page 83). The roll bar
shave been deployed.
X Visit aqualified specialist workshop. The head restraint
sinthe rea rcompartmen tdon ot retract auto-
matically.
X Lower the head restraint sinthe rea rcompartmen tmanually
(Y page 95). The soft-top mechanism or control system is defective.
X
Close the soft top manually if necessary (Y page 78).
X Visit aqualified specialist workshop. The soft top was opened and closed several times in succession.
The soft-top drive has been deactivated automatically for safety
reasons.
You can open or close the soft top again after approximately ten
minutes.
X
Switch the ignition off and then on again.
X Repea tthe opening or closing procedure. Sliding sunroof (Coupé)
Important safety notes
G
Risk of injury
Make sur ethat nobody can becom etrapped
when closing th esliding sunroof. If there is a
risk of entrapment, release the switch and
push it briefly in any direction to stop the slid-
ing sunroof. G
Risk of injury
Children could injur ethemselves if they oper-
ate the slidin gsunroof.
Never leave children unsupervised in the vehi-
cle. Always take the key with you when leaving
the vehicle, even if you are only leaving it for
as hort time. G
Risk of injury
The glass in the panoram asunroof could
break in an accident. If you are not wearing a
seat belt, there is arisk that you could be Sliding sunroof (Coupé)
87Opening and closing
BA 207 ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 87 Z

thrown throug
hthe opening in the event of the
vehicl eoverturning. Th erefore ,alway sweara
seat belt to reduce the ri sk of injuries.
! Onlyopen the panorama sliding sunroof
if it is free of snow and ice .Otherwi se,m al-
functi onsm ay oc cur.
Do not allo wanything to protrude fro mthe
slidin gsunroof. Otherwise, the seals could
be damaged.
i Resonance noise scan occur in addition
to the usua lairflow noises when the sliding
sunroof is open. They are caused by minor
pressure fluctuations in the vehicle interior.
Change the position of the sliding sunroof
or open aside window slightly to reduce or
eliminat ethese noises. Panoram
asliding sunroof
Opening and closing Overhead control panel
:
To open
; To close/lower
= To raise
X Turn the key to position 1or 2in the ignition
lock.
X Push or pull the 3switchinthe corre-
sponding direction.
i If you press the 3switchbeyond the
point of resistance, an automatic opening/
closin gproces sisstarted in the corre-
spo nding direction .You can stop automatic
operation by pressin gagain. Rain closing feature When the key is in position
0in the ignition
lock or is removed, the panoram asliding sun-
roof closes automatically:
R if it start storain
R at extreme outside temperatures
R after six hours
R if there is amalfunction in the power supply
The panorama sliding sunroof remains raised
at the rear in order to allow ventilation of the
vehicle interior.
i If the panorama sliding sunroof is obstruc-
ted when being closed by the rain closing
feature, it opens again slightly. The rain
closing feature is then deactivated.
The panorama sliding sunroof does not close
if:
R it is raised at the rear.
R it is blocked.
R no rain is falling on the area of the wind-
screen being monitored by the rain sensor
(e.g. because the vehicle is under abridge
or in acarport). Roller sunblin
dfor the panorama slid-
ing sunroof
General notes The roller sunblind provides protection from
the sun. The roller sunblind can only be
opened and closed when the panoram
aslid-
ing sunroof is closed. G
Risk of injury
Make sure that nobody can become trapped
as you open or close the roller sunblind. 88
Slidin
gsunroo f(Coupé)Openin gand closing
BA 20 7ECE ÄJ 2010 /1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 88

Opening and closing
Overhead control panel
:
To open
; To close
= To open
X Tur nthe key to position 1or 2in the ignition
lock.
X Push or pull the 3switchinthe cor re-
spondi ngdirec tion.
i If you press the 3switchbeyond the
point of resistance, an automatic opening/
closing process is star tedint he cor re-
spondi ngdirec tion. You can stop automatic
operation by pressin gagain.
Reset ting th epanorama sliding sunroof
and the roller sunblind Reset the panorama sliding sunroo
fand the
rolle rsunblind if the panorama sliding sunroof
or the roller sunblind does not close
smoothly.
X Turn the key to position 1or 2in the ignition
lock.
X Pull the 3switch repeatedly to the point
of resistance in the direction of arrow ;
until the panorama sliding sunroof is fully
closed.
X Keep the 3switch pulled for an addi-
tional second.
X Pull the 3switch repeatedly to the point
of resistance in the direction of arrow ;
until the roller sunblind is fully closed. X
Keep the 3switch pulled for an addi-
tional second.
X Make sure that the panorama sliding sun-
roof (Y page 88) and the roller sunblind
(Y page 89) can be fully opened again.
X If this is not the case, consult aqualified
specialist workshop. Problems with the slidin
gsunroof
Problem: the sunroo fcannot be closed
and you cannot se ethe cause. G
Ris
kofi njury
You could be severely or even fatally inju red
when closing the sliding sunroof with
increased closing forc eorifthe anti-entrap-
men tfeatur eisd eactivated. Make sure that
nobody can becom etrapped when closing the
sliding sunroo f.
If th esliding sunroof is obstructed during
closing:
X Immediately after the sliding sunroof
blocks ,pull the 3switch in the over-
head control panel down to the point of
resistance and hold it until the sliding sun-
roof is closed.
The sliding sunroof is closed with increased
force.
If the sliding sunroof is obstructed during
closing again:
X Immediately after the sliding sunroof
blocks, pull the 3switch in the over-
head control panel down to the point of
resistance and hold it until the sliding sun-
roof is closed.
The sliding sunroof is closed without the
anti-entrapment feature. Sliding sunroof (Coupé)
89Openingand closing
BA 20 7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 89 Z

90 BA 20
7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:0
0-Seite 90

Vehicl
eequipment .............................. 92
Correct driver' sseat position ............92
Seats .................................................... 93
Steering wheel .................................... 99
Mir rors ............................................... 101
Memor yfunctions ............................. 103 91Seats, steering wheel an
dmirrors
BA 207ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 91

Vehicl
eequipment
i Thismanua ldesc ribe sallthe standard
and optional equipment of your vehicle
which wa savailable at th etime of pur-
chase. Countr y-specif ic differences are
possible. Bear in mind tha tyour vehicle
ma ynot featur eall function sdescribed

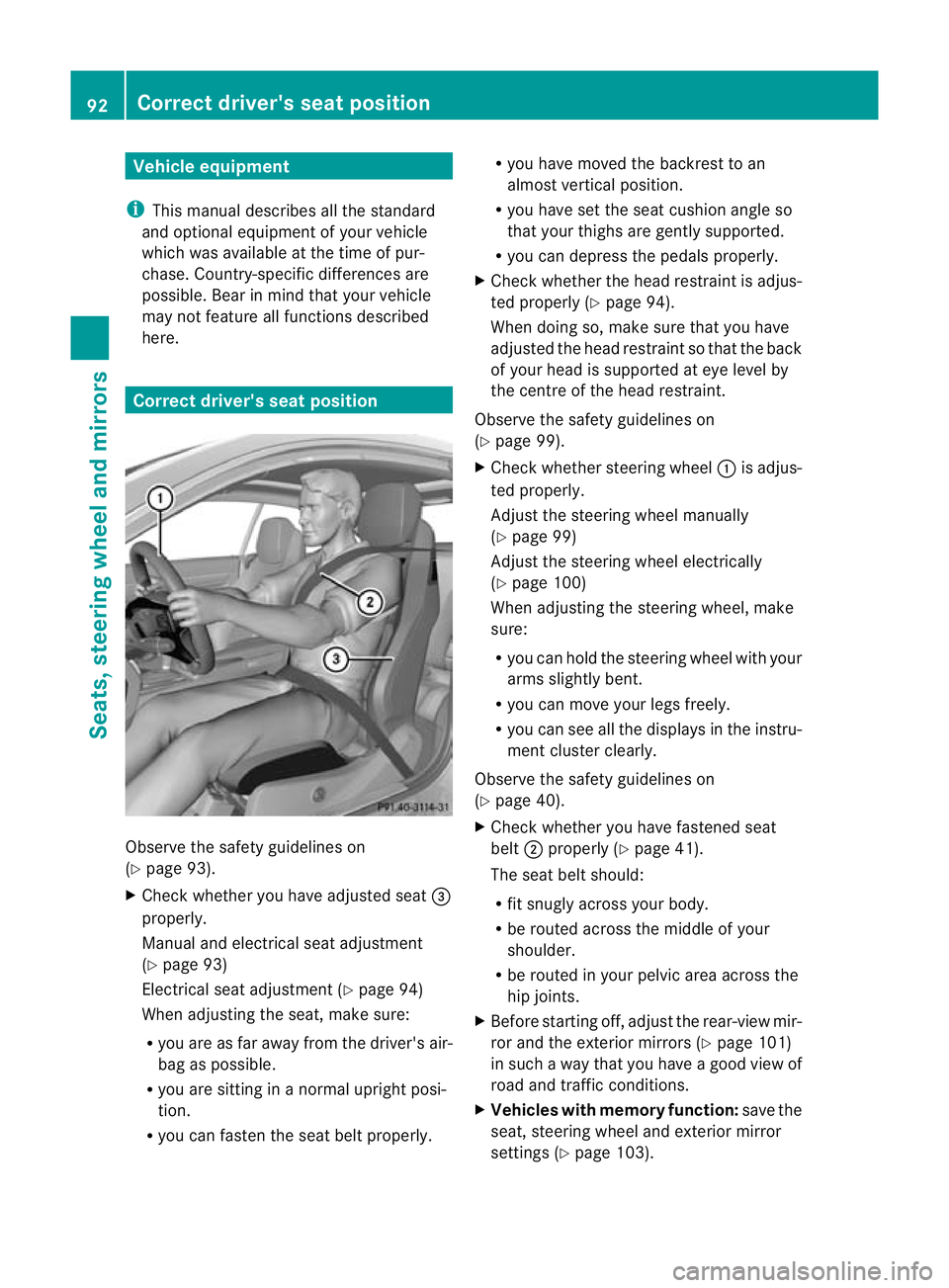

here. Correct driver'
sseat position Observe the safety guidelines on
(Y
page 93).
X Check whether you have adjusted seat =
properly.
Manual and electrical seat adjustment
(Y page 93)
Electrical seat adjustment (Y page 94)
When adjustin gthe seat, make sure:
R you ar easfar away from the driver' sair-
bag as possible.
R you are sitting in anormal upright posi-
tion.
R you can fasten the seat belt properly. R
you have moved the back rest to an
almost ver tical position.
R you have se tthe seat cushion angl eso
that your thighs are gently supported.
R you can depress the pedals properly.
X Check whether the head restraint is adjus-
ted properly (Y page 94).
Whe ndoing so, make sure that you have
adjusted the head restraint so that the back
of your head is supported at eye leve lby
the centr eofthe head restraint.
Observ ethe safety guidelines on
(Y page 99).
X Chec kwhether steering wheel :is adjus-
ted properly.
Adjust the steering wheel manually
(Y page 99)
Adjust the steering wheel electrically
(Y page 10 0)
When adjustin gthe steering wheel, make
sure:
R you can hold the steering wheel with your
arms slightl ybent.
R you can mov eyour legs freely.
R you can see all the display sint he instru-
men tcluster clearly.
Observe the safety guidelines on
(Y page 40).
X Check whether you have fastened seat
belt ;properly (Y page 41).
The seat belt should:
R fit snugly across your body.
R be routed across the middle of your
shoulder.
R be routed in your pelvic area across the
hip joints.
X Befor estarting off, adjust the rear-view mir-
ror and the exterior mirror s(Ypage 10 1)
in such away that you have agood view of
roa dand traffic conditions.
X Vehicles with memory function: save the
seat, steering wheel and exterior mirror
settings (Y page103). 92
Correct driver's seat positionSeats, steering wheel an
dmirrors
BA 207ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:0
0-Seite 92

Seats
Important safety notes
G
Ris
kofi njury
The seats can still be adjusted when there is
no key in the ignition lock. For this reason,
children should never be left unsupervised in
the vehicle. They could adjust the seats and
becom etrapped. G
Ris
kofa ccident
Only adjust the driver' sseat when the vehicle
is stationary .You will otherwise be distracted
from the road and traffic condition sand you
could los econtrol of the vehicle as aresult of
the seat moving. This could cause an acci-
dent. G
Risk of injury
Make sure that nobody can becom etrapped
when adjustin gthe seats.
Observ ethe note sonairbags.
Secur echildren as recommended; see the
"Childre ninthe vehicle" section. G
Risk of injury
Make sur ethat the bac kofyour head is sup-
ported at eye level by the cen tralarea of the
head restraint. If your head is not supported
correctly by th ehead restraint ,you coul dsuf-
fer asever eneck injury in the event of an
accident .Never driv eifthe head rest raints are
not engaged and set correctly.
! To avoid damage to the seats and the seat
heating, observe the following information:
R do not spill any liquids on the seats. If
liquid is spilled on the seats, dry them as
soon as possible.
R if the seat cover sare damp or wet, do not
switc hont he seat heating. The seat
heating should also not to be used to dry
the seats. R
clea nthe seat cover sasrecommended;
see the "In terior care" section.
R do not transport heav yloads on the
seats. Do not plac eshar pobjects on the
seat cushions ,e.g. knives, nails or tools.
Th es eats should only be occupied by
passengers, if possible.
R when the seat heatin gisinoperation ,do
not cover the seats with insulating mate-
rials, e.g. blanke ts,c oats, bags, seat cov-
ers, child seats or booster seats.
! When you mov ethe seats, make sur ethat
ther eare no objects in th efootwell or
behind the seats. Otherwise, you could
damage the seats and the objects.
i The head restraint sinthe fron tseats are
fit tedw ith the NECK -PRO system
(Y page 39). For this reason, it is not pos-
sibl etor emov ethe head restraint sfrom
th ef ront seats.
Please contact aMercedes-Ben zService
Cent refor more info rmation.
i Related topics:
R Through-loading feature in the rear
bench seat 19
(folding the rear bench seat
forwards) Adjusting the seats manually and
electrically
:
Backrest angle
; Seat height
19 Only in the Coupé. Seats
93Seats,steering wheel and mirrors
BA 207 ECE ÄJ 201 0/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 93 Z
