2010 MAZDA MODEL MAZDASPEED 3 Owners Manual (in English)

Black plate (481,1)
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2
Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4
Specifications .......................................................................... 10-4
Personalization Features .......................................................... 10-10
Personalization Features ........................................................ 10-10
10-1
Mazda3_8AR3-EA-09E_Edition2 Page481
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (482,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
qVehicle Emission Control
Information Label
qTire Pressure Label
10-2
Identification Numbers
Mazda3_8AR3-EA-09E_Edition2 Page482
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (483,1)
qEngine Number
2.0-liter and 2.5-liter engine
Forward
2.3-liter turbocharged engine
Forward
Identification Numbers
10-3
Mazda3_8AR3-EA-09E_Edition2 Page483
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (484,1)

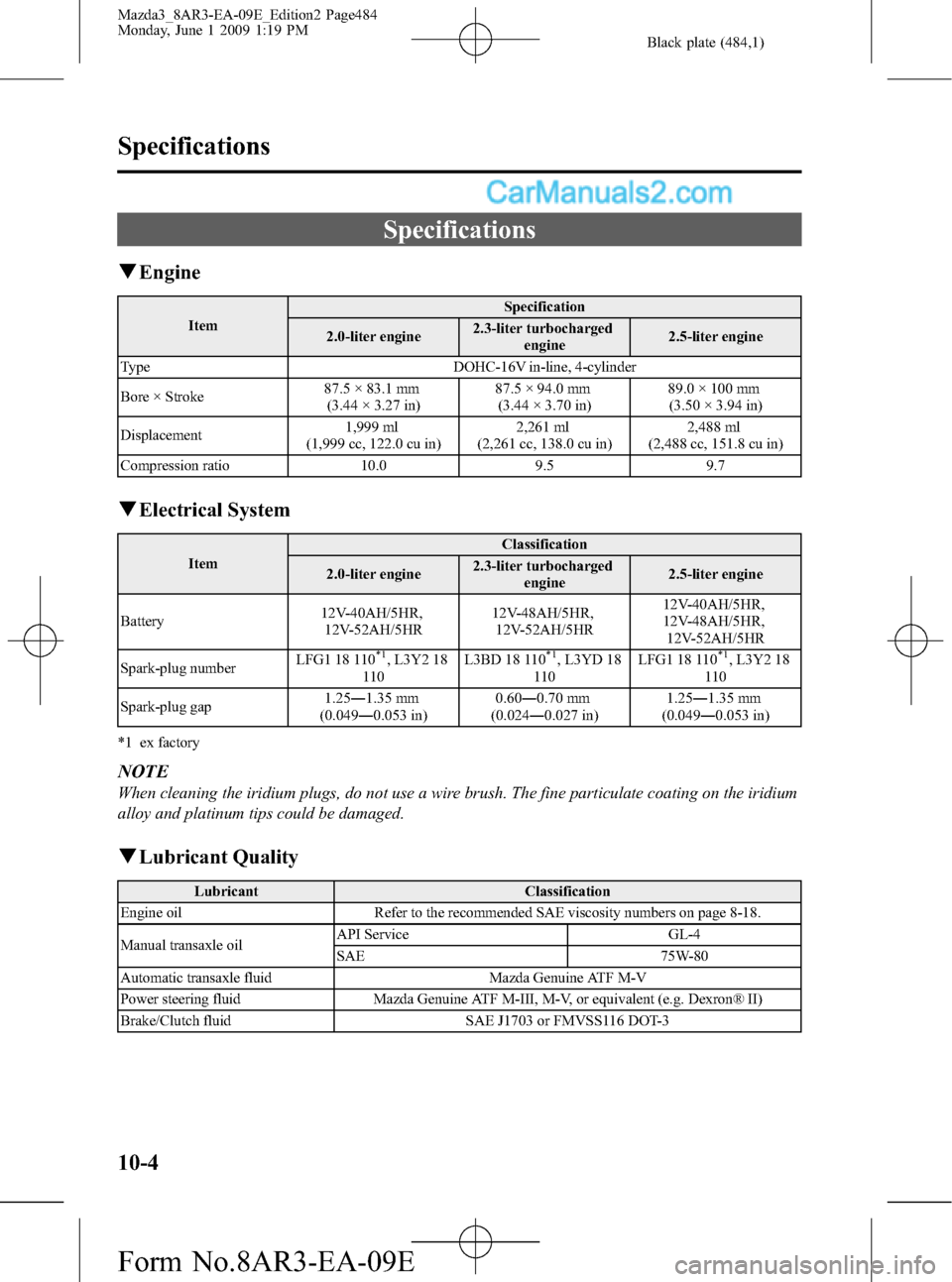

Specifications
qEngine
ItemSpecification
2.0-liter engine2.3-liter turbocharged
engine2.5-liter engine
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke87.5 × 83.1 mm
(3.44 × 3.27 in)87.5 × 94.0 mm
(3.44 × 3.70 in)89.0 × 100 mm
(3.50 × 3.94 in)
Displacement1,999 ml
(1,999 cc, 122.0 cu in)2,261 ml
(2,261 cc, 138.0 cu in)2,488 ml
(2,488 cc, 151.8 cu in)
Compression ratio 10.0 9.5 9.7
qElectrical System
ItemClassification
2.0-liter engine2.3-liter turbocharged
engine2.5-liter engine
Battery12V-40AH/5HR,
12V-52AH/5HR12V-48AH/5HR,
12V-52AH/5HR12V-40AH/5HR,
12V-48AH/5HR,
12V-52AH/5HR
Spark-plug numberLFG1 18 110
*1, L3Y2 18
110L3BD 18 110*1, L3YD 18
110LFG1 18 110*1, L3Y2 18
110
Spark-plug gap1.25―1.35 mm
(0.049―0.053 in)0.60―0.70 mm
(0.024―0.027 in)1.25―1.35 mm
(0.049―0.053 in)
*1 ex factory
NOTE
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium
alloy and platinum tips could be damaged.
qLubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers on page 8-18.
Manual transaxle oilAPI Service GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF M-V
Power steering fluid Mazda Genuine ATF M-III, M-V, or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
10-4
Specifications
Mazda3_8AR3-EA-09E_Edition2 Page484
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (485,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil2.0-liter engineWith oil filter
replacement4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement3.9 L (4.1 US qt, 3.4 Imp qt)
2.3-liter turbocharged
engineWith oil filter
replacement5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement5.3 L (5.6 US qt, 4.7 Imp qt)
2.5-liter engineWith oil filter
replacement5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter
replacement4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oil2.0-liter engine 2.77 L (2.93 US qt, 2.44 Imp qt)
2.3-liter turbocharged engine 2.5 L (2.6 US qt, 2.2 Imp qt)
2.5-liter engine 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic transaxle fluid 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank2.0-liter engine 55.0 L (14.5 US gal, 12.1 Imp gal)
Except 2.0-liter engine 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
4 Door
Item Vehicle specification
Overall lengthSTANDARD TYPE 4,590 mm (180.7 in)
SPORTY TYPE 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread16 inch 1,535 mm (60.4 in)
17 inch 1,530 mm (60.2 in)
Rear tread16 inch 1,520 mm (59.8 in)
17 inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
Specifications
10-5
Mazda3_8AR3-EA-09E_Edition2 Page485
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (486,1)
5 Door
Except 2.3-liter turbocharged engine
Item Vehicle specification
Overall lengthSTANDARD TYPE
(Canada)4,500 mm (177.2 in)
SPORTY TYPE 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread16 inch 1,535 mm (60.4 in)
17 inch 1,530 mm (60.2 in)
Rear tread16 inch 1,520 mm (59.8 in)
17 inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
2.3-liter turbocharged engine
Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
qWeights
4 Door
2.0-liter engine
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,768 kg (3,898 lbs) 1,800 kg (3,968 lbs)
GAWR (Gross Axle Weight Rating)Front 933 kg (2,057 lbs) 967 kg (2,132 lbs)
Rear 835 kg (1,841 lbs) 833 kg (1,836 lbs)
2.5-liter engine
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,816 kg (4,004 lbs) 1,851 kg (4,081 lbs)
GAWR (Gross Axle Weight Rating)Front 971 kg (2,141 lbs) 1,002 kg (2,209 lbs)
Rear 845 kg (1,863 lbs) 849 kg (1,872 lbs)
10-6
Specifications
Mazda3_8AR3-EA-09E_Edition2 Page486
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (487,1)
5 Door
2.0-liter engine (Canada)
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,764 kg (3,889 lbs) 1,788 kg (3,942 lbs)
GAWR (Gross Axle Weight Rating)Front 931 kg (2,052 lbs) 964 kg (2,125 lbs)
Rear 833 kg (1,836 lbs) 824 kg (1,817 lbs)
2.3-liter turbocharged engine
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,922 kg (4,237 lbs)
GAWR (Gross Axle Weight Rating)Front 1,062 kg (2,341 lbs)
Rear 860 kg (1,896 lbs)
2.5-liter engine
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,837 kg (4,050 lbs) 1,863 kg (4,107 lbs)
GAWR (Gross Axle Weight Rating)Front 977 kg (2,154 lbs) 1,006 kg (2,218 lbs)
Rear 860 kg (1,896 lbs) 857 kg (1,889 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-7
Mazda3_8AR3-EA-09E_Edition2 Page487
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (488,1)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R (SAE)
HeadlightsHalogenHigh beam 60 HB3 (#9005)
Low beam 55 H11 (H11)
Xenon fusion bulb High/Low beam 35 D2S (D2S)
Daytime running lights (Canada)
í35 H8 (H8)
Front turn signal
lights/Front
side-marker
lights/Parking
lightsHalogen/Xenon fusion bulb
(With daytime running lights)
27/8―(#7444NA)
Xenon fusion bulb
(Without daytime
running lights)Front turn signal
lights/Front side-marker
lights
Parking lights 5 W5W (4CP)
Fog lights
íExcept 2.3-liter turbocharged engine 51 HB4 (#9006)
2.3-liter turbocharged engine 55 H11 (H11)
Side turn signal
lightsBulb type
*15 WY5W (―)
LED type (Integrated with outside mirror) LED*2―(―)
High-mount brake
light4 Door 21 W21W (1120)
5 DoorBulb type 18 W16W (#921)
LED type LED
*2―(―)
Rear turn signal lights 21 WY21W (32CP)
Brake
lights/TaillightsBulb type 21/5 W21/5W (#7443)
LED type LED
*2―(―)
Reverse lights 21 W21W (#7440)
License plate lights 5 W5W (―)
Rear side-marker lights
íLED*2―(―)
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
*2 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulbCategory
Wattage ECE R
Trunk light (4 Door) 3―
Luggage compartment light (5 Door) 5―
Overhead light/Map lights (Front) 8―
Overhead light (Rear) 10―
Vanity mirror lights
í2―
10-8íSome models.
Specifications
Mazda3_8AR3-EA-09E_Edition2 Page488
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E
