2010 MAZDA MODEL MAZDASPEED 3 Owners Manual (in English)

Black plate (345,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-9
Overheating ................................................................................. 7-15
Overheating ............................................................................. 7-15
Emergency Starting .................................................................... 7-17
Starting a Flooded Engine ....................................................... 7-17
Jump-Starting .......................................................................... 7-18
Push-Starting ........................................................................... 7-21
Emergency Towing ..................................................................... 7-22
Towing Description ................................................................. 7-22
Tiedown Hook ........................................................................ 7-23
Recreational Towing ............................................................... 7-26
7-1
Mazda3_8AR3-EA-09E_Edition2 Page345
Monday, June 1 2009 1:18 PM
Form No.8AR3-EA-09E

Black plate (346,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Hazard warning flasher
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
Mazda3_8AR3-EA-09E_Edition2 Page346
Monday, June 1 2009 1:18 PM
Form No.8AR3-EA-09E

Black plate (347,1)

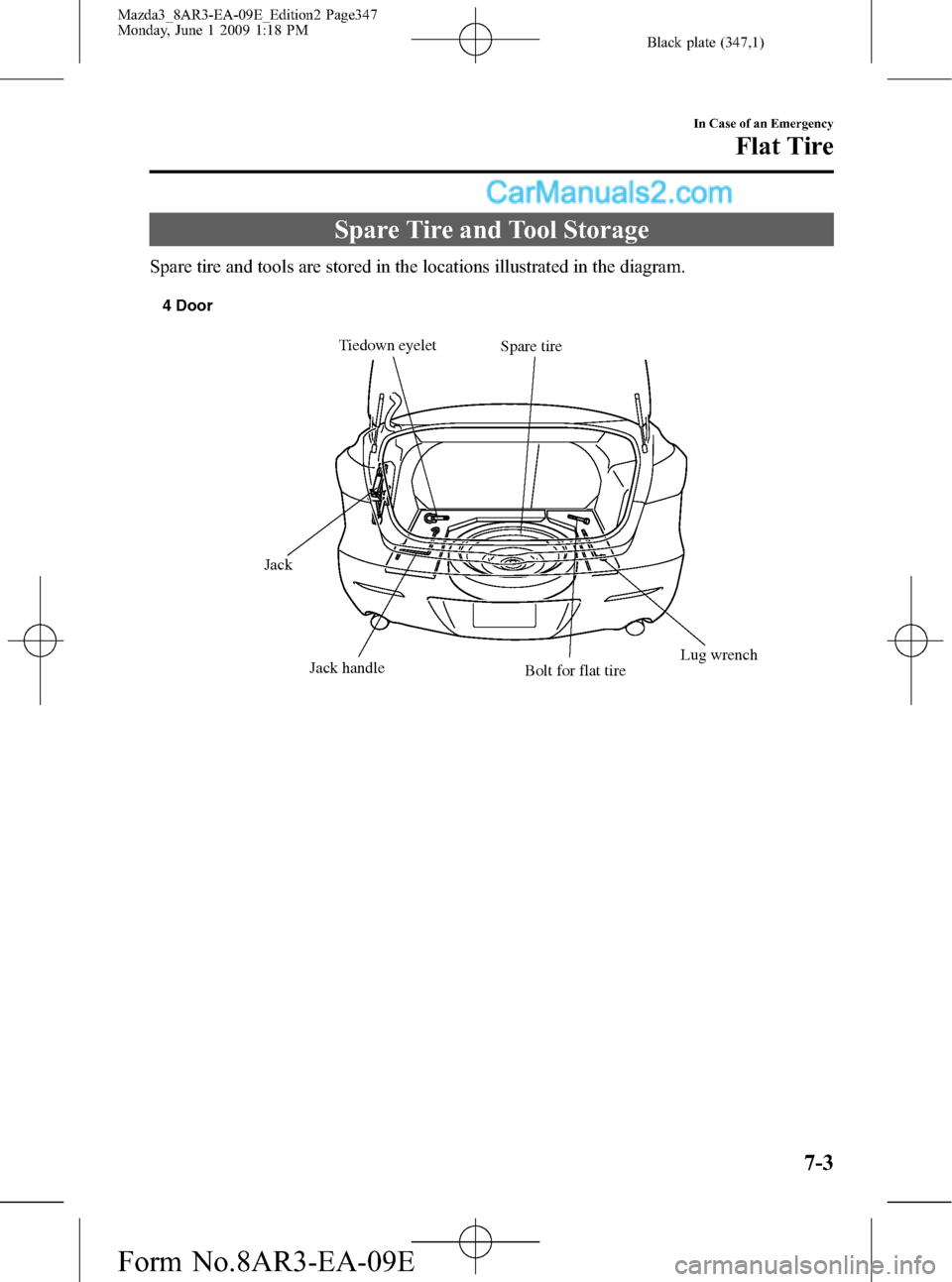

Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Spare tire
Jack
Jack handleTiedown eyelet
Lug wrench
Bolt for flat tire 4 Door
In Case of an Emergency
Flat Tire
7-3
Mazda3_8AR3-EA-09E_Edition2 Page347
Monday, June 1 2009 1:18 PM
Form No.8AR3-EA-09E

Black plate (348,1)
Spare tire
Jack Jack handle
Lug wrenchTiedown eyelet
Spare tire
Jack Jack handle
Lug wrenchTiedown eyelet
Bolt for flat tireBolt for flat tire 5 Door
(Type A)
(Type B)
7-4
In Case of an Emergency
Flat Tire
Mazda3_8AR3-EA-09E_Edition2 Page348
Monday, June 1 2009 1:18 PM
Form No.8AR3-EA-09E

Black plate (349,1)
qJack
To remove the jack
(4 Door)
1. Remove the cover.
2. Turn the wing bolt and jack screw
counterclockwise.
Wing boltJack screw
(5 Door)
1. Turn the knob and remove the cover.
2. Turn the wing bolt and jack screw
counterclockwise.
Wing boltJack screw
In Case of an Emergency
Flat Tire
7-5
Mazda3_8AR3-EA-09E_Edition2 Page349
Monday, June 1 2009 1:18 PM
Form No.8AR3-EA-09E

Black plate (350,1)
To secure the jack
1. Insert the wing bolt into the jack with
the jack screw pointing up and turn the
wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction
shown in the figure.
Wing boltJack screw
3. Turn the wing bolt completely to
secure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
qSpare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
on the front wheels (driving wheels):
Driving with the temporary spare tire
on one of the front driving wheels is
dangerous. Handling will be affected.
You could lose control of the vehicle,
especially on ice or snow bound
roads, and have an accident. Move a
regular tire to the front wheel and
install the temporary spare tire to the
rear.
7-6
In Case of an Emergency
Flat Tire
Mazda3_8AR3-EA-09E_Edition2 Page350
Monday, June 1 2009 1:18 PM
Form No.8AR3-EA-09E

Black plate (351,1)
CAUTION
ØWhen using the temporary spare
tire, driving stability may decrease
compared to when using only the
conventional tire. Drive carefully.
ØTo avoid damage to the temporary
spare tire or to the vehicle, observe
the following precautions:
ØDo not exceed 80 km/h (50
mph).
ØAvoid driving over obstacles.
Also, do not drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire, so the ground
clearance is reduced about
10 mm (0.4 in).
ØDo not use a tire chain on this
tire because it will not fit
properly.
ØDo not use your temporary
spare tire on any other vehicle,
it has been designed only for
your Mazda.
ØUse only one temporary spare
tire on your vehicle at the same
time.
Ø(With limited slip differential)
When using the temporary spare
tire on the front axle, replace it
with a standard tire as soon as
possible. The size difference
between the spare and the
standard tire will cause the limited
slip differential to malfunction.
NOTE
(With Tire Pressure Monitoring System)
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used (page 5-31).
To remove the spare tire
(4 Door)
1. Remove the trunk mat.
2. Turn the tire hold-down bolt
counterclockwise using the lug wrench.
(5 Door)
1. Remove the trunk mat.
In Case of an Emergency
Flat Tire
7-7
Mazda3_8AR3-EA-09E_Edition2 Page351
Monday, June 1 2009 1:18 PM
Form No.8AR3-EA-09E

Black plate (352,1)
2. For vehicles equipped with a sub-
woofer, uncouple the connector.
Connector
NOTE
Extra strength may be required to uncouple the
connector. Be sure to squeeze the tab firmly.
3. For vehicles equipped with a sub-
woofer, loosen the hold-down bolt and
remove the woofer and spare tire.
For vehicles not equipped with a sub-
woofer, loosen the hold-down bolt and
remove the spare tire.
To secure the spare tire
Perform the removal procedure in reverse.
Secure the spare tire using the hold-down
bolt and tire clamp in the correct position
as illustrated.
NOTE
(5 Door)
When storing a conventional tire in a vehicle
equipped with a sub-woofer, you cannot
connect the connector on the trunk board.
Without sub-woofer
Tire clampTire hold-down bolt
7-8
In Case of an Emergency
Flat Tire
Mazda3_8AR3-EA-09E_Edition2 Page352
Monday, June 1 2009 1:18 PM
Form No.8AR3-EA-09E
