2010 MAZDA MODEL MAZDASPEED 3 Owners Manual (in English)

Black plate (417,1)
2. Remove the cover.
Left side
Right side
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
Reverse lights
(4 Door)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Pull the center of each plastic retainer
and remove the retainers and the trunk
end trim.
InstallationRemoval
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
(5 Door)
1. Make sure the ignition is switched off,
and the headlight switch is off.
Maintenance and Care
Owner Maintenance
8-47
Mazda3_8AR3-EA-09E_Edition2 Page417
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (418,1)
2. Remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
High-mount brake light
(4 Door)
1. Make sure the ignition is switched off,
and the headlight switch is off.2. Pull the center of each plastic retainer
and remove the retainers and the trunk
end trim.
InstallationRemoval
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
(5 Door)
With LED bulb
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible. The
rear combination component must be replaced.
8-48
Maintenance and Care
Owner Maintenance
Mazda3_8AR3-EA-09E_Edition2 Page418
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (419,1)
With Non-LED bulb
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Remove the liftgate upper trim.
3. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector sideward to the
left.
4. Turn the socket and bulb assembly
counterclockwise and remove it.5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order
of removal.
License plate lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens,
and then remove the lens by carefully
prying on the edge of the lens with a
flathead screwdriver.
Maintenance and Care
Owner Maintenance
8-49
Mazda3_8AR3-EA-09E_Edition2 Page419
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

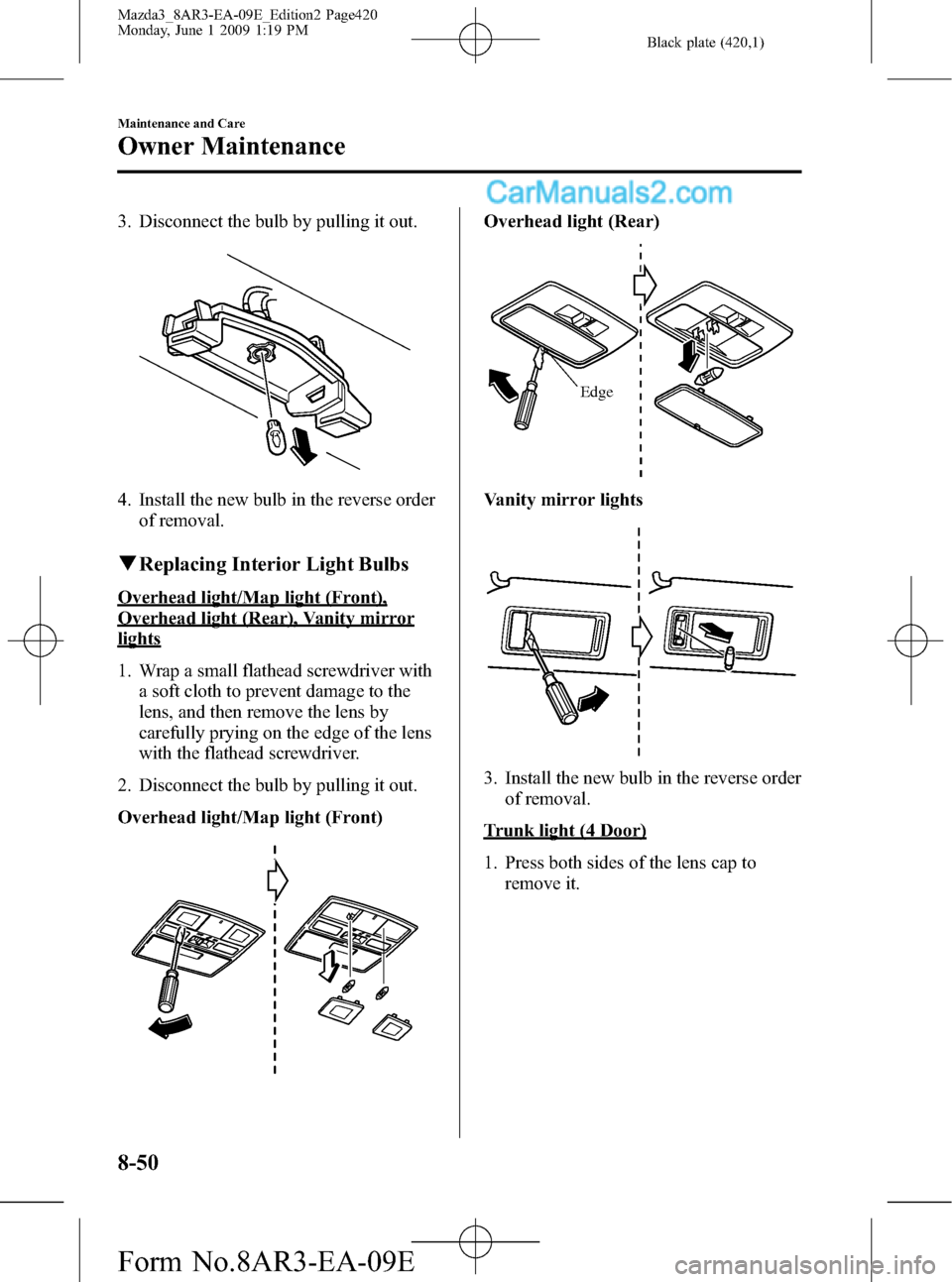

Black plate (420,1)
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order
of removal.
qReplacing Interior Light Bulbs
Overhead light/Map light (Front),
Overhead light (Rear), Vanity mirror
lights
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Overhead light/Map light (Front)
Overhead light (Rear)
Edge
Vanity mirror lights
3. Install the new bulb in the reverse order
of removal.
Trunk light (4 Door)
1. Press both sides of the lens cap to
remove it.
8-50
Maintenance and Care
Owner Maintenance
Mazda3_8AR3-EA-09E_Edition2 Page420
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (421,1)
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
Luggage compartment light (5 Door)
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.
1. Turn off the ignition switch and other
switches.
2. Remove the cover.
Maintenance and Care
Owner Maintenance
8-51
Mazda3_8AR3-EA-09E_Edition2 Page421
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (422,1)
3. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
4. Inspect the fuse and replace it if it's
blown.
NormalBlown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
8-52
Maintenance and Care
Owner Maintenance
Mazda3_8AR3-EA-09E_Edition2 Page422
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (423,1)
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
Maintenance and Care
Owner Maintenance
8-53
Mazda3_8AR3-EA-09E_Edition2 Page423
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (424,1)
qFuse Panel Description
Fuse block (Engine compartment)
32 33 34 35
36 37 38 39
5 4 1 2 3 678
13 12 14 15 16
22
11 10 9
21 20 19
23 24 25
29 30 3127
28 26 17 18
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 FAN 2 40 A Cooling fan
í
2 ENG MAIN 40 A Engine control system
3 BTN 1 50 A For protection of various circuits
4 A/C MAG 7.5 A Air conditioner
5 H/L HI 20 A Headlight high beam
6 FOG 15 A Fog lights
í
7 H/L WASH――
8 SUNROOF 15 A Moonroofí
9 F.DEF RH――
10 F.DEF LH――
11 FAN 1 40 A Cooling fan
12 ROOM 15 A Interior lights
13 TCM 15 A TCM
í
14 DSC 20 A Dynamic Stability Control systemí
15 BTN 2 7.5 A For protection of various circuits
16 AT PUMP――
17 HEATER 40 A Heater
8-54
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8AR3-EA-09E_Edition2 Page424
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E
