2010 MAZDA MODEL MAZDASPEED 3 Owners Manual (in English)

Black plate (17,1)
qSeat Recline
WARNING
Do not drive with either front seat
reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in the passenger seat
properly with the seatback upright and
feet on the floor:
Your front passenger seat has weight
sensors, sitting in the front passenger
seat improperly out of position or
with the seatback reclined too far
while the vehicle is moving is
dangerous as it can take off weight
from the seat bottom and affect the
weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could result in serious injury. Always
sit upright against the seatback with
your feet on the floor.Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
Mazda3_8AR3-EA-09E_Edition2 Page17
Monday, June 1 2009 1:16 PM
Form No.8AR3-EA-09E

Black plate (18,1)
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
qHeight Adjustment (Driver's Seat)
To adjust the seat height, move the lever
up or down.
DownUp
Front Seats (Electrically
Operated Seats)
The power operated seat is available only
on the driver's seat. The front passenger
seat is manually operated.
Refer to Front Seats (Manually Operated
Seats) (page 2-2) for adjustment
instructions.
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
2-4
Essential Safety Equipment
Seats
Mazda3_8AR3-EA-09E_Edition2 Page18
Monday, June 1 2009 1:16 PM
Form No.8AR3-EA-09E

Black plate (19,1)

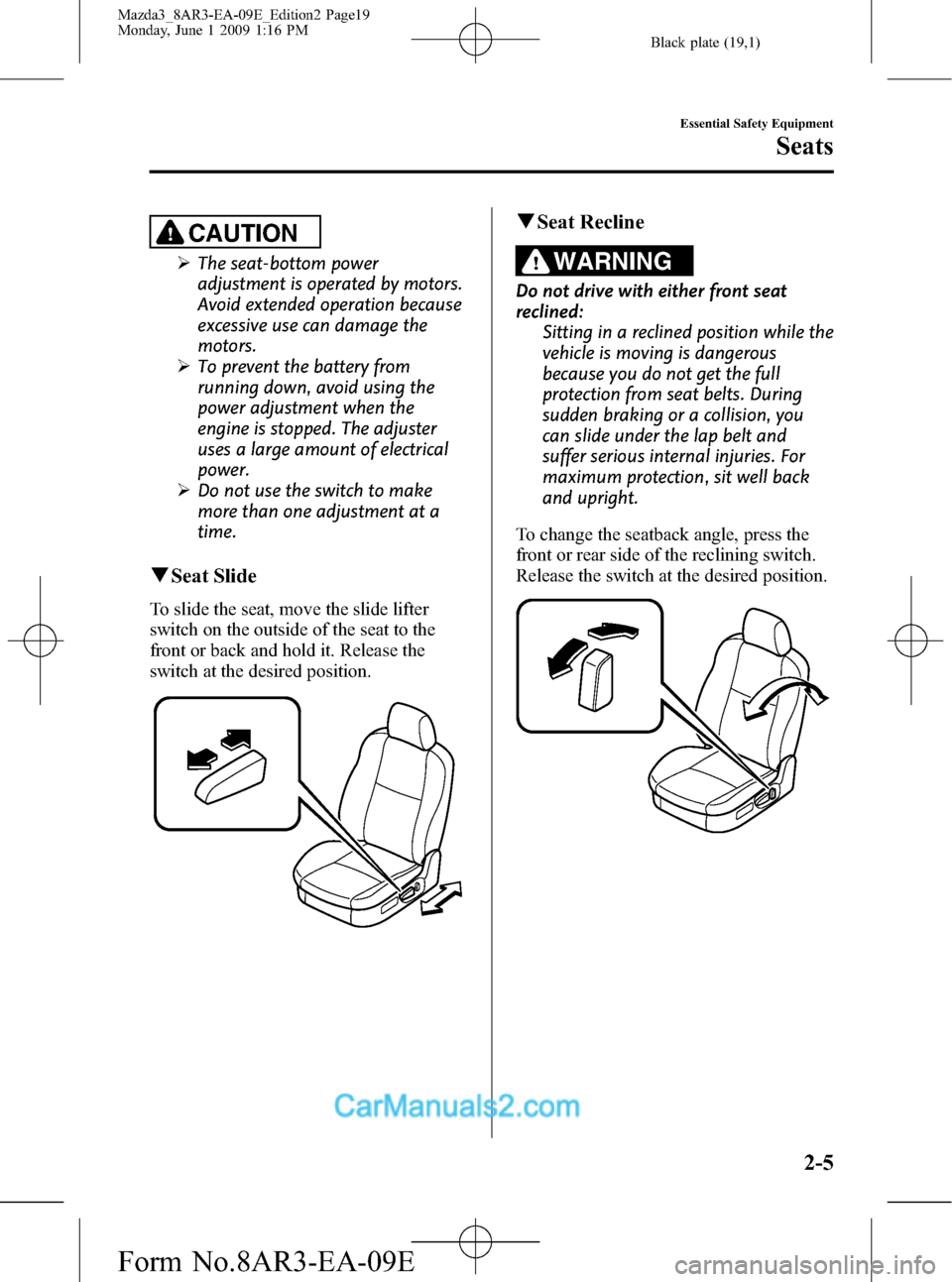

CAUTION
ØThe seat-bottom power
adjustment is operated by motors.
Avoid extended operation because
excessive use can damage the
motors.
ØTo prevent the battery from
running down, avoid using the
power adjustment when the
engine is stopped. The adjuster
uses a large amount of electrical
power.
ØDo not use the switch to make
more than one adjustment at a
time.
qSeat Slide
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
qSeat Recline
WARNING
Do not drive with either front seat
reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
To change the seatback angle, press the
front or rear side of the reclining switch.
Release the switch at the desired position.
Essential Safety Equipment
Seats
2-5
Mazda3_8AR3-EA-09E_Edition2 Page19
Monday, June 1 2009 1:16 PM
Form No.8AR3-EA-09E

Black plate (20,1)
qHeight Adjustment
To adjust the seat height, move the switch
up or down.
qSeat Position Memory
One-touch seat position programming and
activation is available on the driver's seat.
CAUTION
When activating the seat position, do
not place your hands or fingers
around the seat bottom. The seat
moves to the desired position
automatically, and if your hands or
fingers are placed around the seat
bottom, it could cause injury.
Set button
Programming of the driver's seat positions
is possible using the following functions:
lProgramming buttons 1, 2, or 3 and the
set button.
lOperation using the advanced key/
retractable type keyí
Programmed seat positions can be
activated using the following functions:
lProgramming buttons 1, 2, or 3.lOperation using advanced keyless
functions/keyless entry systemí
NOTE
(With advanced key/retractable type key)
Individual seat positions can be programmed
to the three available programming buttons on
the side of the driver's seat, plus one seat
position for each advanced key/retractable
type key used with the vehicle.
2-6
Essential Safety Equipment
íSome models.
Seats
Mazda3_8AR3-EA-09E_Edition2 Page20
Monday, June 1 2009 1:16 PM
Form No.8AR3-EA-09E

Black plate (21,1)
Operation using the seat-side buttons
Programming
Park the vehicle in a safe location before
performing the seat position
programming. (Vehicle must be stopped)
1. Adjust the seat to the desired position.
For each seat position adjustment
method refer to the following pages:
Seat Slide (page 2-5)
Seat Recline (page 2-5)
Height Adjustment (page 2-6)
2. Press the desired programming button
1, 2, or 3 while pressing the set button
until a beep sound is heard.
The button is programmed after a beep
sound is heard. Other buttons can be
programmed using the same procedure.
NOTE
Vehicle maintenance or other reasons
requiring the vehicle battery to be
disconnected will result in the seat position
memory being erased.
In this case, re-program the seat positions.
Setting the driver's seat to a pre-
programmed position
There are two methods for setting the
driver's seat to a pre-programmed
position. For example, the type A method
can be used before sitting in the seat and
while the driver's door is open, and the
type B method can be used after getting in
the vehicle with the driver's door closed.
TYPE A
When the ignition switched off and the
driver's door is open, press the
programming button 1, 2, or 3 for the
desired seating position.NOTE
In the following cases, the seat position set
function cancels:
lAny of the seat adjustment switches are
operated.
lThe set button is pressed.lA programming button 1, 2, or 3 is pressed.lThe vehicle starts moving.lVehicle locking/unlocking is done using the
transmitter.
TYPE B
When the ignition is switched ON or the
driver's door is closed, press and hold the
desired programming button 1, 2, or 3.
NOTE
In the following cases, the seat position set
function cancels:
lAny of the seat adjustment switches are
operated.
lThe set button is pressed.lThe vehicle starts moving.
Operation using the advanced key/
retractable type keyí
With advanced key
Lock button
Unlock button
Essential Safety Equipment
Seats
2-7íSome models. Mazda3_8AR3-EA-09E_Edition2 Page21
Monday, June 1 2009 1:16 PM
Form No.8AR3-EA-09E

Black plate (22,1)
With retractable type key
Lock buttonUnlock button
Operation
indicator light
Programming
One seat position can be programmed into
each advanced key/retractable type key.
After the following conditions have been
met, operate the seat and the advanced
key/retractable type key to program the
seat positions.
lThe ignition switched off
(The auxiliary key/retractable type key
is removed from the ignition switch)
lThe driver's door is open
1. Adjust the seat to the desired position.
For each seat position adjustment
method, refer to the following pages:
Seat Slide (page 2-5)
Seat Recline (page 2-5)
Height Adjustment (page 2-6)
2. Press and hold the unlock button on the
advanced key/retractable type key
while pressing the set button until a
beep sound is heard.
The advanced key/retractable type key
is programmed after a beep sound is
heard.Seat position memory setting procedure
To set the driver's seat to pre-programmed
position, switch the ignition off, unlock
the doors using any of the following
methods, and then open the driver's door
within about 40 seconds.
lPress the unlock switch on the
advanced key/retractable type key.
lPress the request switch on a front door
while the advanced key is being
carried.
NOTE
If any of the following occurs, the seat position
activation function cancels:
lThe lock/unlock button is pressed while the
key is not inserted into the ignition switch
or the key slot.
lA seat adjustment switch is operated.lThe vehicle starts moving.lThe selected programming button 1, 2, or 3
is pressed.
lThe set button is pressed.
Erasing memory
After the following conditions have been
met, press the lock button on the
advanced key/retractable type key while
pressing the set button until a beep sound
is heard.
lThe ignition switched off
(The auxiliary key/retractable type key
is removed from the ignition switch)
lThe driver's door is open
NOTE
Memory will also be erased if any of the
following operations are performed:
lThe advanced key/retractable type key code
has been changed.
Refer to Immobilizer System (with
Advanced Key) on page 3-54.
Refer to Immobilizer System on page 3-58.
lThe vehicle battery is disconnected for
vehicle maintenance or other reasons.
2-8
Essential Safety Equipment
Seats
Mazda3_8AR3-EA-09E_Edition2 Page22
Monday, June 1 2009 1:16 PM
Form No.8AR3-EA-09E

Black plate (23,1)

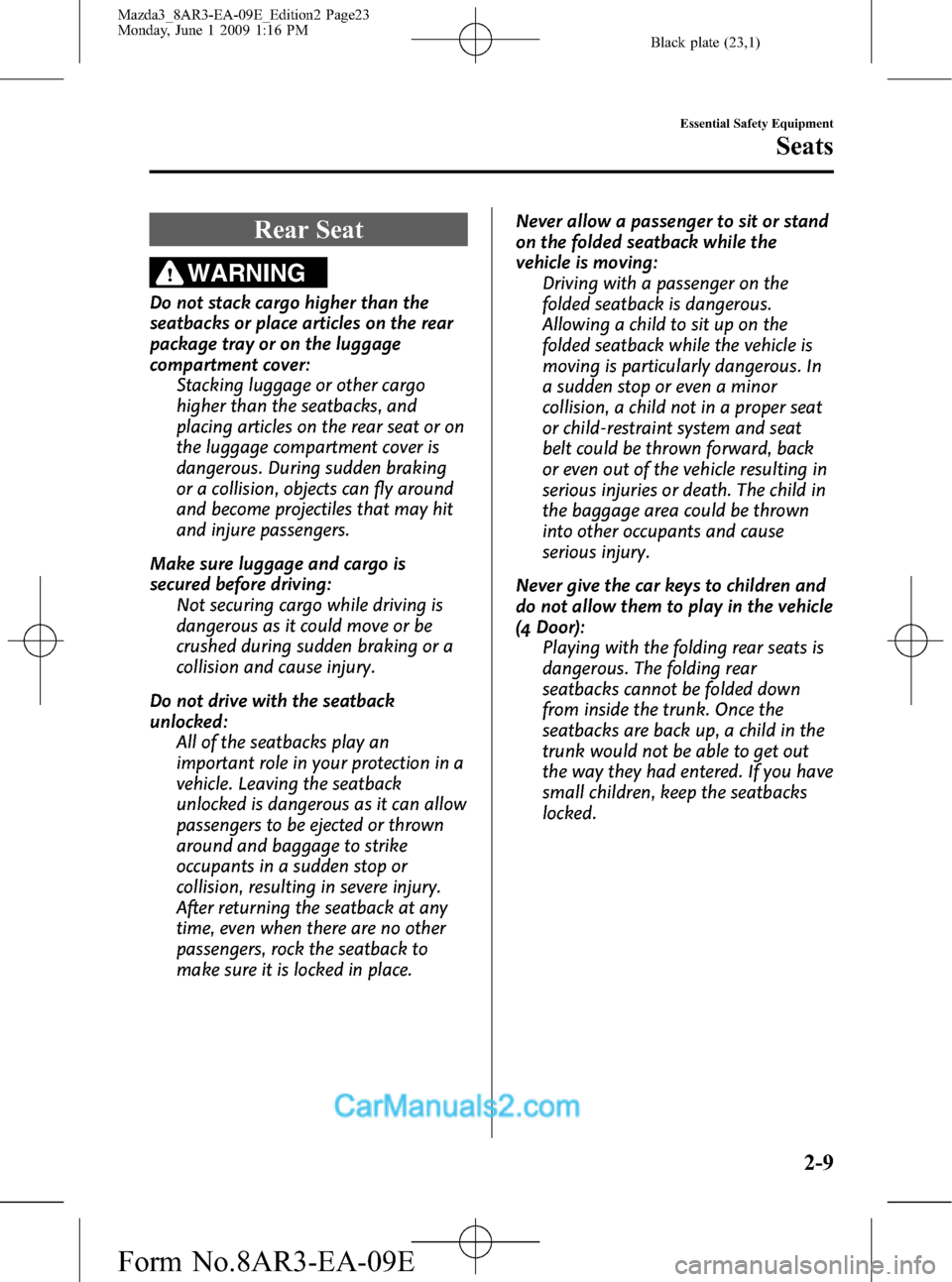

Rear Seat
WARNING
Do not stack cargo higher than the
seatbacks or place articles on the rear
package tray or on the luggage
compartment cover:
Stacking luggage or other cargo
higher than the seatbacks, and
placing articles on the rear seat or on
the luggage compartment cover is
dangerous. During sudden braking
or a collision, objects can fly around
and become projectiles that may hit
and injure passengers.
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After returning the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:
Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
Never give the car keys to children and
do not allow them to play in the vehicle
(4 Door):
Playing with the folding rear seats is
dangerous. The folding rear
seatbacks cannot be folded down
from inside the trunk. Once the
seatbacks are back up, a child in the
trunk would not be able to get out
the way they had entered. If you have
small children, keep the seatbacks
locked.
Essential Safety Equipment
Seats
2-9
Mazda3_8AR3-EA-09E_Edition2 Page23
Monday, June 1 2009 1:16 PM
Form No.8AR3-EA-09E

Black plate (24,1)
Always leave your car locked and keep
the car keys safely away from children:
Leaving your car unlocked or the
keys in reach of children is
dangerous. Children who find their
way into the trunk through an
unlocked rear seatback or an open
trunk can become accidentally locked
in the trunk. This could result in
death or brain damage from heat
prostration, particularly in the
summer. Always lock the doors and
the trunk, and as an added measure,
keep the rear seatbacks locked,
whether you have children in your
home or not.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may find these new
kinds of keys to be an interesting toy
to play with and could cause the
power windows or other controls to
operate, or even make the vehicle
move.
NOTE
When returning a rear seat to its original
position, also replace the seat belt to its
normal position. Verify that the seat belt pulls
out and retracts.
qSplit-Folding Rear Seatback
To fold the seatbacks
CAUTION
When operating the rear seatback
knob, make sure you support the
seatback with your hand. If the
seatback is not supported with your
hand, it will flip forward suddenly
and could cause injury to the finger
that pushes the rear seatback knob
down.
1. Position the outboard seat belts to the
side when folding the seatbacks down.
2. Support the seatback with your hand.
3. Push the rear seatback knob down.
To return the seatbacks to the upright
position
1. Position the outboard seat belts to the
side.
2. Lift the seatbacks upright.
3. Make sure the seat belts are fully
pulled out from under the seatbacks.
4. Pull on the top of the seatbacks from
inside the vehicle to make sure they are
locked.
2-10
Essential Safety Equipment
Seats
Mazda3_8AR3-EA-09E_Edition2 Page24
Monday, June 1 2009 1:16 PM
Form No.8AR3-EA-09E
