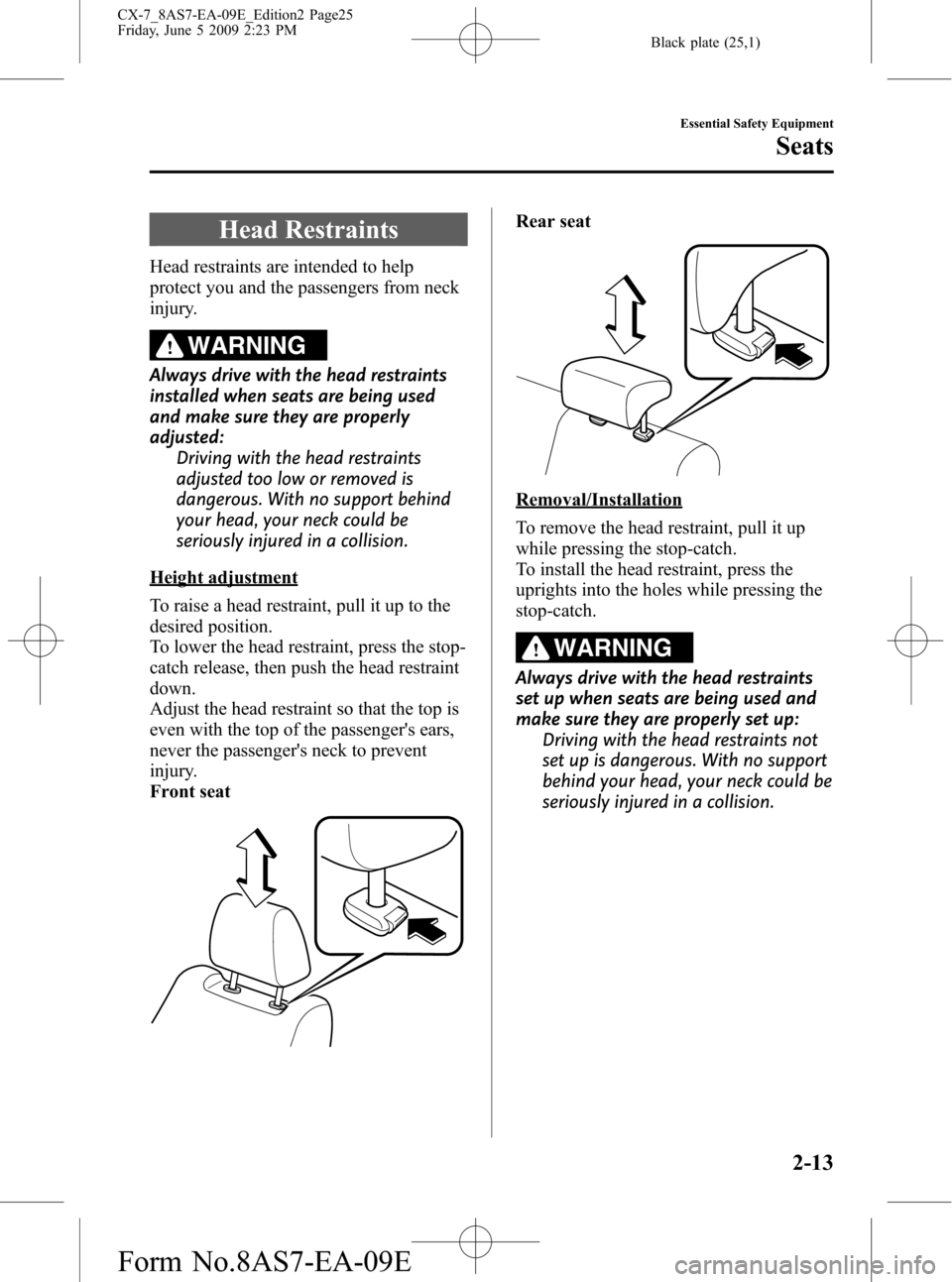

Head Restraints
Head restraints are intended to help
protect you and the passengers from neck
injury.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck to prevent
injury.
Front seat
Rear seat
Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, press the
uprights into the holes while pressing the
stop-catch.
WARNING
Always drive with the head restraints
set up when seats are being used and
make sure they are properly set up:
Driving with the head restraints not
set up is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
Essential Safety Equipment
Seats
2-13
CX-7_8AS7-EA-09E_Edition2 Page25
Friday, June 5 2009 2:23 PM
Form No.8AS7-EA-09E

Black plate (26,1)
Seat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
WARNING
ØBe careful when using the seat
warmer. The heat from the seat
warmer may be too hot for some
people, as indicated below, and
could cause a low-temperature
burn.
ØInfants, small babies, elderly
people, and physically
challenged people
ØPeople with delicate skin
ØPeople who are excessively
fatigued
ØPeople who are drunk
ØPeople who have taken sleep-
inducing medicine such as
sleeping pills or cold medicine
ØDo not use the seat warmer with
anything having high moisture-
retention ability such as a blanket
or cushion on the seat. The seat
may be heated excessively and
cause a low-temperature burn.
ØDo not use the seat warmer even
when taking a short nap in the
vehicle. The seat may be heated
excessively and cause a low-
temperature burn.
ØDo not place heavy objects with
sharp projections on the seat, or
insert needles or pins into it. This
could cause the seat to become
excessively heated and result in
injury from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
2-14
Essential Safety Equipment
íSome models.
Seats
CX-7_8AS7-EA-09E_Edition2 Page26
Friday, June 5 2009 2:23 PM
Form No.8AS7-EA-09E

Black plate (27,1)
NOTE
Use the seat warmer when the engine is
running, and do not continue to use it for a
long period of time.
The temperature of the seat warmer cannot be
adjusted beyond High and Low because the
seat warmer is controlled by a thermostat.
Essential Safety Equipment
Seats
2-15
CX-7_8AS7-EA-09E_Edition2 Page27
Friday, June 5 2009 2:23 PM
Form No.8AS7-EA-09E

Black plate (28,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
2-16
Essential Safety Equipment
Seat Belt Systems
CX-7_8AS7-EA-09E_Edition2 Page28
Friday, June 5 2009 2:23 PM
Form No.8AS7-EA-09E

Black plate (29,1)
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has
been expended:
One or both front air bags may deploy, and the corresponding pretensioner(s) may
also deploy at the same time. Like the air bags, the front seat belt pretensioners will
only function once. While it is safer to use a post-crash (a seat belt that was used in
an accident) than no front seat belt at all, using a front seat belt with an expended
pretensioner or load limiter loaded reduces the safety available to you. If the front
seat belt pretensioners are not replaced, the risk of injury in a collision will increase.
Expended front seat belt pretensioners and air bags must be replaced after any
collision which caused them to deploy. Additionally, the load limiter will only limit
loads on the chest once in a collision and this is another reason to have the front
seat belts inspected. Always have an Authorized Mazda Dealer inspect the front seat
belt pretensioners and air bags after any collision.
In a rollover crash, an unbelted person is significantly more likely to die than a
person wearing a seat belt.
Essential Safety Equipment
Seat Belt Systems
2-17
CX-7_8AS7-EA-09E_Edition2 Page29
Friday, June 5 2009 2:23 PM
Form No.8AS7-EA-09E

Black plate (30,1)
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to“Cleaning the
Lap/Shoulder Belt Webbing”(page 8-61).
qPregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it
out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again
slowly.
2-18
Essential Safety Equipment
Seat Belt Systems
CX-7_8AS7-EA-09E_Edition2 Page30
Friday, June 5 2009 2:23 PM
Form No.8AS7-EA-09E

Black plate (31,1)
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-30).
Essential Safety Equipment
Seat Belt Systems
2-19
CX-7_8AS7-EA-09E_Edition2 Page31
Friday, June 5 2009 2:23 PM
Form No.8AS7-EA-09E

Black plate (32,1)
Seat Belt (Except Center-
Rear Position)
qFastening the Seat Belt
1. Grasp the seat belt tongue.
2. Slowly pull out the lap/shoulder belt.
Lap/shoulder
belt
Seat belt
tongue
3. Insert the seat belt tongue into the seat
belt buckle until you hear a click
sound.
Seat belt tongue
Seat belt
buckle
WARNING
Positioning the Shoulder Portion of the
Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
4. Position the lap belt as low as possible,
not on the abdominal area, then adjust
the shoulder belt so that it fits snugly
against your body.
Keep low on
hip bone
Too high Take up slack
WARNING
Positioning the Lap Portion of the Seat
Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
