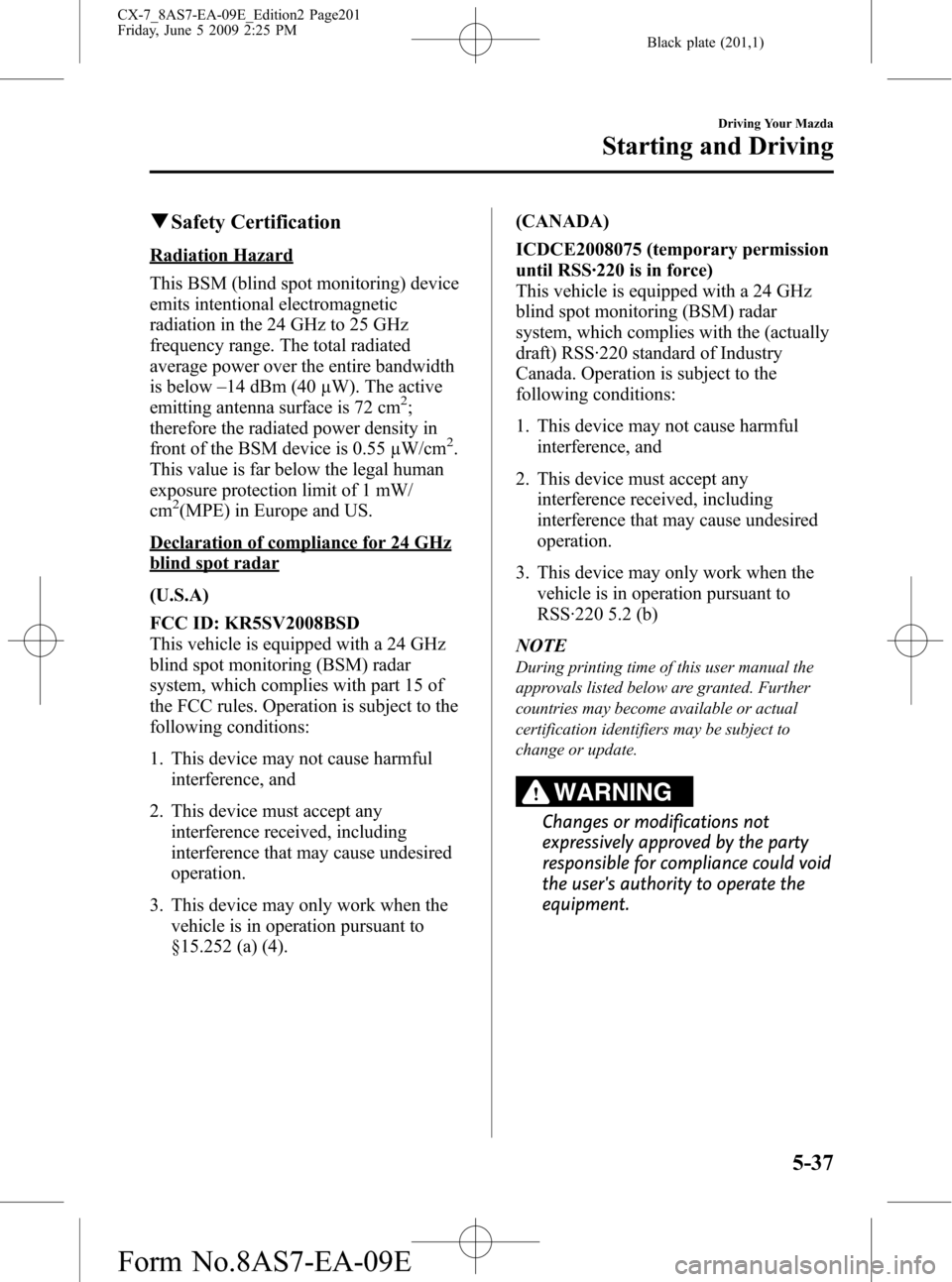

Black plate (201,1)
qSafety Certification
Radiation Hazard
This BSM (blind spot monitoring) device
emits intentional electromagnetic
radiation in the 24 GHz to 25 GHz
frequency range. The total radiated
average power over the entire bandwidth
is below_
14 dBm (40 µW). The active
emitting antenna surface is 72 cm
2;
therefore the radiated power density in
front of the BSM device is 0.55 µW/cm
2.
This value is far below the legal human
exposure protection limit of 1 mW/
cm
2(MPE) in Europe and US.
Declaration of compliance for 24 GHz
blind spot radar
(U.S.A)
FCC ID: KR5SV2008BSD
This vehicle is equipped with a 24 GHz
blind spot monitoring (BSM) radar
system, which complies with part 15 of
the FCC rules. Operation is subject to the
following conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. This device may only work when the
vehicle is in operation pursuant to
§15.252 (a) (4).(CANADA)
ICDCE2008075 (temporary permission
until RSS·220 is in force)
This vehicle is equipped with a 24 GHz
blind spot monitoring (BSM) radar
system, which complies with the (actually
draft) RSS·220 standard of Industry
Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. This device may only work when the
vehicle is in operation pursuant to
RSS·220 5.2 (b)
NOTE
During printing time of this user manual the
approvals listed below are granted. Further
countries may become available or actual
certification identifiers may be subject to
change or update.
WARNING
Changes or modifications not
expressively approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
Driving Your Mazda
Starting and Driving
5-37
CX-7_8AS7-EA-09E_Edition2 Page201
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (202,1)
Meters and Gauges
(Black-out meter)
When the ignition switch is in the ON position, the dashboard gauges illuminate.
Speedometer ...................................................................................................... page 5-39
Odometer, Trip Meter and Trip Meter Selector .................................................. page 5-39
Tachometer ........................................................................................................ page 5-40
Engine Coolant Temperature Gauge .................................................................. page 5-40
Fuel Gauge ........................................................................................................ page 5-41
Dashboard Illumination ..................................................................................... page 5-41
5-38
Driving Your Mazda
Instrument Cluster and Indicators
CX-7_8AS7-EA-09E_Edition2 Page202
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (203,1)
qSpeedometer
The speedometer indicates the speed of
the vehicle.
qOdometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them is
displayed. The selected mode will be
displayed.
Selector
Trip meter
Odometer
Odometer
OdometerTrip meter A
Press the selector
Press the selector Trip meter B
NOTE
When the ignition switch is turned to the ACC
or LOCK position, the odometer or trip meters
cannot be displayed, however, pressing the
selector button can inadvertently switch the
trip meters or reset them during an
approximate ten-minute period in the following
cases:
lAfter the ignition switch is turned to the
ACC or LOCK position from the ON
position.
lAfter the driver's door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
Driving Your Mazda
Instrument Cluster and Indicators
5-39
CX-7_8AS7-EA-09E_Edition2 Page203
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (204,1)
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0”by holding
the selector depressed for 1 second or
more. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:lThe power supply is interrupted (blown
fuse or the battery is disconnected).
lThe vehicle is driven over 999.9 km
(mile).
qTachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
Red zone
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine
damage.
qEngine Coolant Temperature Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle is near H, it indicates
overheating.
5-40
Driving Your Mazda
Instrument Cluster and Indicators
CX-7_8AS7-EA-09E_Edition2 Page204
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (205,1)
CAUTION
Driving with an overheated engine
can cause serious engine damage
(page 7-11).
qFuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition switch is in the ON position.
We recommend keeping the tank over 1/4
full. When the low fuel warning light
illuminates or when the needle is near E,
refuel as soon as possible.
Low fuel
warning lightFull
Approx. 1/4 Full
NOTElAfter refueling, it may require some time for
the needle to stabilize. In addition, the
needle may deviate while driving on a slope
or curve since the fuel moves in the tank.
lThe direction of the arrow () shows that
the fuel-filler lid is on the left side of the
vehicle.
qDashboard Illumination
Rotate the knob to adjust the brightness of
the instrument cluster and other
illuminations in the dashboard.
NOTE
lThe brightness of dashboard illuminations
can be adjusted when the headlight switch
is in the
orposition.lWhen the dashboard illumination
brightness cannot be adjusted any more, a
beep sound will be heard.
l(Black-out meter)
The brightness of the instrument cluster
illumination can be adjusted when the
headlight switch is in any position.
Dim
Bright
Canceling the illumination dimmer
When the headlight switch is in the
orposition, the illumination of the
instrument cluster and the information
display dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster or information display's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity.
Driving Your Mazda
Instrument Cluster and Indicators
5-41
CX-7_8AS7-EA-09E_Edition2 Page205
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (206,1)
To cancel the illumination dimmer, press
the dashboard illumination knob.
NOTE
lThis symbol () indicates the knob to
adjust the brightness of the dashboard
illumination.
lIf the illumination dimmer is cancelled, the
instrument cluster and the information
display will not dim when the headlight
switch is turned to the
orposition
again.
5-42
Driving Your Mazda
Instrument Cluster and Indicators
CX-7_8AS7-EA-09E_Edition2 Page206
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (207,1)
Warning/Indicator Lights
Warning/Indicator lights will appear in any of the highlighted areas Warning/Indicator lights will appear in any of the highlighted areas With Black-out meter With Black-out meter
Without Black-out meter Without Black-out meter
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-43
CX-7_8AS7-EA-09E_Edition2 Page207
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (208,1)
Signal Warning/Indicator Lights Page
Brake System Warning Light 5-45
Charging System Warning Light 5-47
Engine Oil Pressure Warning Light 5-47
Check Engine Light 5-48
ABS Warning Light 5-46
Air Bag/Front Seat Belt Pretensioner System Warning Light 5-48
Low Fuel Warning Light 5-49
Check Fuel Cap Warning Light 5-49
Seat Belt Warning Light/Beep 5-49
Door-Ajar Warning Light 5-51
Low Washer Fluid Level Warning Light 5-51
Automatic Transaxle Warning Light 5-51
AWD Warning Light 5-51
Tire Pressure Monitoring System Warning Light 5-52
KEY Warning Light (Red)/KEY Indicator Light (Green) 5-54
Security Indicator Light 5-55
5-44
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
CX-7_8AS7-EA-09E_Edition2 Page208
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E
