The theft deterrent system can also be
armed by activating the auto re-lock
function with all the doors, the liftgate and
the hood closed.
NOTE
Locking the doors with the inside door-lock
knob will not arm the system.
3. After 20 seconds, the system is fully
armed.NOTE
lAuto re-lock function
After unlocking with the transmitter or the
request switch, all doors and the liftgate
will automatically lock and the hazard
warning lights will flash if any of the
following operations are not performed
within about 30 seconds.
lA door or the liftgate is opened.lThe auxiliary key inserted into the
ignition switch (with advanced key).
lThe key is inserted in the ignition switch.lThe start knob is pushed (with advanced
key).
lThe ignition is switched ON.lThe system will disarm if one of the
following operations takes place within 20
seconds after closing and locking all the
doors and the liftgate:
lPressing the unlock button on the
transmitter.
lAny door or the liftgate is opened.lUnlocking a door with the inside door-
lock knob.
lUnlocking the driver's door with the key.lThe hood is opened.lThe key is inserted in the ignition switch.lThe auxiliary key inserted into the
ignition switch (With advanced key).
lThe start knob is pressed into the
ignition switch or a request switch is
pressed (With advanced key).
lThe ignition switch is turned to the ON
position.
To rearm the system, do the arming
procedure again.
lWhen the doors are locked by pressing the
lock button on the transmitter or request
switch on the front doors or using the key
while the theft-deterrent system is armed,
the hazard warning lights will flash once to
indicate that the system is armed.
Knowing Your Mazda
Security System
3-61
CX-7_8AS7-EA-09E_Edition2 Page137
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (138,1)
qTo Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and turn it to the ON position.
l(With advanced key)lPress a request switch or the unlock
button on the transmitter.
lTurn the start knob to the ON
position.
The hazard warning lights will flash twice
to indicate that the system is turned off.
NOTE
When the doors are unlocked by pressing the
unlock button on the transmitter or request
switch on the front doors or using the key
while the theft-deterrent system is turned off,
the hazard warning lights will flash twice to
indicate that the system is turned off.
qTo Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lThe engine is started with the ignition
key.
l(With advanced key)lPress a request switch.lPress the unlock button on the
transmitter.
lThe engine is started with the start
knob.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized Mazda
Dealer.
qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
3-62
Knowing Your Mazda
Security System
CX-7_8AS7-EA-09E_Edition2 Page138
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (139,1)
Steering Wheel
WARNING
Never adjust the steering wheel while
the vehicle is moving:
Adjusting the steering wheel while
the vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident.
qSteering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, pull down the lock
release lever under the steering
column.
Lock release lever
2. Tilt the steering wheel and/or adjust the
steering column length to the desired
positions, push the lever up to lock the
column.
3. Push the wheel up and down to be
certain it's locked before driving.
Mirrors
qOutside Mirrors
Check the mirror angles before driving.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Power mirror
The ignition switch must be in the ACC
or ON position.
To adjust:
1. Press the left or right side of the
selector switch to choose the left or
right side mirror.
Knowing Your Mazda
Steering Wheel and Mirrors
3-63
CX-7_8AS7-EA-09E_Edition2 Page139
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (140,1)

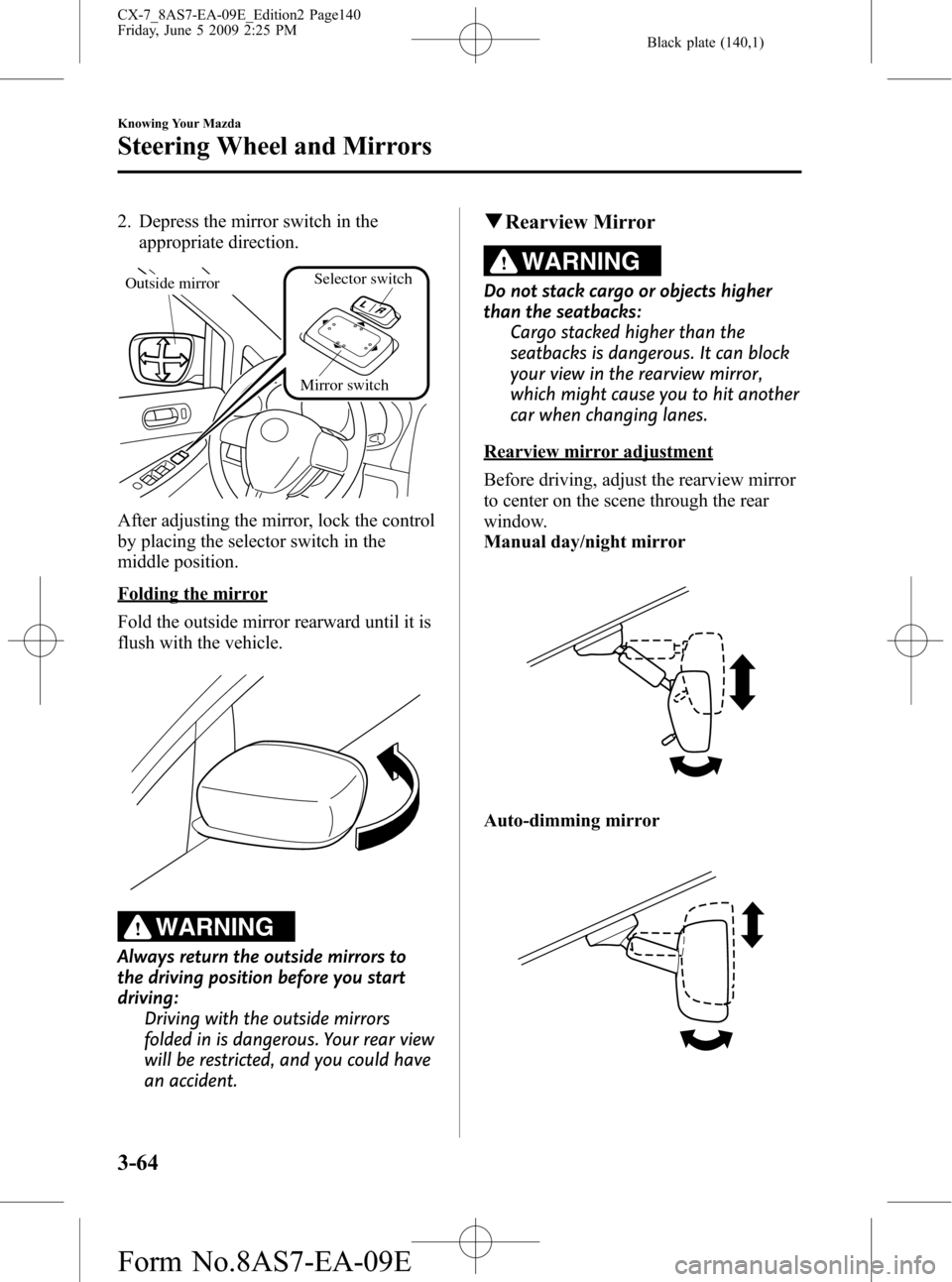

2. Depress the mirror switch in the
appropriate direction.
Outside mirror
Mirror switchSelector switch
After adjusting the mirror, lock the control
by placing the selector switch in the
middle position.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
qRearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Manual day/night mirror
Auto-dimming mirror
3-64
Knowing Your Mazda
Steering Wheel and Mirrors
CX-7_8AS7-EA-09E_Edition2 Page140
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (141,1)
NOTE
For the manual day/night mirror, perform the
adjustment with the day/night lever in the day
position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from cars at the rear.
Night DayDay/Night lever
Auto-dimming mirror
The auto-dimming mirror automatically
reduces glare of headlights from cars at
the rear when the ignition switch is in the
ON position.Press the OFF button (
) to cancel the
automatic dimming function. The
indicator light will turn off.
To reactivate the automatic dimming
function, press the ON button (
). The
indicator light will illuminate.
Indicator lightOFF button
ON button
Knowing Your Mazda
Steering Wheel and Mirrors
3-65
CX-7_8AS7-EA-09E_Edition2 Page141
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (142,1)
NOTElDo not use glass cleaner or suspend objects
on or around the light sensor. Otherwise,
light sensor sensitivity will be affected and
may not operate normally.
Light sensor
Light sensor
lFor information regarding the 3 buttons
(
,,) on the auto-dimming
mirror, refer to HomeLink Wireless Control
System (page 5-72).
3-66
Knowing Your Mazda
Steering Wheel and Mirrors
CX-7_8AS7-EA-09E_Edition2 Page142
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (143,1)
4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions ........................................ 4-2
Fuel Requirements .................................................................... 4-2
Emission Control System .......................................................... 4-4
Engine Exhaust (Carbon Monoxide) ......................................... 4-5
Before Starting the Engine ........................................................... 4-6
Before Getting In ...................................................................... 4-6
After Getting In ......................................................................... 4-6
Driving Tips ................................................................................... 4-7
Break-In Period ......................................................................... 4-7
Money-Saving Suggestions ...................................................... 4-7
Hazardous Driving .................................................................... 4-8
Floor Mat .................................................................................. 4-9
Rocking the Vehicle .................................................................. 4-9
Winter Driving ........................................................................ 4-10
Driving In Flooded Area ......................................................... 4-11
Overloading ............................................................................ 4-12
Driving on Uneven Road ........................................................ 4-13
Turbocharger Information
í.................................................... 4-14
Towing ......................................................................................... 4-15
Trailer Towing ......................................................................... 4-15
4-1íSome models.
CX-7_8AS7-EA-09E_Edition2 Page143
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (144,1)
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
Your Mazda will perform best with fuel listed in the table.
2.3-liter engine
Fuel Octane Rating*(Anti-knock index)
Premium unleaded fuel 91 [ (R
M)/2 method] (96 RON) recommended
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
This vehicle is designed to use 91 [ (RM)/2 method] (96RON) or higher gasoline for
best performance. If 91 [ (R
M)/2 method] (96RON) is not available, 87[ (RM)/2
method] (91RON) gasoline can be used. Use of gasoline lower than 91 [ (R
M)/2
method] (96RON) can decrease performance, deteriorate shift quality and cause engine
knocking during its use.
2.5-liter engine
Fuel Octane Rating
*(Anti-knock index)
Regular unleaded fuel 87 [ (R
M)/2 method] or above (91 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control system
to lose effectiveness. It could also cause engine knocking and serious engine damage.
CAUTION
ØUSE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead
to deterioration of the emission control system and or failures.
ØYour vehicle can only use oxygenated fuels containing no more than 10 % ethanol
by volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of
any kind if your vehicle engine is performing poorly.
ØNever add fuel system additives. Never add cleaning agents other than those
specified by Mazda. Other cleaning agents and additives may damage the system.
Consult an Authorized Mazda Dealer.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10 %. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name“Gasohol”.
4-2
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
CX-7_8AS7-EA-09E_Edition2 Page144
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E
